Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 2 illustrations

Illustrations

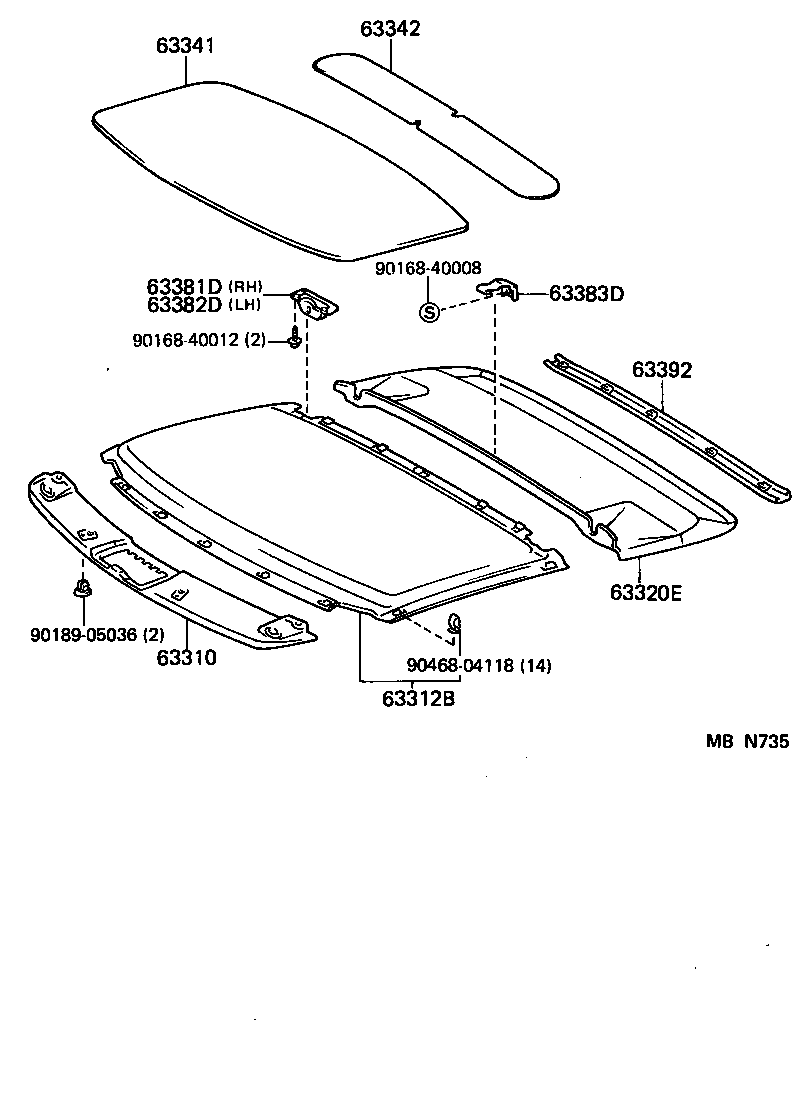

Figure MN0936 MN0936 1988-08 → — Figure MBN735 MBN735 1988-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310A Plug, Hole(FOR ROOF HEADLINING ASSY)
63312B Headlining, Roof, Center
63320E Headlining Assy, Roof, Rear
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63381D Garnish, Roof Headlining Trim, RH
63382D Garnish, Roof Headlining Trim, LH
63383D Retainer, Roof Headlining, Rear
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
