Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

6 part groups · 2 illustrations

Illustrations

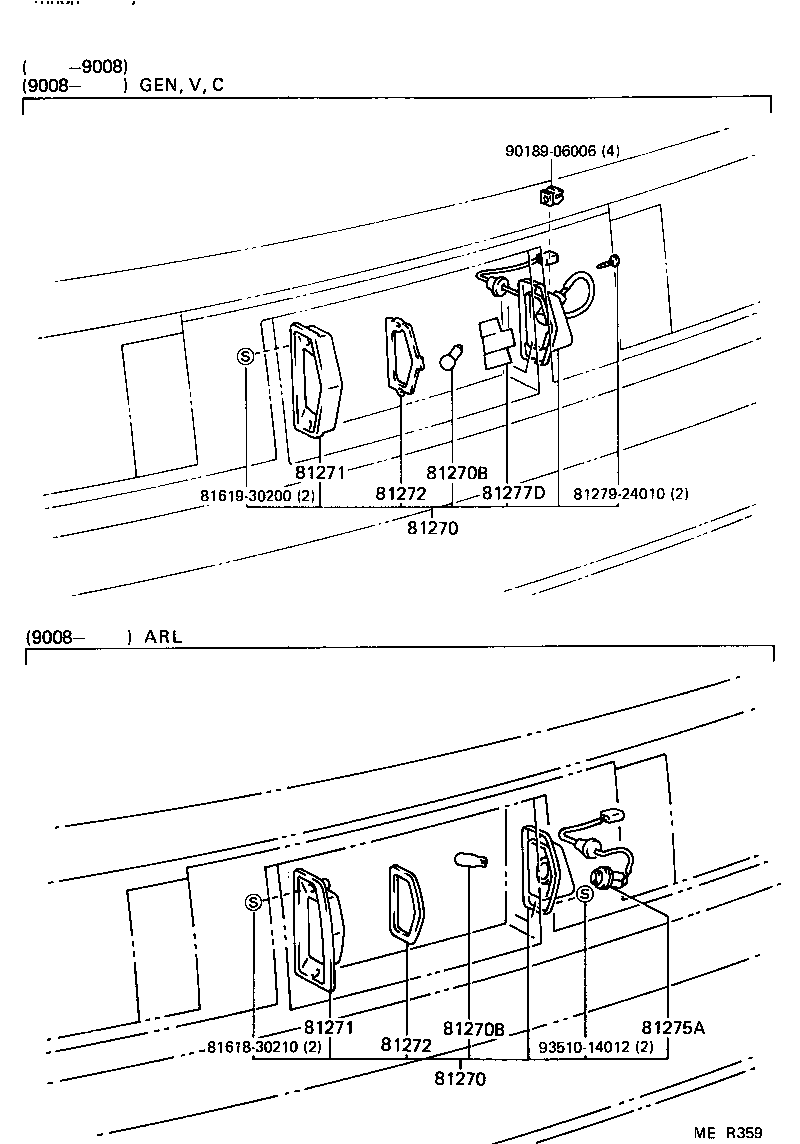

Figure MEL228A MEL228A 1988-08 → — Figure MER359 MER359 1988-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81275A Cord, License Plate Lamp
81277D Reflector, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
