Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

13 part groups · 3 illustrations

Illustrations

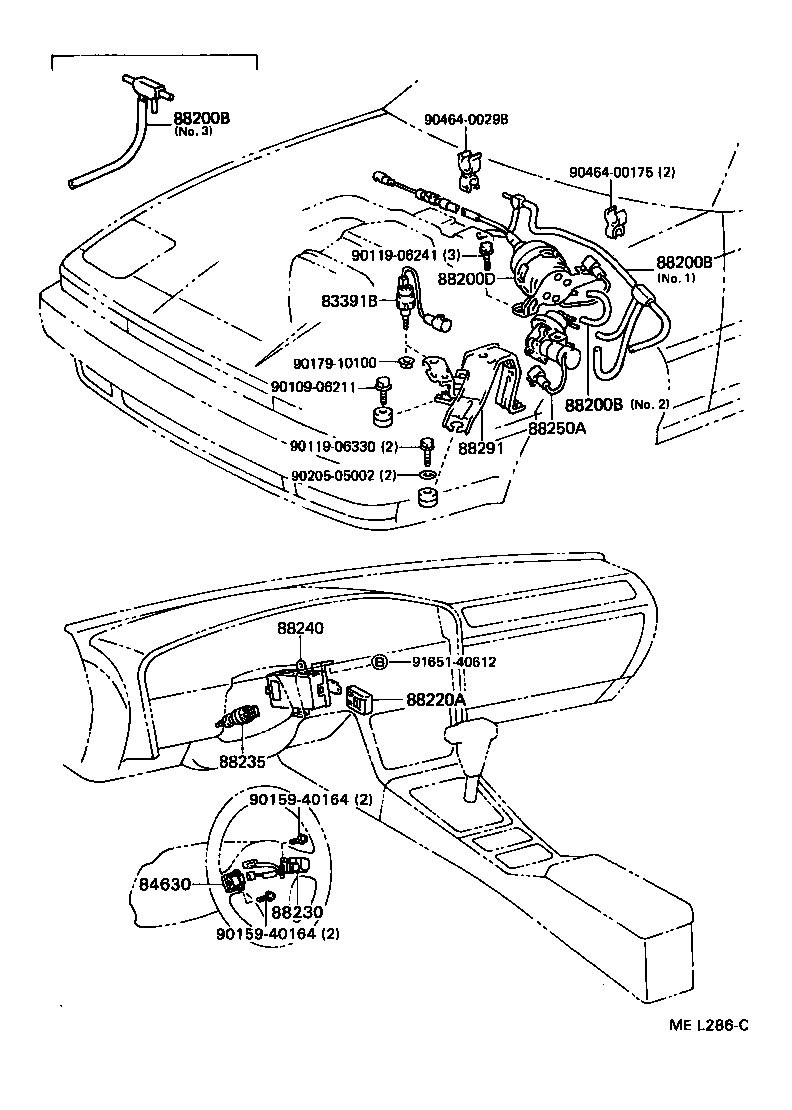

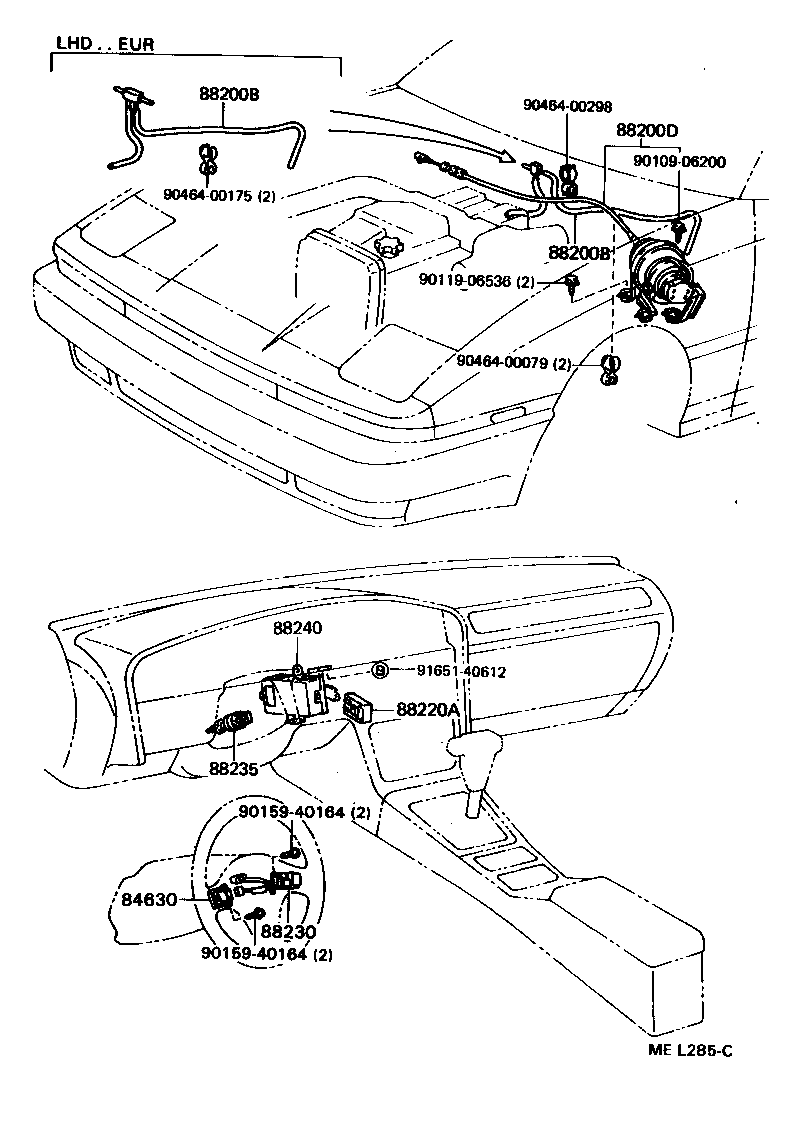

Figure MEL284D MEL284D 1988-08 → — Figure MEL285C MEL285C 1988-08 → — Figure MEL286C MEL286C 1988-08 → —

Part groups

PNCDescription
83391B Switch, Auto Drive Vacuum
84630 Switch Assy, Cruise Control Main
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88220A Relay Assy, Speed Control Main
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
88250A Pump Assy, Cruise Control
88252 Cushion, Vacuum Pump
88290A Bellcrank Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
88294 Bracket, Cruise Control(AUTO DRIVE) Main Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
