Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 3 illustrations

Illustrations

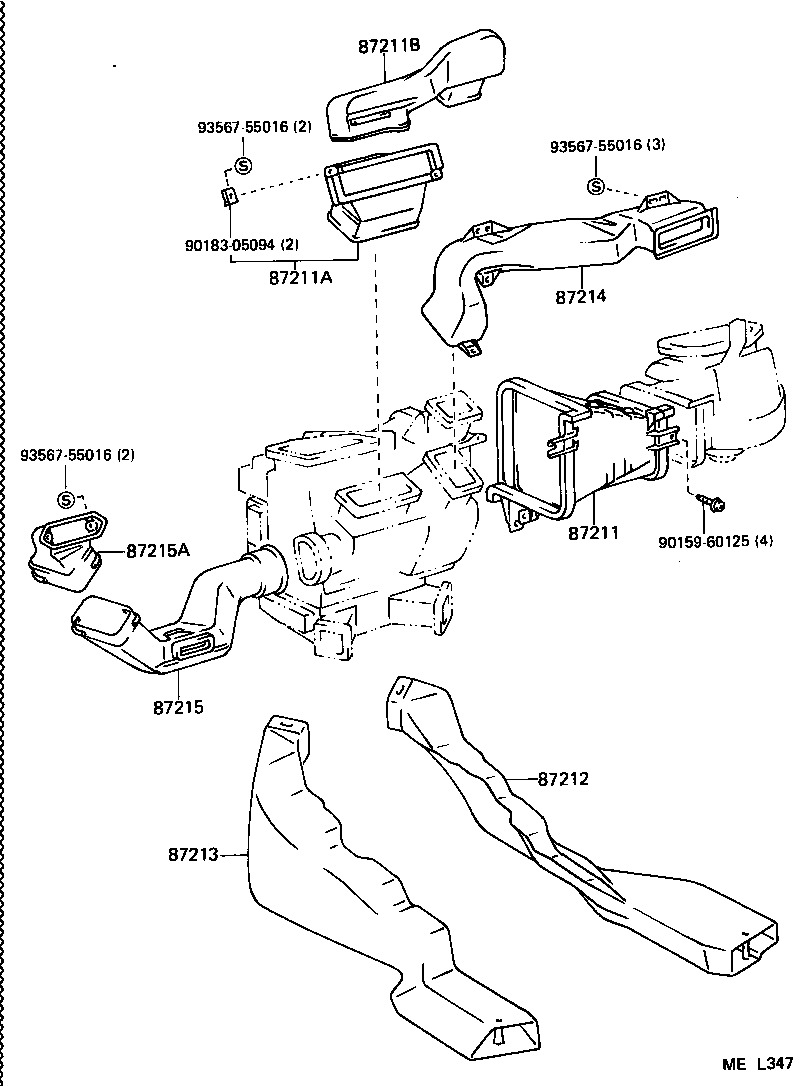

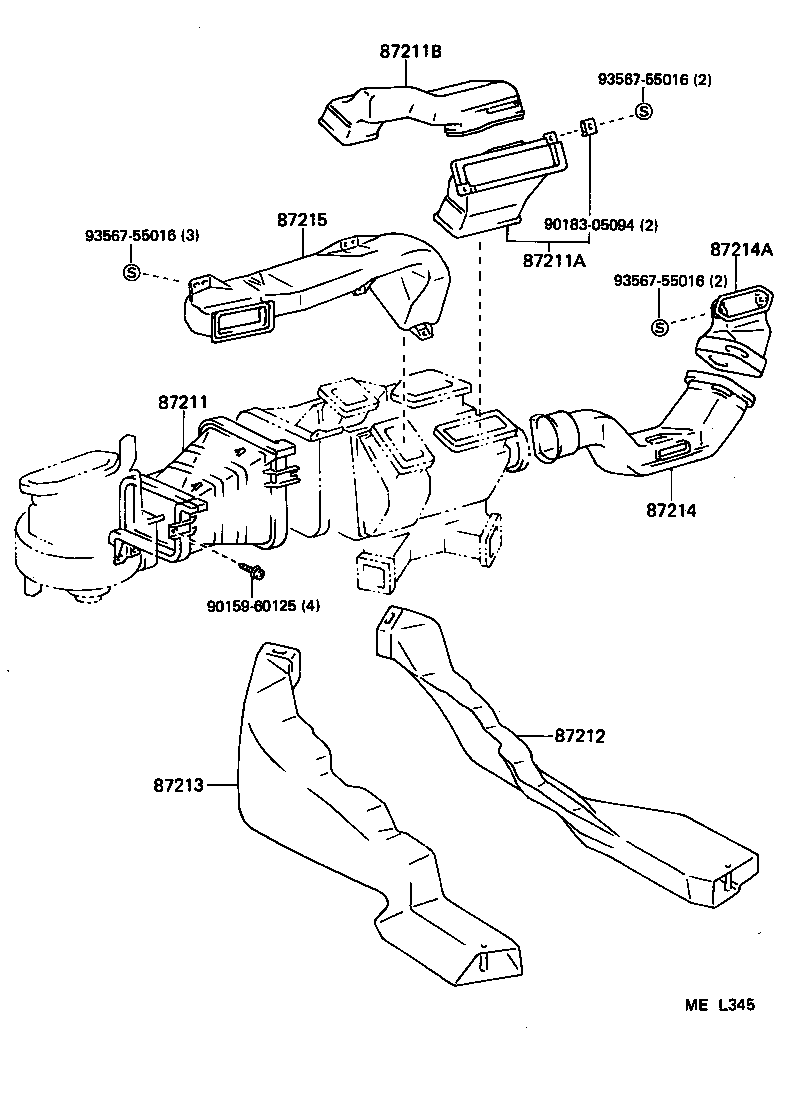

Figure MEL346B MEL346B 1988-08 → — Figure MEL345 MEL345 1988-08 → — Figure MEL347 MEL347 1988-08 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55910 Control Assy, Heater OR Boost Ventilator
55937A Knob, Cooler Control Lever
55939 Ornament, Heater Control
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
88625C Thermistor, Cooler
88894F Hose, Air
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
