Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291220 · Europe
Discontinued model
Data version 1993-11

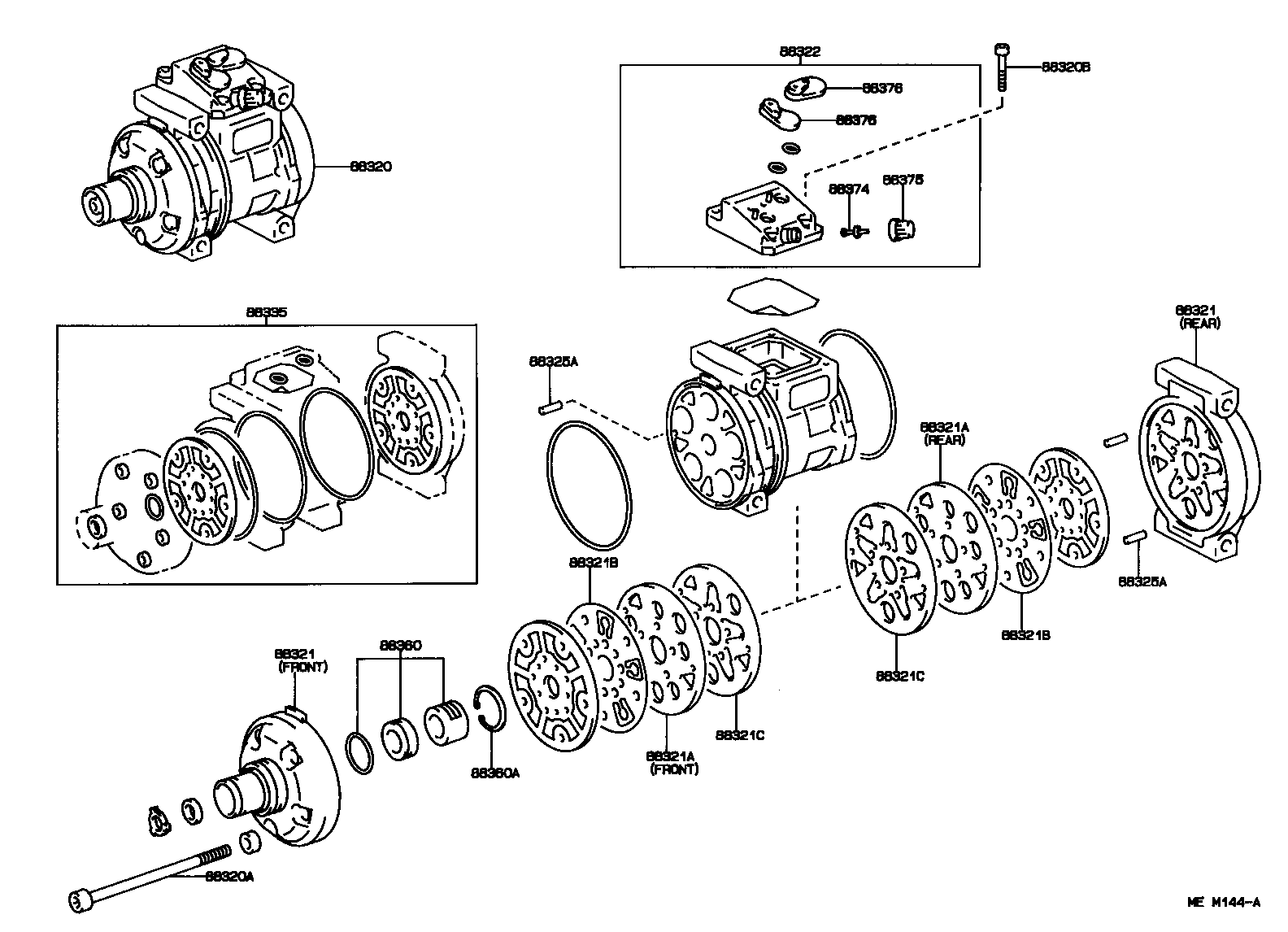

Heating & Air Conditioning - Compressor
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88320B | Bolt, Service Valve |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88321B | Reed Sub-assy, Valve |
| 88321C | Reed, Suction Valve |
| 88322 | Valve, Cooler Compressor Suction Service |
| 88325A | Pin, Cylinder Block |
| 88330 | Clutch Assy, Magnet |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88360 | Seal Assy, Cooler Compressor Shaft |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88374 | Valve, Cooler Compressor Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88596A | Plate, Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
