Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

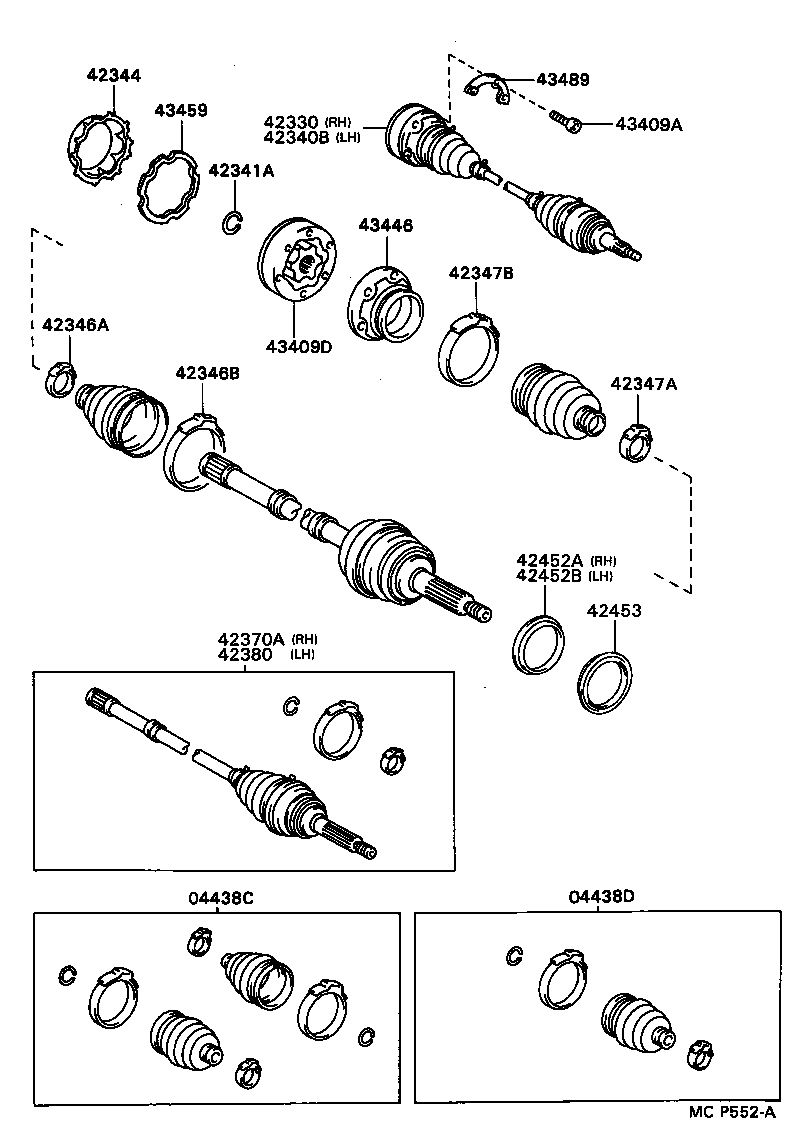

Exploded illustration MCP552A 42344 — COVER, REAR AXLE INBOARD JOINT END (1 parts) 43489 — WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT (1 parts) 43459 — GASKET, REAR AXLE INBOARD JOINT END COVER (1 parts) 42330 — SHAFT ASSY, REAR DRIVE, RH (3 parts) 43409A — BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) (1 parts) 42340B — SHAFT ASSY, REAR DRIVE, LH (3 parts) 42341A — RING, SNAP (FOR REAR DRIVE SHAFT) (1 parts) 43446 — COVER, REAR AXLE INBOARD JOINT (1 parts) 42347B — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) (1 parts) 42346A — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) (1 parts) 43409D — JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE (1 parts) 42346B — CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) (1 parts) 42347A — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) (1 parts) 42452A — DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH (1 parts) 42452B — DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH (1 parts) 42453 — DEFLECTOR, REAR WHEEL BEARING DUST, NO.3 (1 parts) 42370A — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH (9 parts) 42380 — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH (9 parts) 04438D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT (4 parts) 04438C — BOOT KIT, REAR DRIVE SHAFT (3 parts)
MCP552A · 20 callouts Full size ↗
45 parts on this figure
Part number Description Fitment Price
04438C — Boot Kit, Rear Drive Shaft
04437-24020 Boot Kit, Rear Drive Shaft
1993-05 → 1993-08 ended
JZA80 —
04437-24021 Boot Kit, Rear Drive Shaft
1993-08 → 1994-04 ended
JZA80 —
04437-24040 Boot Kit, Rear Drive Shaft
1994-04 → 1996-05 ended
JZA80 —
04438D — Boot Kit, Rear Drive Shaft Inboard Joint
04437-24010 note Boot Kit, Rear Drive Shaft Inboard Joint
1993-05 → 1993-08 ended
JZA80 —
04437-24011 note Boot Kit, Rear Drive Shaft Inboard Joint
1993-08 → 1994-04 ended
JZA80 —
04437-24030 Boot Kit, Rear Drive Shaft Inboard Joint
1994-04 → 1996-05 ended
JZA80 —
04437-24050 note Boot Kit, Rear Drive Shaft Inboard Joint
1993-05 → 1994-04 ended
JZA80 —
42330 — Shaft Assy, Rear Drive, RH
42330-24010 Shaft Assy, Rear Drive, RH
1993-05 → 1996-05 ended
JZA80 GEN —
42330-24020 note Shaft Assy, Rear Drive, RH
1993-05 → 1996-05 ended
JZA80 GEN —
42330-24030 Shaft Assy, Rear Drive, RH
1993-05 → 1996-05 ended
JZA80 EUR,GCC —
42340B — Shaft Assy, Rear Drive, LH
42340-14140 Shaft Assy, Rear Drive, LH
1993-05 → 1996-05 ended
JZA80 EUR,GCC —
42340-24040 Shaft Assy, Rear Drive, LH
1993-05 → 1996-05 ended
JZA80 GEN —
42340-24050 note Shaft Assy, Rear Drive, LH
1993-05 → 1996-05 ended
JZA80 GEN —
42341A — Ring, Snap (FOR REAR DRIVE SHAFT)
90520-26028 Ring, Snap (FOR REAR DRIVE SHAFT)
1993-05 → 1996-05 ended
JZA80 —
42344 — Cover, Rear Axle Inboard Joint End
42344-50011 Cover, Rear Axle Inboard Joint End
1993-05 → 1996-05 ended
JZA80 —
42346A — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01837 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-05 → 1996-05 ended
JZA80 —
42346B — Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01838 Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
1993-05 → 1996-05 ended
JZA80 —
42347A — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01837 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-05 → 1996-05 ended
JZA80 —
42347B — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01838 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
1993-05 → 1996-05 ended
JZA80 —
42370A — Shaft Assy, Rear Drive Outboard Joint, RH
42370-29096 Shaft Assy, Rear Drive Outboard Joint, RH
1993-05 → 1993-08 ended
JZA80 GEN —
42370-29097 Shaft Assy, Rear Drive Outboard Joint, RH
1993-08 → 1994-04 ended
JZA80 GEN —
42370-29098 Shaft Assy, Rear Drive Outboard Joint, RH
1994-04 → 1996-05 ended
JZA80 GEN —
42370-29106 note Shaft Assy, Rear Drive Outboard Joint, RH
1993-05 → 1993-08 ended
JZA80 GEN —
42370-29107 note Shaft Assy, Rear Drive Outboard Joint, RH
1993-08 → 1994-04 ended
JZA80 GEN —
42370-29108 note Shaft Assy, Rear Drive Outboard Joint, RH
1994-04 → 1996-05 ended
JZA80 GEN —
42370-29116 Shaft Assy, Rear Drive Outboard Joint, RH
1993-05 → 1993-08 ended
JZA80 EUR,GCC —
42370-29117 Shaft Assy, Rear Drive Outboard Joint, RH
1993-08 → 1994-04 ended
JZA80 EUR,GCC —
42370-29118 Shaft Assy, Rear Drive Outboard Joint, RH
1994-04 → 1996-05 ended
JZA80 EUR,GCC —
42380 — Shaft Assy, Rear Drive Outboard Joint, LH
42380-19025 Shaft Assy, Rear Drive Outboard Joint, LH
1993-05 → 1993-08 ended
JZA80 EUR,GCC —
42380-19026 Shaft Assy, Rear Drive Outboard Joint, LH
1993-08 → 1994-04 ended
JZA80 EUR,GCC —
42380-19027 Shaft Assy, Rear Drive Outboard Joint, LH
1994-04 → 1996-05 ended
JZA80 EUR,GCC —
42380-29016 Shaft Assy, Rear Drive Outboard Joint, LH
1993-05 → 1993-08 ended
JZA80 GEN —
42380-29017 Shaft Assy, Rear Drive Outboard Joint, LH
1993-08 → 1994-04 ended
JZA80 GEN —
42380-29018 Shaft Assy, Rear Drive Outboard Joint, LH
1994-04 → 1996-05 ended
JZA80 GEN —
42380-29026 note Shaft Assy, Rear Drive Outboard Joint, LH
1993-05 → 1993-08 ended
JZA80 GEN —
42380-29027 note Shaft Assy, Rear Drive Outboard Joint, LH
1993-08 → 1994-04 ended
JZA80 GEN —
42380-29028 note Shaft Assy, Rear Drive Outboard Joint, LH
1994-04 → 1996-05 ended
JZA80 GEN —
42452A — Deflecter, Rear Wheel Bearing Dust, NO.2 RH
42452-22030 Deflecter, Rear Wheel Bearing Dust, NO.2 RH
1993-05 → 1996-05 ended
JZA80 GEN —
42452B — Deflecter, Rear Wheel Bearing Dust, NO.2 LH
42452-22030 Deflecter, Rear Wheel Bearing Dust, NO.2 LH
1993-05 → 1996-05 ended
JZA80 GEN —
42453 — Deflector, Rear Wheel Bearing Dust, NO.3
42453-50010 Deflector, Rear Wheel Bearing Dust, NO.3
1993-05 → 1996-05 ended
JZA80 —
43409A — Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
90110-12003 Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
1993-05 → 1996-05 ended
JZA80 —
43409D — Joint Sub-assy, Rear Drive Shaft Cross Groove
43409-24010 Joint Sub-assy, Rear Drive Shaft Cross Groove
1993-05 → 1996-05 ended
JZA80 —
43446 — Cover, Rear Axle Inboard Joint
43446-24020 Cover, Rear Axle Inboard Joint
1993-05 → 1996-05 ended
JZA80 —
43459 — Gasket, Rear Axle Inboard Joint End Cover
43459-50011 Gasket, Rear Axle Inboard Joint End Cover
1993-05 → 1996-05 ended
JZA80 —
43489 — Washer, Rear Drive Shaft Cross Groove Joint
43489-50010 Washer, Rear Drive Shaft Cross Groove Joint
1993-05 → 1996-05 ended
JZA80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
