Toyota Supra
1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe
Discontinued model
Data version 1997-02

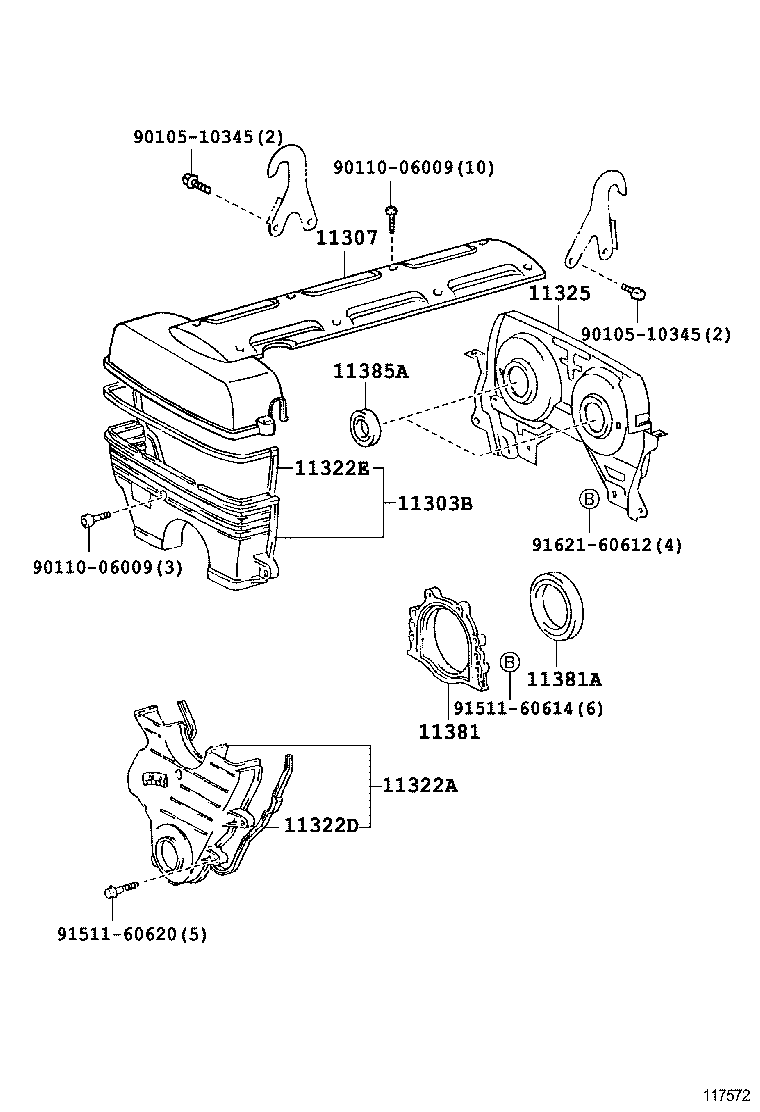

Timing Gear Cover & Rear End Plate
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11303B | Cover Sub-assy, Timing Belt, NO.2 |
| 11307 | Cover, Sub-assy, Timing Belt, NO.3 |
| 11322A | Cover, Timing Belt, NO.1 |
| 11322D | Gasket, Timing Belt Cover, NO.1 |
| 11322E | Gasket, Timing Belt Cover, NO.2 |
| 11325 | Cover, Timing Belt, NO.4 |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11385A | Seal, Oil(FOR CAMSHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
