Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

16 part groups · 2 illustrations

Illustrations

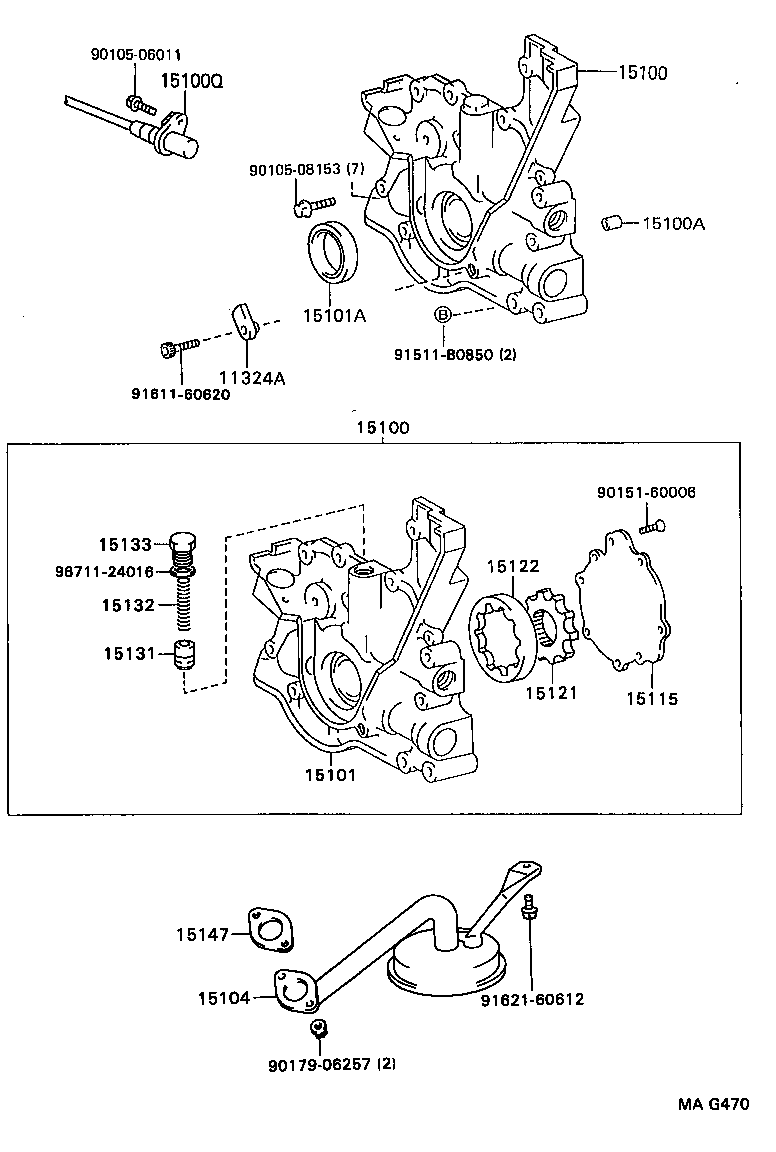

Figure MAG469 MAG469 1993-05 → — Figure MAG470 MAG470 1993-05 → —

Part groups

PNCDescription
11324A Plate, Timing Belt
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100Q Sensor, Crank Position
15101 Body Sub-assy, Oil Pump
15101A Seal(FOR CRANKSHAFT)
15103 Gear Set, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
