Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 4 illustrations

Illustrations

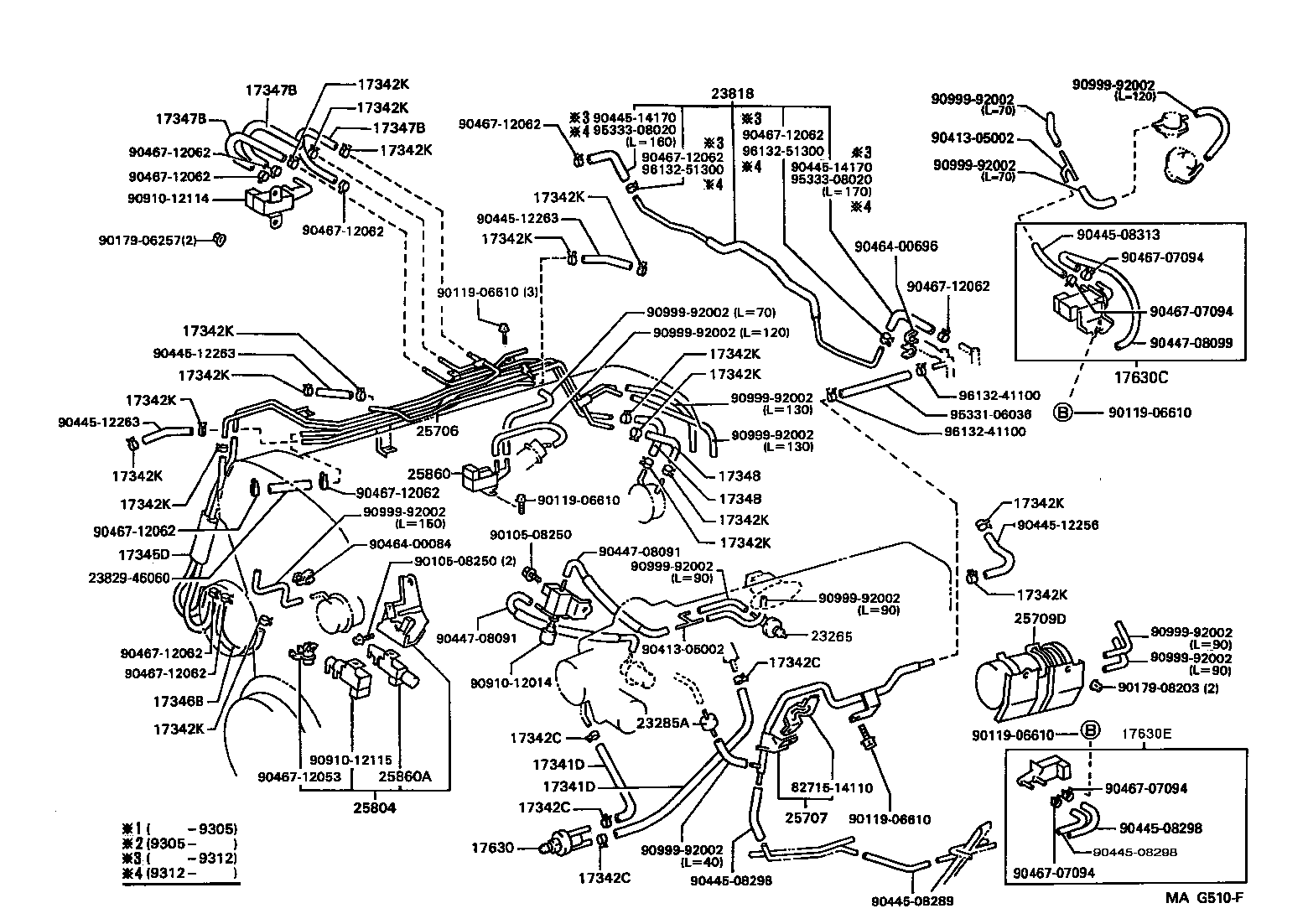

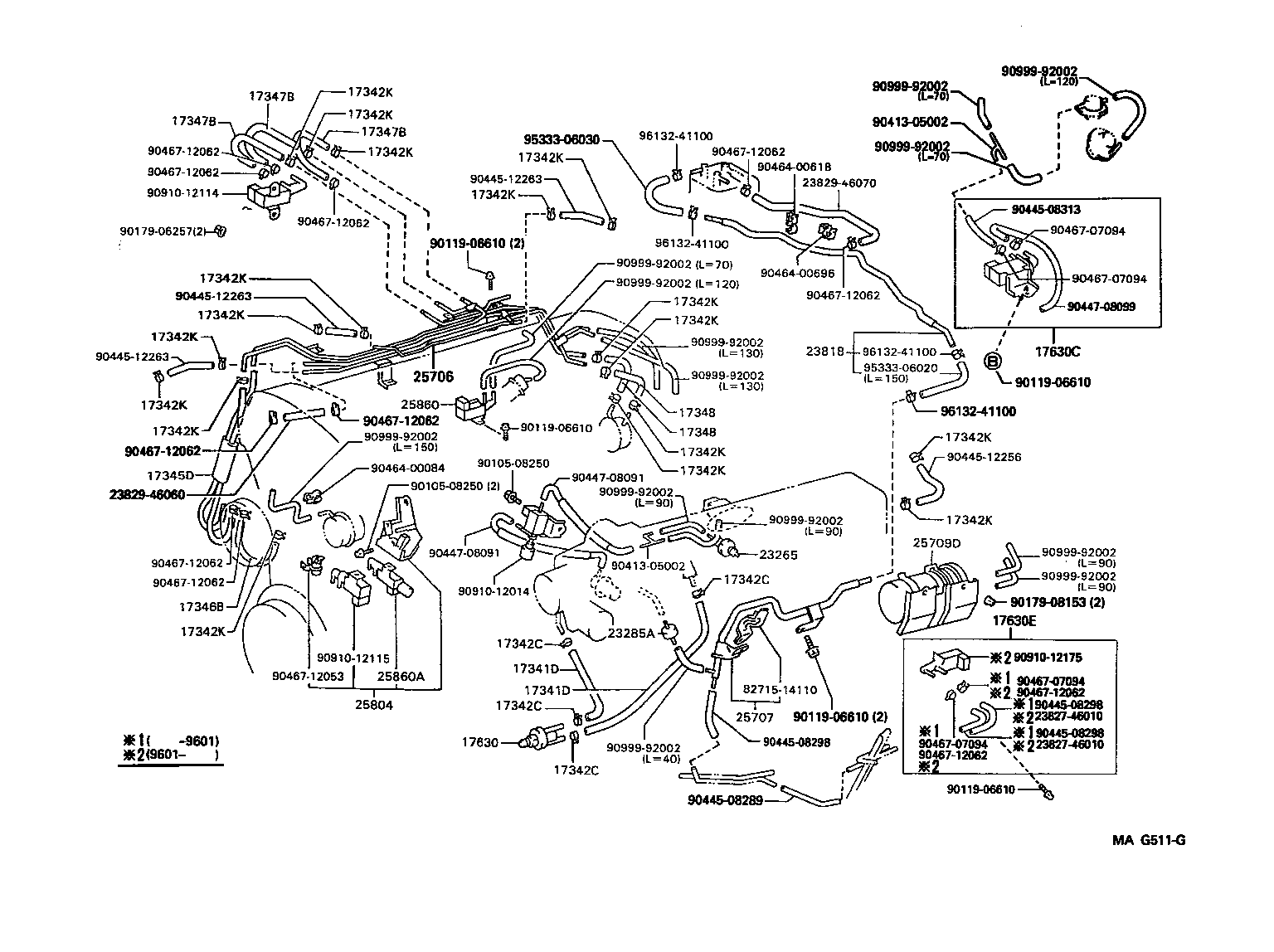

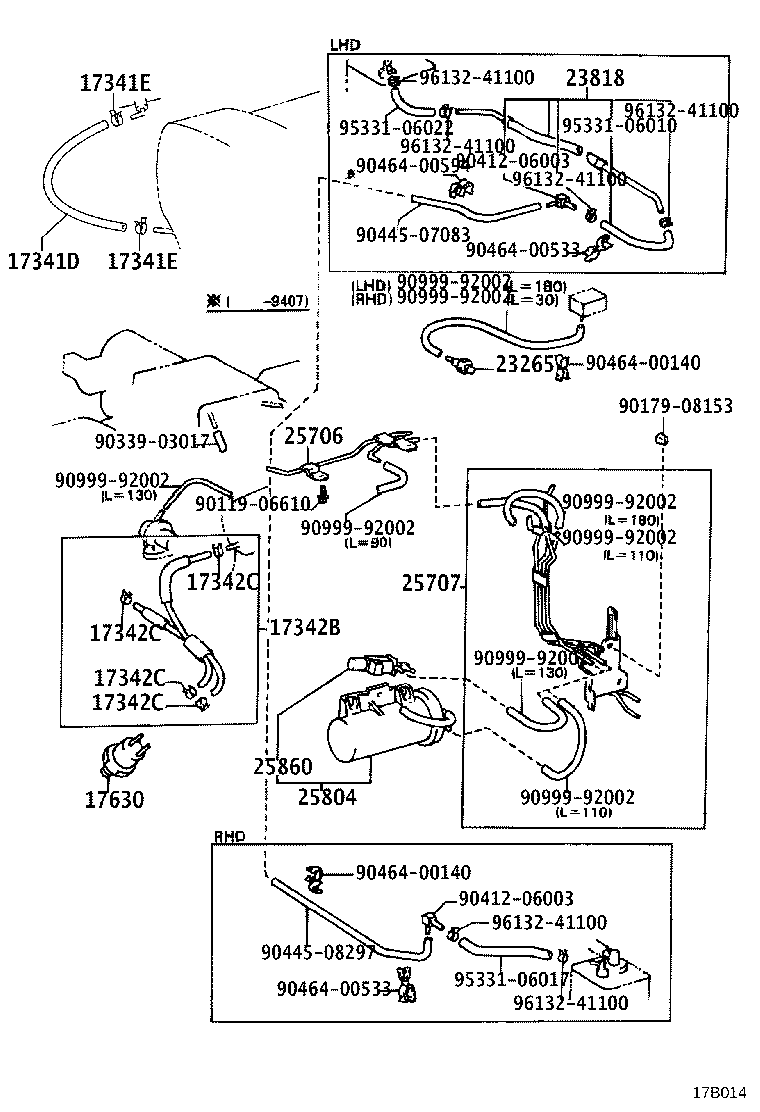

Figure MA9504B MA9504B 1993-05 → — Figure 17B014 17B014 1993-05 → — Figure MAG510F MAG510F 1993-05 → — Figure MAG511G MAG511G 1993-05 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342K Clip(FOR VACUUM HOSE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17348 Hose, Air, NO.8
17630 Valve Assy, Air Control
17630C Valve Assy, Air Control
17630E Valve Assy, Air Control
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709D Tank Sub-assy, Pressure Surge
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
