Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

12 part groups · 2 illustrations

Illustrations

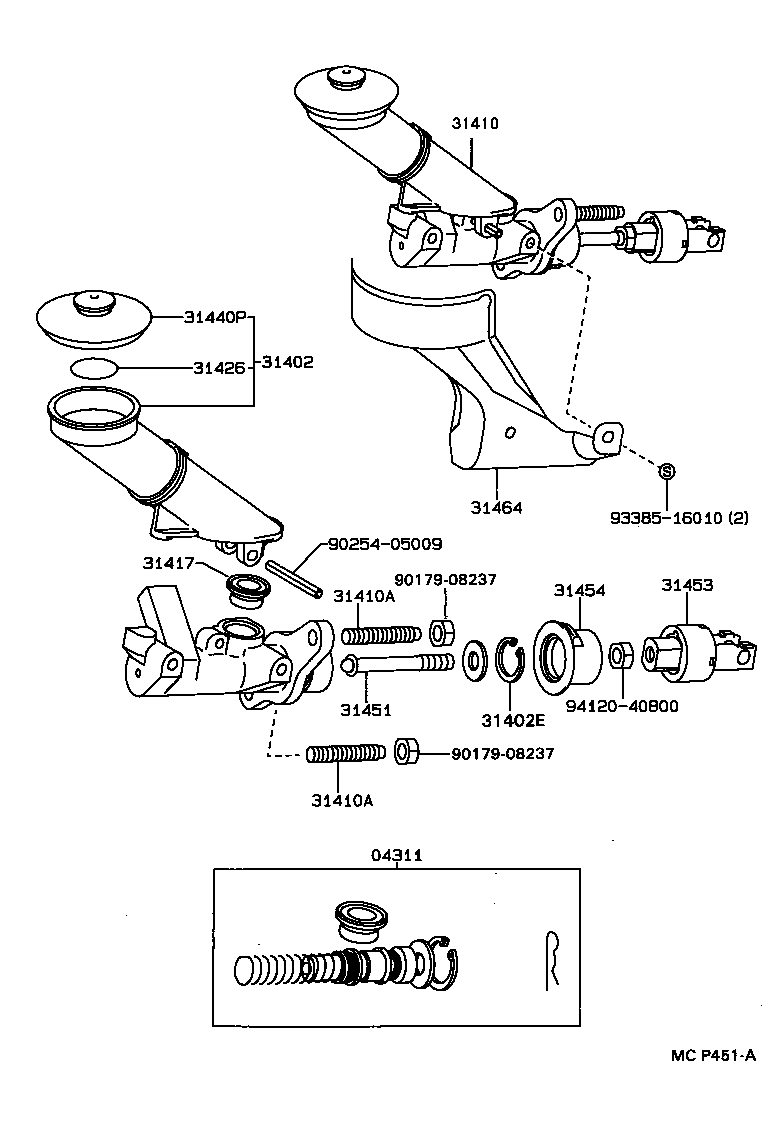

Figure MCP450A MCP450A 1993-05 → — Figure MCP451A MCP451A 1993-05 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31402E Ring(FOR CLUTCH MASTER CYLINDER RESERVOIR)
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31417 Grommet, Clutch Reservoir
31426 Float, Clutch Master Cylinder Reservoir
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31464 Insulator, Clutch Master Cylinder Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
