Valve Body & Oil Strainer (ATM)

162 part groups · 8 illustrations

Illustrations

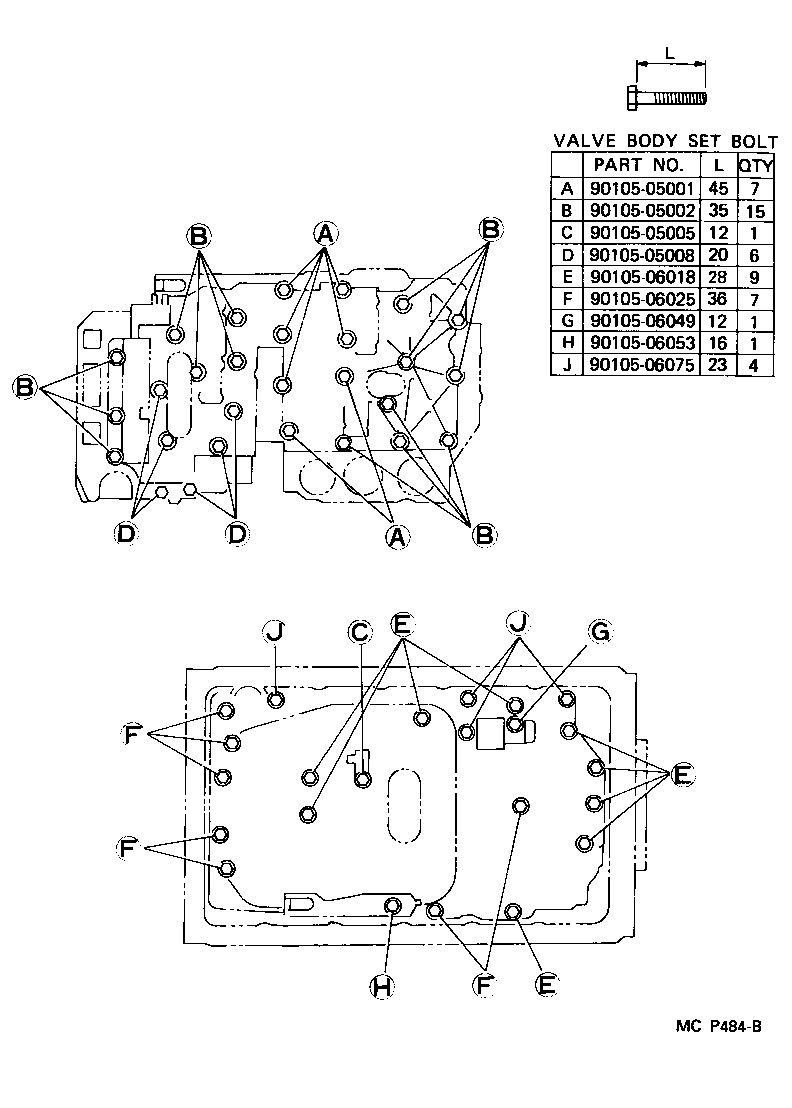

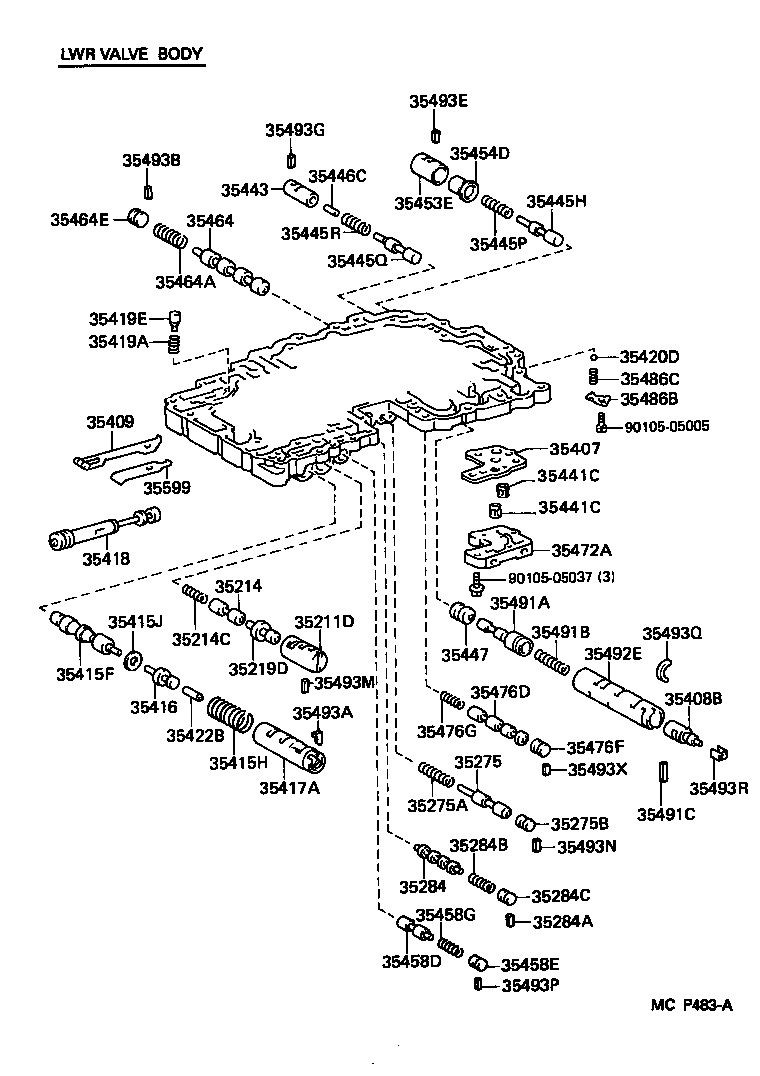

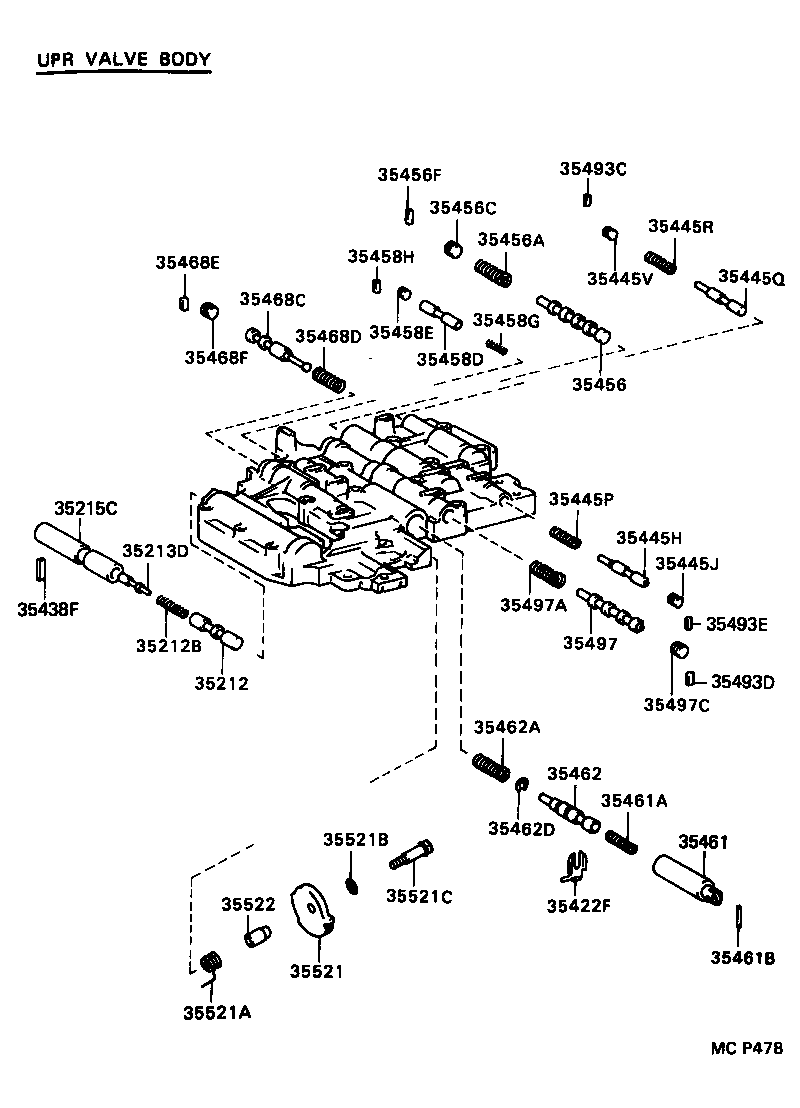

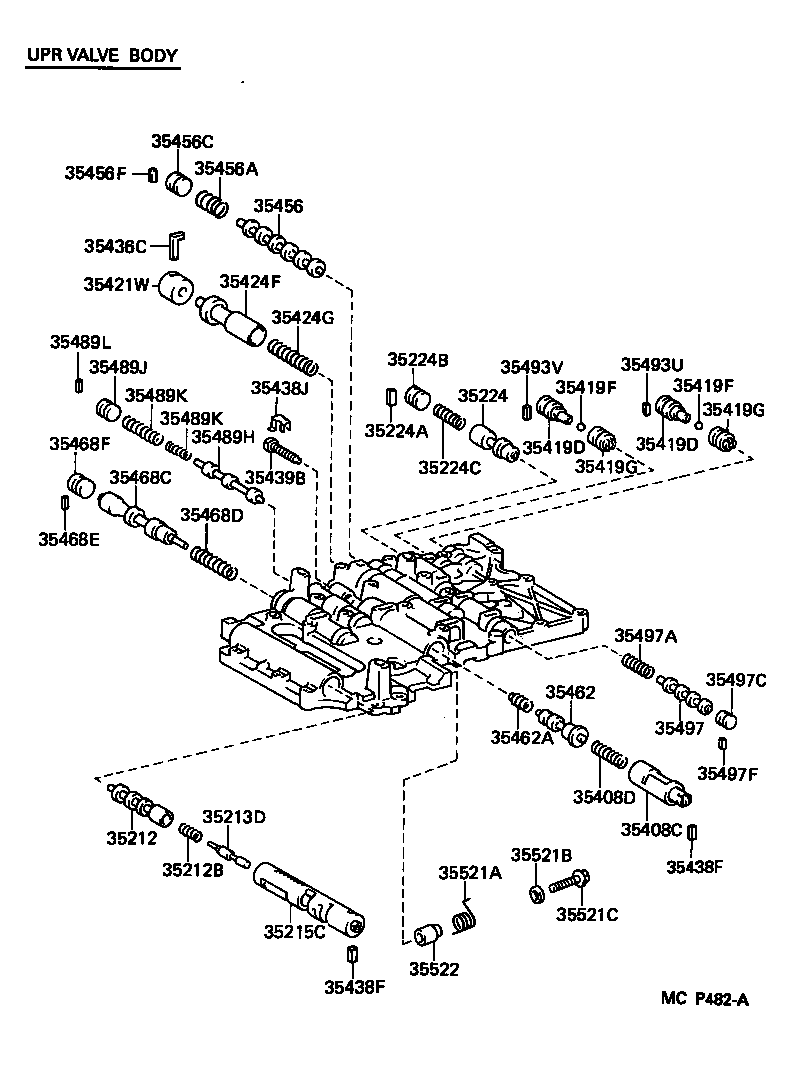

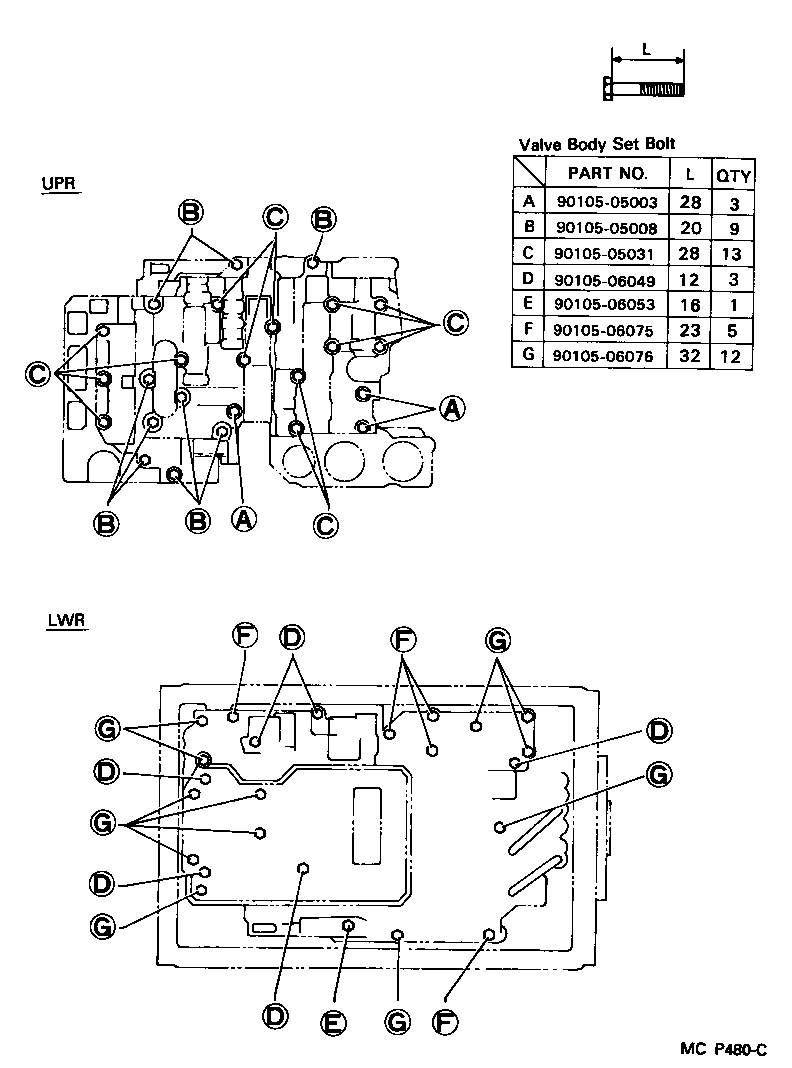

Figure MCP481D MCP481D 1993-05 → — Figure MCP482A MCP482A 1993-05 → — Figure MCP483A MCP483A 1993-05 → — Figure MCP484B MCP484B 1993-05 → — Figure MCV452 MCV452 1994-08 → — Figure MCP478 MCP478 1994-08 → — Figure MCP479 MCP479 1994-08 → — Figure MCP480C MCP480C 1994-08 → —

Part groups

PNCDescription
35148D Gasket (FOR C-O ACCUMULATOR PISTON)
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35219D Plunger, Lock UP Control Valve
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35270 Solenoid Assy, Shift Control
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B Plug (FOR SOLENOID MODULATOR VALVE)
35280 Solenoid Assy, Lock UP Control
35284 Valve, Solenoid Relay
35284A Key, Straight (FOR SOLENOID RELAY VALVE)
35284B Spring, Compression (FOR SOLENOID RELAY VALVE)
35284C Plug (FOR SOLENOID RELAY VALVE)
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35330 Strainer Assy, Valve Body Oil
35339A Gasket, Oil Strainer, NO.1
35339B Gasket, Oil Strainer, NO.2
35396 Strainer, Throttle Oil
35406 Plate Sub-assy, Valve Body
35407 Plate Sub-assy, Valve Body Cover
35408B Plug Sub-assy, Accumulator Control Valve
35408C Plug Sub-assy, Throttle Valve
35408D Spring, Compression (FOR THROTTLE VALVE PLUG)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35410D Valve, Check
35410F Ball (FOR CHECK VALVE)
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419E Valve, Check, NO.3
35419F Ball, Check Valve
35419G Valve, Check, NO.4
35420D Ball (FOR LOWER VALVE BODY)
35421W Plug, C-1 Accumulator Valve
35422B Plunger, Primary Regulator Valve, NO.2
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424F Valve, C-1 Accumulator
35424G Spring, Compression (FOR C-1 ACCUMULATOR VALVE)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35436C Retainer, C-1 Accumulator Valve
35438D Seat, Accumulator Control Valve Spring
35438F Seat, Detent Spring
35438J Seat, Throttle Valve Spring
35439B Screw, Throttle Valve
35441C Strainer, Solenoid Oil
35443 Sleeve, Low Coast Shift Control Valve
35444D Valve, Release Control
35444K Pin, Straight (FOR RELEASE CONTROL PLUG)
35445H Valve, 2ND Coast Modulator
35445J Plug (FOR 2ND COAST MODULATOR VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35446C Plunger, Low Coast Modulator Valve
35447 Plunger, Accumulator Control Valve
35449B Valve, Pressure Relief
35449C Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E Ball (FOR UPPER VALVE BODY)
35453E Sleeve, 2ND Coast Modulator Valve
35454D Plunger, 2ND Coast Modulator Valve
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35461B Pin, Straight (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35472A Cover, Lower Valve Body
35474A Cover, Accumulator
35476D Valve, Cut Off
35476F Plug (FOR CUT OFF VALVE)
35476G Spring, Compression (FOR CUT OFF VALVE)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35489H Valve, C-1 Orifice Control
35489J Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E Sleeve, Accumulator Control Valve
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493C Seat, Release Control Valve Plug
35493D Seat, 3-4 Shift Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35493M Seat, Lock UP Control Valve Plug
35493N Seat, Solenoid Modulator Valve Plug
35493P Seat, Cut Back Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493R Seat, Accumulator Control Valve Plug, NO.2
35493U Seat, Check Valve, NO.1
35493V Seat, Check Valve, NO.2
35493W Seat, Valve Body
35493X Seat, Cut Off Valae
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35521C Bolt (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35897A Tube, 1ST & Reverse Brake, NO.1
