Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 4 illustrations

Illustrations

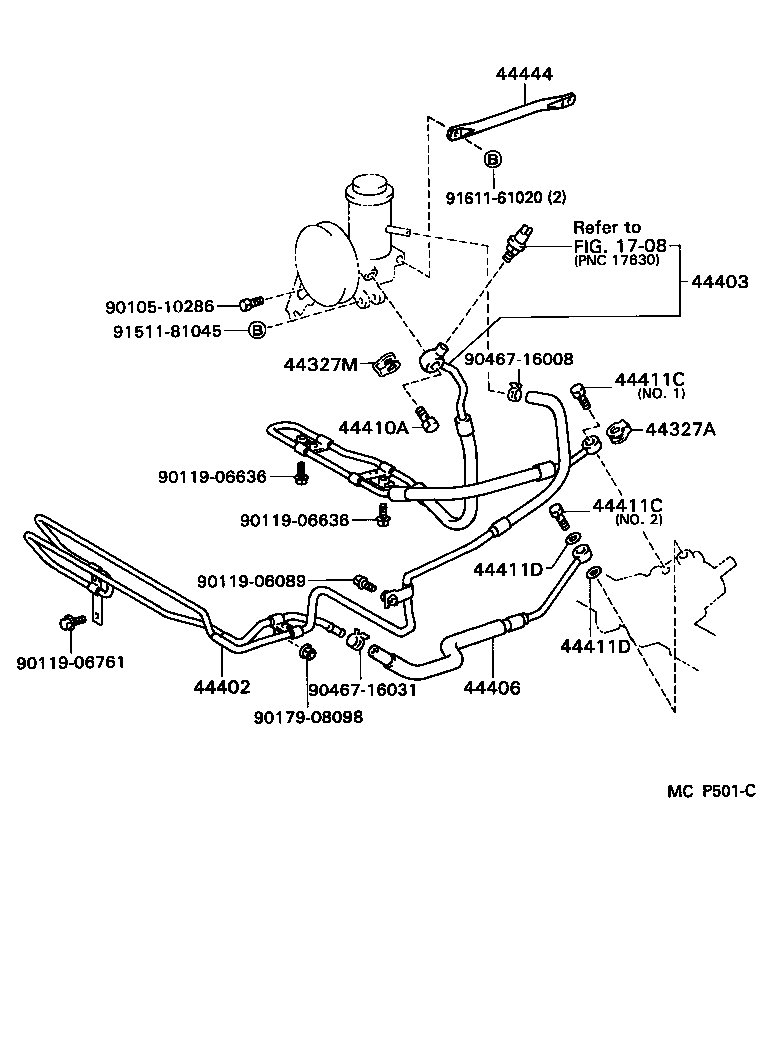

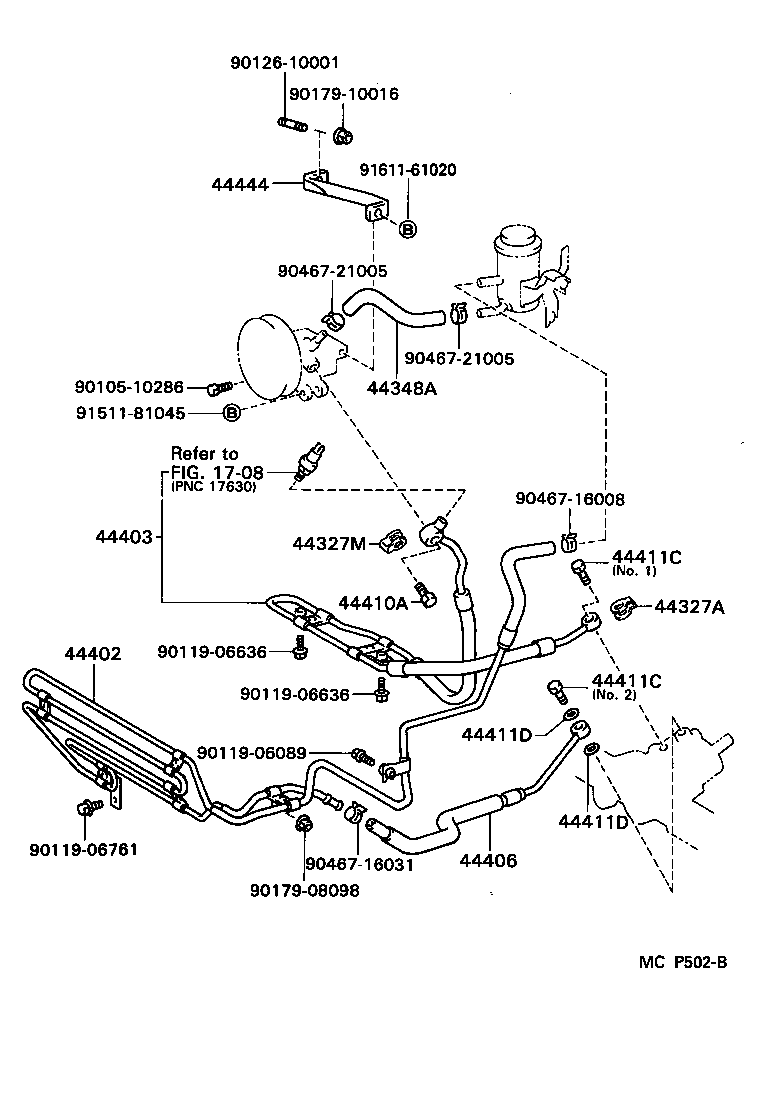

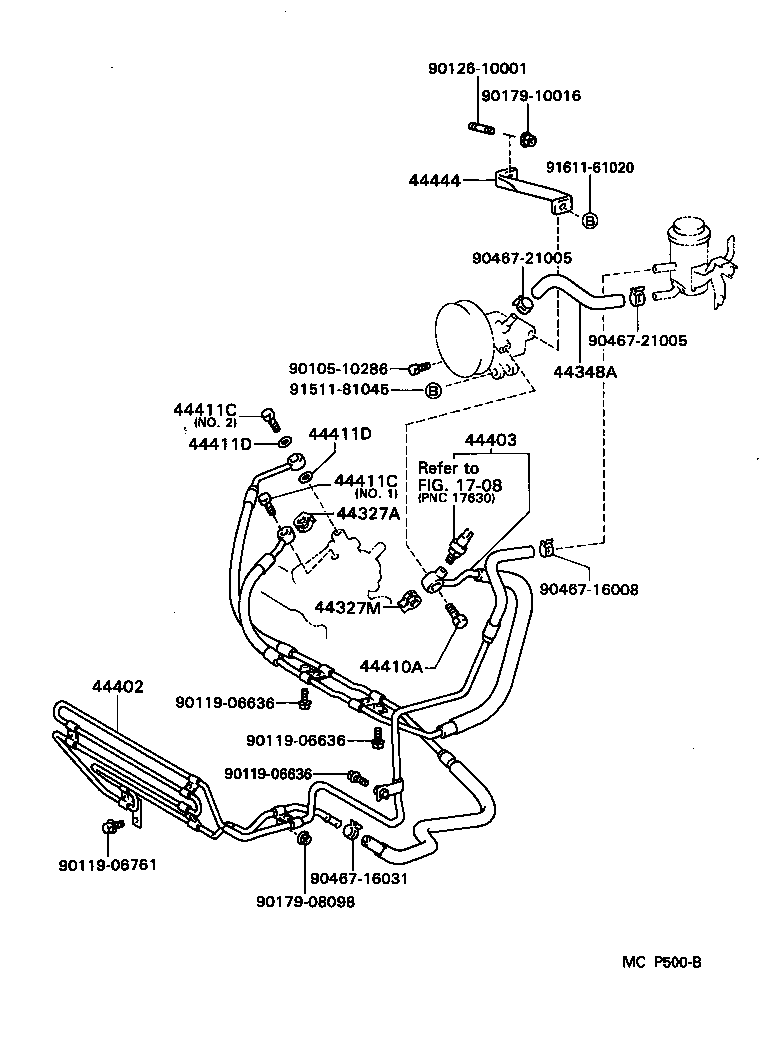

Figure MCP499B MCP499B 1993-05 → 1994-08 Figure MCP500B MCP500B 1993-05 → — Figure MCP501C MCP501C 1993-05 → — Figure MCP502B MCP502B 1993-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44406 Tube Sub-assy, Return
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
