Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

8 part groups · 2 illustrations

Illustrations

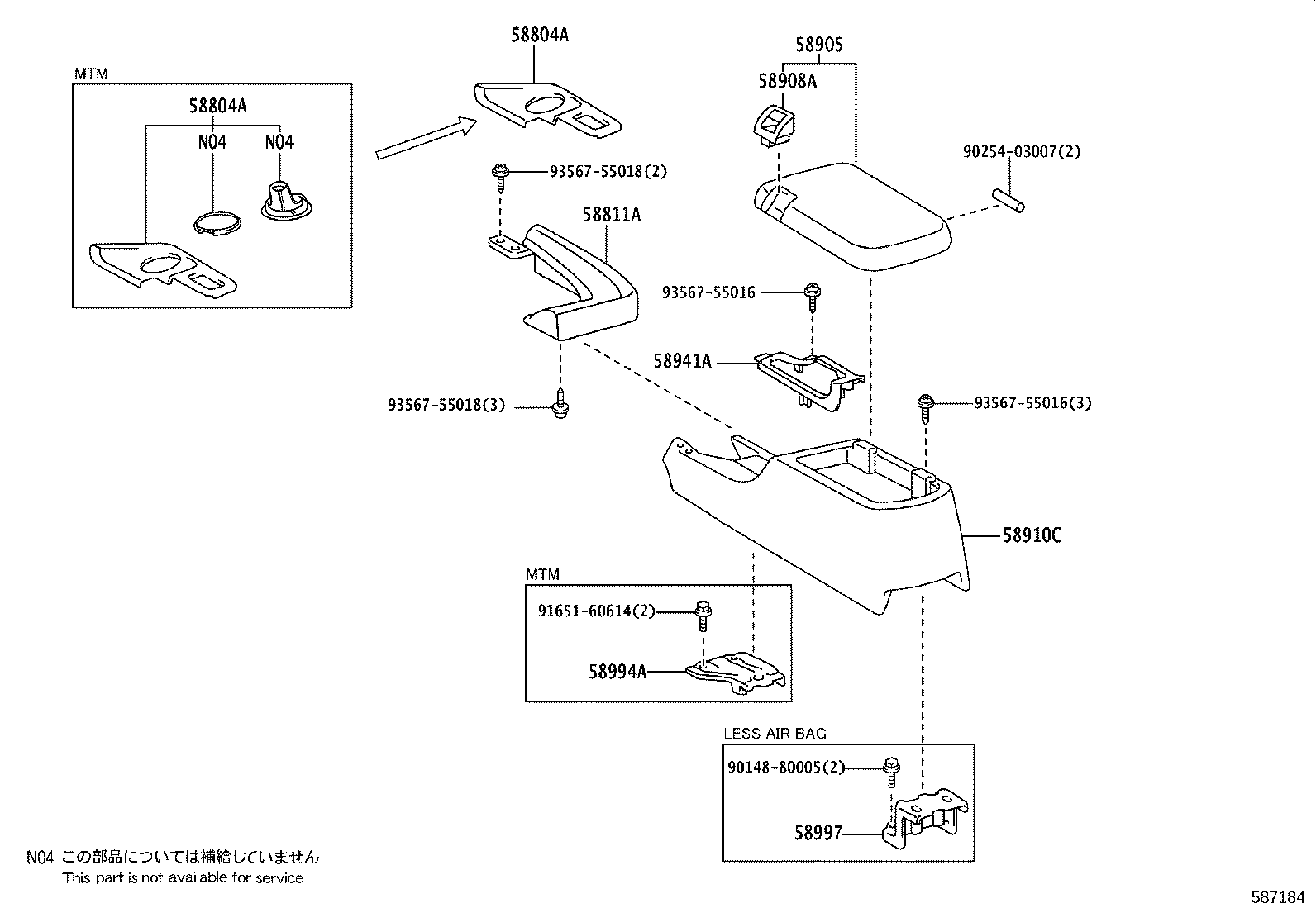

Figure 585521A 585521A 1993-05 → — Figure 587184 587184 1993-05 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58811A Box, Console, Front
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58941A Cover, Parking Brake Hole
58994A Bracket, Console Box Mounting, NO.4
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
