Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

11 part groups · 2 illustrations

Illustrations

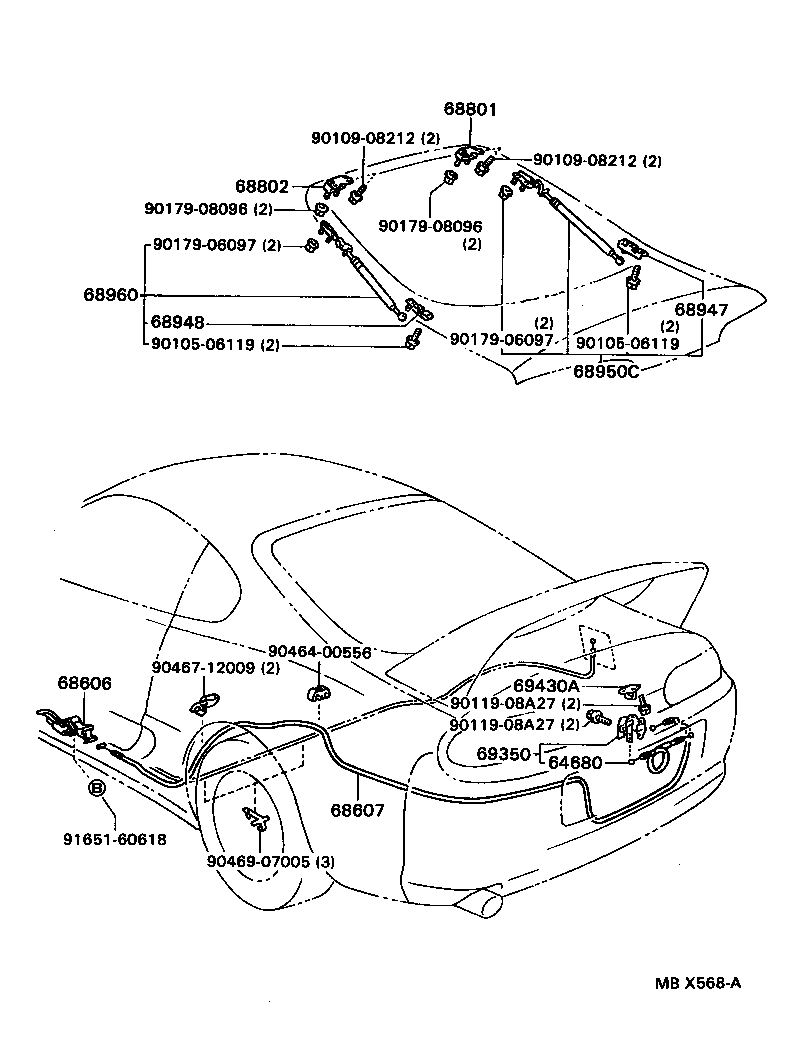

Figure MBX567A MBX567A 1993-05 → — Figure MBX568A MBX568A 1993-05 → —

Part groups

PNCDescription
64680 Cable Assy, Back Door Lock Control
68606 Lever Sub-assy, Back Door Lock Open
68607 Cable Sub-assy, Back Door Lock Control
68801 Hinge Sub-assy, Back Door, Upper RH
68802 Hinge Sub-assy, Back Door, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350 Lock Assy, Back Door
69430A Striker Assy, Back Door Lower Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
