Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 15 illustrations

Illustrations

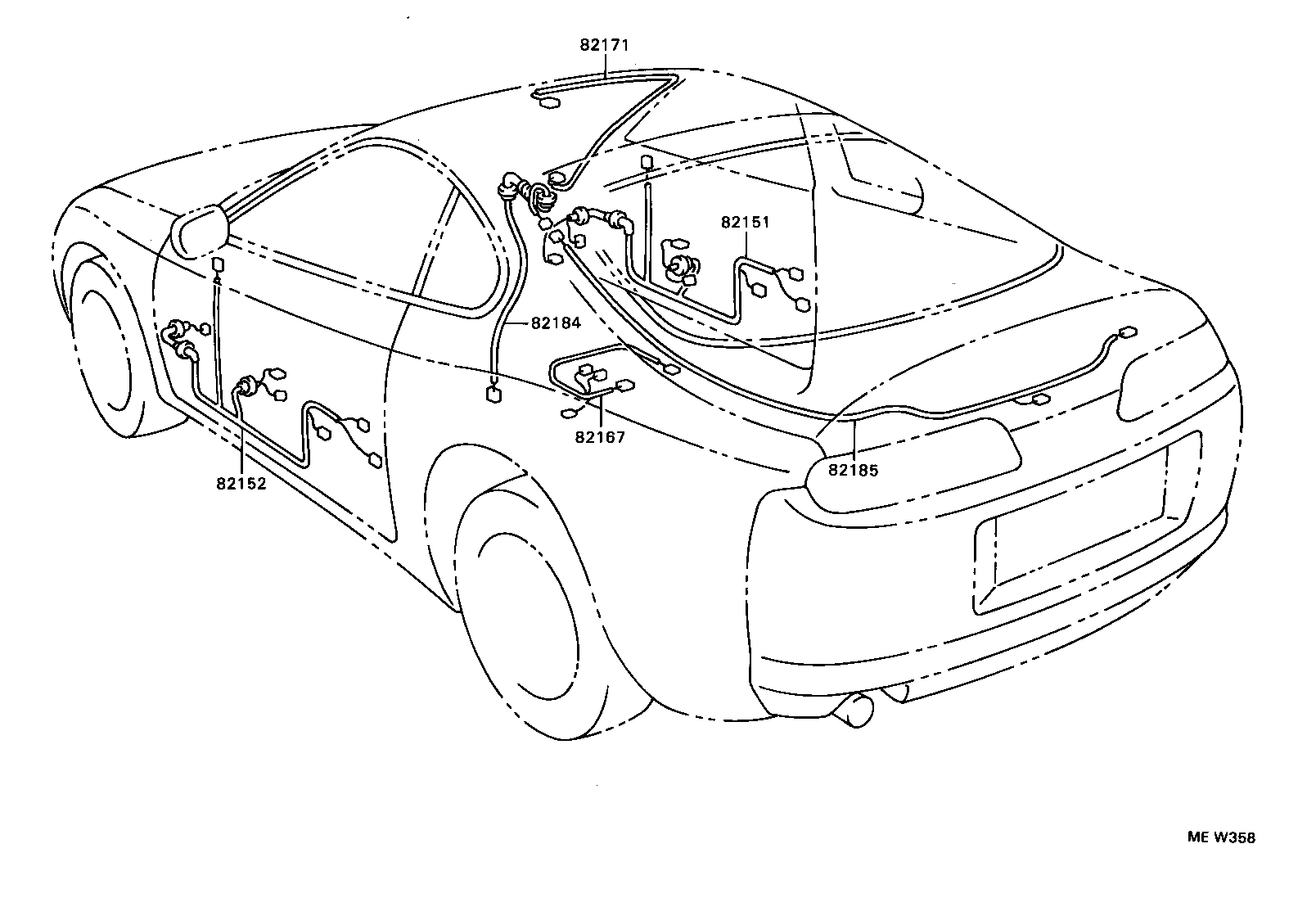

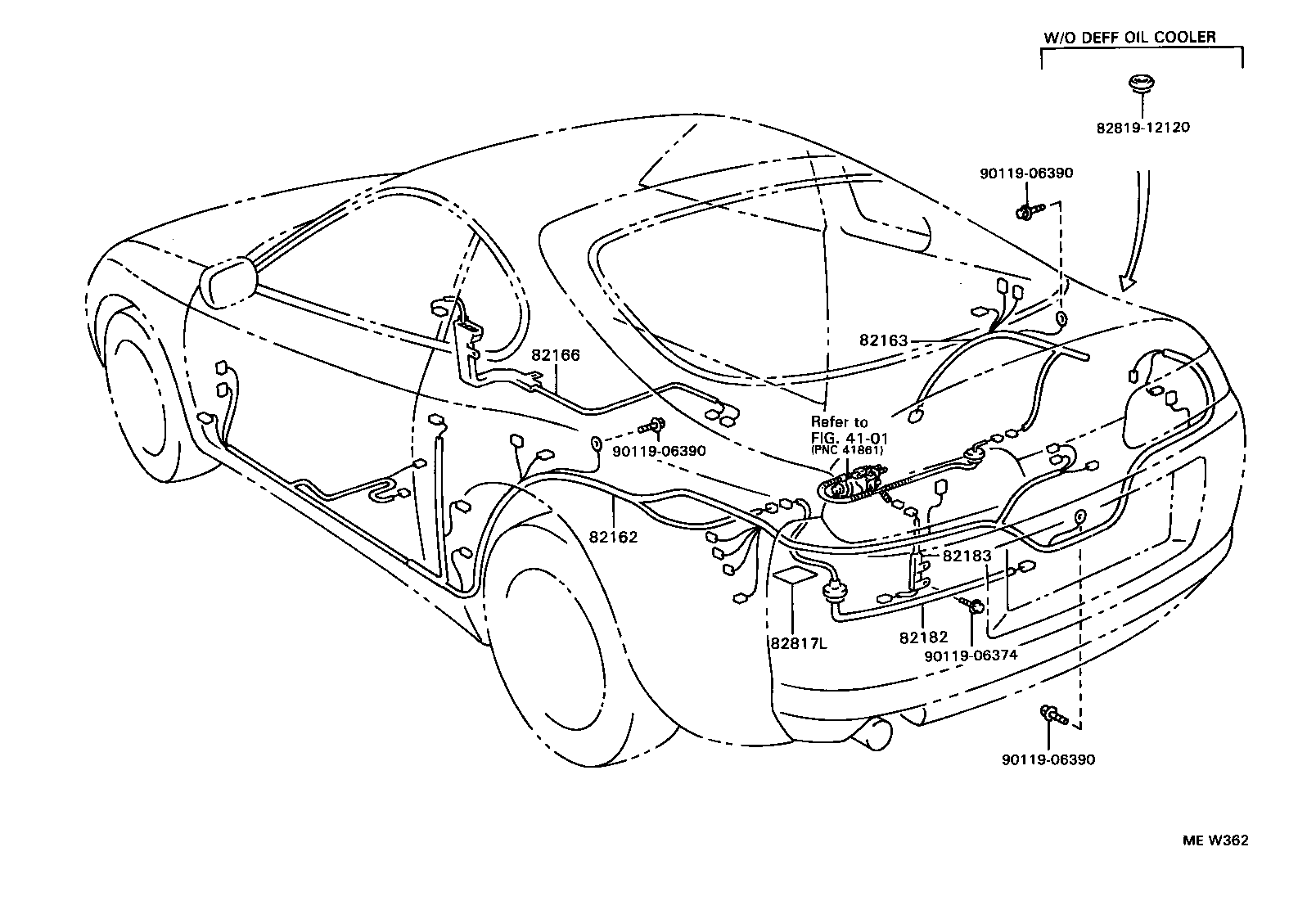

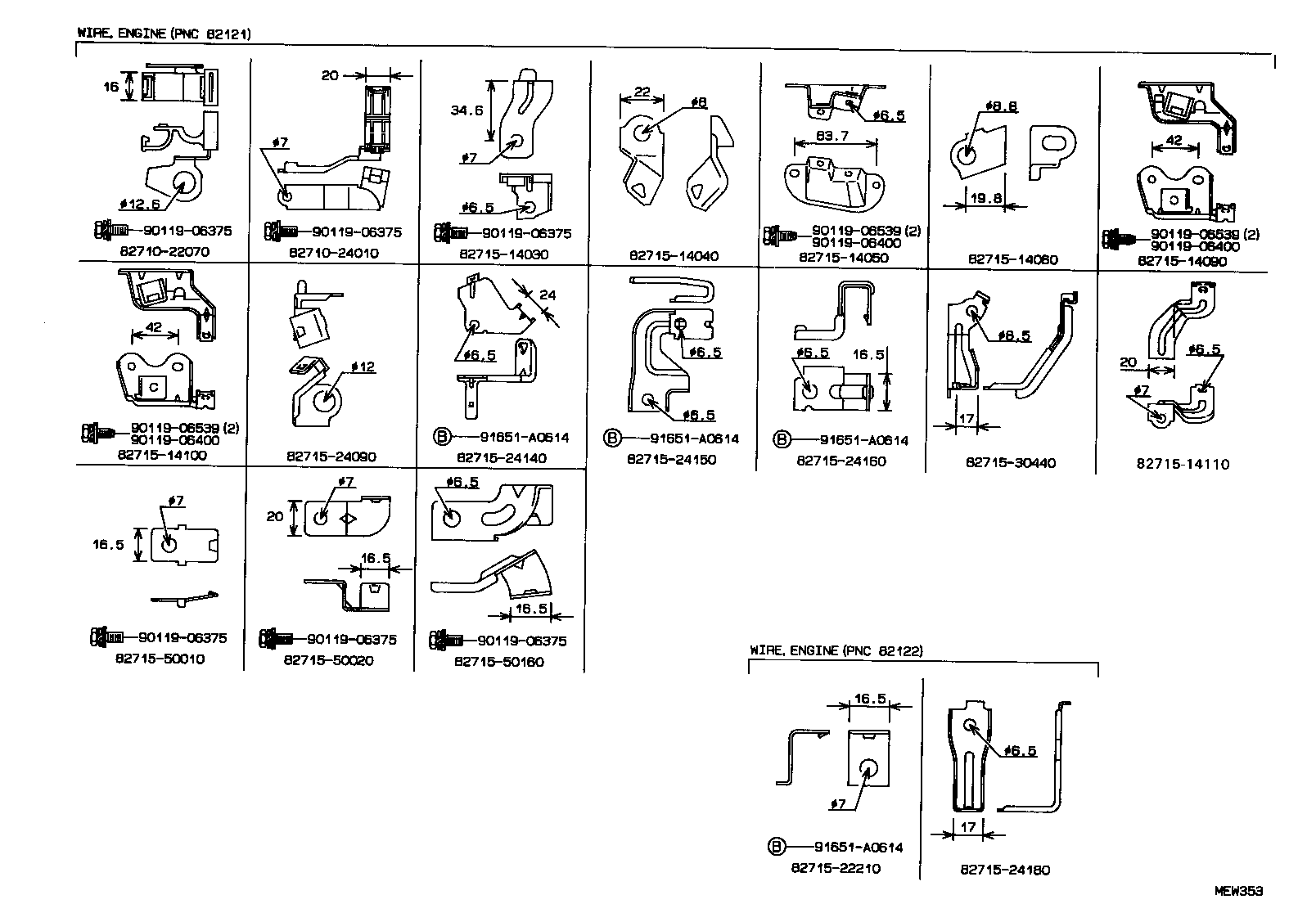

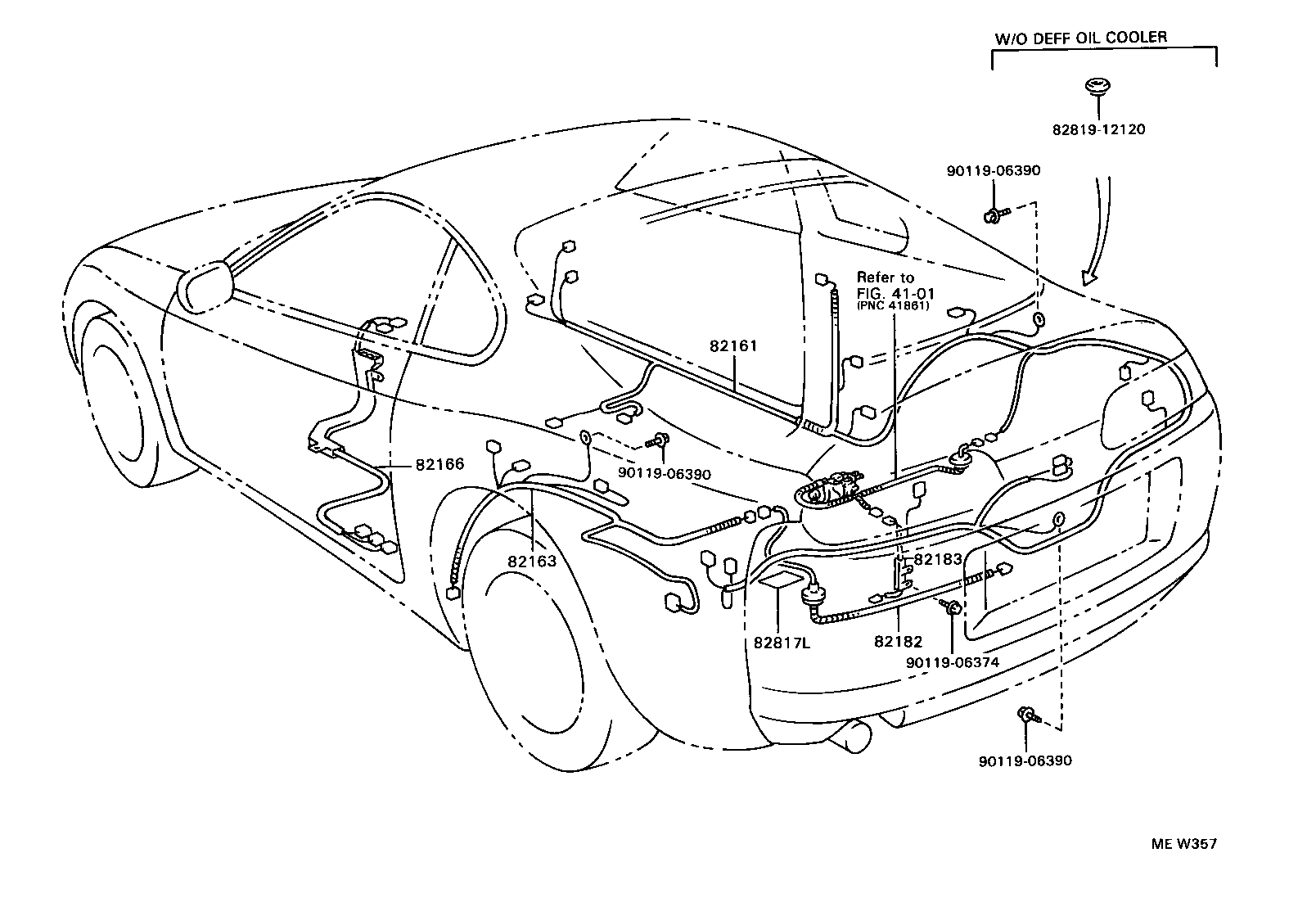

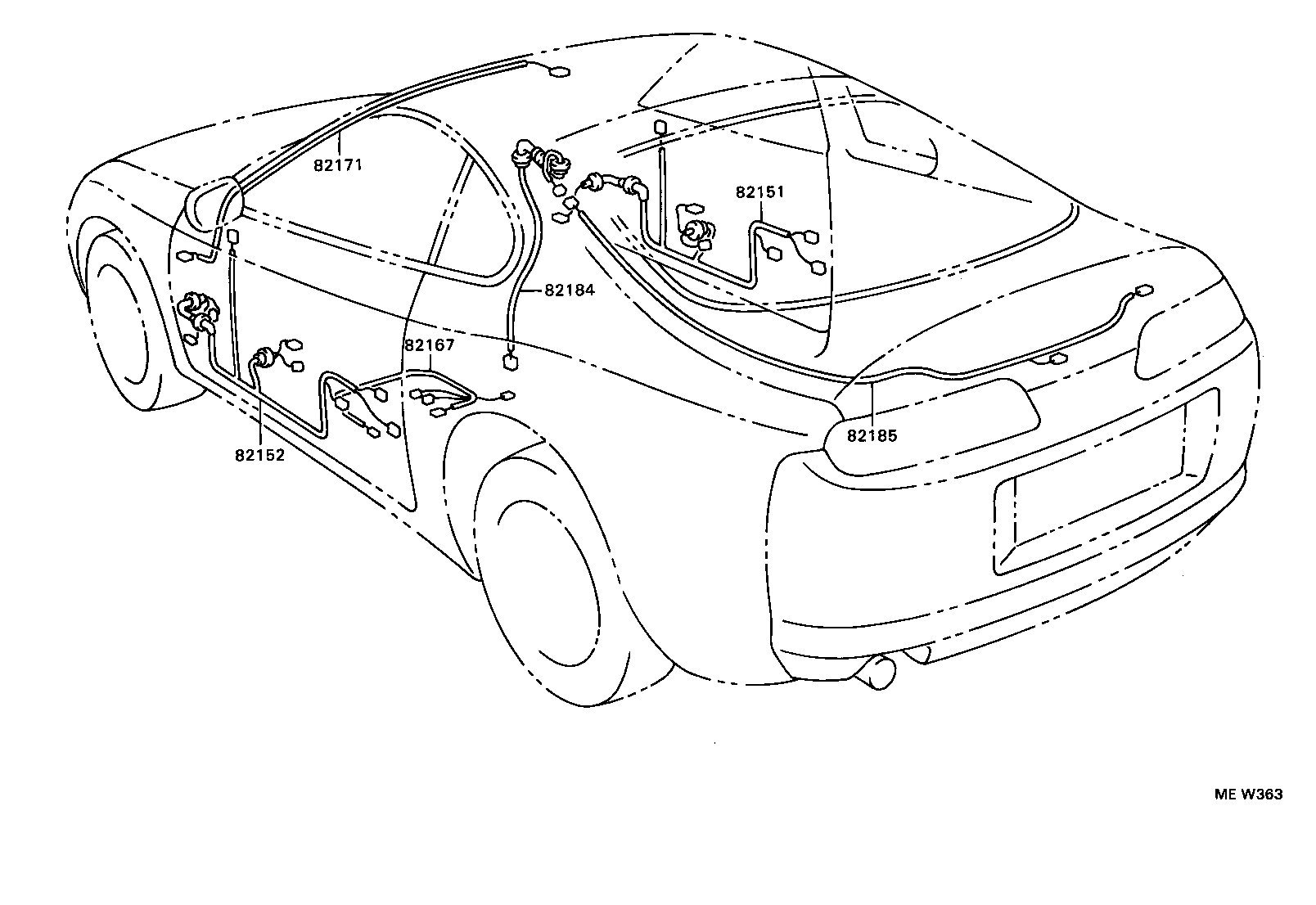

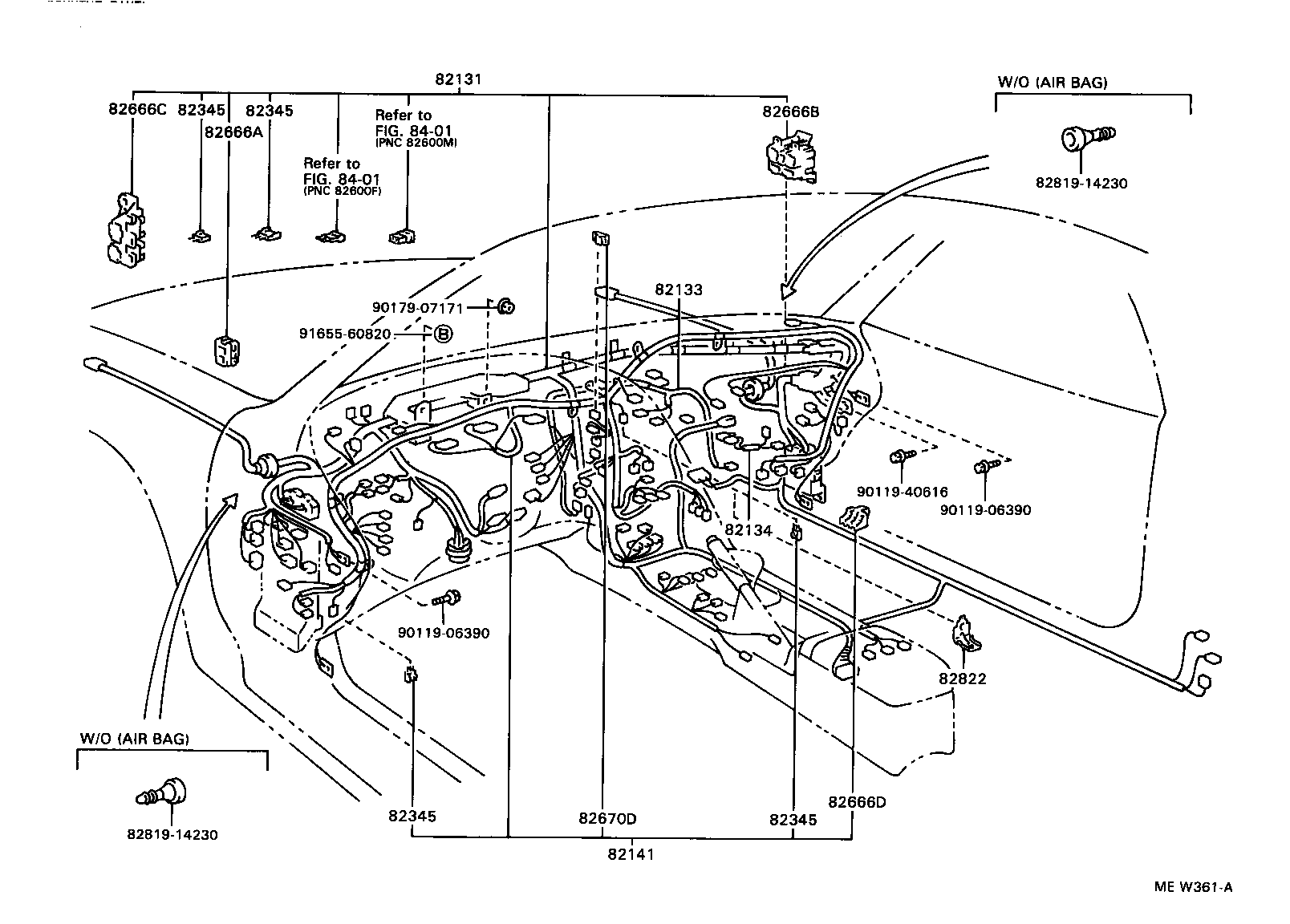

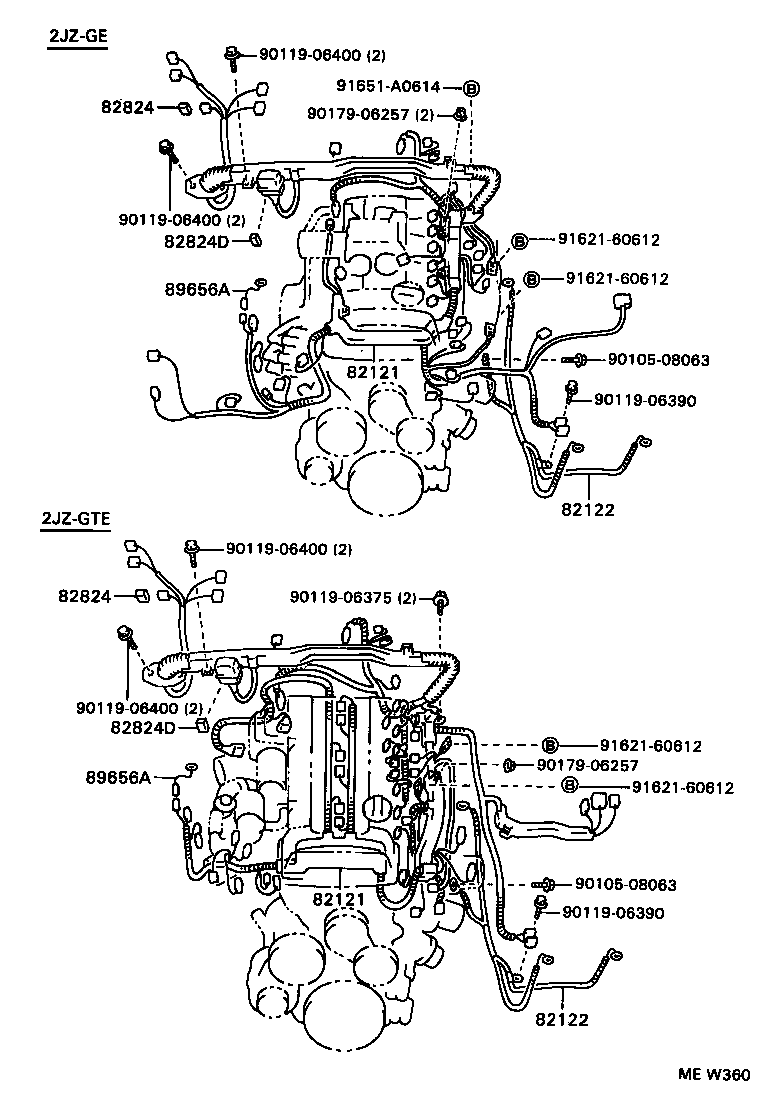

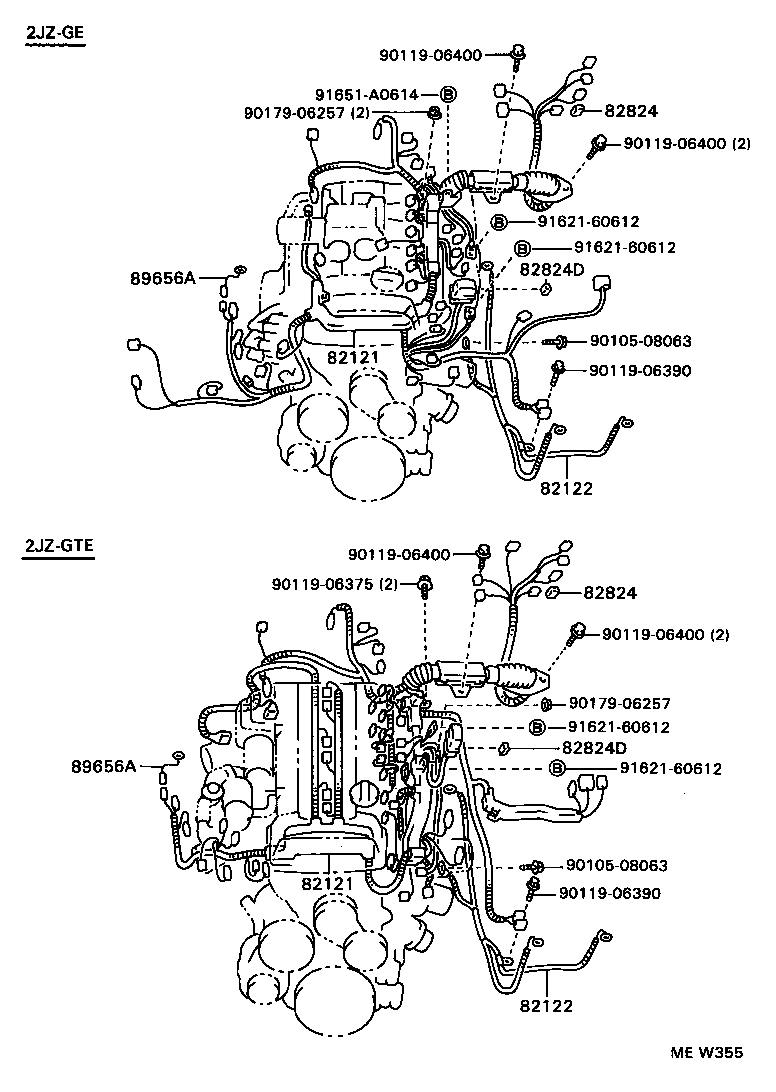

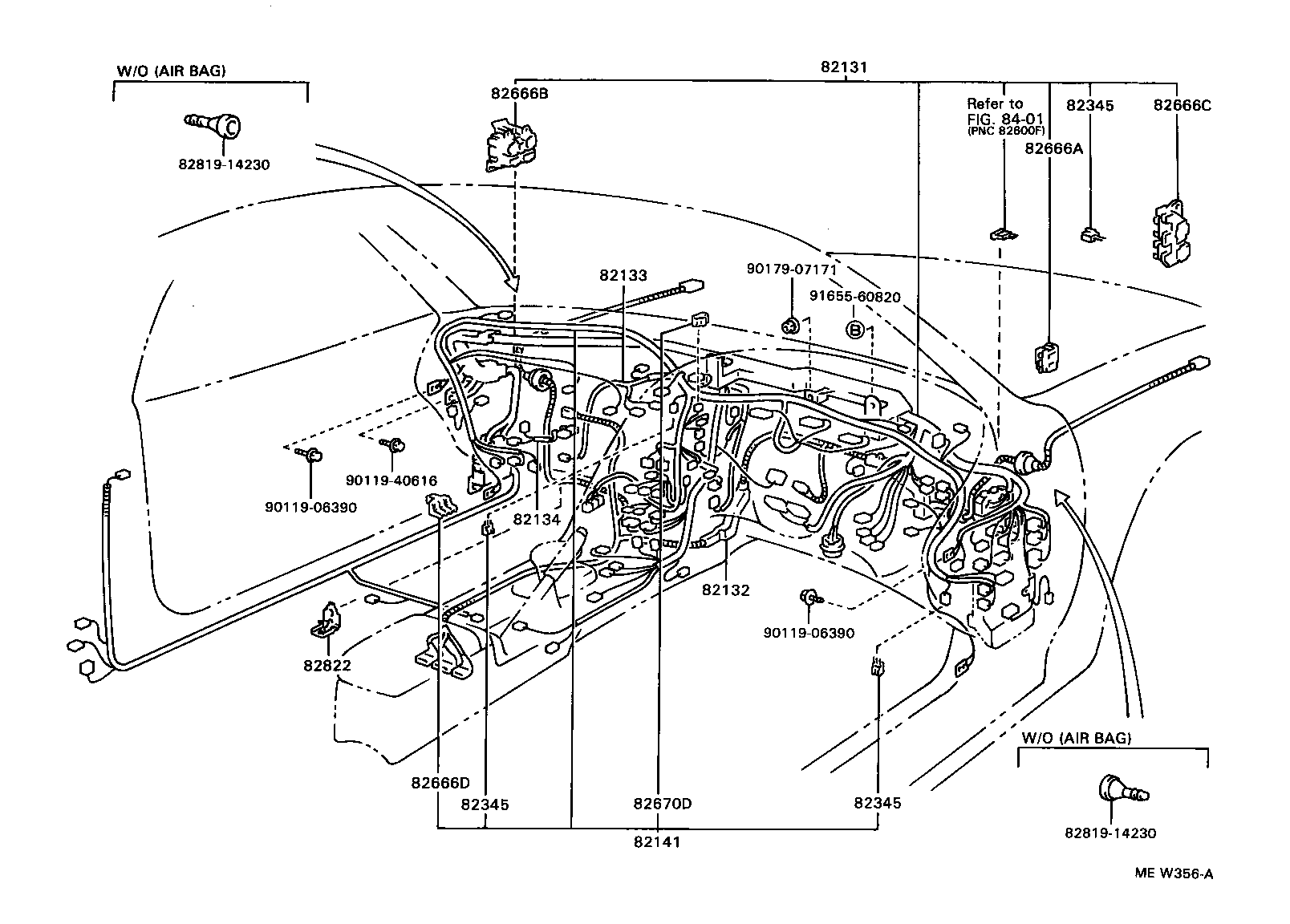

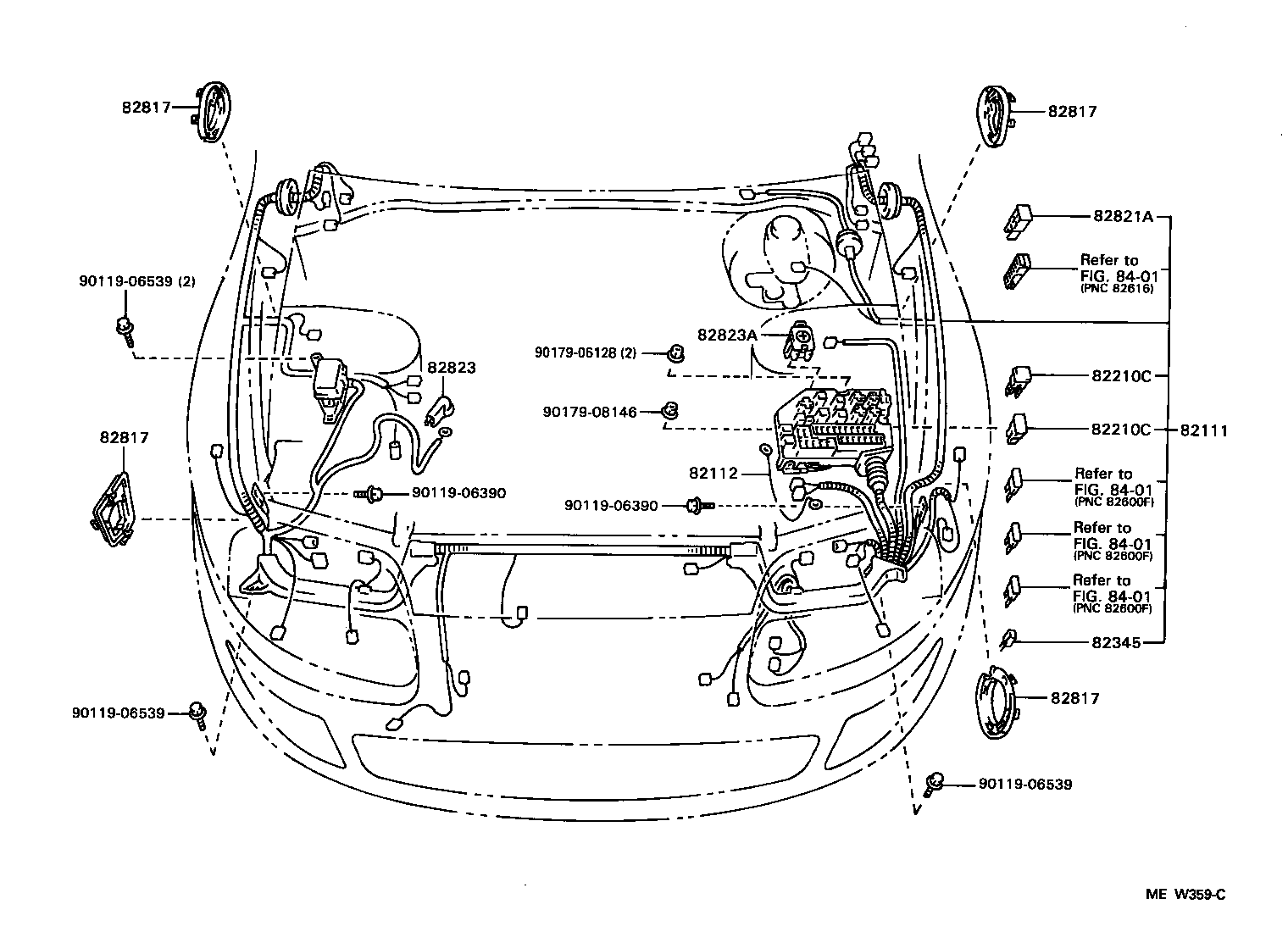

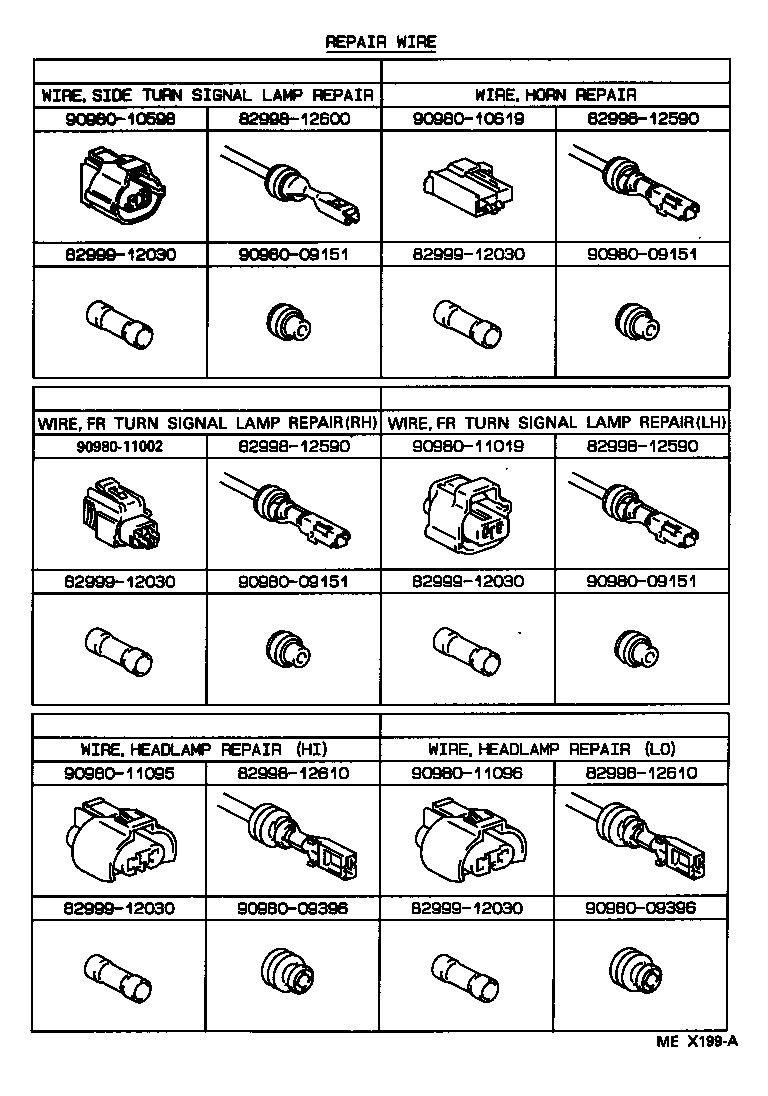

Figure MEW354B MEW354B 1993-05 → — Figure MEW359C MEW359C 1993-05 → — Figure MEW355 MEW355 1993-05 → — Figure MEW360 MEW360 1993-05 → — Figure MEW356A MEW356A 1993-05 → — Figure MEW361A MEW361A 1993-05 → — Figure MEW357 MEW357 1993-05 → — Figure MEW362 MEW362 1993-05 → — Figure MEW358 MEW358 1993-05 → — Figure MEW363 MEW363 1993-05 → — Figure MEW353 MEW353 1993-05 → — Figure MEW370A MEW370A 1993-05 → — Figure MEW371 MEW371 1993-05 → — Figure MEX199A MEX199A 1993-05 → — Figure MEX200B MEX200B 1993-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82670D Block Assy, Junction,NO.2
82817 Protector, Wiring Harness, NO.1
82817L Protector, Wiring Harness, NO.11
82821A Cover, Connector
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82988 Wire, Airbag Repair
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
