Toyota Supra

1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

16 part groups · 3 illustrations

Illustrations

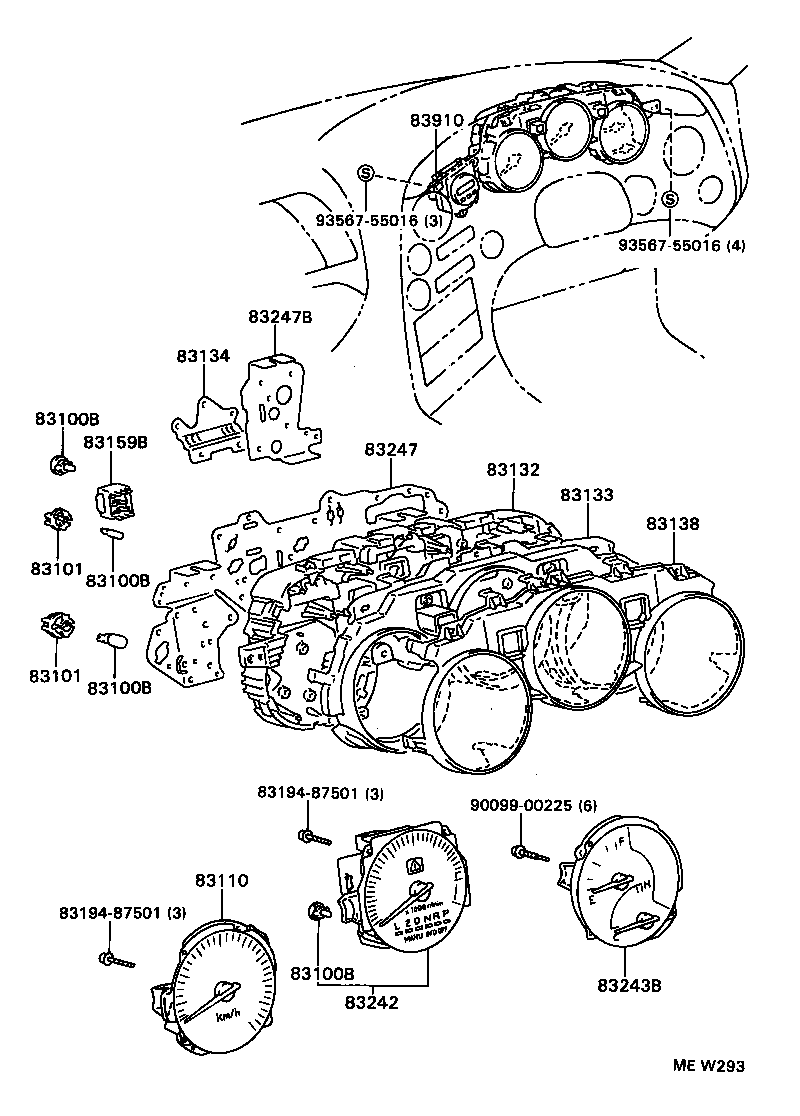

Figure MEW292 MEW292 1993-05 → — Figure MEW293 MEW293 1993-05 → — Figure 832073 832073 1993-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83159B Relay Assy, Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83242 Tachometer Assy, Engine
83243B Gauge Assy, Combination
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83910 Clock Assy
86650G Buzzer Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
