Toyota Supra
1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · Europe
Discontinued model
Data version 1997-02

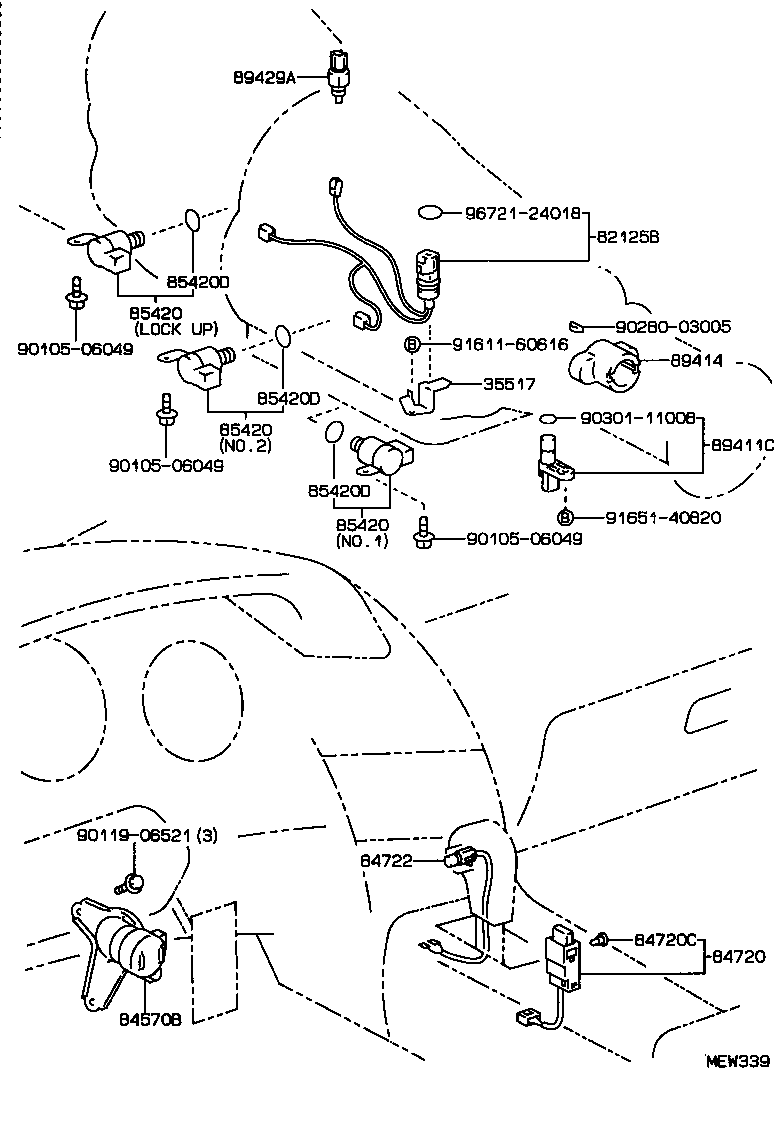

Overdrive & Electronic Controlled Transmission
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 84570B | Switch Assy, Kick Down |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89429A | Sensor, Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
