Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

17 part groups · 10 illustrations

Illustrations

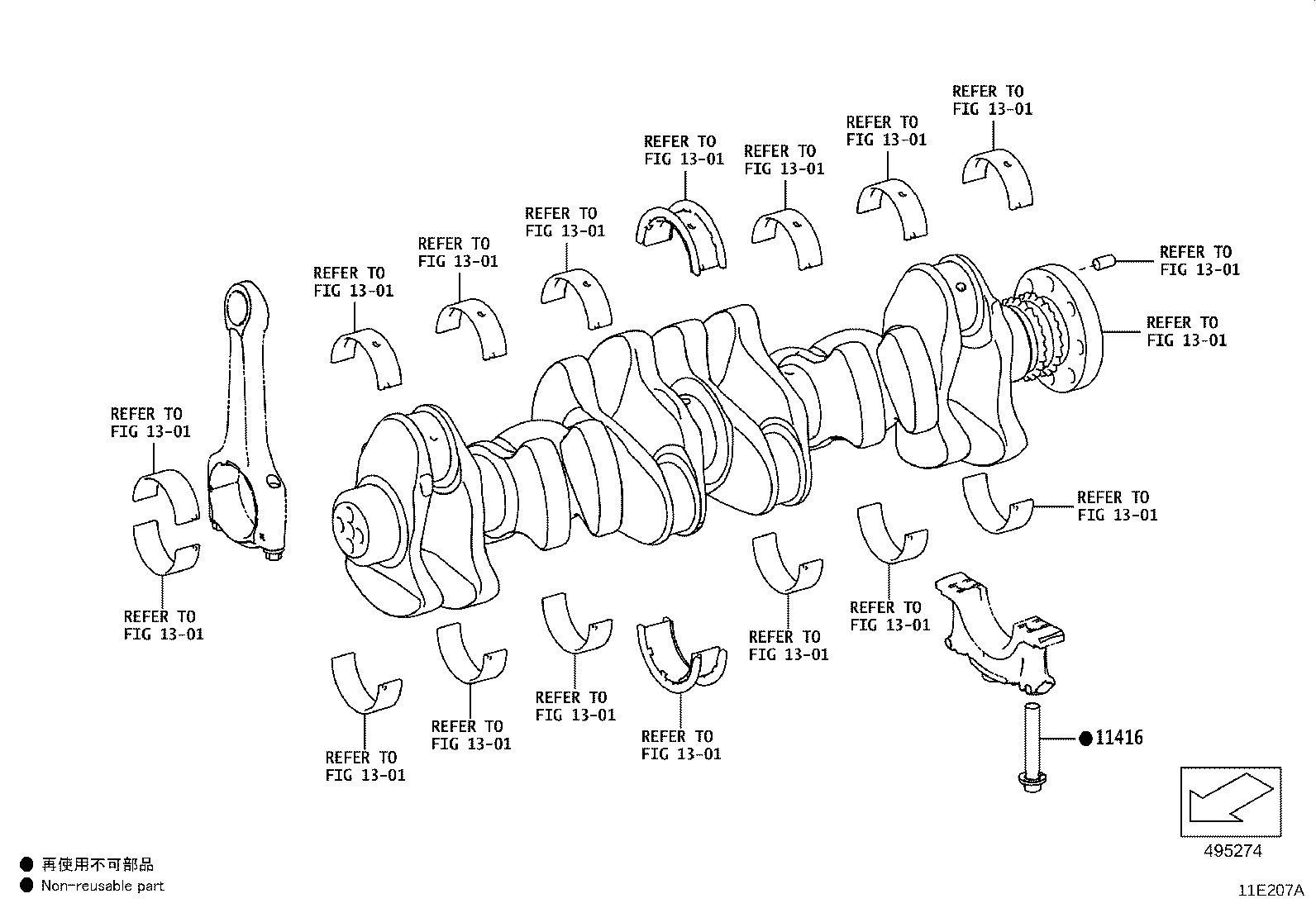

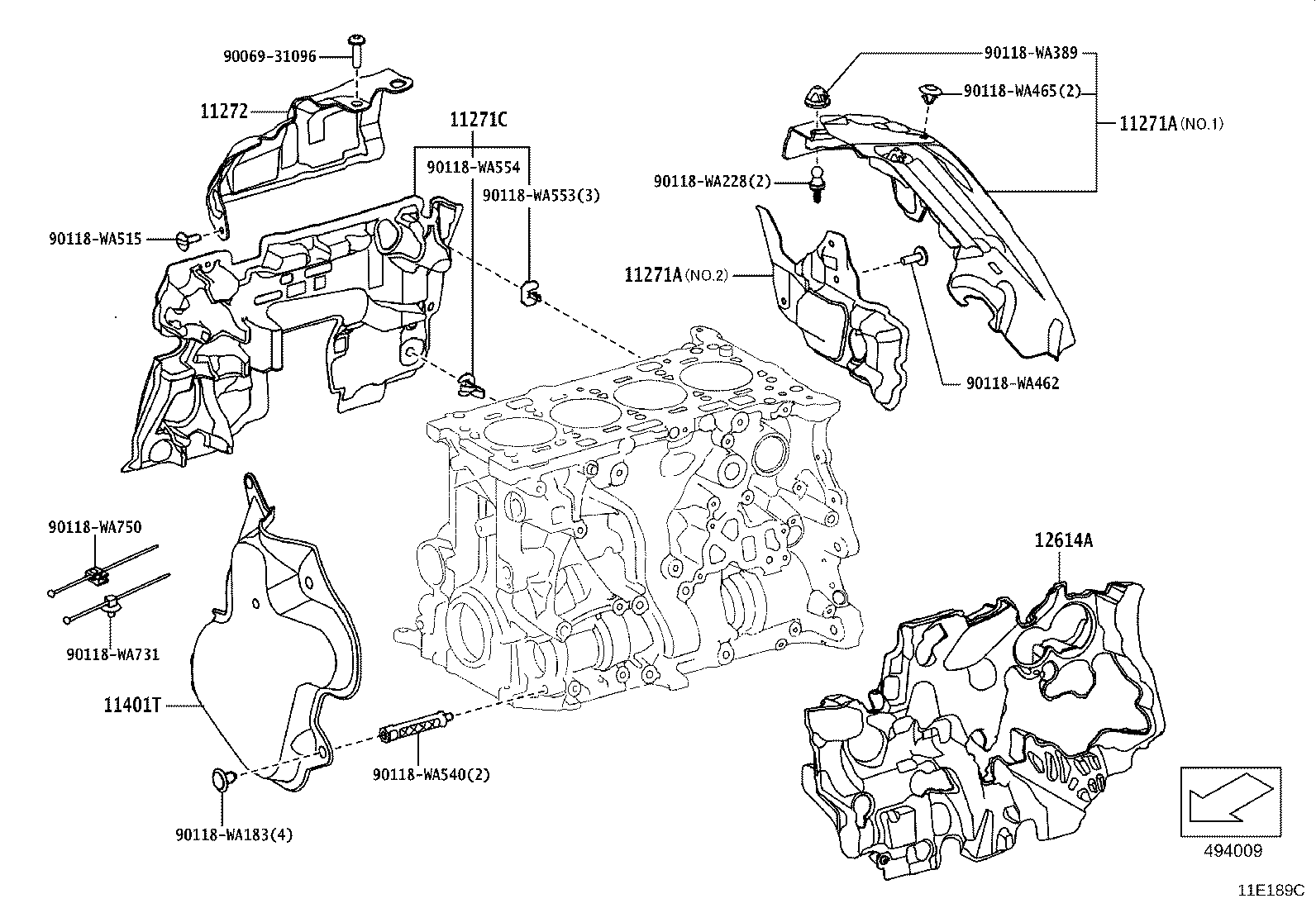

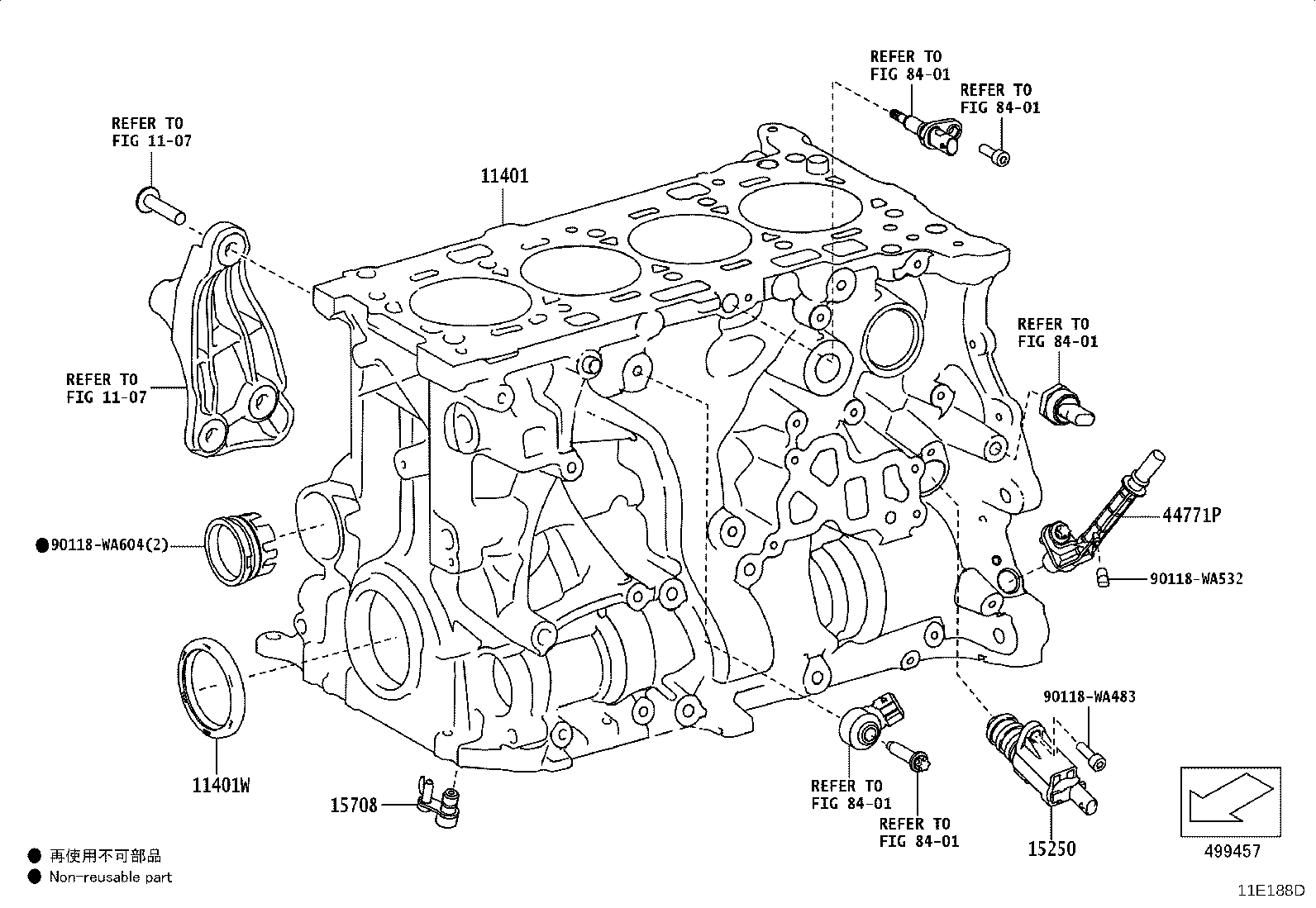

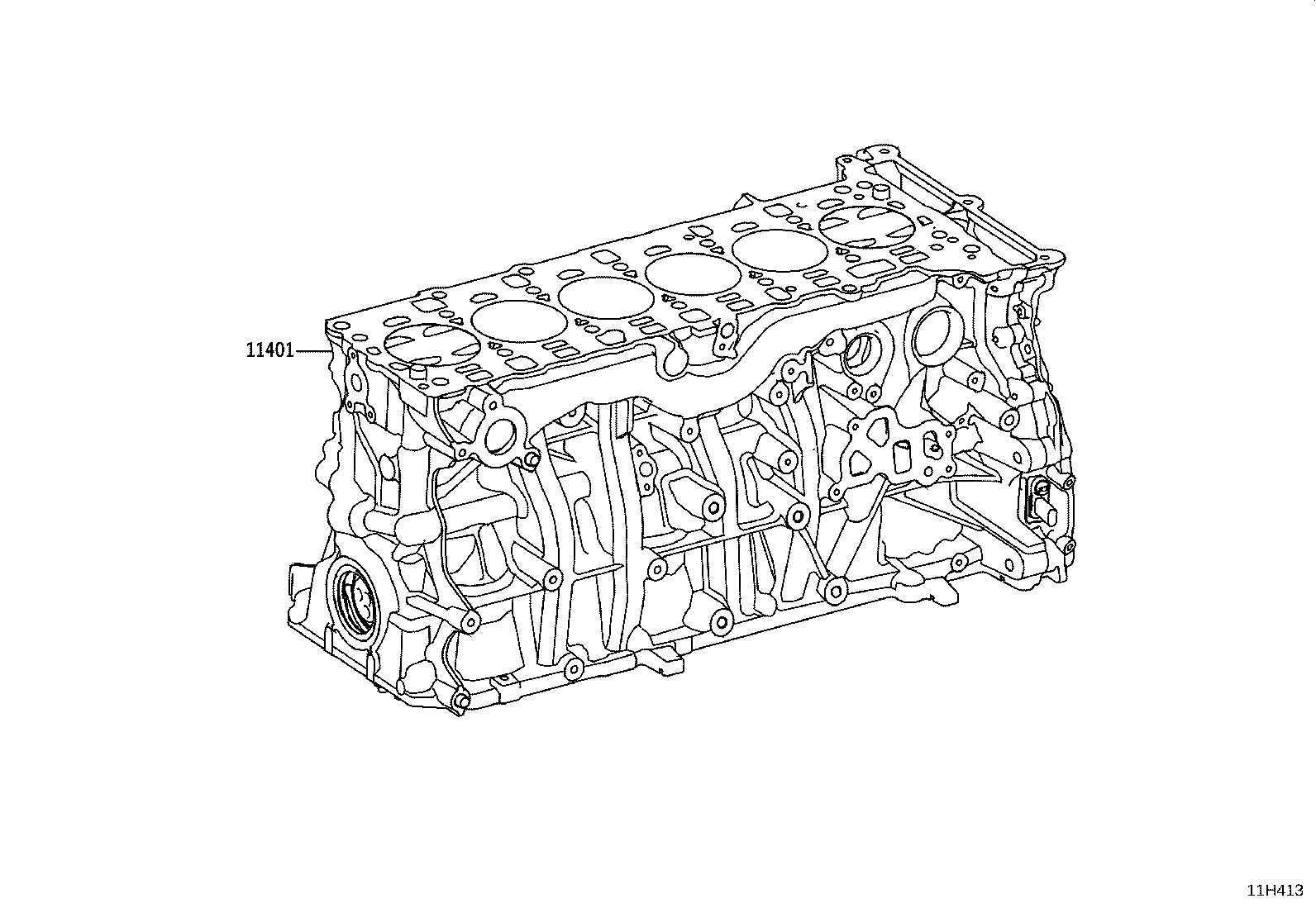

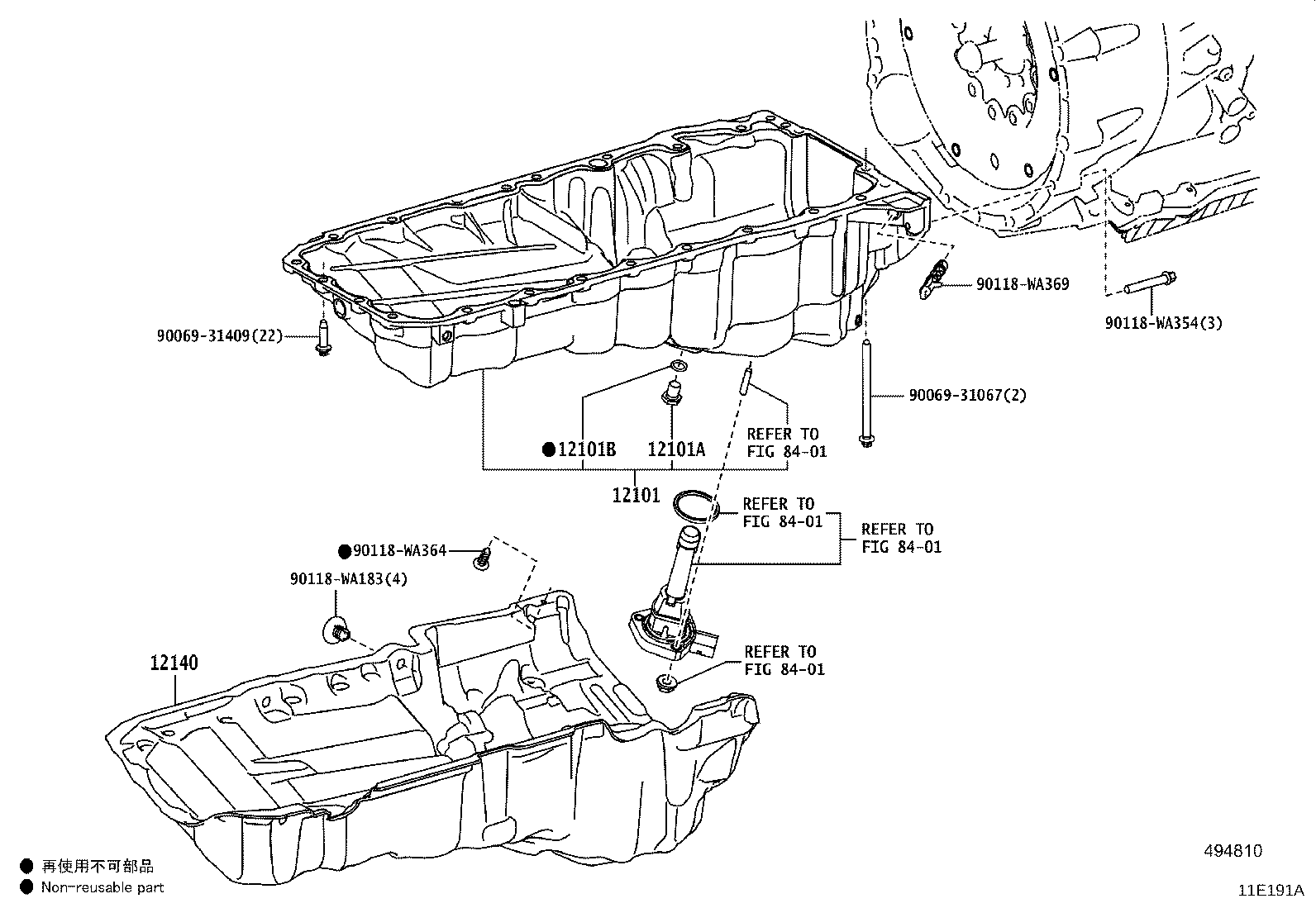

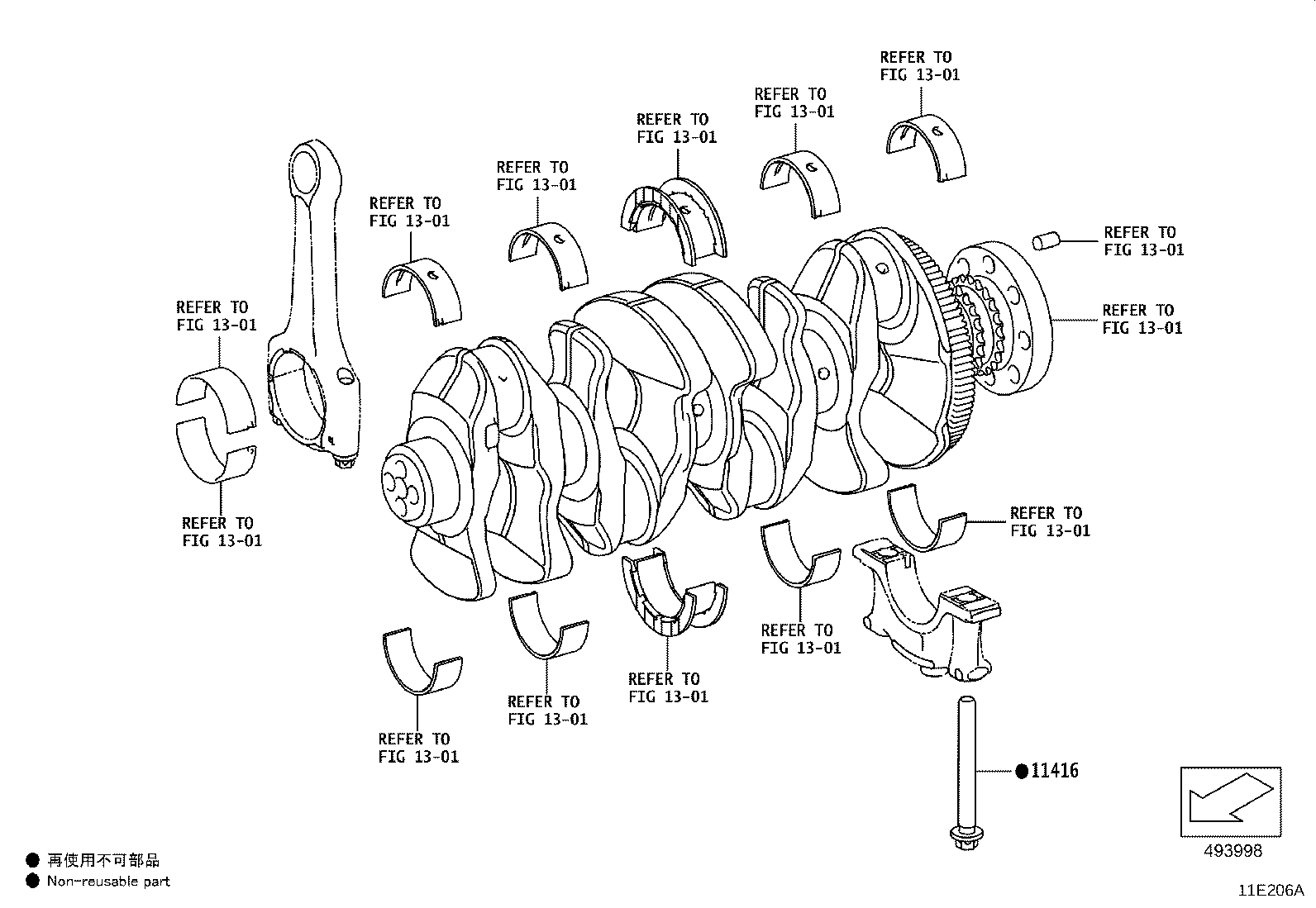

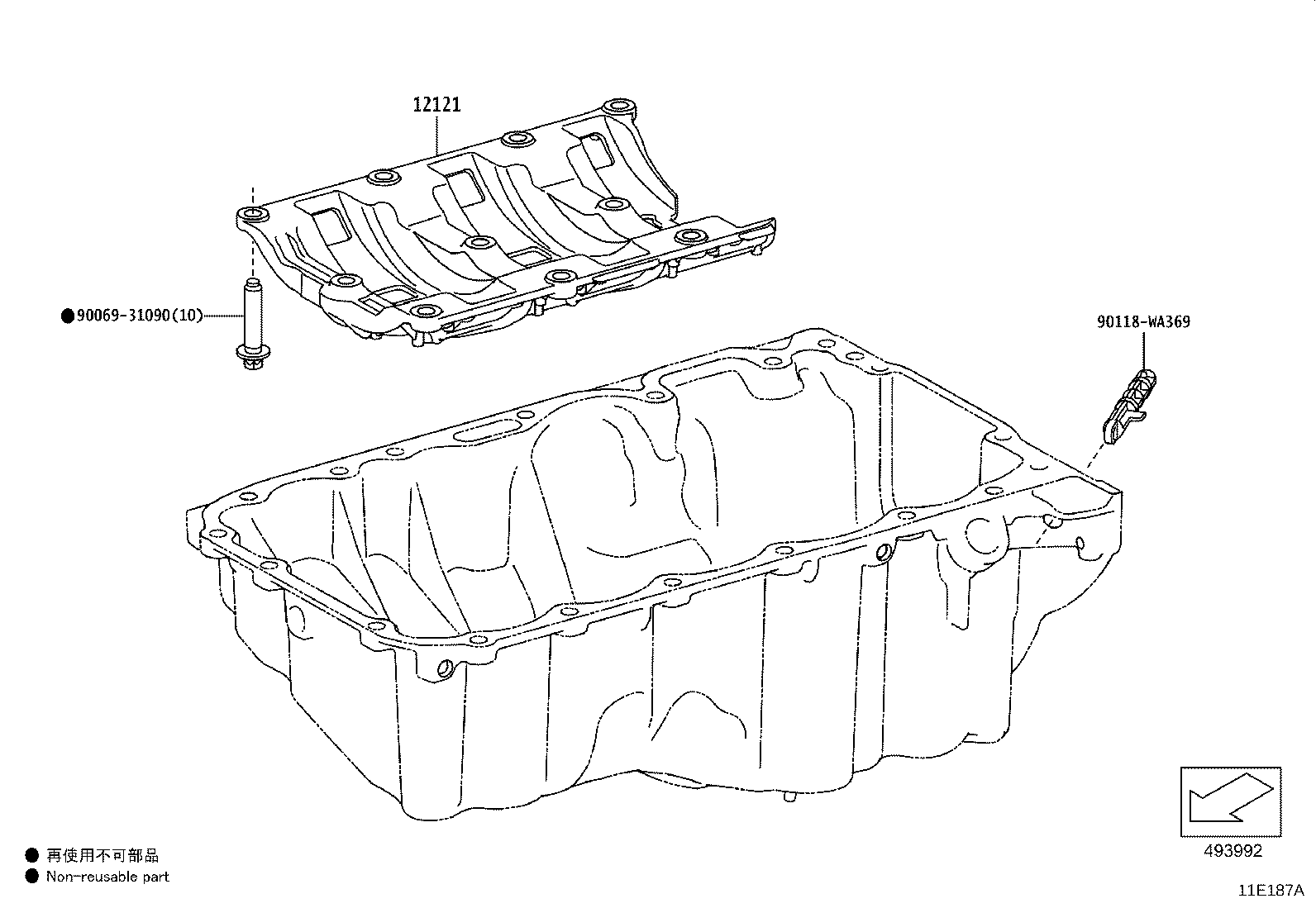

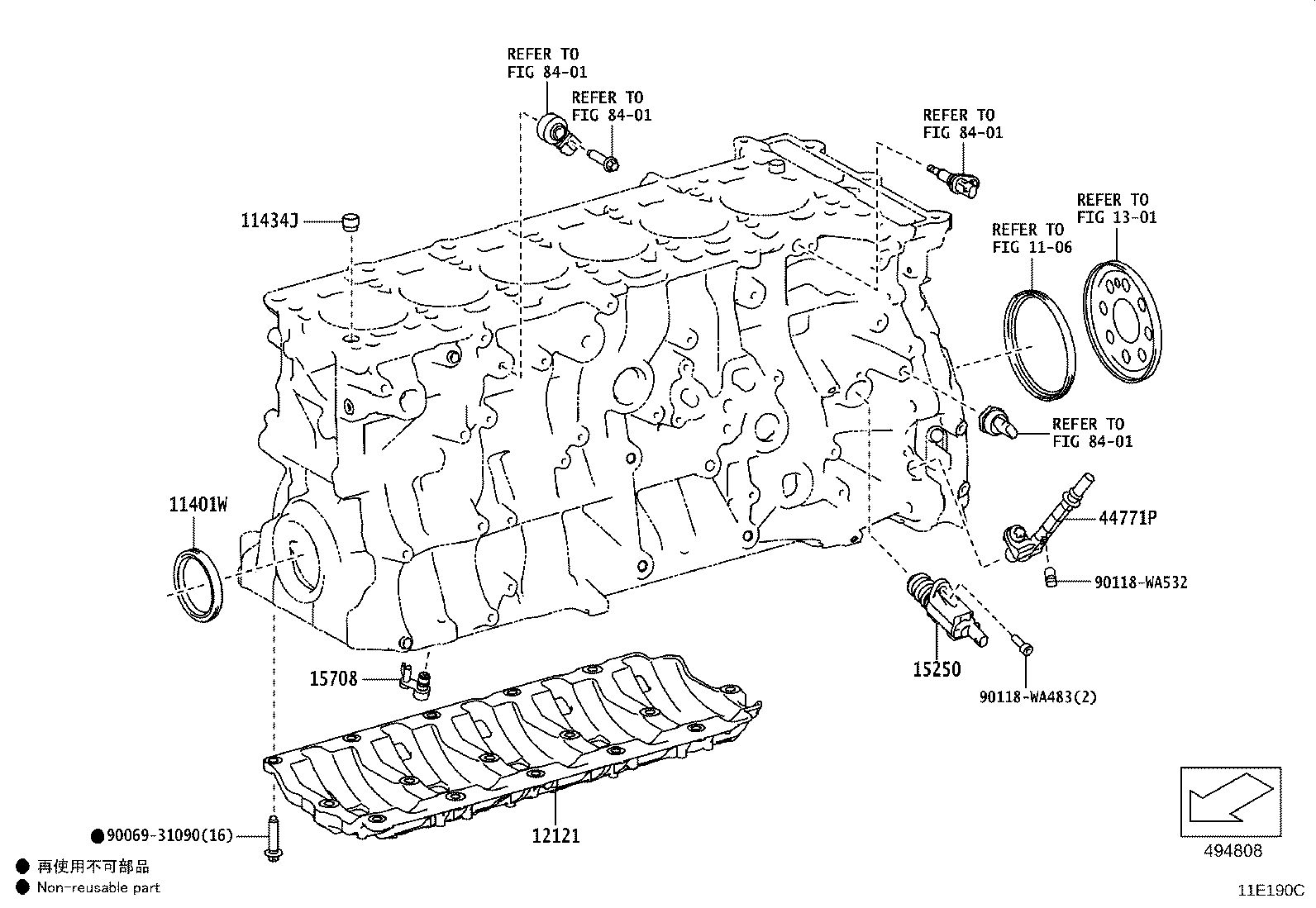

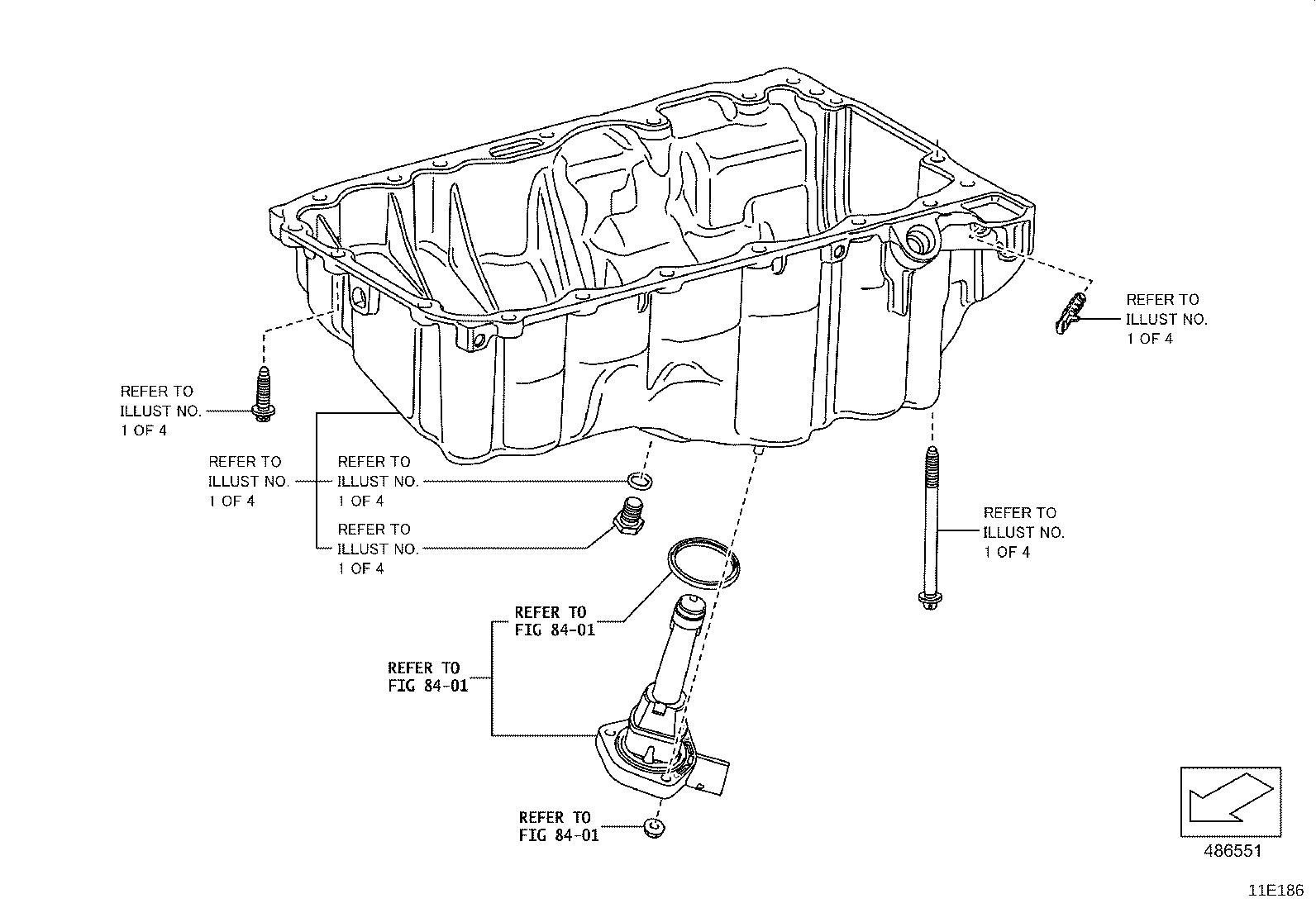

Figure 11E185A 11E185A 2019-03 → — Figure 11E186 11E186 2019-03 → — Figure 11E187A 11E187A 2019-03 → — Figure 11E188D 11E188D 2019-03 → — Figure 11E189C 11E189C 2019-03 → — Figure 11E206A 11E206A 2019-03 → — Figure 11E190C 11E190C 2019-03 → — Figure 11E191A 11E191A 2019-03 → — Figure 11E207A 11E207A 2019-03 → — Figure 11H413 11H413 2019-03 → —

Part groups

PNCDescription
11271A Cover, Cylinder Block, Rear
11271C Cover, Cylivder Block Side
11272 Cover, Cylinder Block Side, NO.2
11401 Block Sub-assy, Cylinder
11401T Cover, Cylinder Block
11401W Seal, Front Crankshaft Oil
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
12140 Cover, Oil Pan
12614A Cover, Engine, NO.4
15250 Valve Assy, Oil Pressure Control
15708 Nozzle Sub-assy, Oil, NO.1
44771P Valve, Booster Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
