Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 3 illustrations

Illustrations

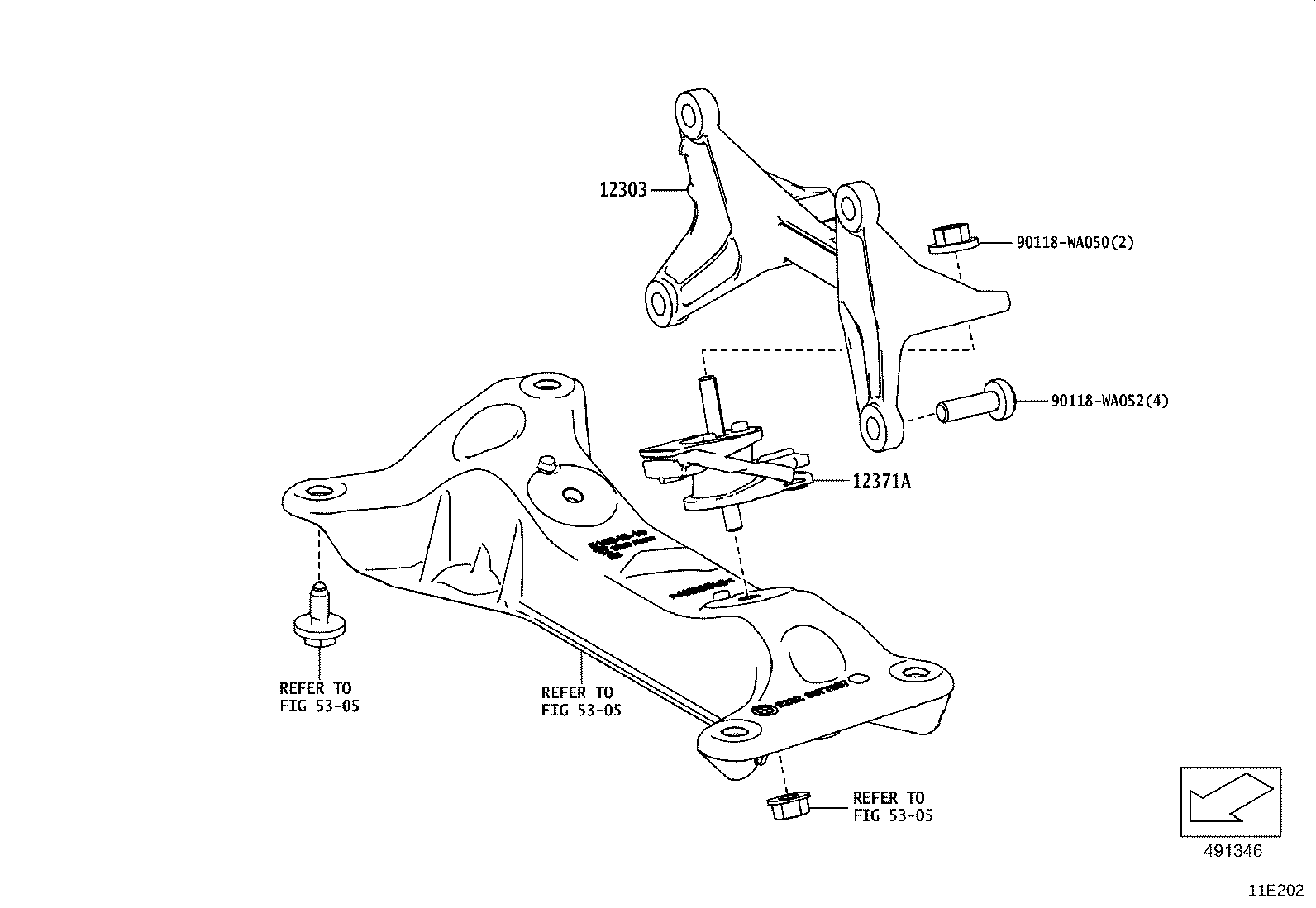

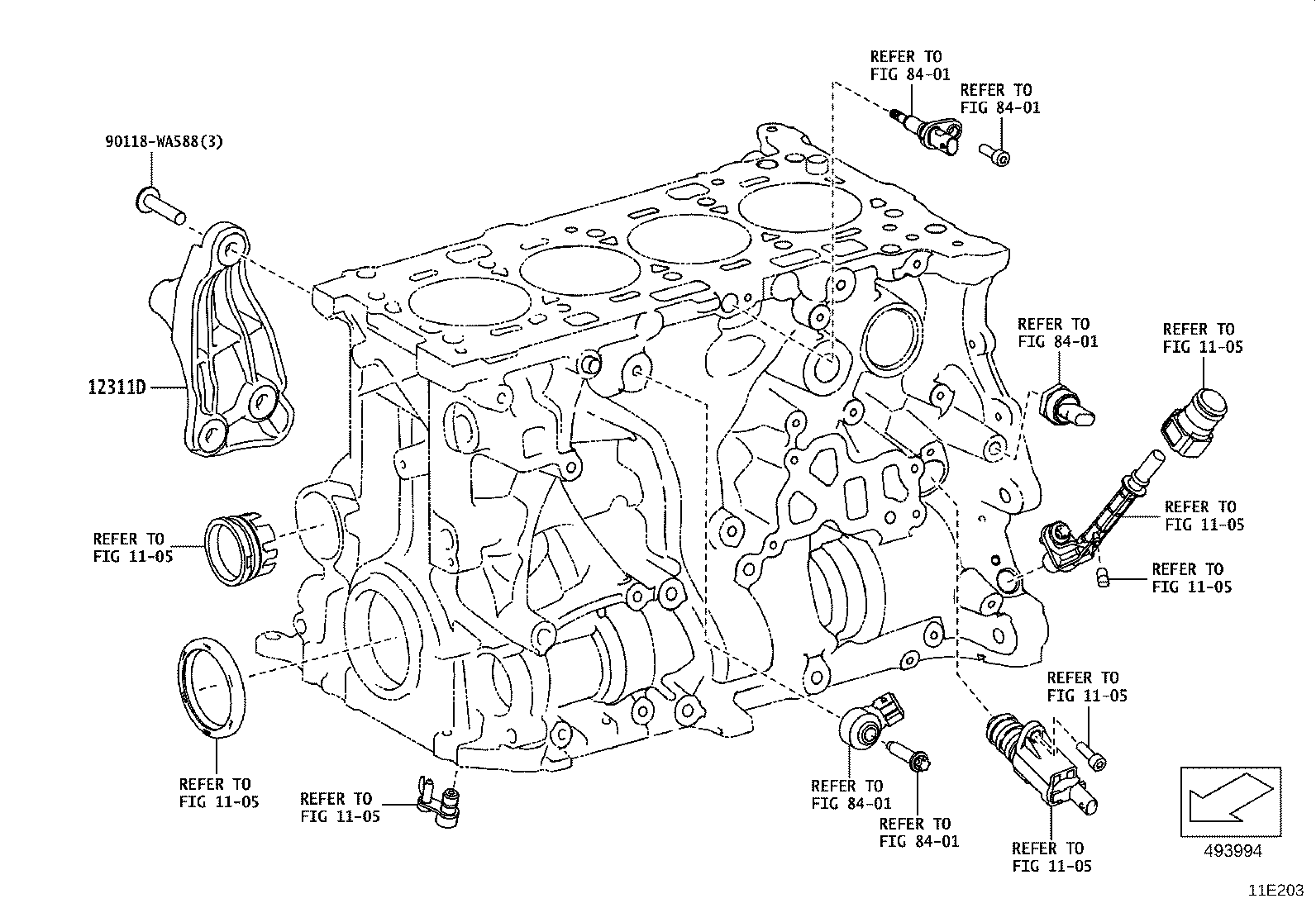

Figure 11E201B 11E201B 2019-03 → — Figure 11E202 11E202 2019-03 → — Figure 11E203 11E203 2019-03 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12311D Bracket, Engine Mounting
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371A Insulator, Engine Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
