Factory parts data · Europe

Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

4 part groups · 2 illustrations

Illustrations

Figure 153116C

153116C 2019-03 → —

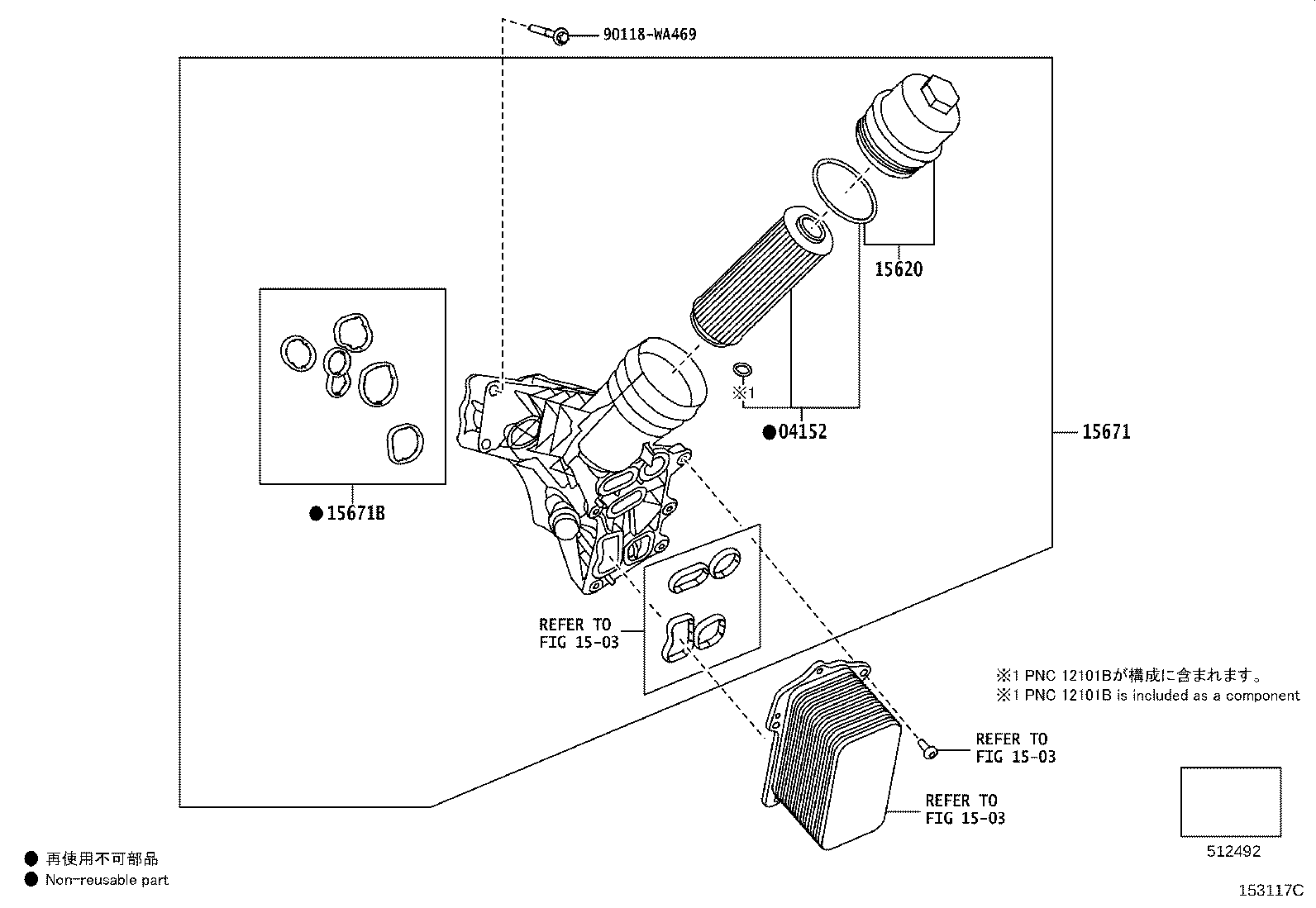

Figure 153117C

153117C 2019-03 → —

Part groups

PNC	Description
04152	Element Kit, Oil Filter
15620	Cap Assy, Oil Filter
15671	Bracket, Oil Filter
15671B	Gasket, Oil Filter Bracket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
