Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

28 part groups · 15 illustrations

Illustrations

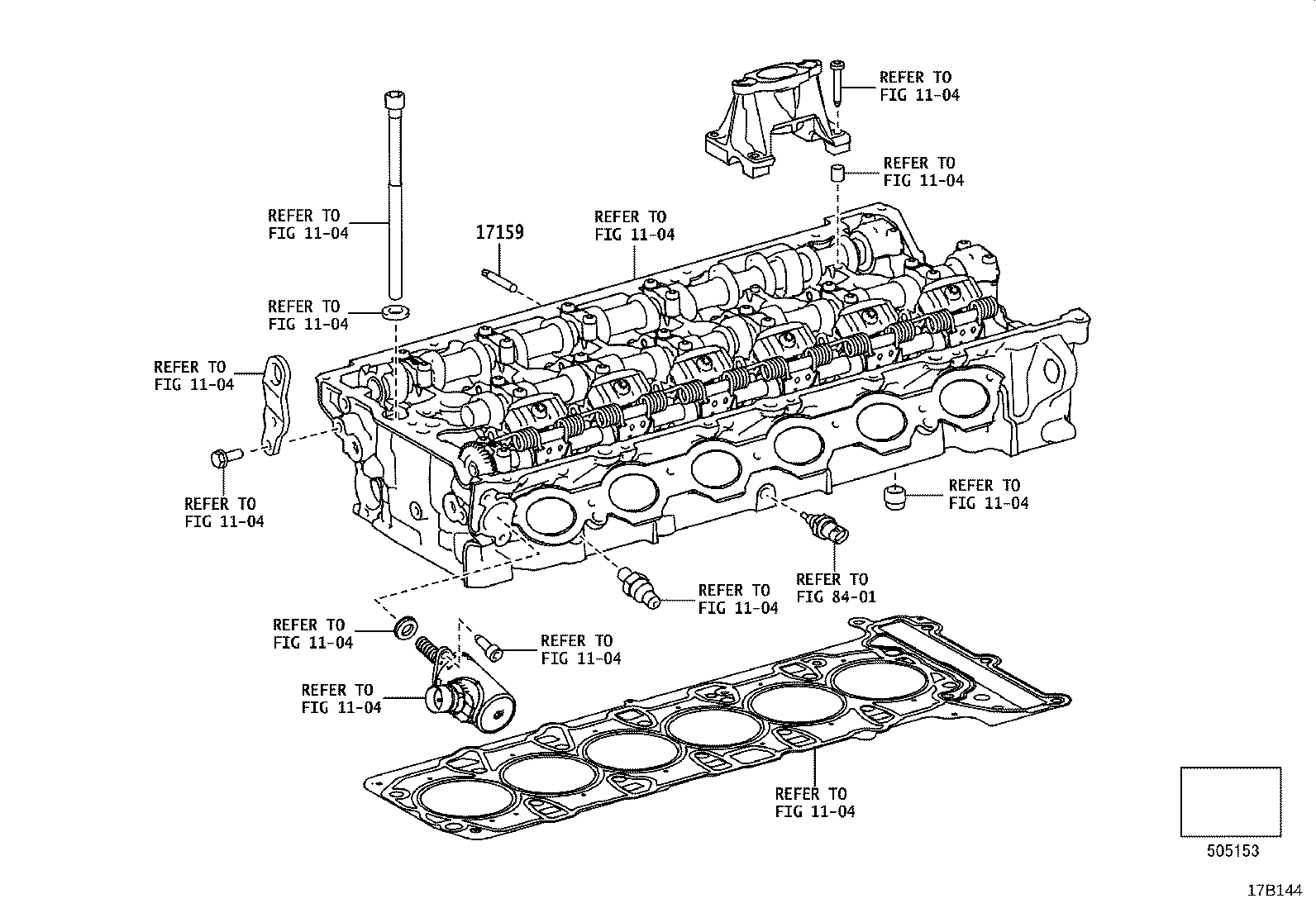

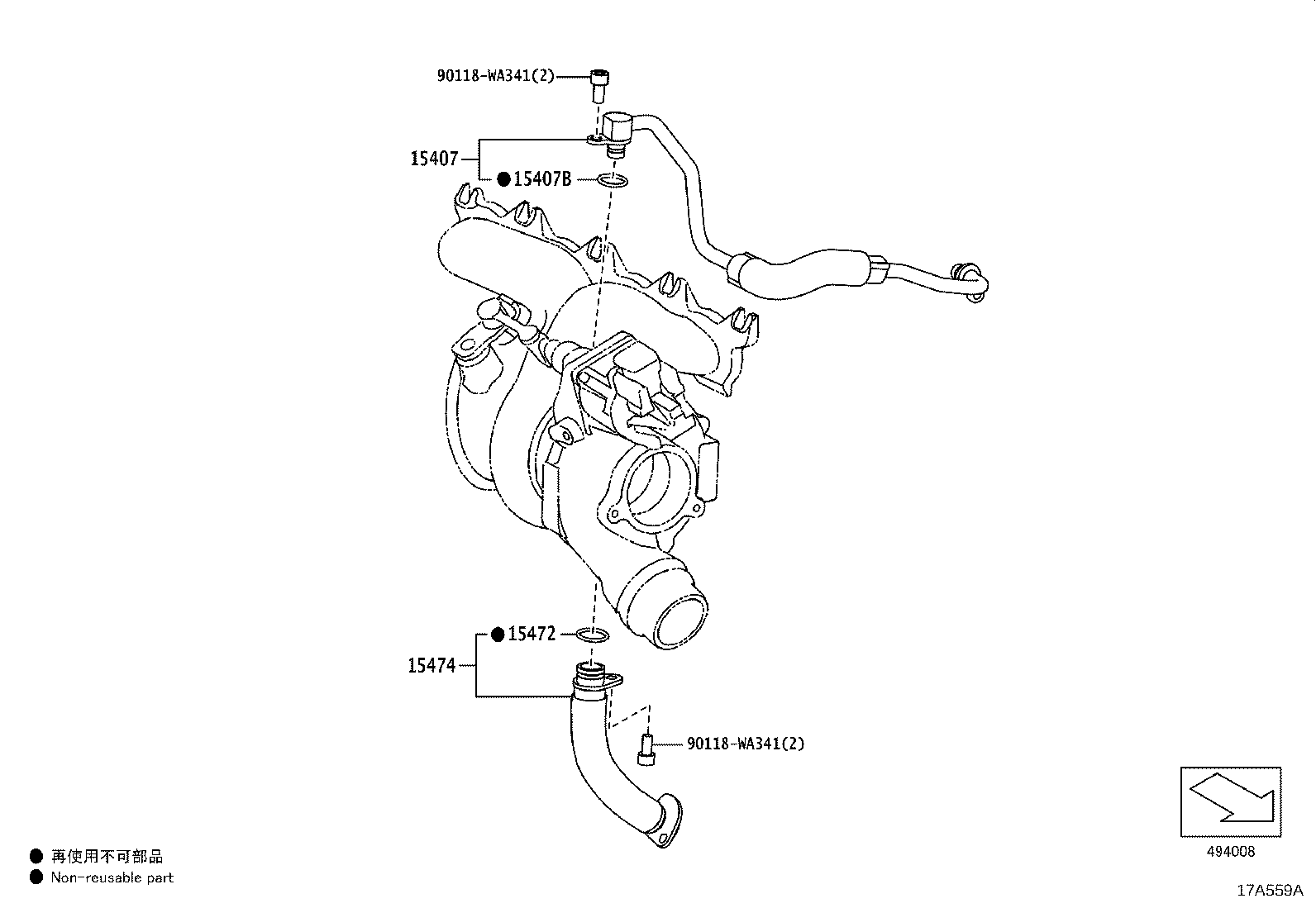

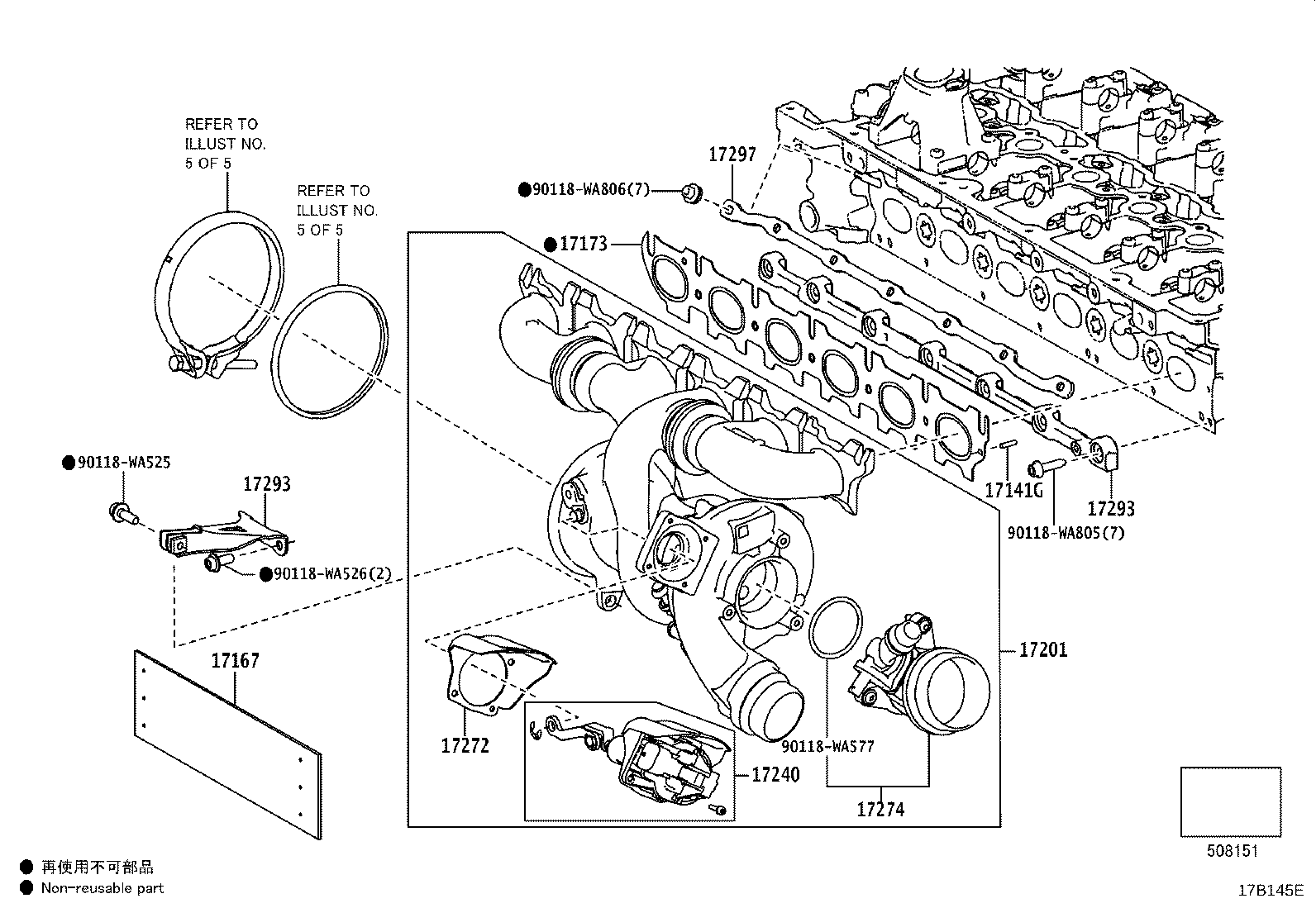

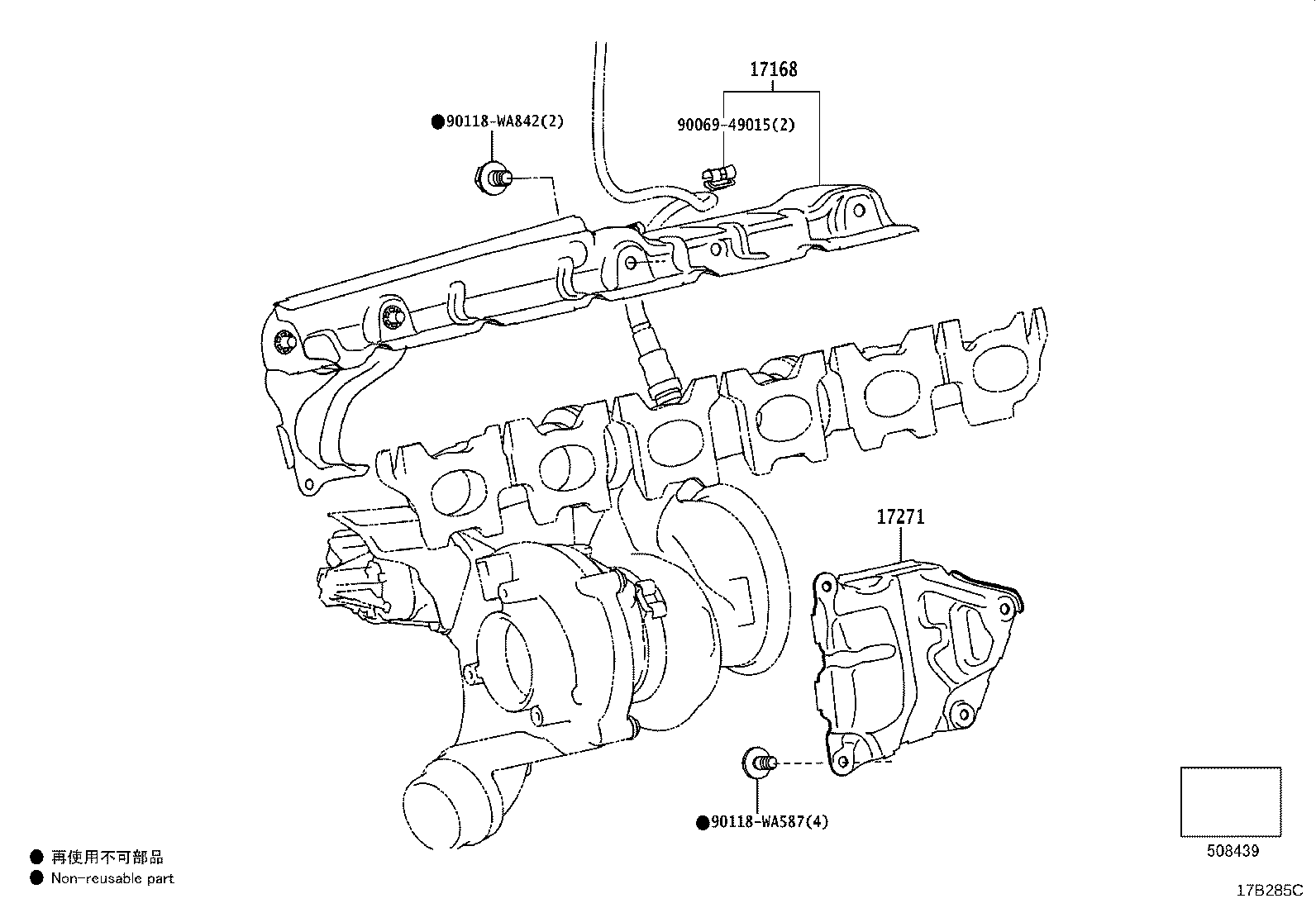

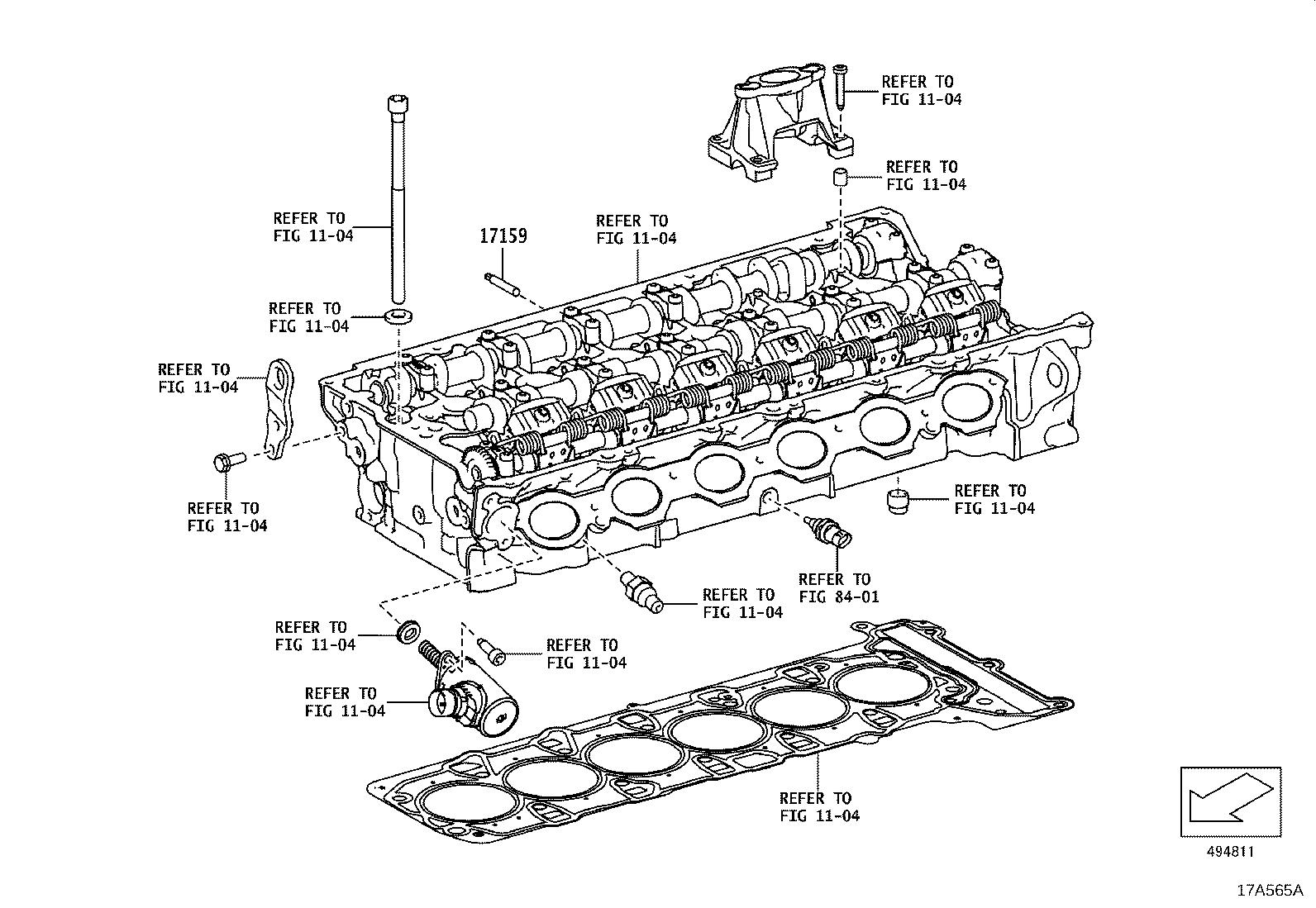

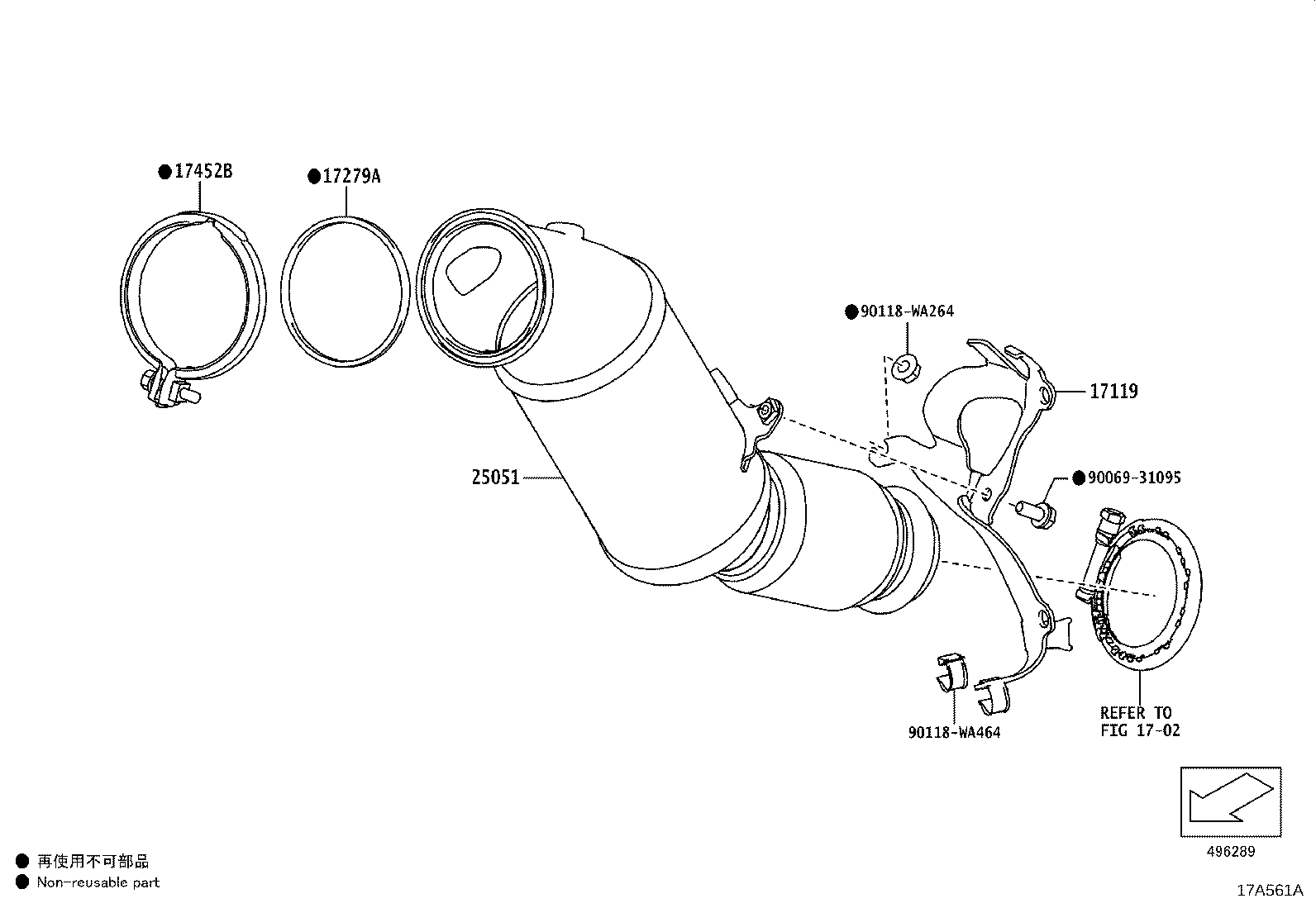

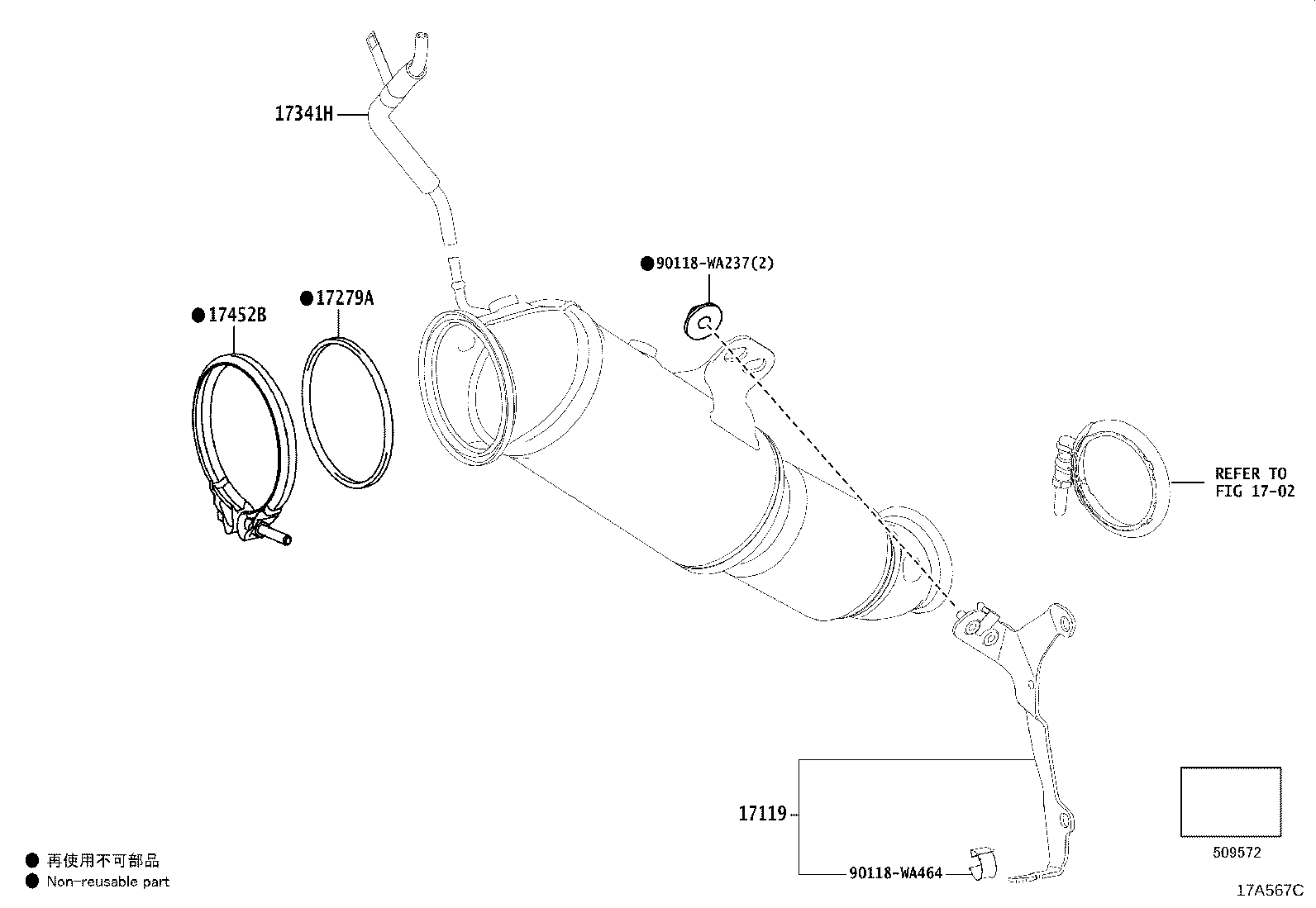

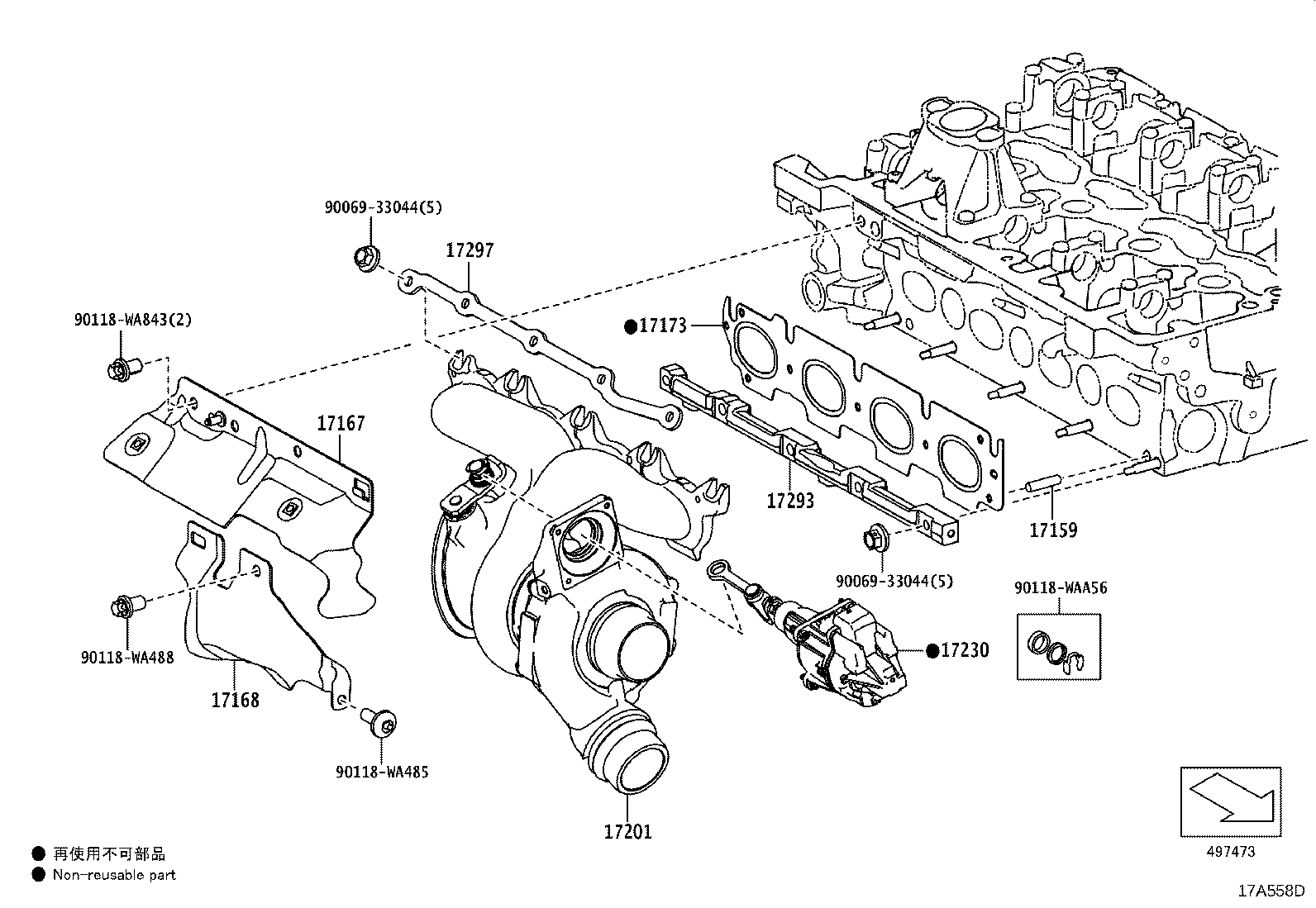

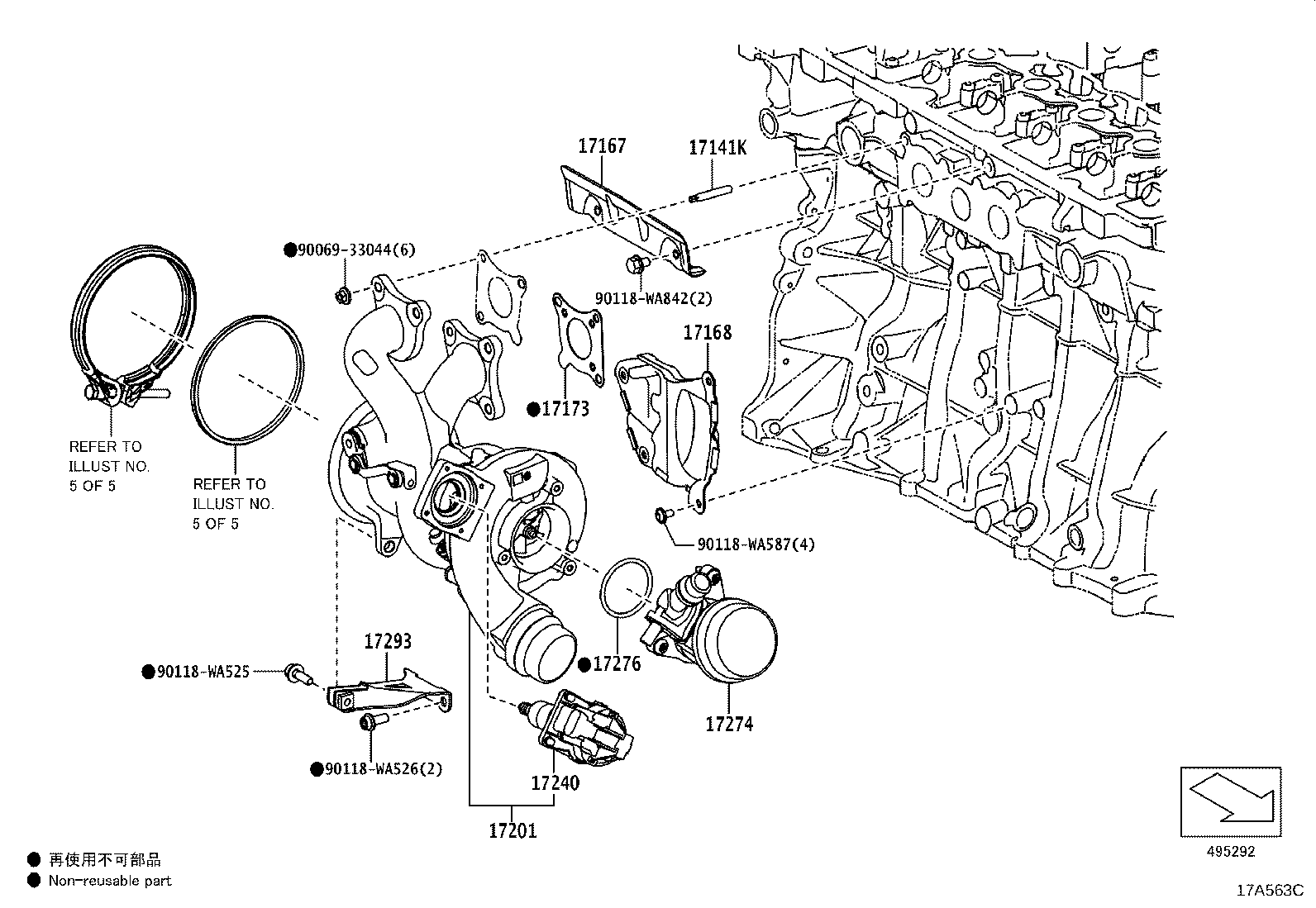

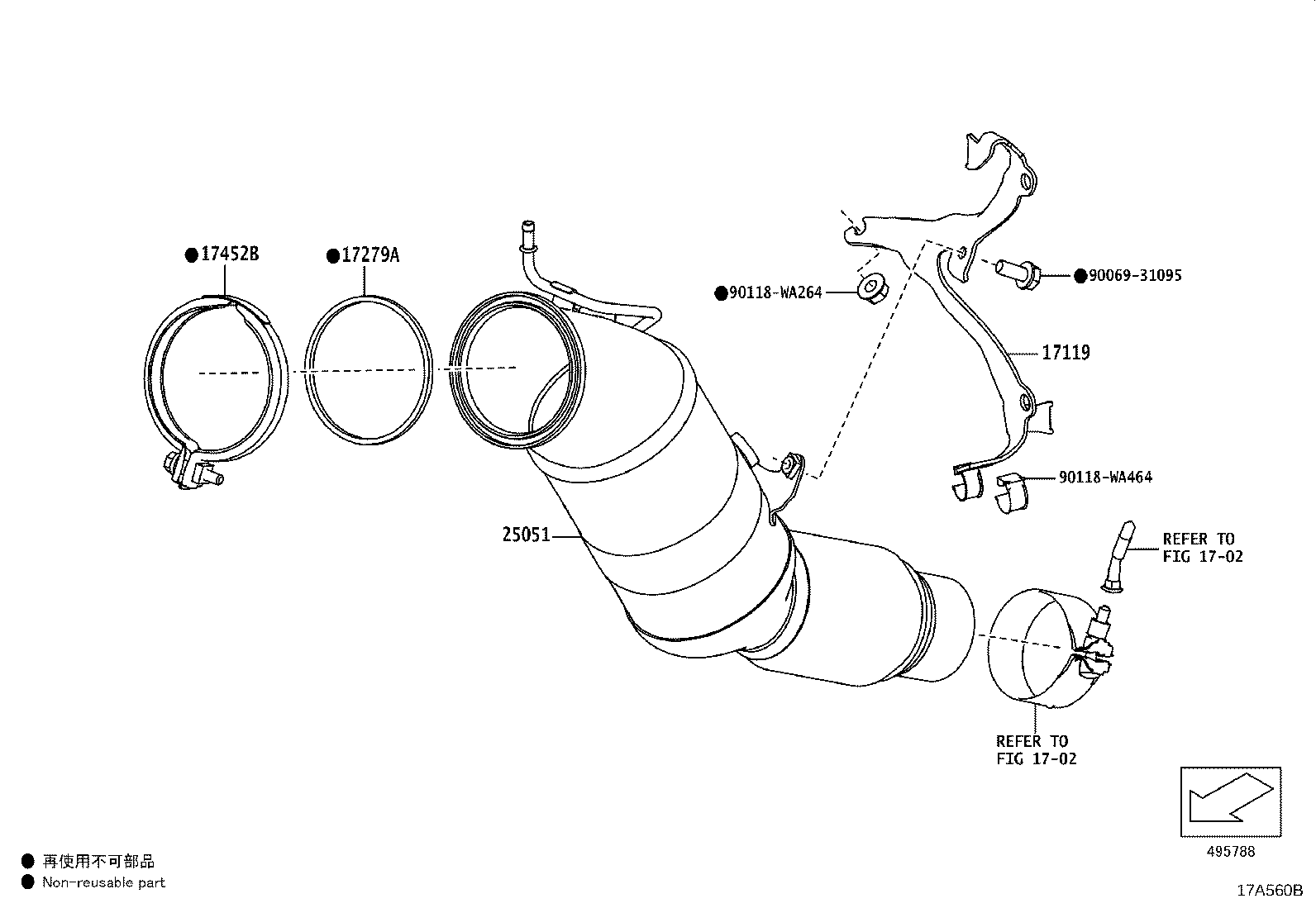

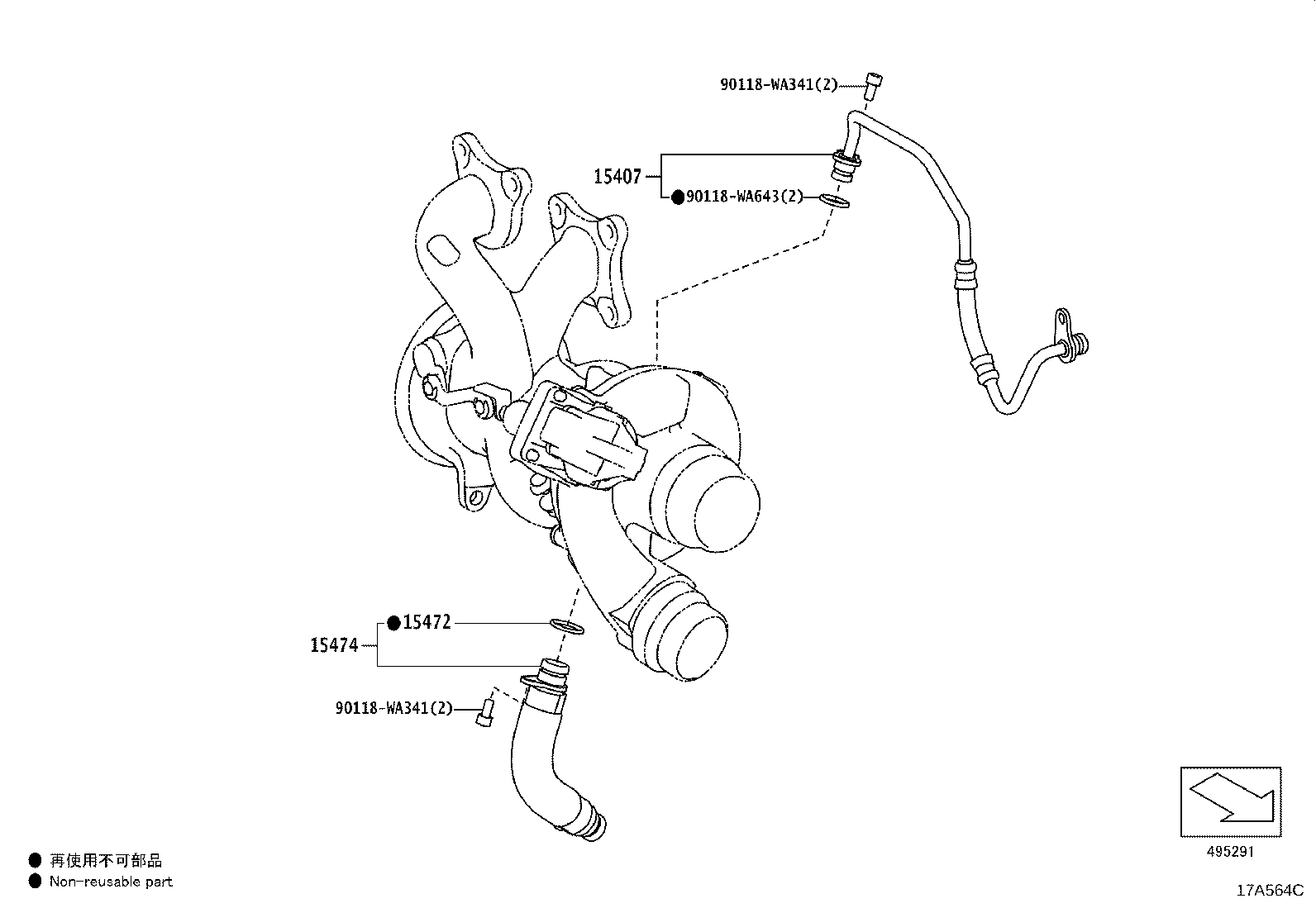

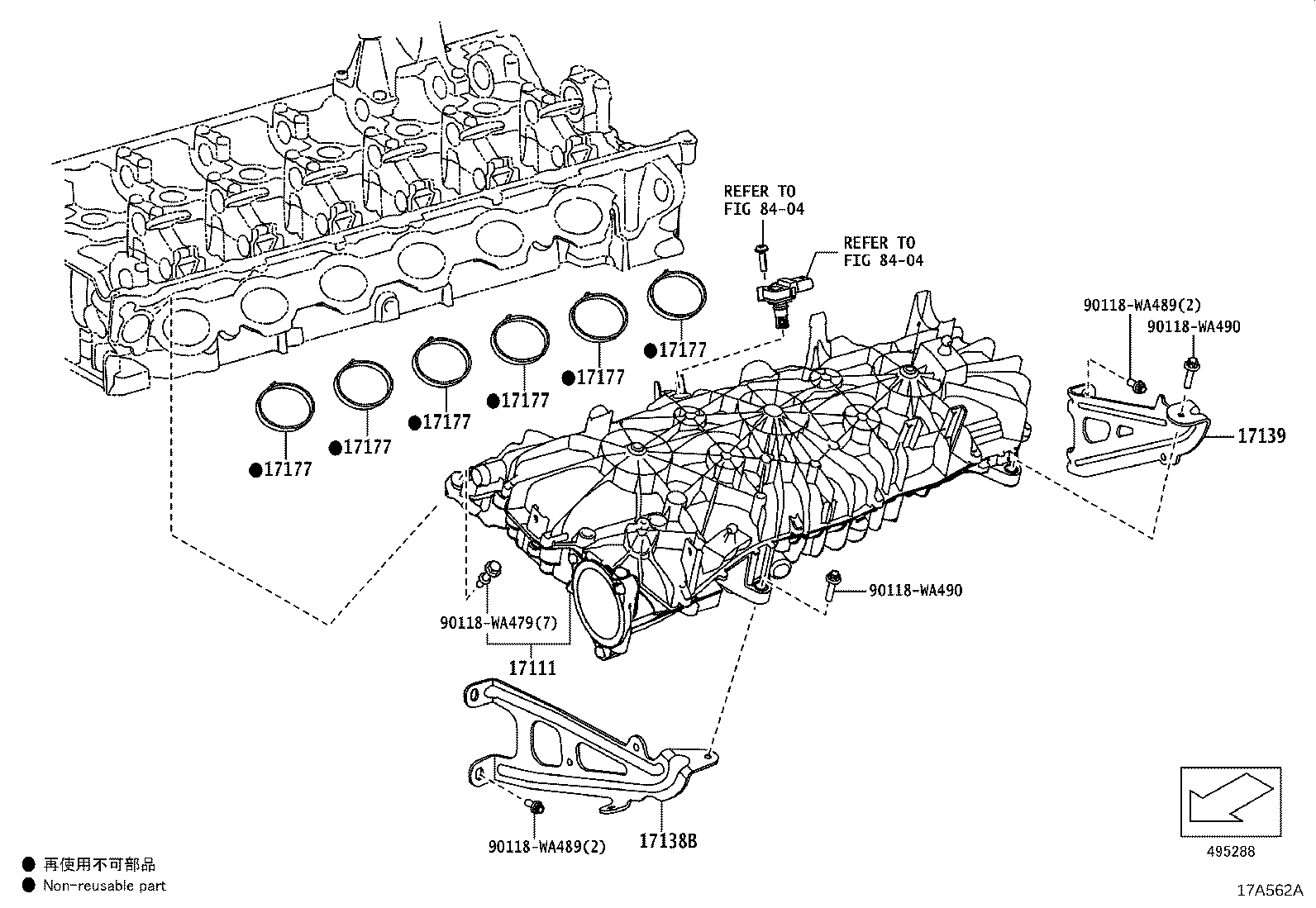

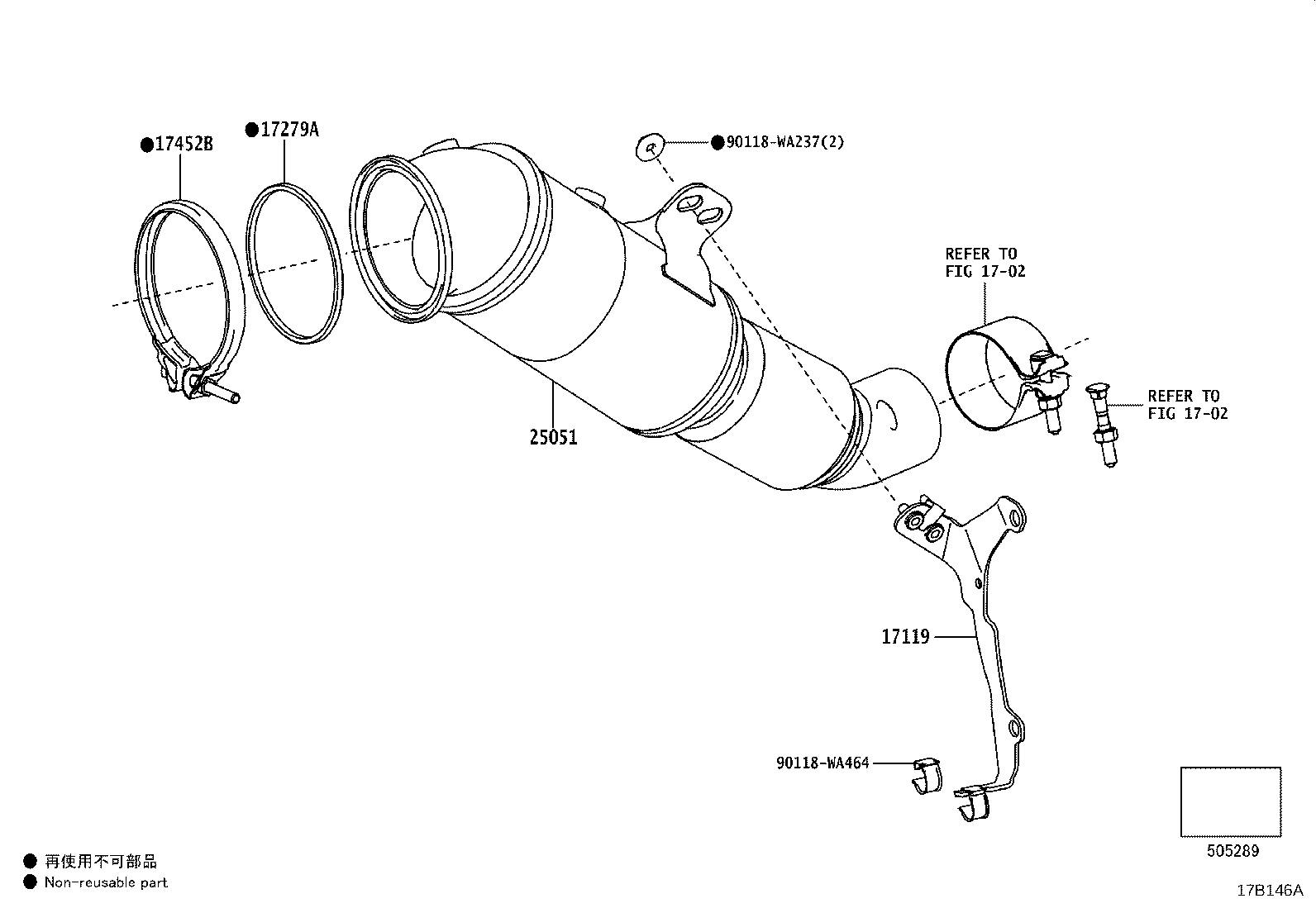

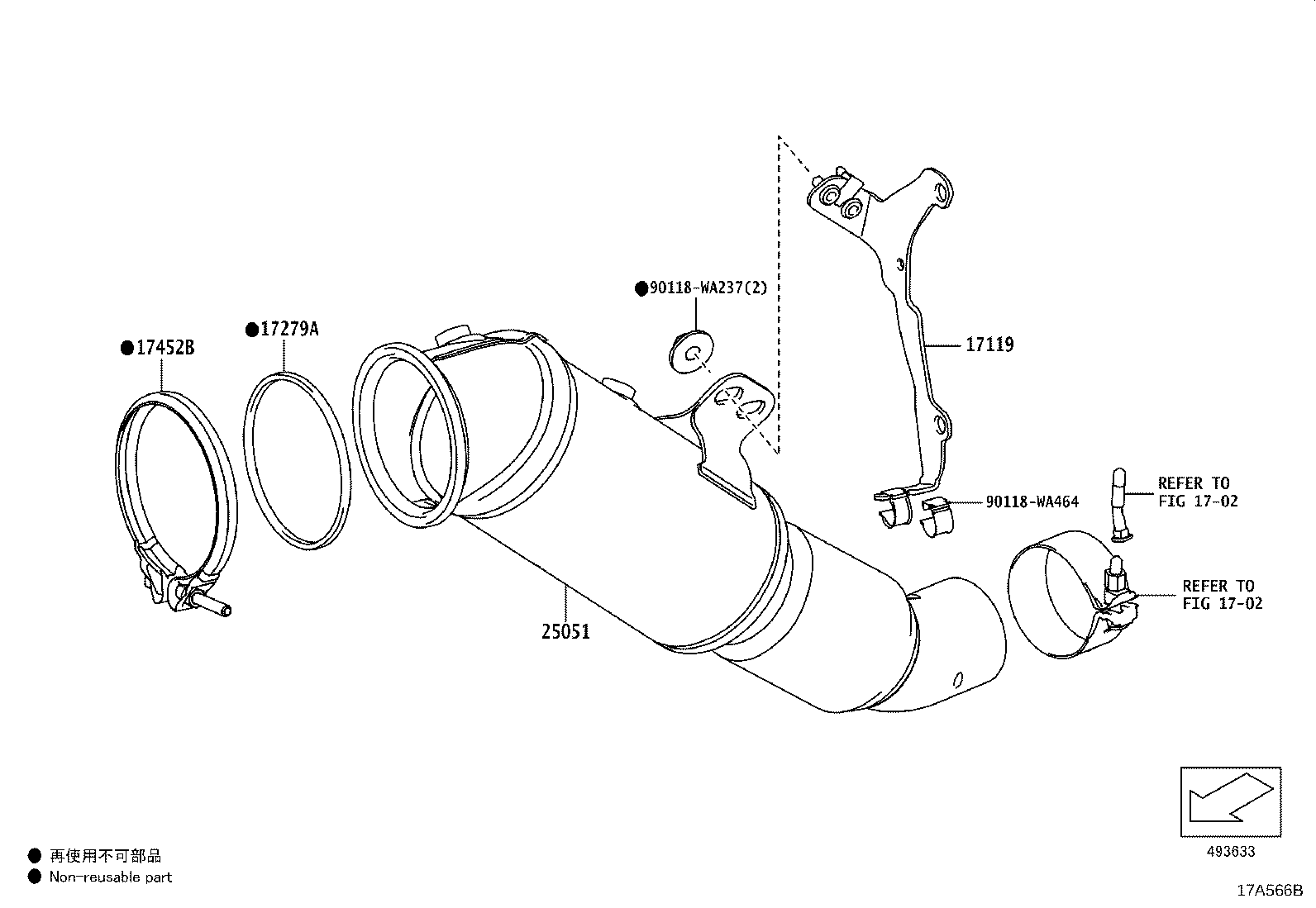

Figure 17A557A 17A557A 2019-03 → — Figure 17A558D 17A558D 2019-03 → — Figure 17A559A 17A559A 2019-03 → — Figure 17A560B 17A560B 2019-03 → — Figure 17A561A 17A561A 2019-03 → — Figure 17A562A 17A562A 2019-03 → — Figure 17A563C 17A563C 2019-03 → — Figure 17B145E 17B145E 2020-03 → — Figure 17A564C 17A564C 2019-03 → — Figure 17A565A 17A565A 2019-03 → — Figure 17B144 17B144 2020-03 → — Figure 17A566B 17A566B 2019-03 → — Figure 17A567C 17A567C 2019-03 → — Figure 17B146A 17B146A 2020-03 → — Figure 17B285C 17B285C 2020-03 → —

Part groups

PNCDescription
15407 Pipe Sub-assy, Turbo Oil Inlet
15407B Gasket(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
17111 Manifold, Intake
17119 Stay, Manifold, NO.2
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141G Bolt, Stud(FOR TURBOCHARGER)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17230 Actuator Assy, W/Bracket
17240 Actuator & Link Assy, Turbocharger
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17279A Gasket, Turbine Outlet Elbow, NO.1
17293 Stay, Turbocharger
17297 Stay, Turbocharger, NO.2
17341H Hose, Air
17452B Clamp, Exhaust Pipe
25051 Converter Sub-assy, Exhaust Manifold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
