Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

6 part groups · 4 illustrations

Illustrations

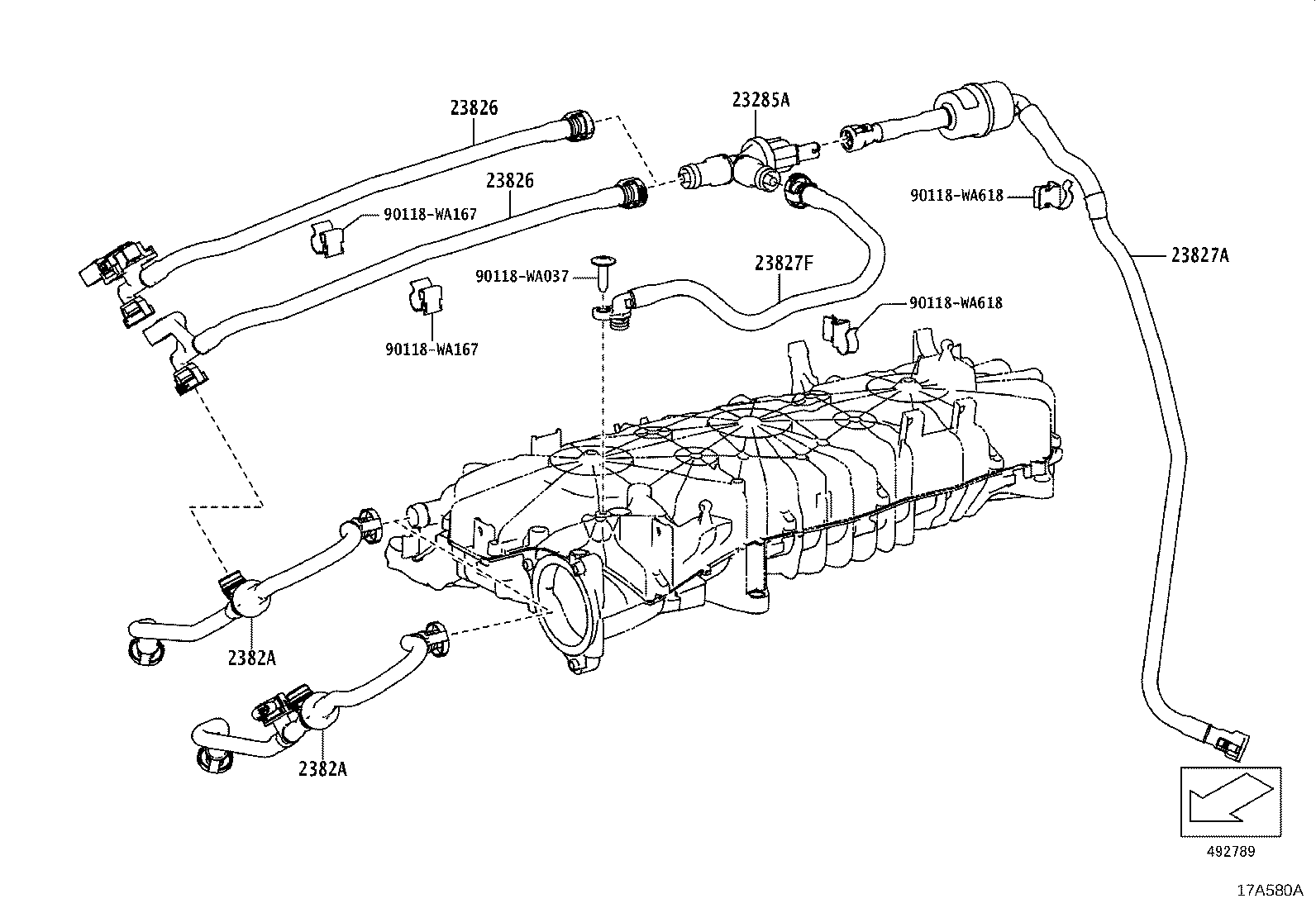

Figure 17A578A 17A578A 2019-03 → — Figure 17A579 17A579 2019-03 → — Figure 17A580A 17A580A 2019-03 → — Figure 17A581 17A581 2019-03 → —

Part groups

PNCDescription
23285A Valve, Check, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
2382A Hose, Fuel Vapor Feed, NO.4
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
