Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

15 part groups · 11 illustrations

Illustrations

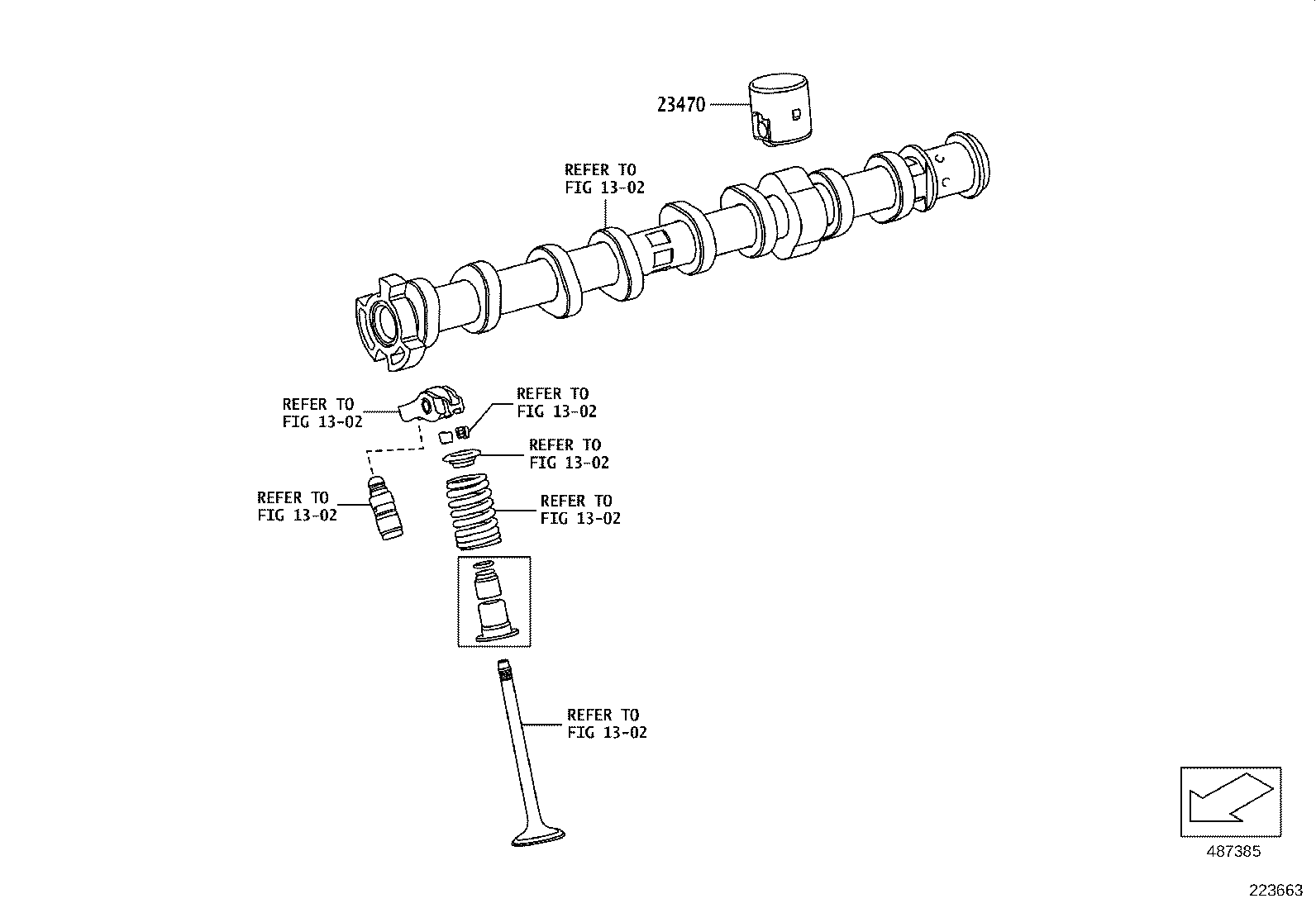

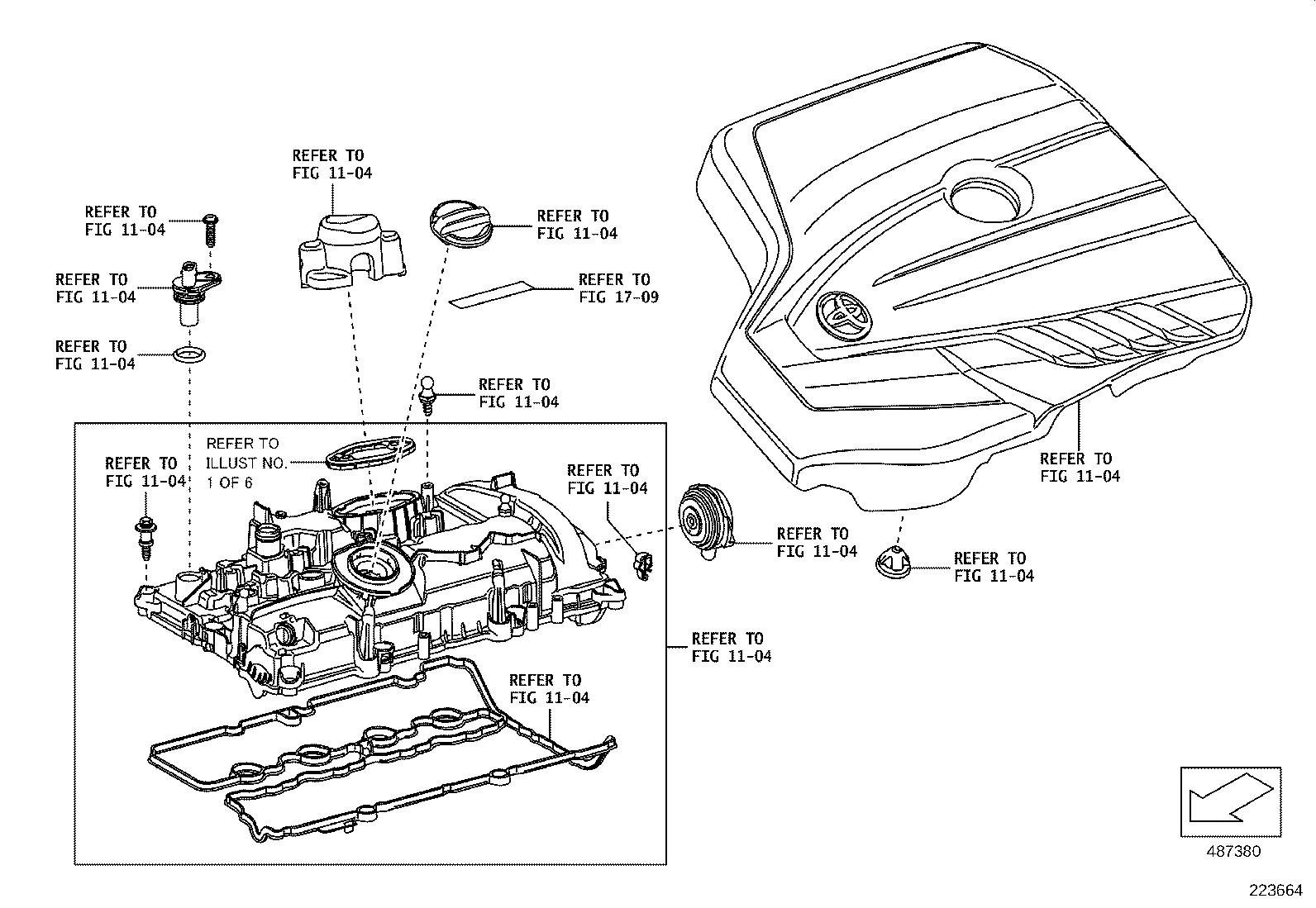

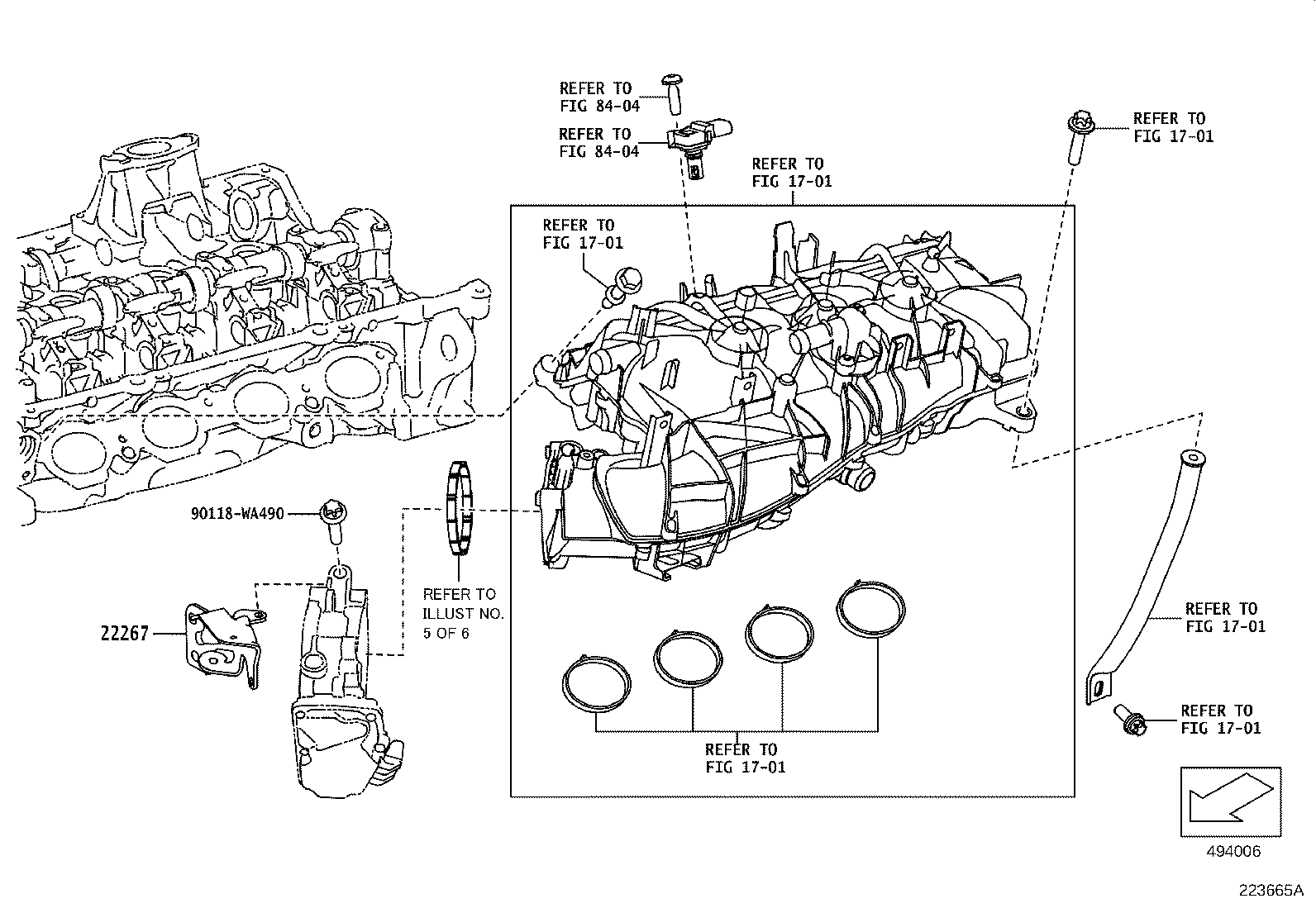

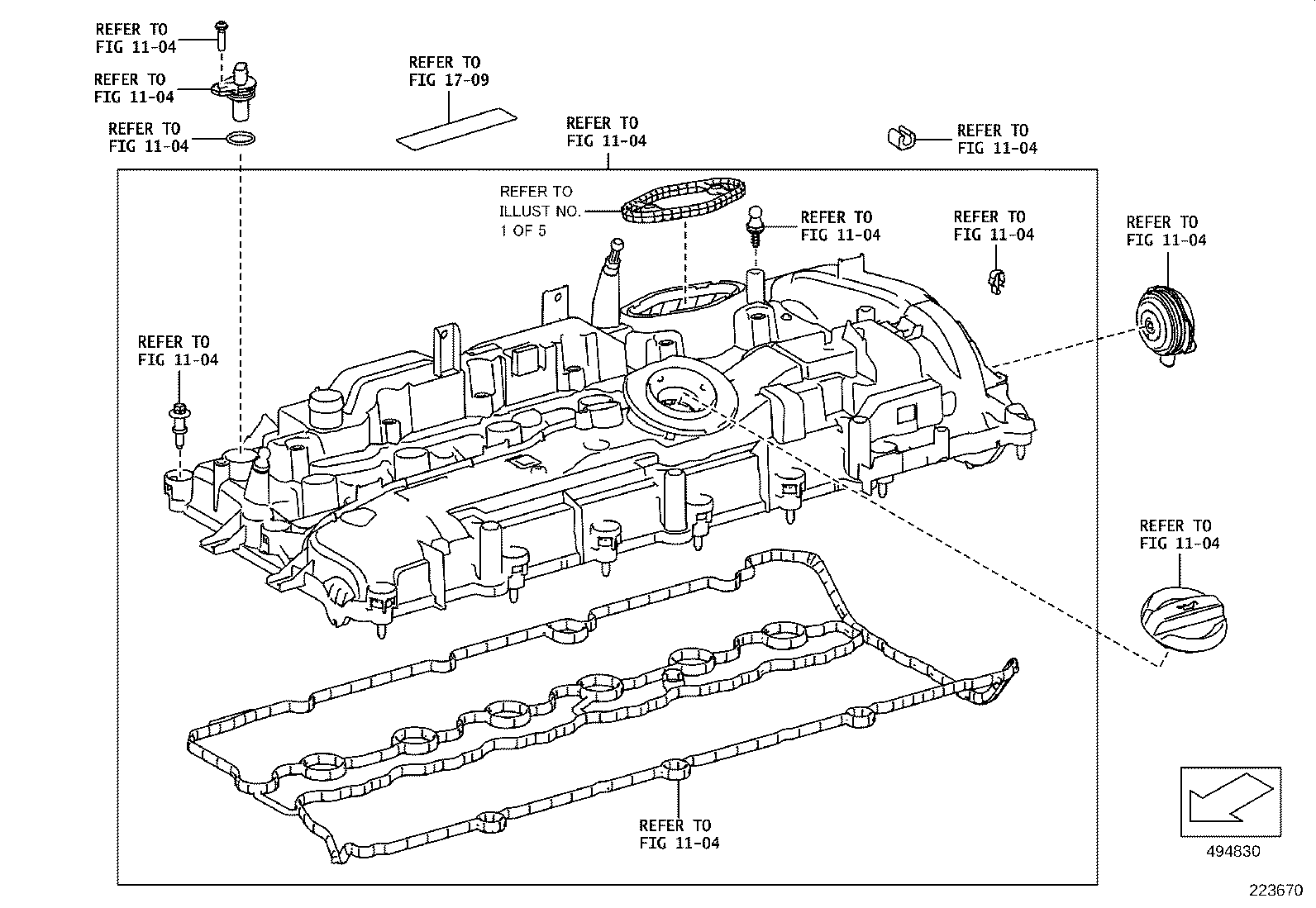

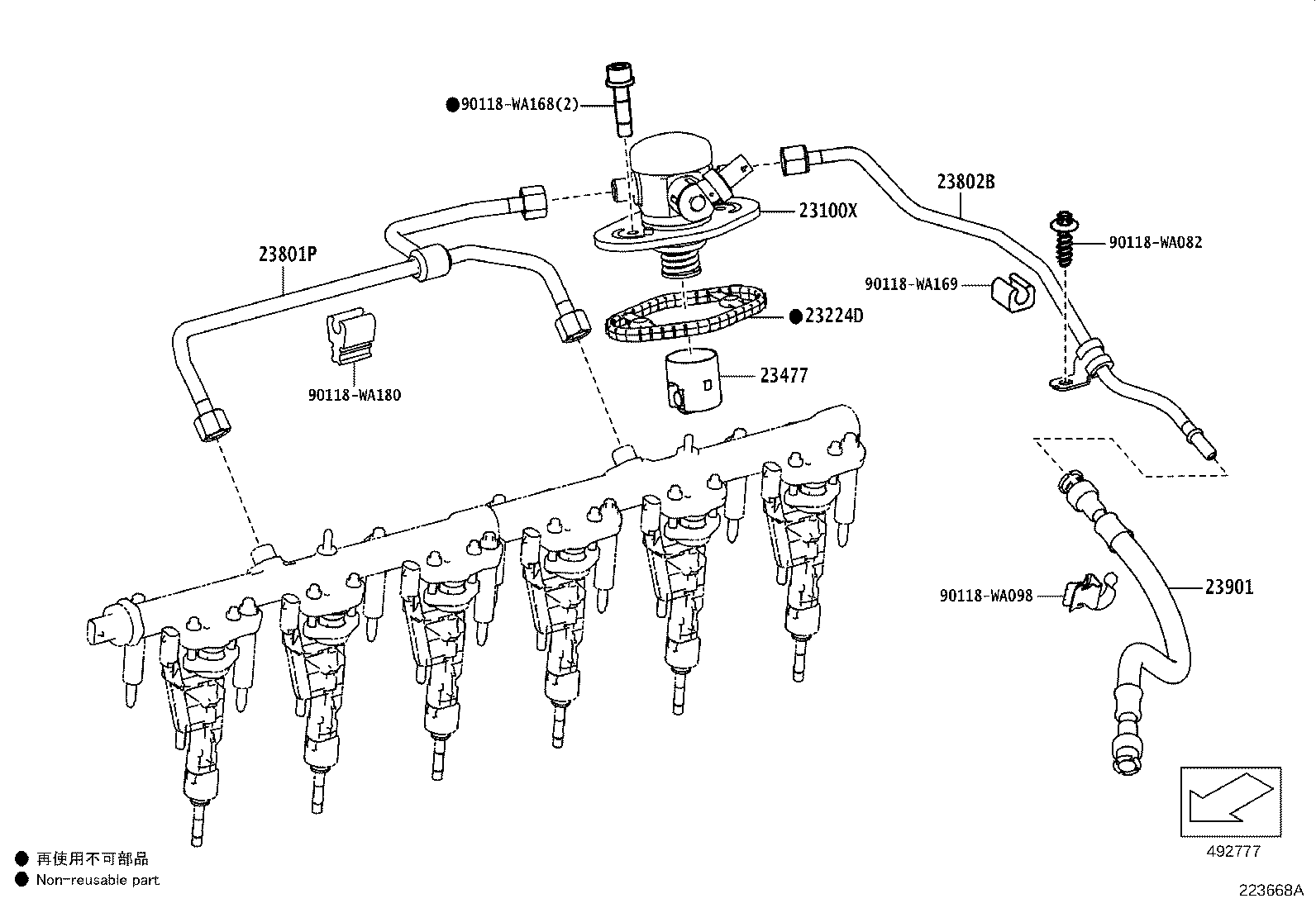

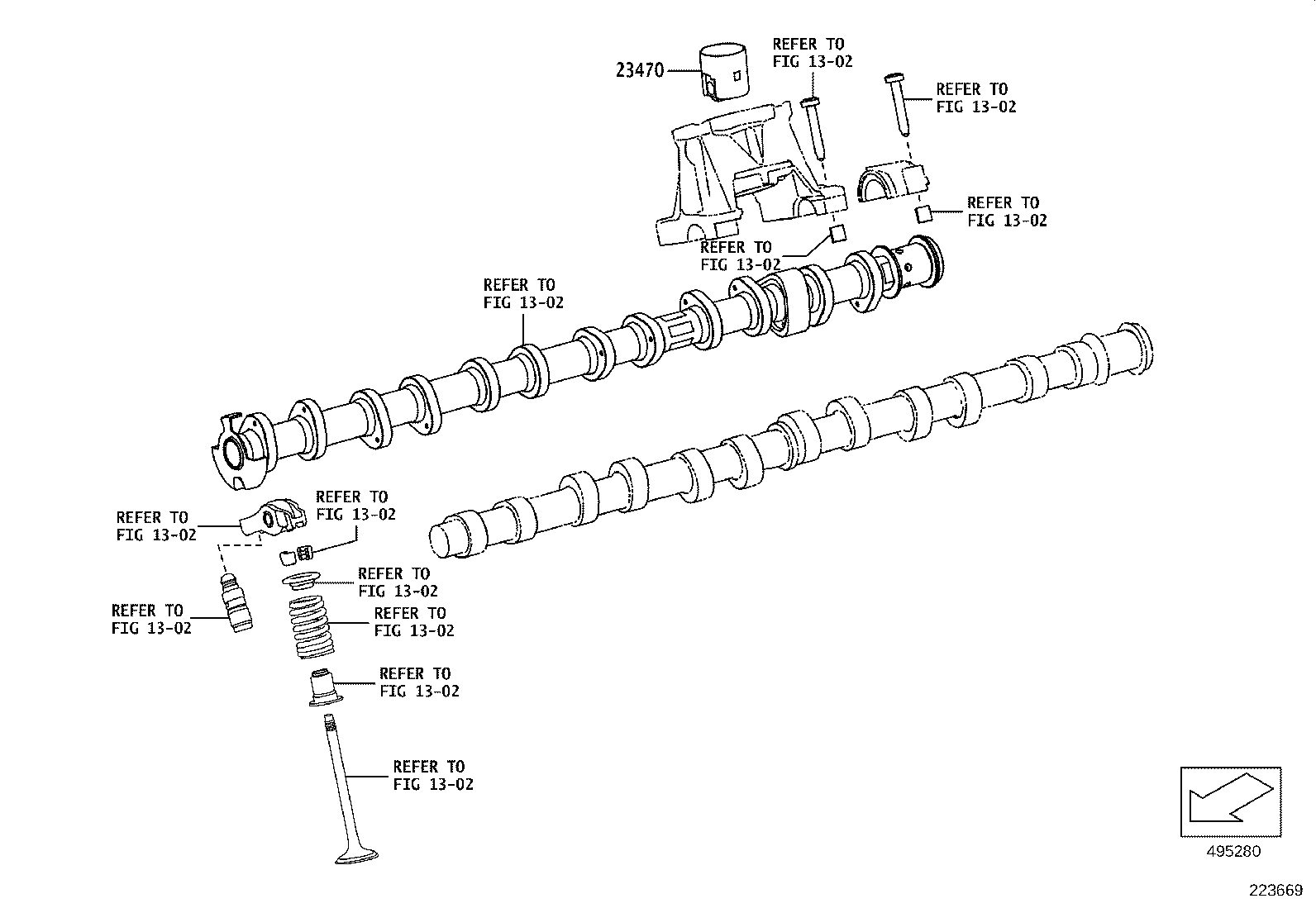

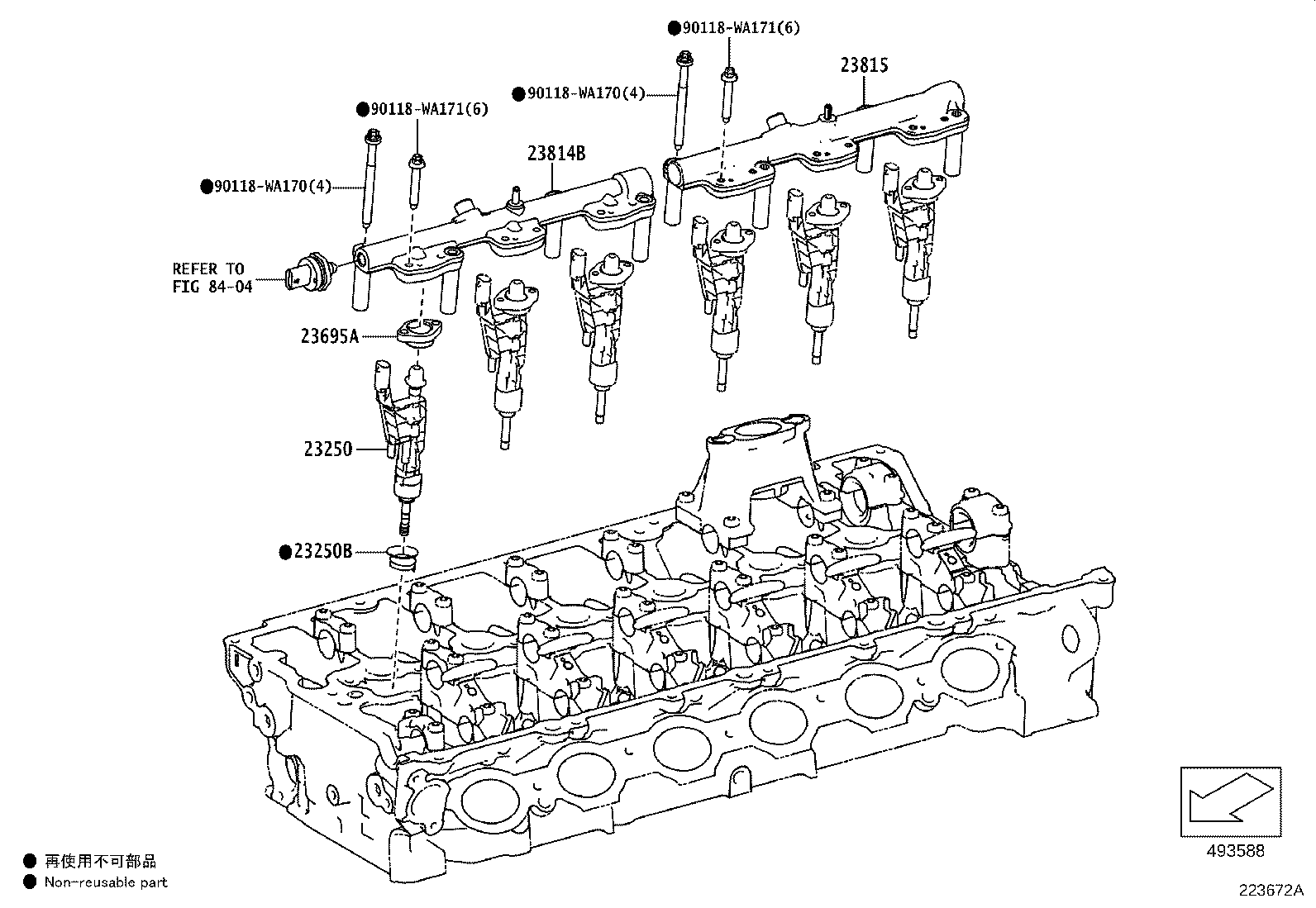

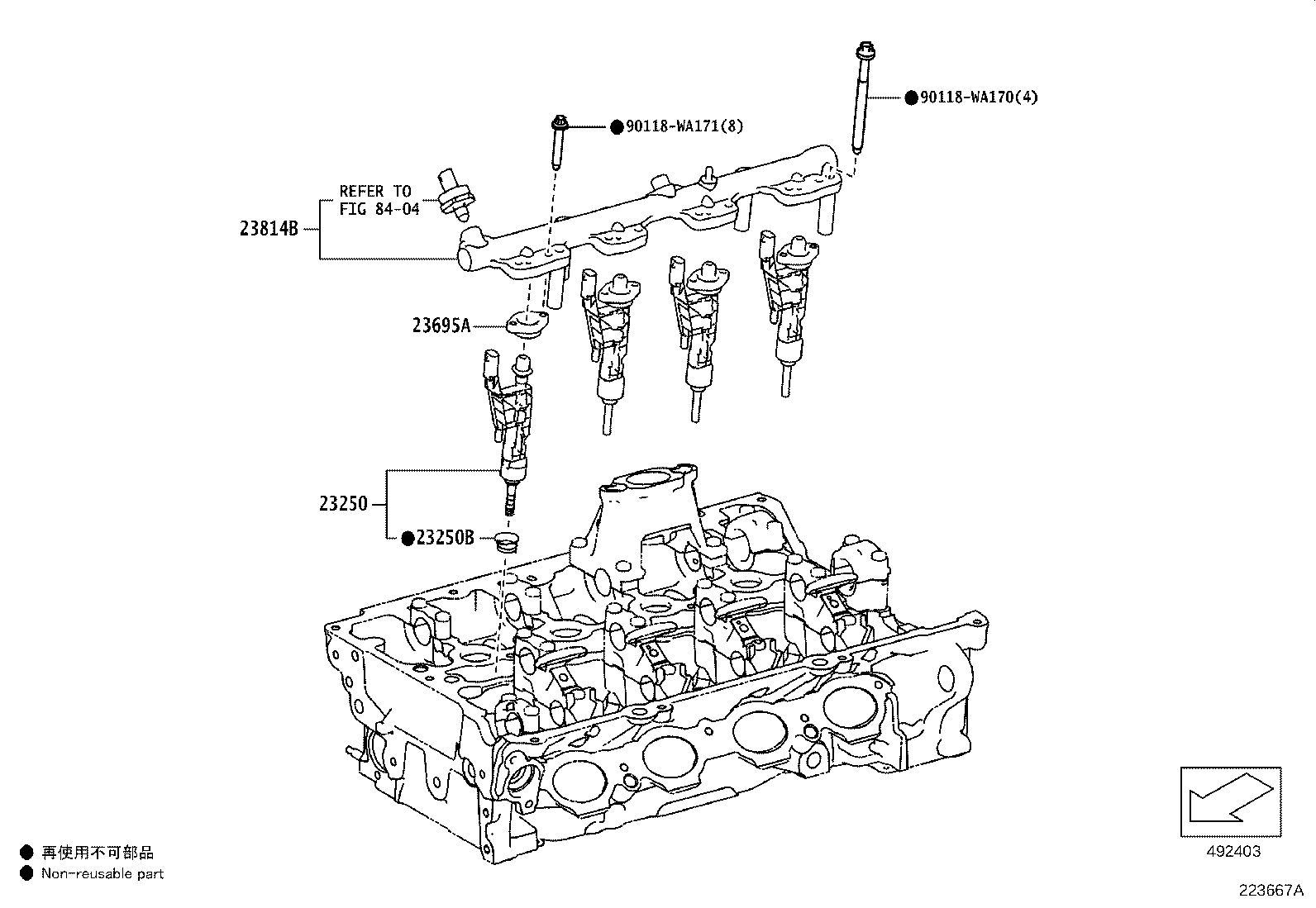

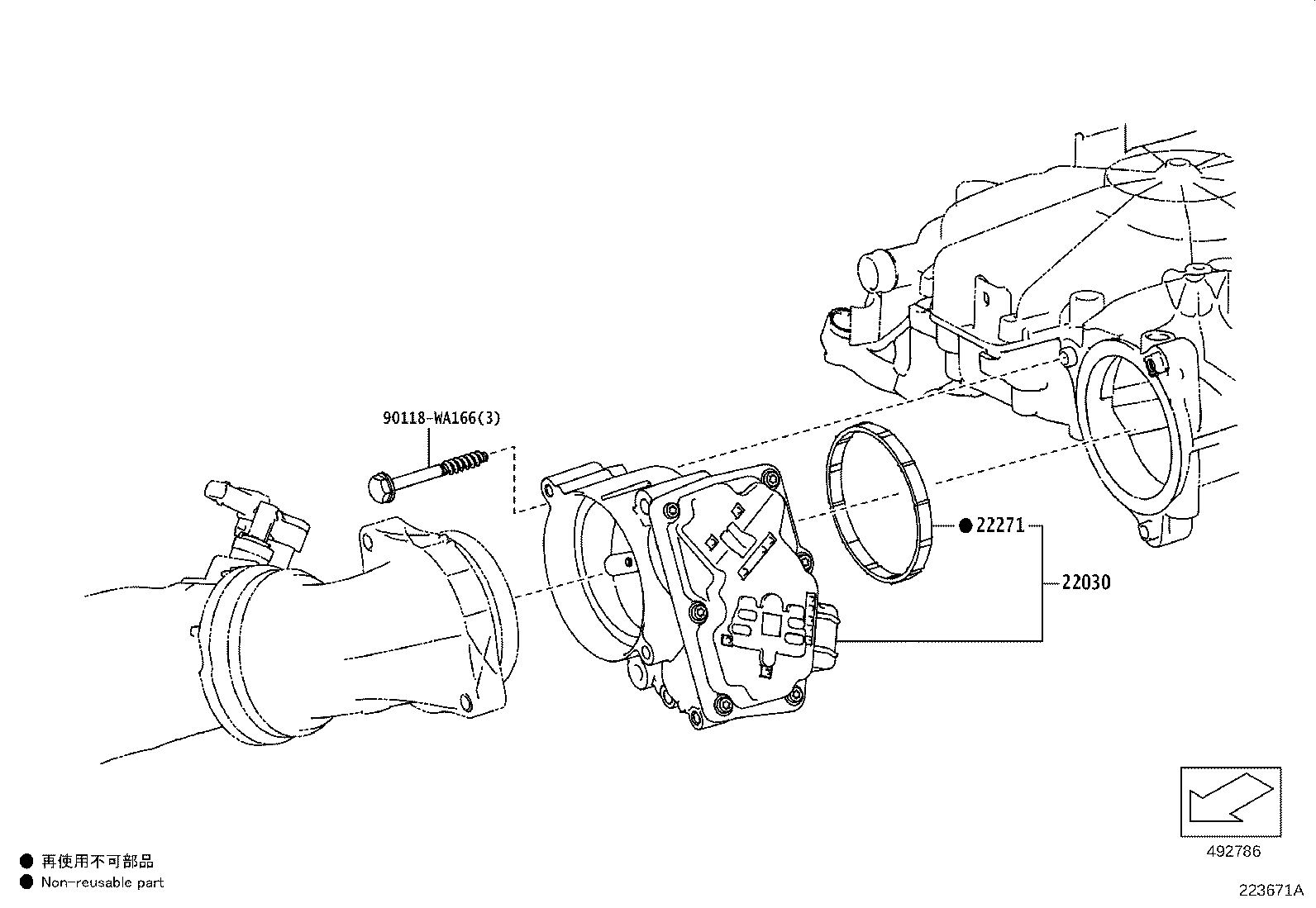

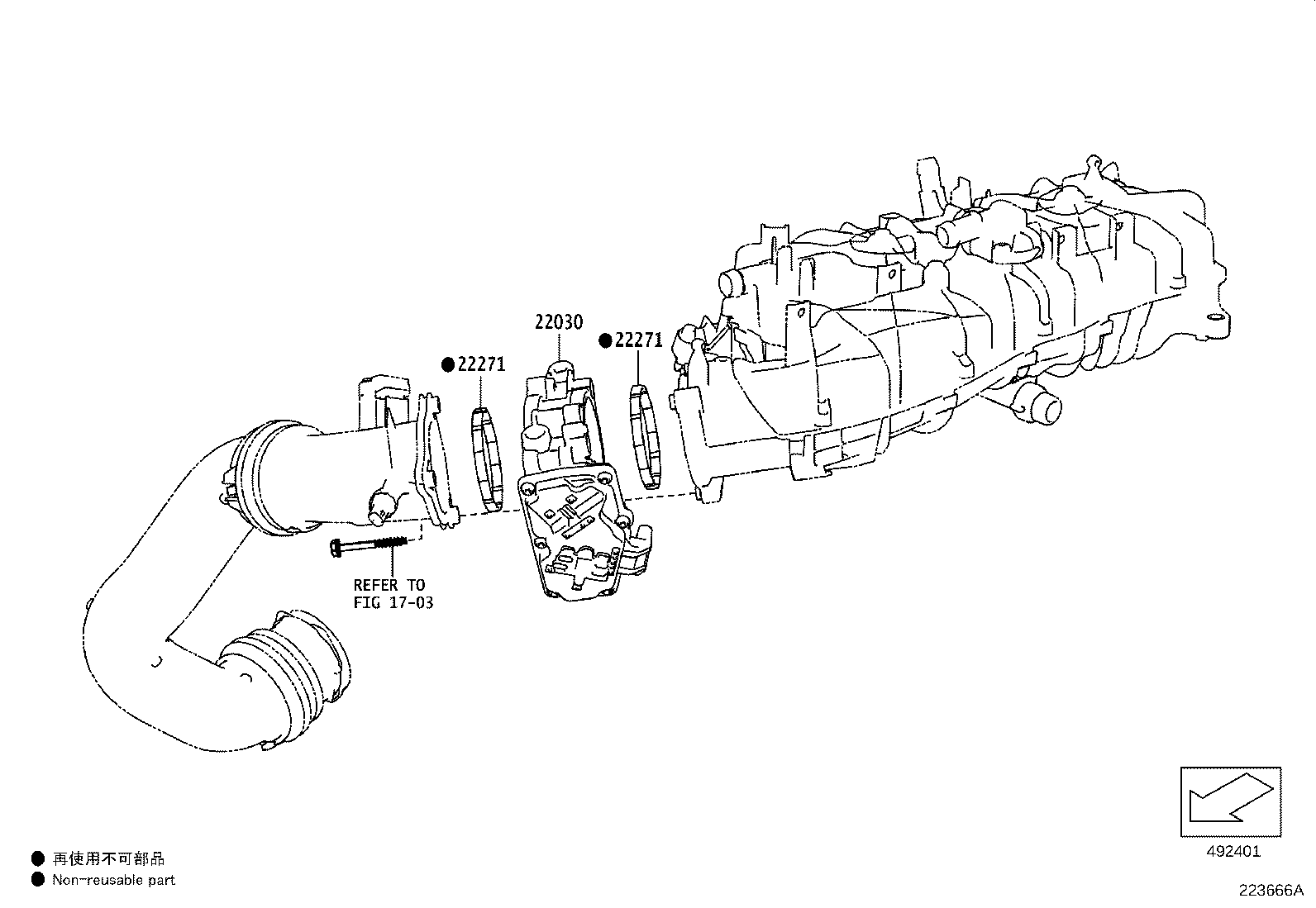

Figure 223662A 223662A 2019-03 → — Figure 223663 223663 2019-03 → — Figure 223664 223664 2019-03 → — Figure 223665A 223665A 2019-03 → — Figure 223666A 223666A 2019-03 → — Figure 223667A 223667A 2019-03 → — Figure 223668A 223668A 2019-03 → — Figure 223669 223669 2019-03 → — Figure 223670 223670 2019-03 → — Figure 223671A 223671A 2019-03 → — Figure 223672A 223672A 2019-03 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22267 Bracket, Throttle Body
22271 Gasket, Throttle Body
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23224D Gasket, Fuel Pump Spacer
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23470 Lifter Assy, Fuel Pump
23477 Guide, Fuel Pump Lifter
23695A Clamp, Nozzle Holder
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2
23814B Pipe, Fuel Delivery
23815 Pipe, Fuel Delivery, NO.2
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
