Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03
Rear Axle Housing & Differential
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

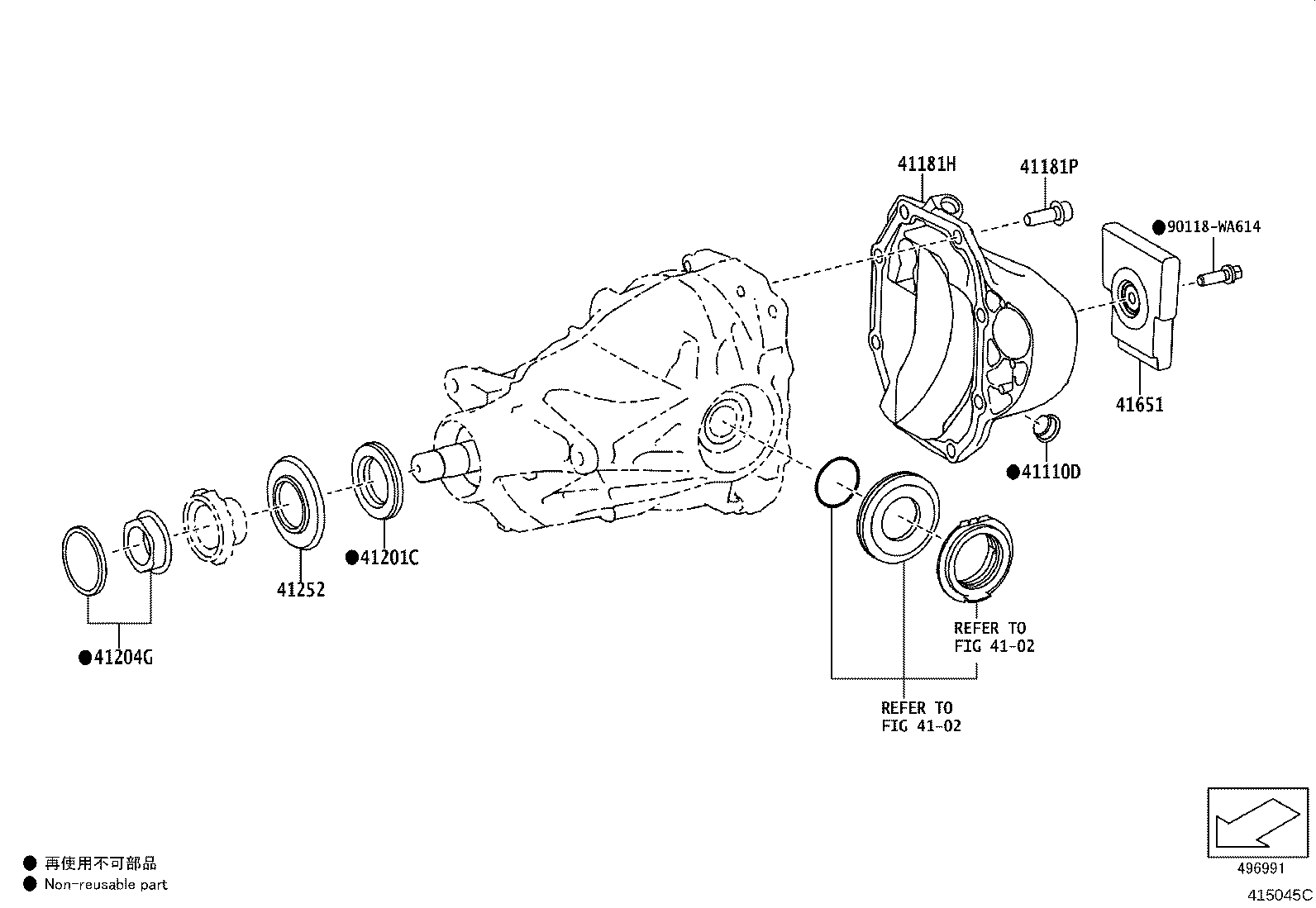

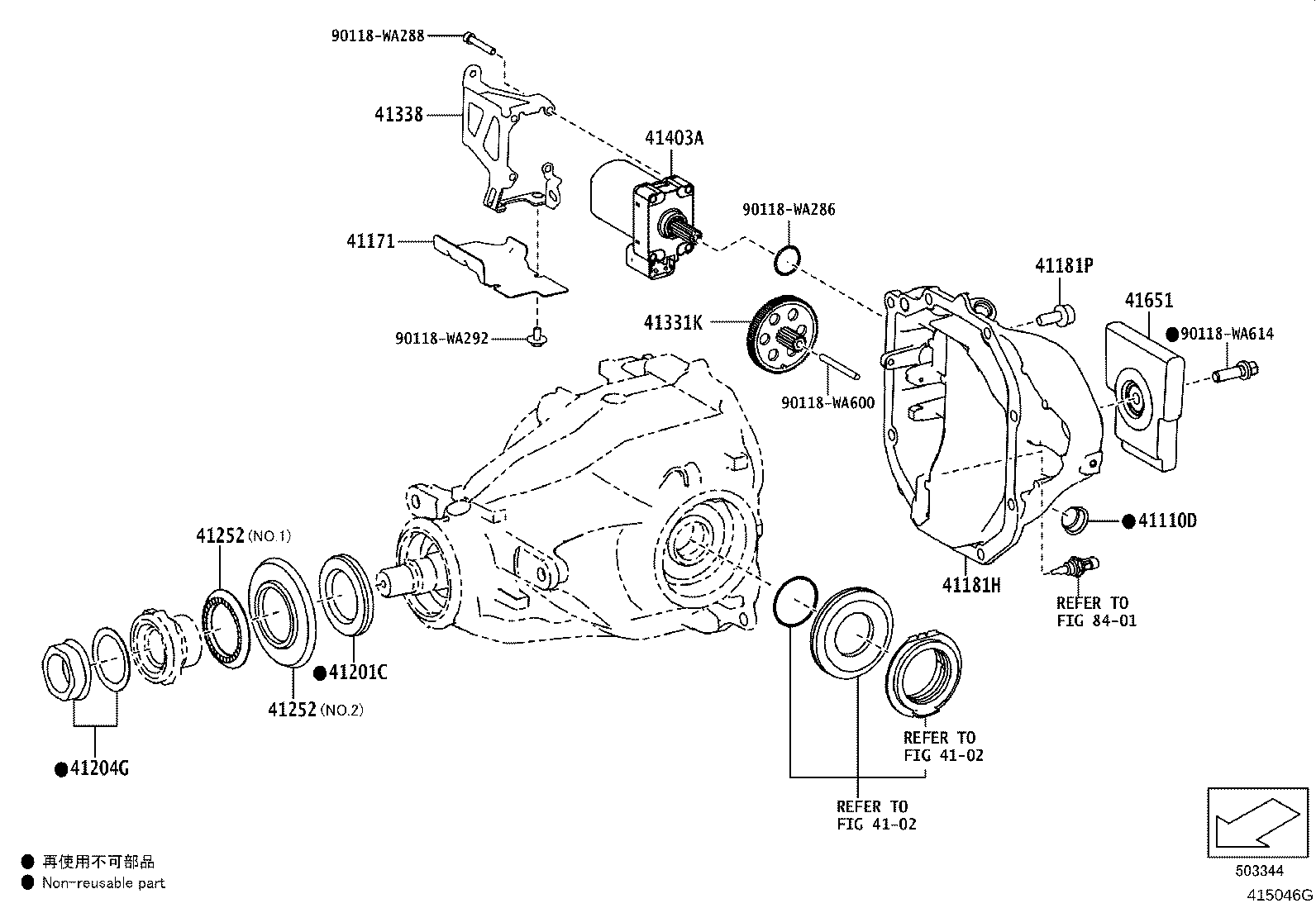

| 41110 | Carrier Assy, Differential, Rear |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41171 | Protector, Differential, Rear |
| 41181H | Cover, Rear Differential Carrier |
| 41181P | Bolt (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41204G | Nut (FOR DRIVE PINION COMPANION FLANGE REAR) |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41331K | Gear Set, Differential |
| 41338 | Bracket, Connector Clamp |
| 41403A | Motor Sub-assy, Torque Transfer Module |

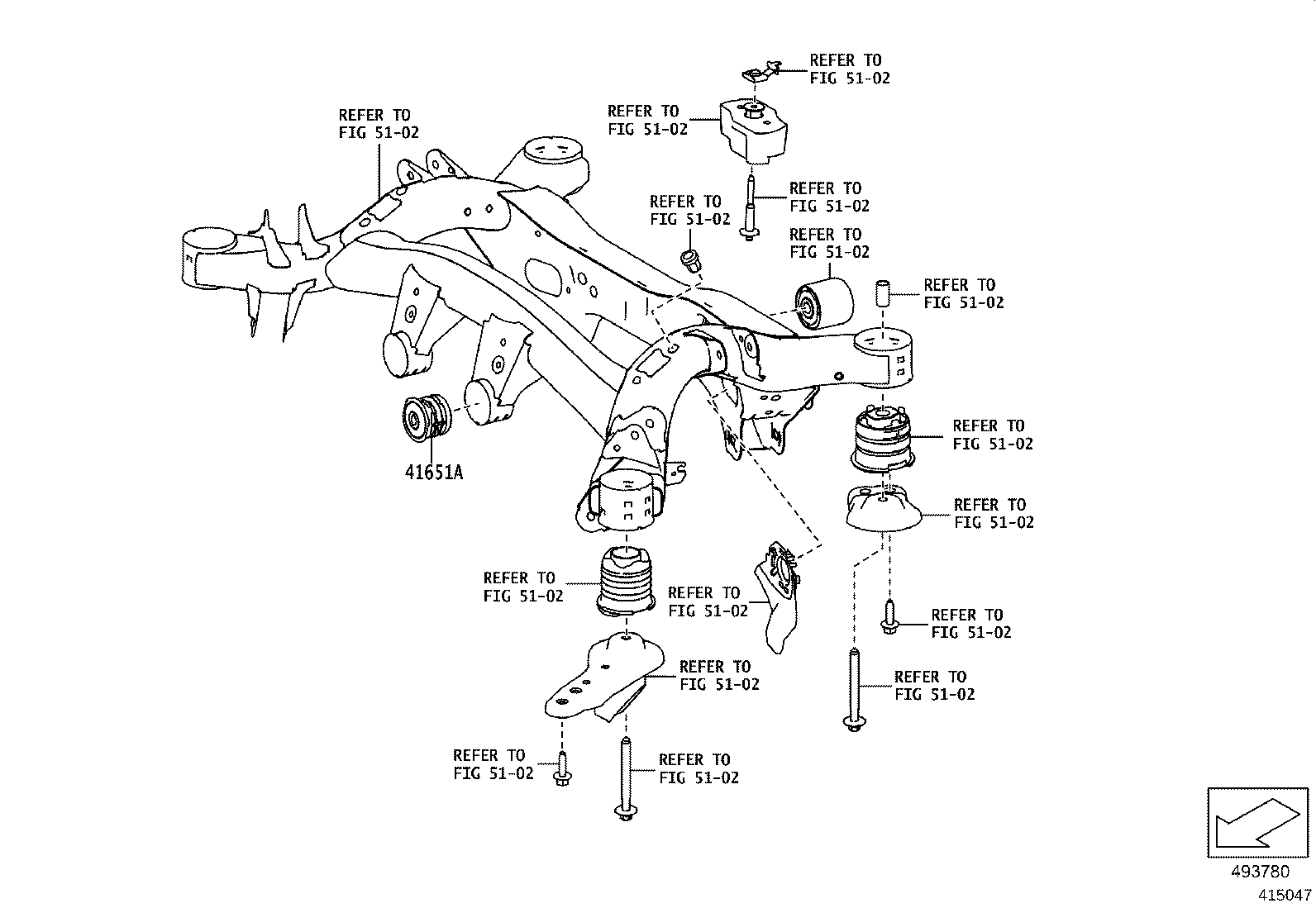

| 41651 | Cushion, Rear Differential Mount, NO.1 |
| 41651A | Cushion, Rear Differential Mount, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
