Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03
Disc Wheel & Wheel Cap
13 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04423 | Fitting Kit, Tire Pressure Monitor OR Balancer Valve |

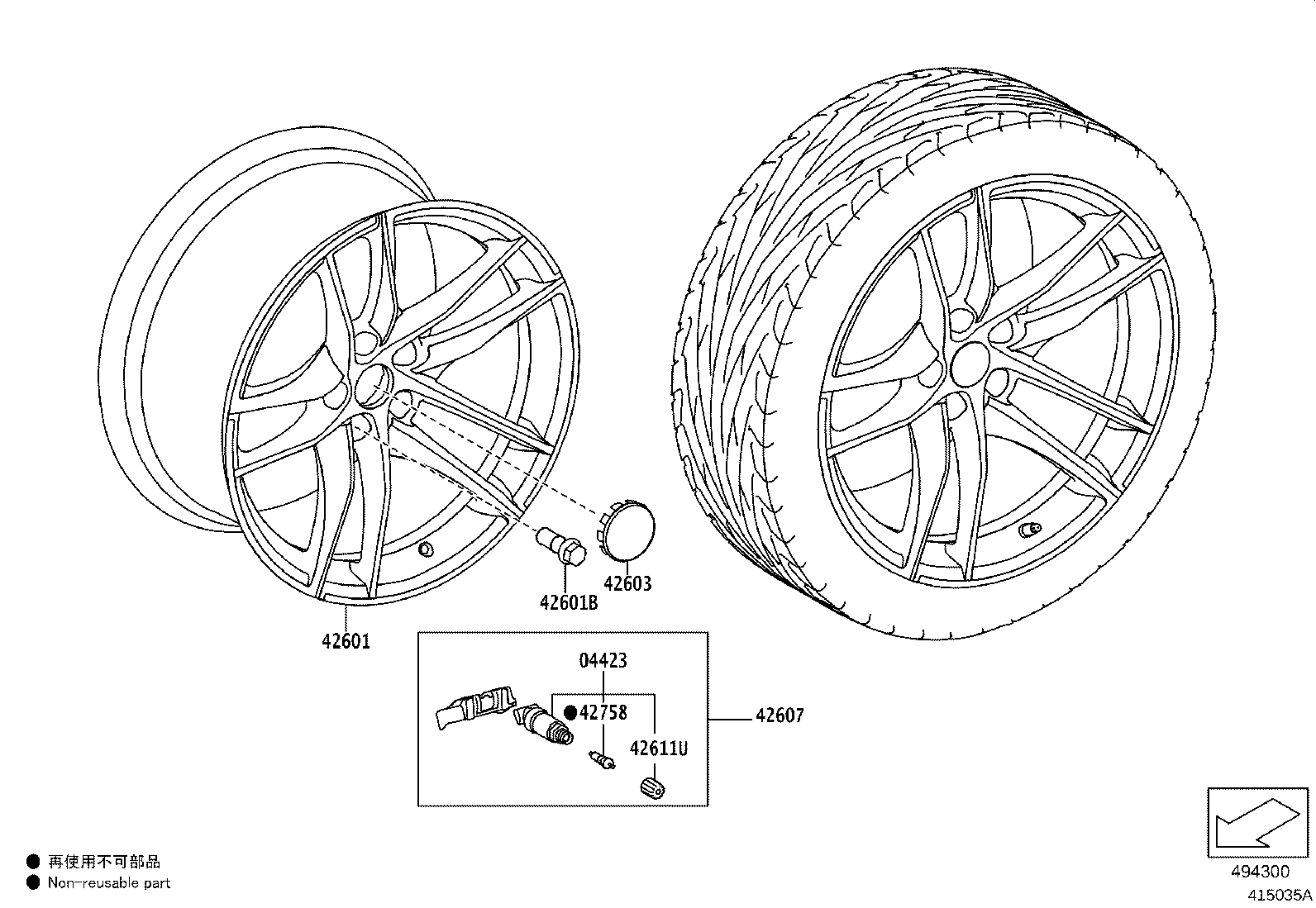

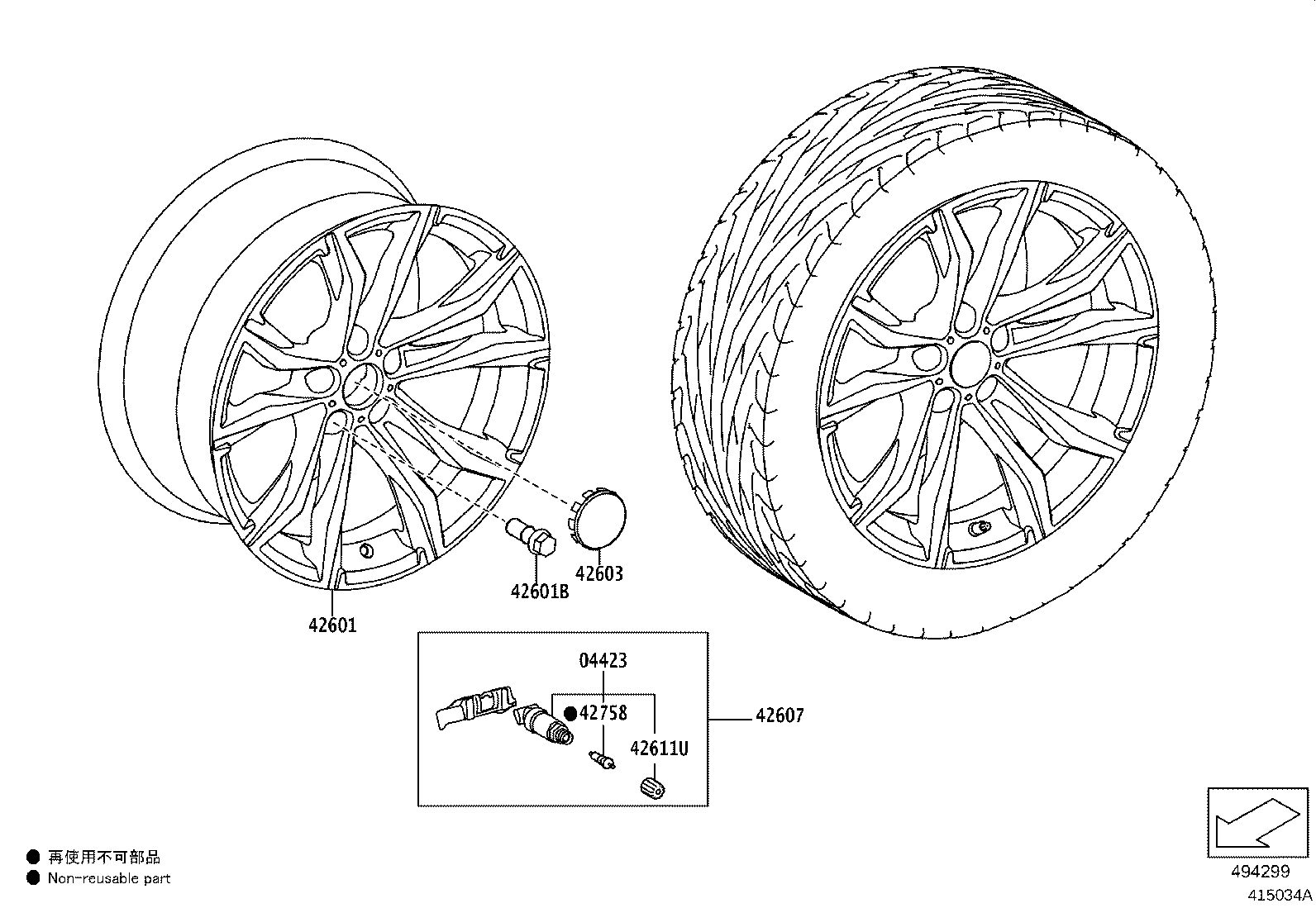

| 42601 | Wheel, Disc |

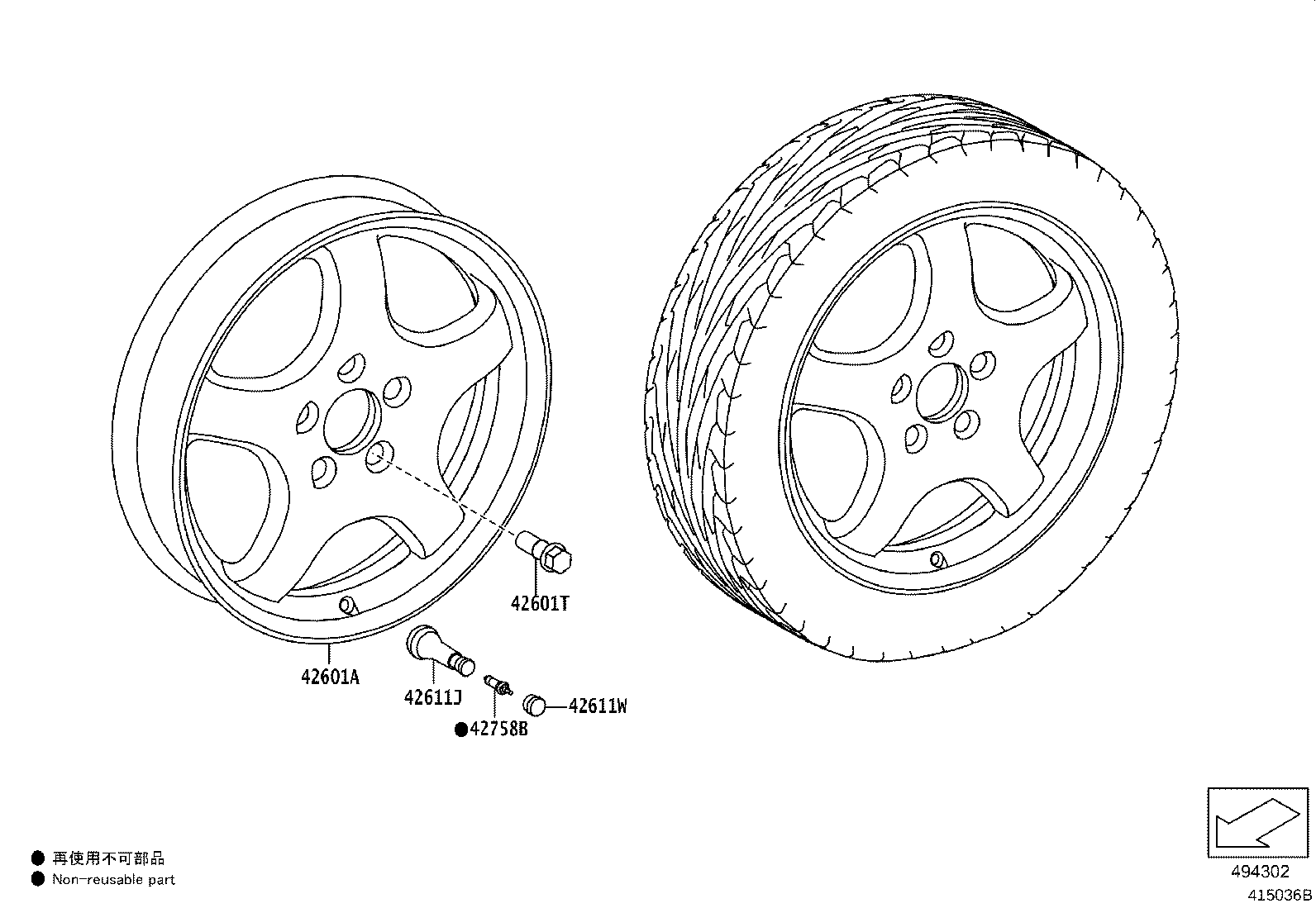

| 42601A | Wheel, Disc (FOR SPARE) |
| 42601B | Bolt, Hub (FOR AXLE) |

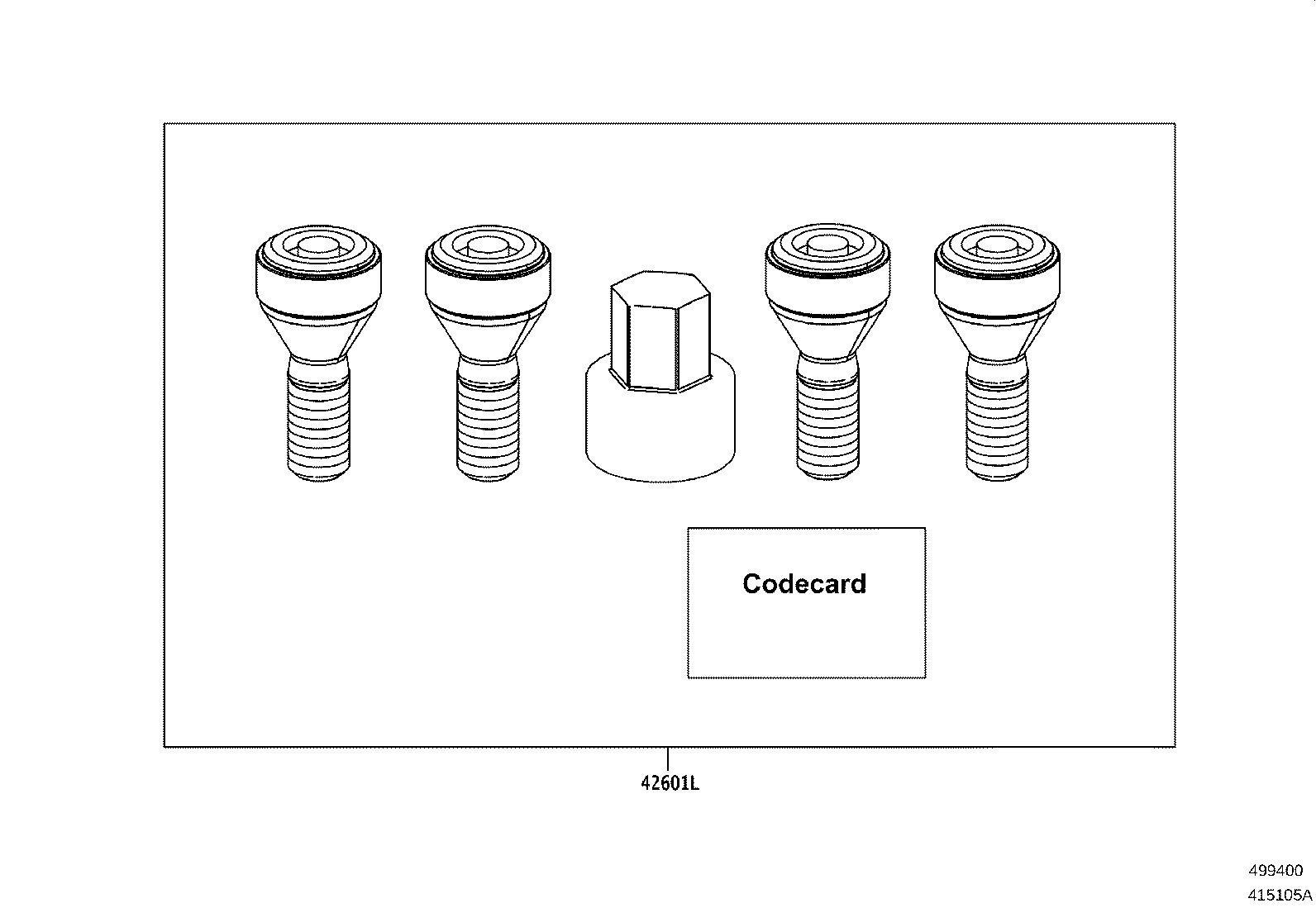

| 42601L | Lock Set, Wheel |
| 42601T | Bolt, Hub(FOR SPARE WHEEL) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42607 | Valve Sub-assy, Tire Pressure Monitor |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
| 42611W | Cap, Tire Valve (FOR SPARE) |
| 42758 | Valve, Tire Air Control |
| 42758B | Valve, Tire Air Control(FOR SPARE WHEEL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
