Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

7 part groups · 5 illustrations

Illustrations

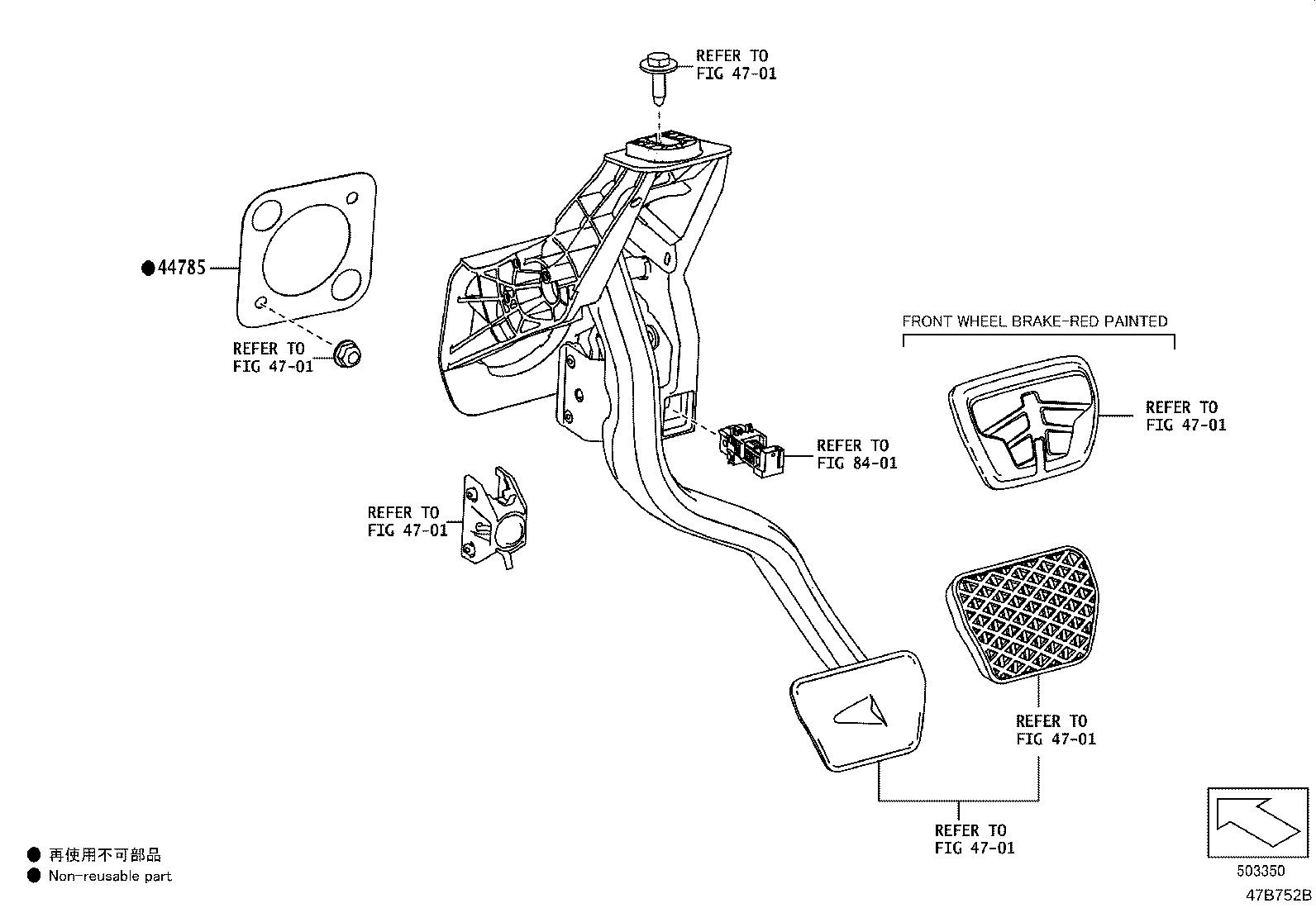

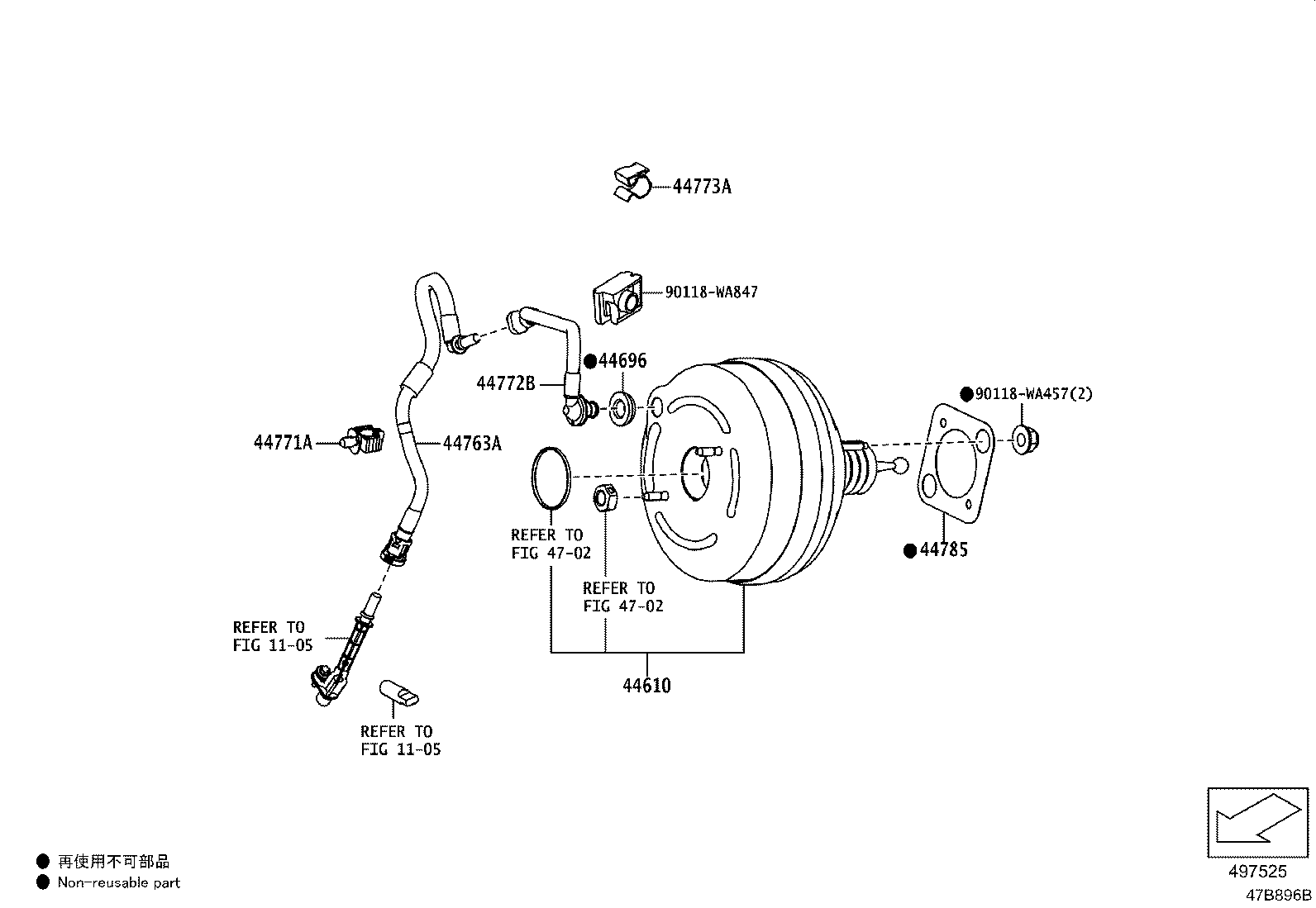

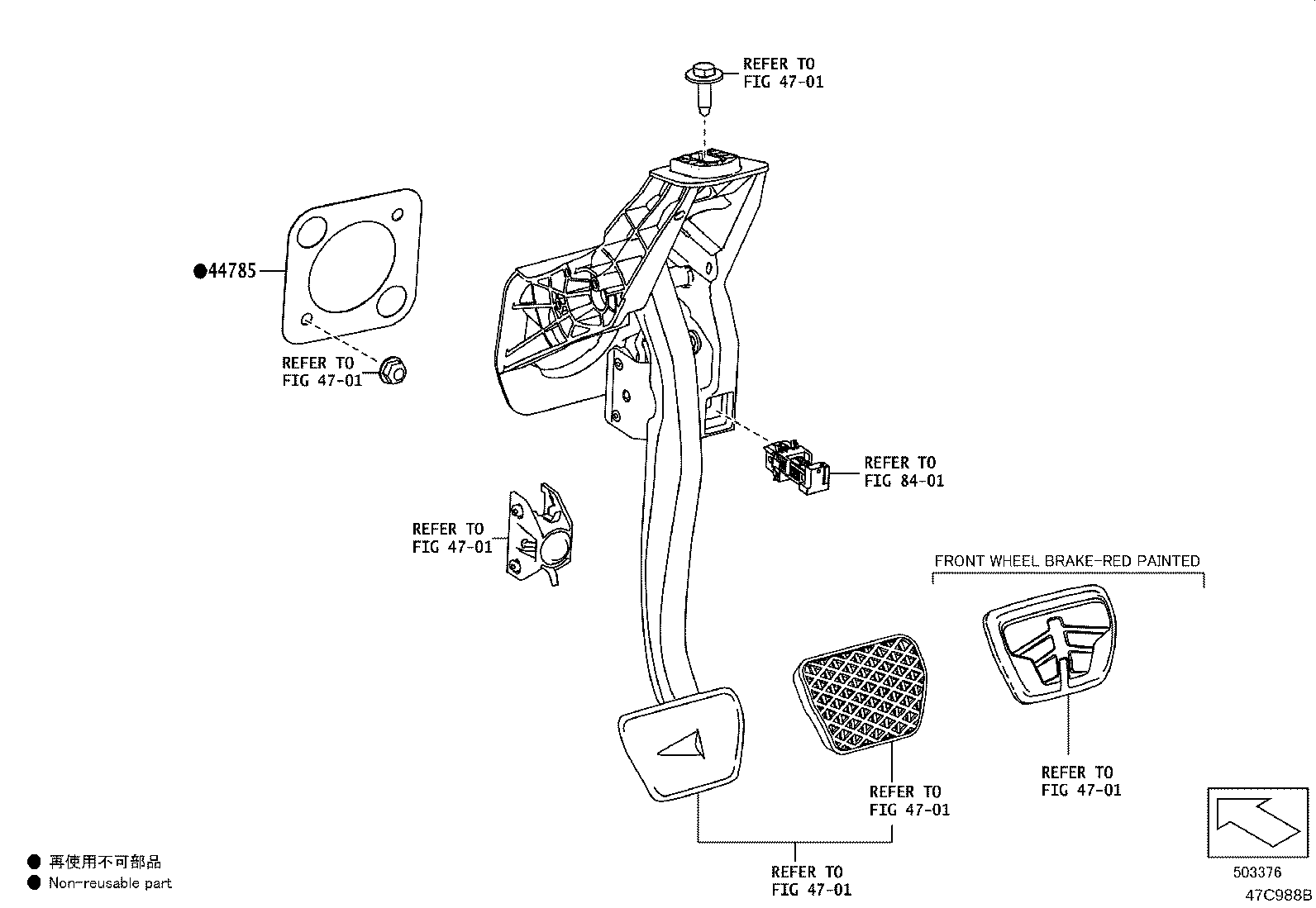

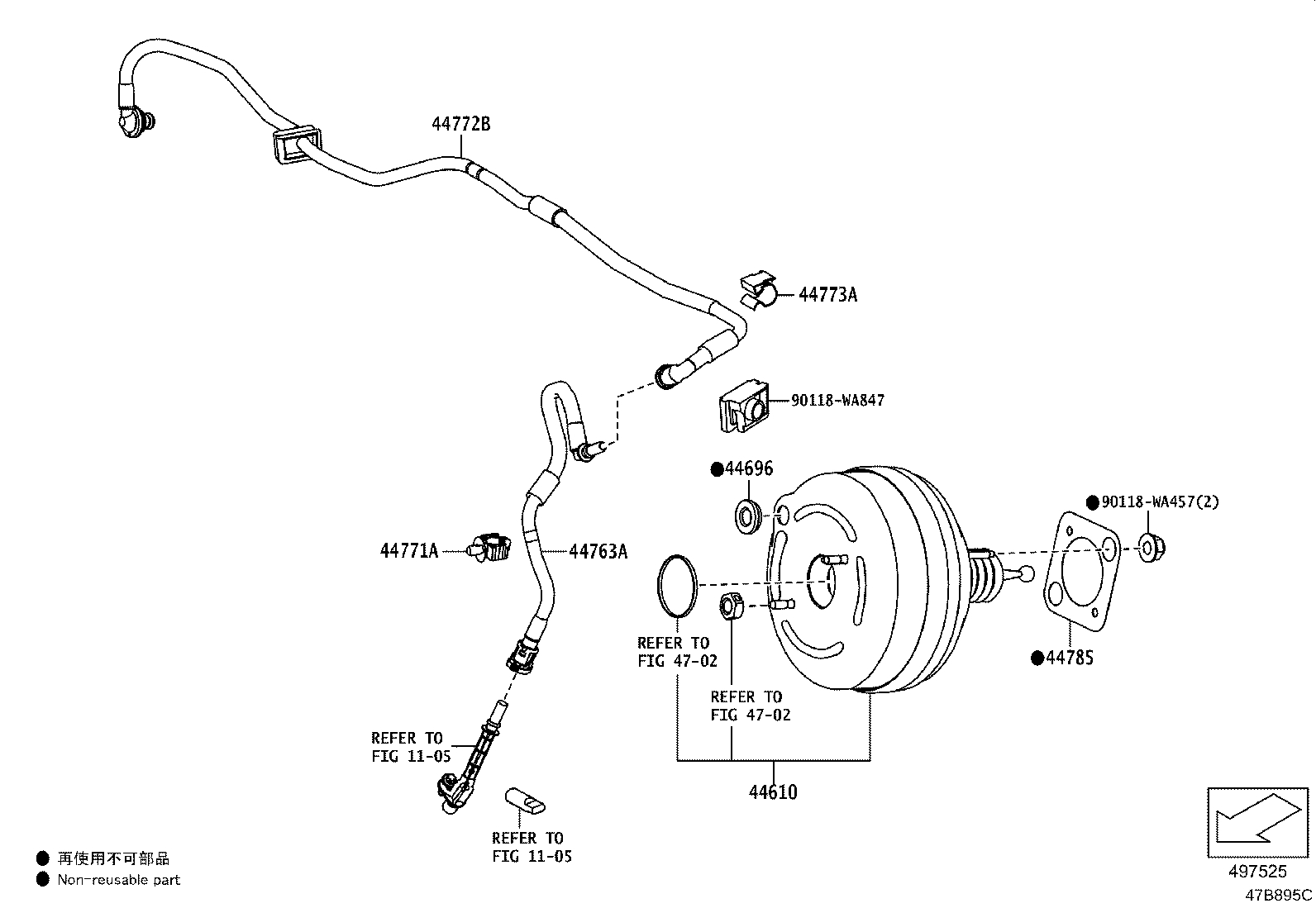

Figure 47B749C 47B749C 2019-03 → — Figure 47B895C 47B895C 2019-03 → — Figure 47B896B 47B896B 2019-05 → — Figure 47C988B 47C988B 2019-03 → — Figure 47B752B 47B752B 2019-03 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44763A Tube, Hose TO Hose, NO.1
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772B Hose, Check Valve TO Brake Booster
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
