Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03

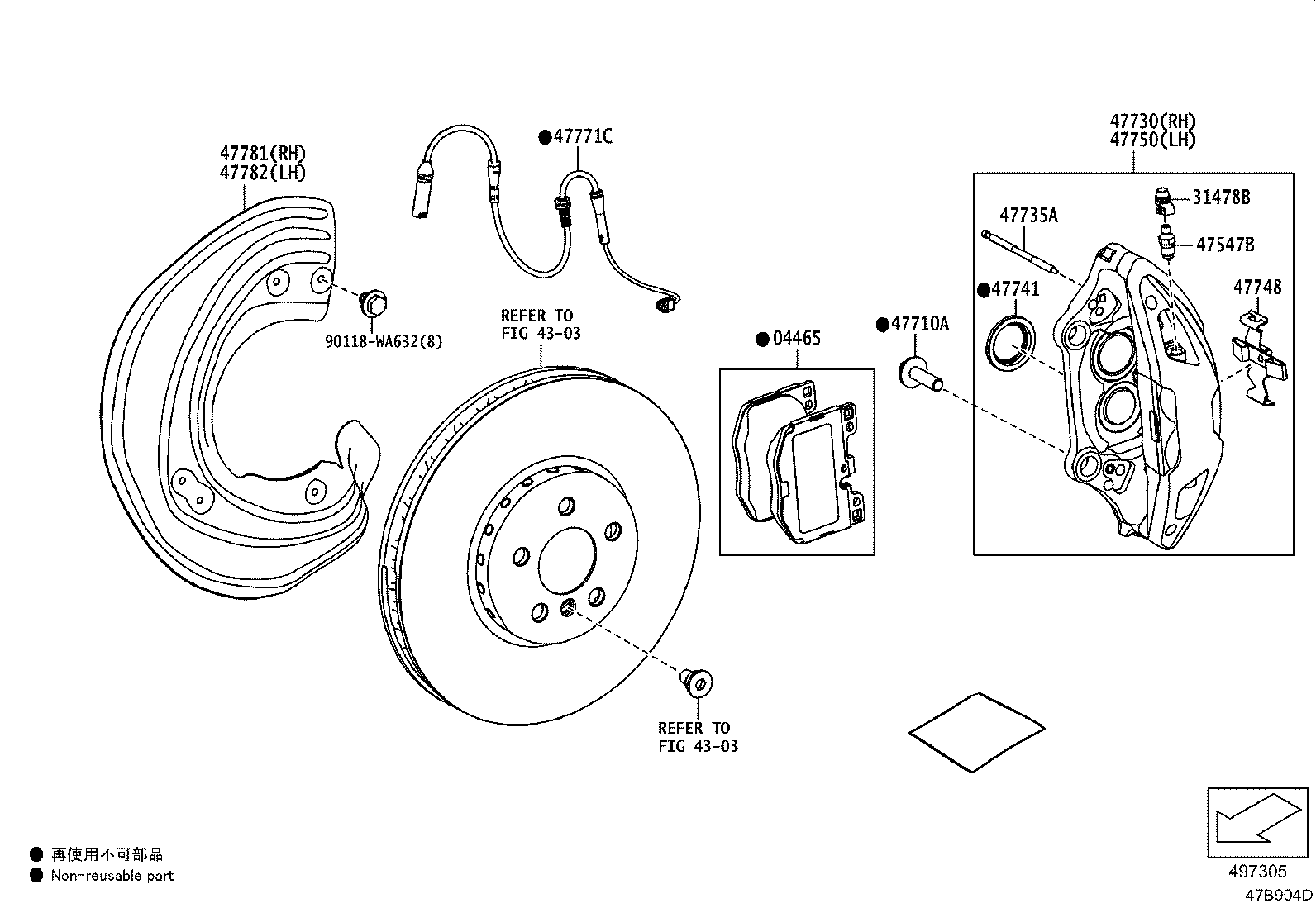

Front Disc Brake Caliper & Dust Cover
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 31478B | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47547B | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47715B | Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) |
| 47721 | Mounting, Front Disc Brake Cylinder, RH |
| 47722 | Mounting, Front Disc Brake Cylinder, LH |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47735A | Pin, Torque |
| 47737 | Seal, Front Disc Brake Cylinder Piston |
| 47741 | Boot, Front Disc Brake Cylinder |
| 47748 | Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47771C | Wire, Pad Wear Indicator LH |
| 47775B | Boot, Bush Dust, NO.1 |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47782 | Cover, Disc Brake Dust, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
