Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03

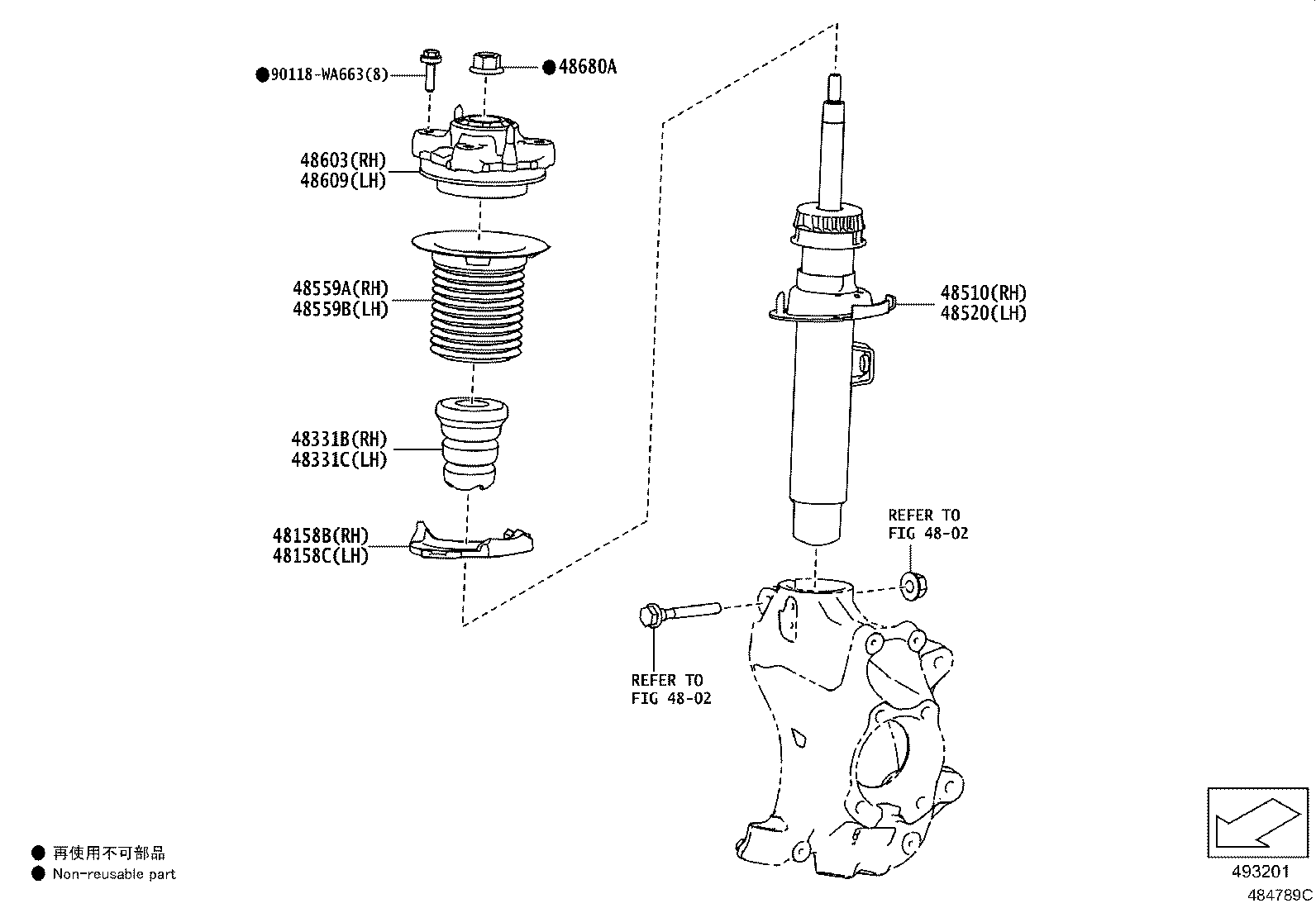

Front Spring & Shock Absorber
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

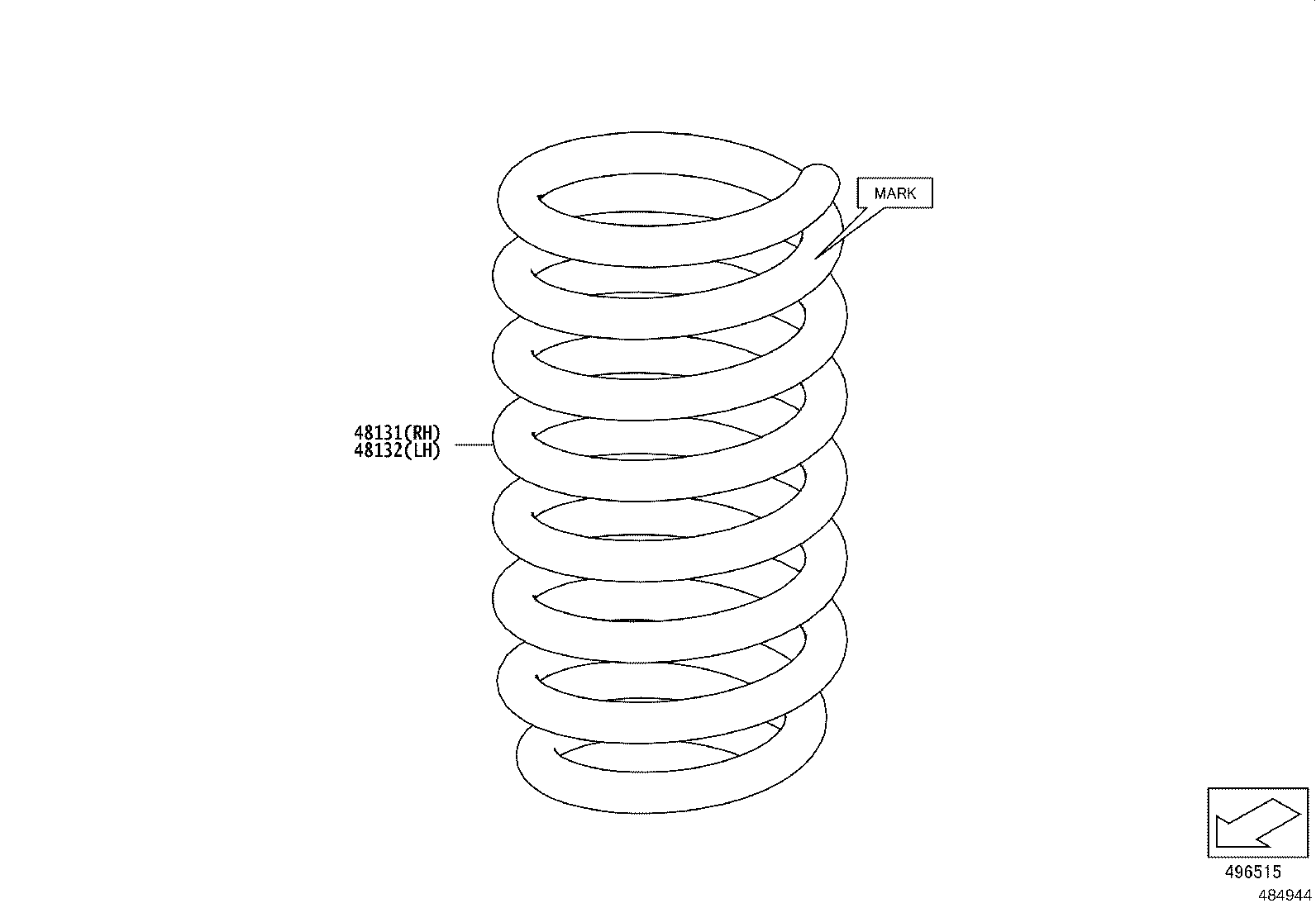

| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48158B | Insulator, Front Coil Spring, Lower RH |
| 48158C | Insulator, Front Coil Spring, Lower LH |
| 48331B | Bumper, Front Spring, RH |
| 48331C | Bumper, Front Spring, LH |
| 48510 | Absorber Assy, Shock, Front RH |
| 48520 | Absorber Assy, Shock, Front LH |
| 48559A | Cover, Front Shock Absorber Dust, RH NO.1 |
| 48559B | Cover, Front Shock Absorber Dust, LH NO.1 |
| 48603 | Support Sub-assy, Front Suspension, RH |
| 48609 | Support Sub-assy, Front Suspension, LH |
| 48680A | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48820A | Nut(FOR FRONT STABILIZER LINK) |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48824 | Bracket, Stabilizer, Front |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48829A | Bracket, Front Stabilizer, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
