Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03
Suspension Crossmember & Under Cover
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

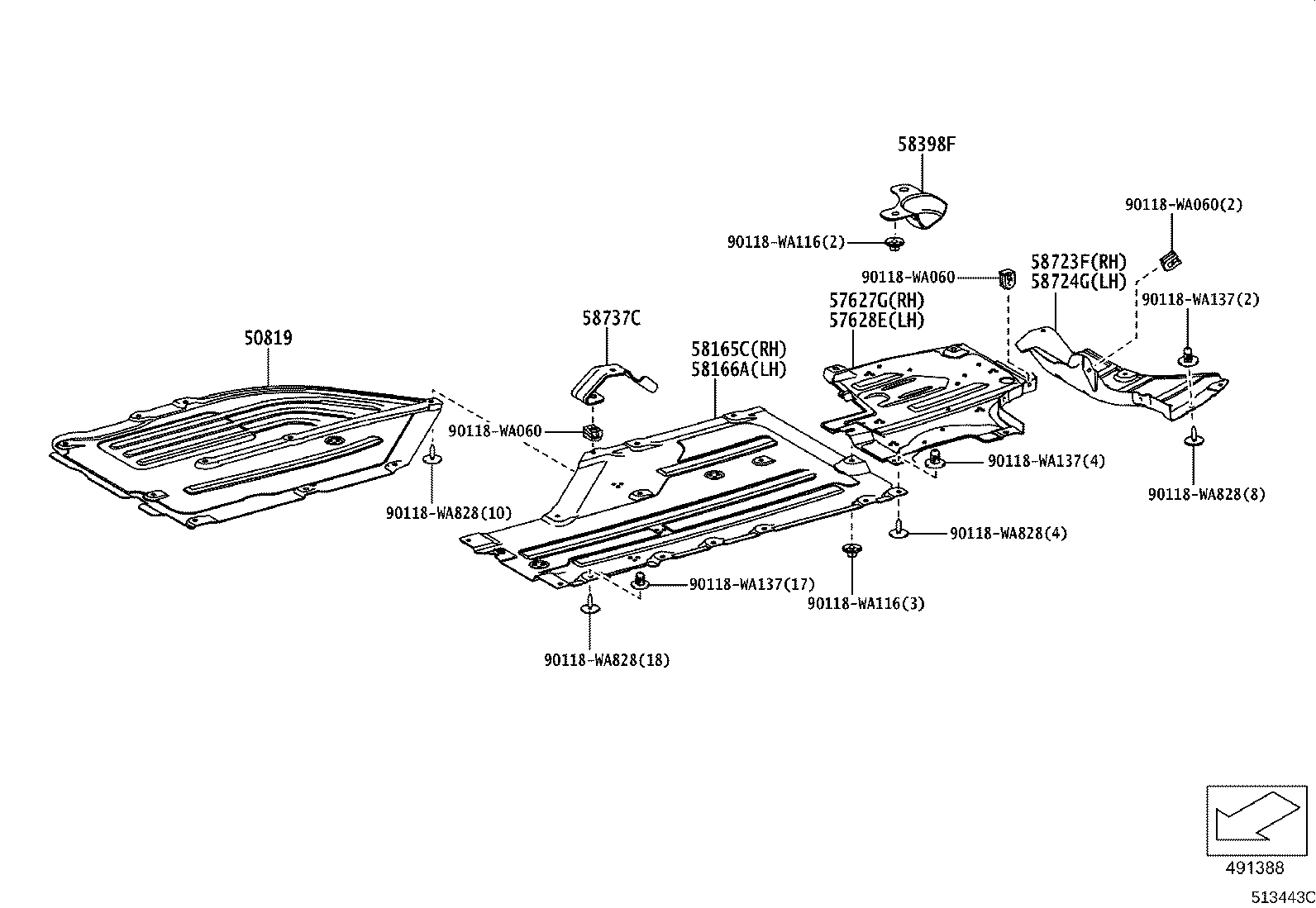

| 50819 | Cover, Front Floor |
| 51201 | Crossmember Sub-assy, Front Suspension |

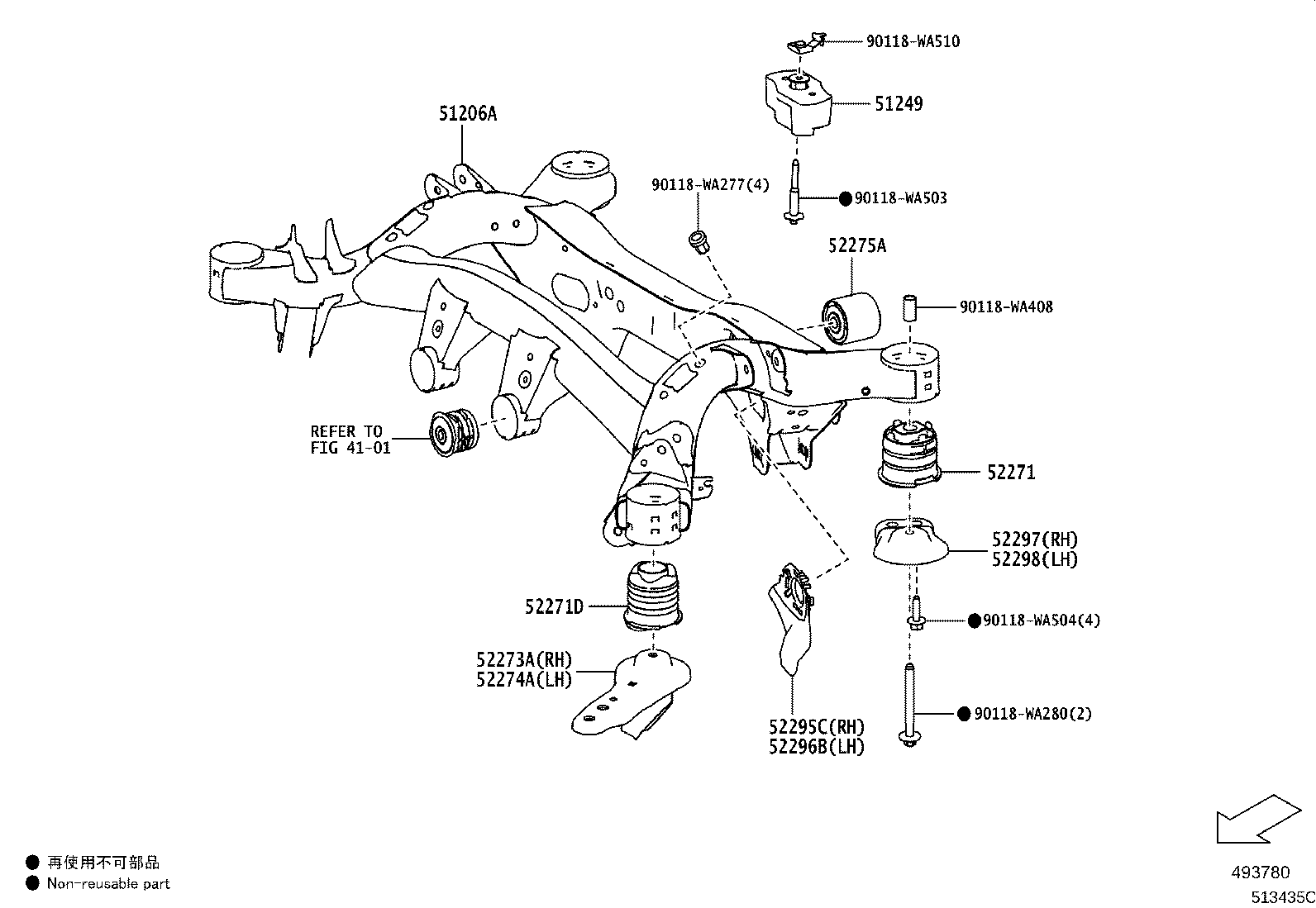

| 51206A | Member Sub-assy, Rear Suspension |
| 51219 | Protector, Front Suspension Member, Lwr |
| 51249 | Damper, Rear Suspension Member |

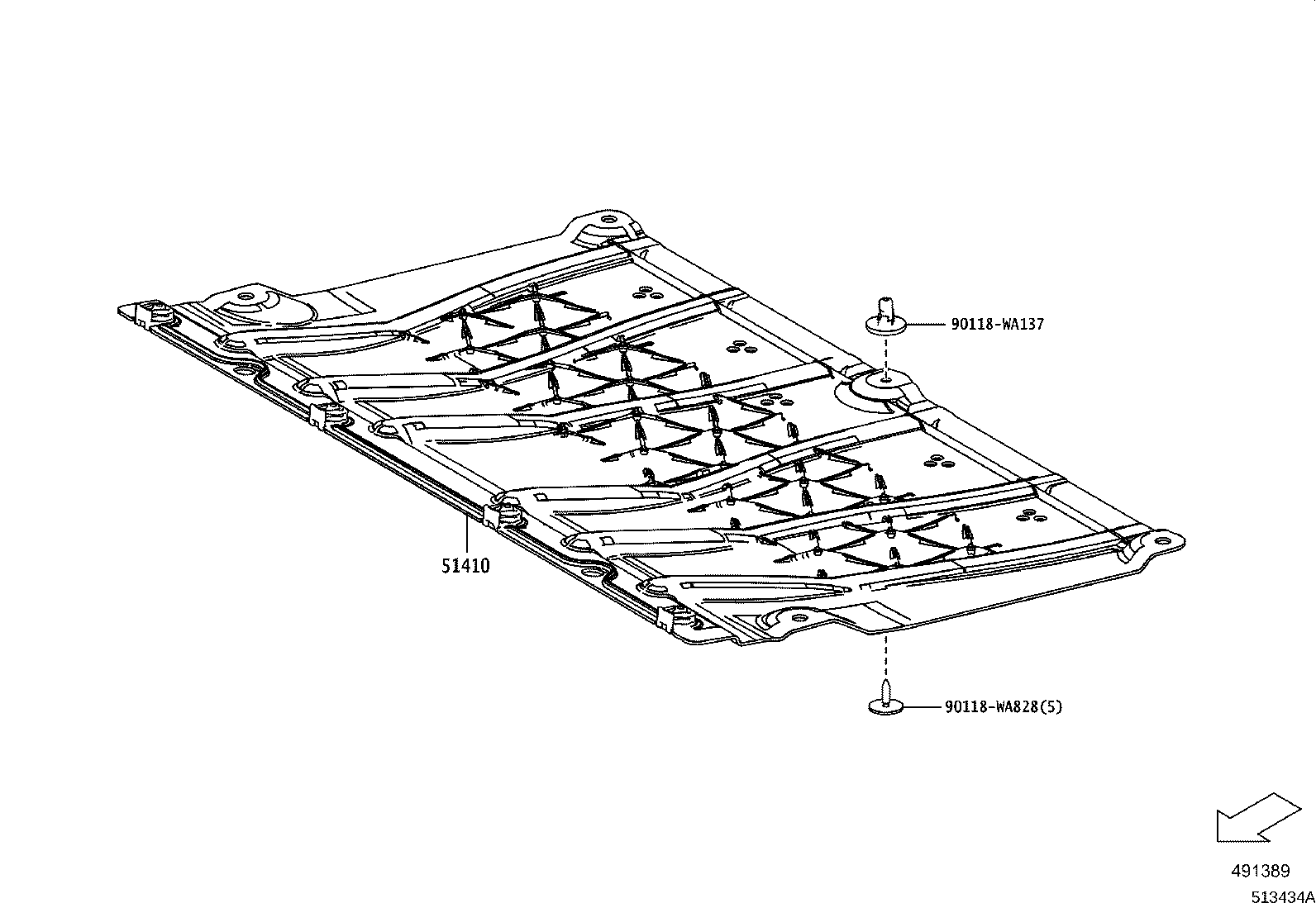

| 51410 | Cover Assy, Engine Under, NO.1 |
| 51447D | Cover, Engine Under, NO.4 Center |
| 52271 | Cushion, Rear Suspension Member |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52295C | Guard, Stone, RH |
| 52296B | Guard, Stone, LH |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
| 52298 | Brace, Rear Suspension Member, Rear Lower LH |
| 57627G | Cover, Rear Floor Side Member, RH |
| 57628E | Cover, Rear Floor Side Member, LH |
| 57795 | Nut, Suspension Menber Body Bracket |
| 58165C | Cover, Front Floor, RH |
| 58166A | Cover, Front Floor, LH |
| 58398F | Cover, Floor Under, NO.1 |
| 58723F | Protector, Underbody, Rear RH |
| 58724G | Protector, Underbody, Rear LH |
| 58737C | Bracket, Floor Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
