Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03
Cowl Panel & Windshield Glass
19 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

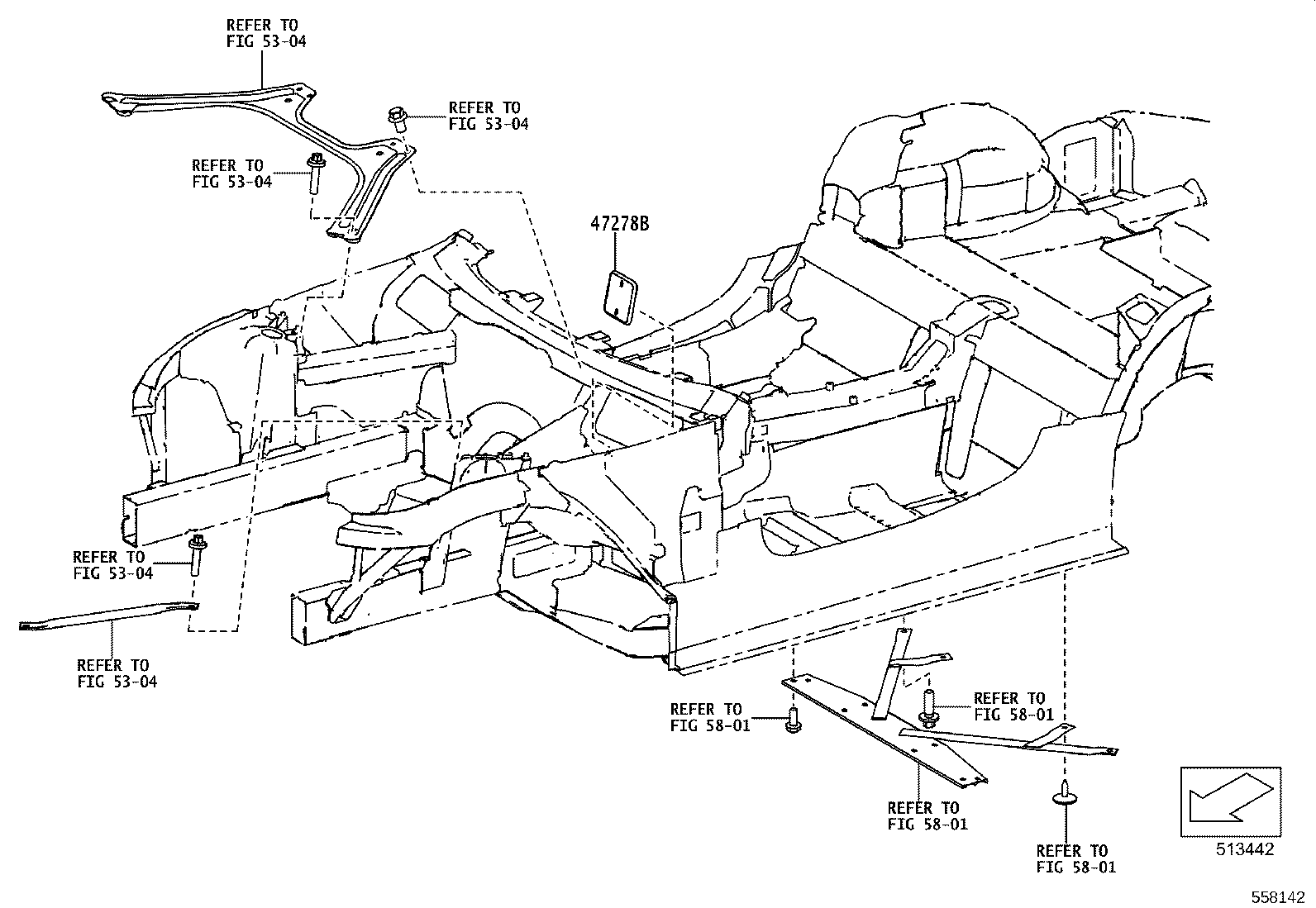

| 47278B | Cover, Brake Master Cylinder |

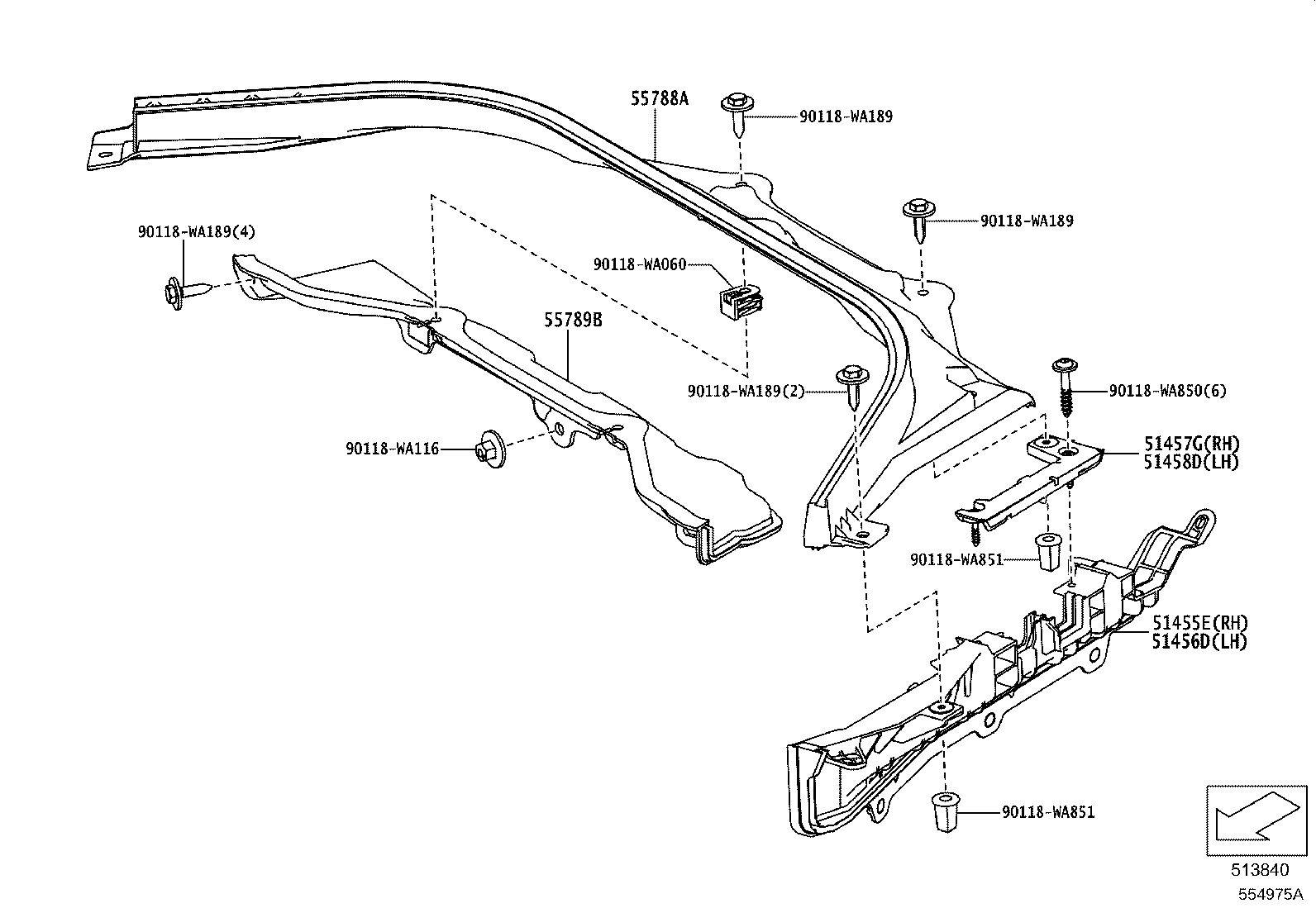

| 51455E | Seal, Frame Under, NO.1 RH |
| 51456D | Seal, Frame Under, NO.1 LH |
| 51457G | Seal, Frame Under, NO.2 RH |
| 51458D | Seal, Frame Under, NO.2 LH |

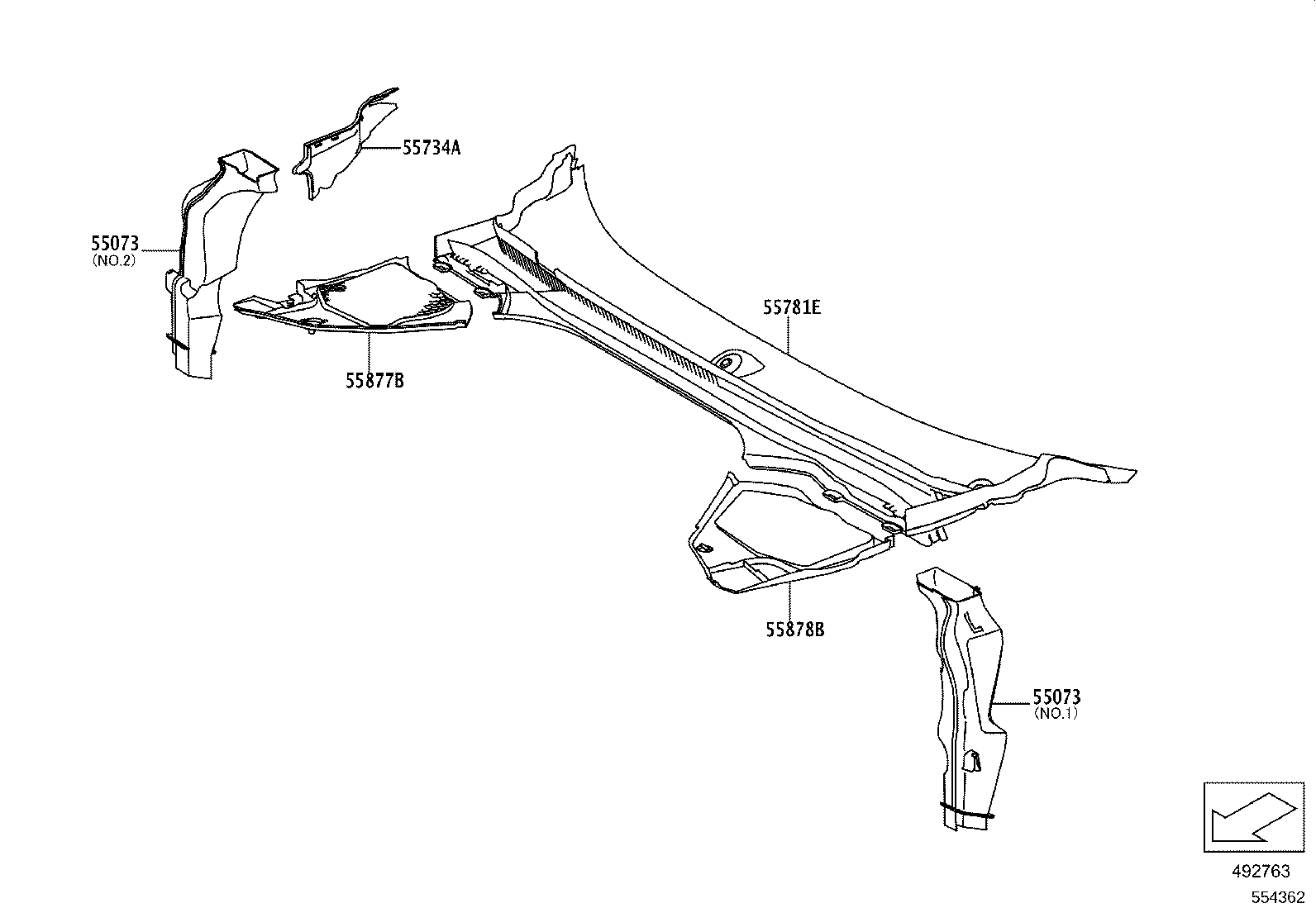

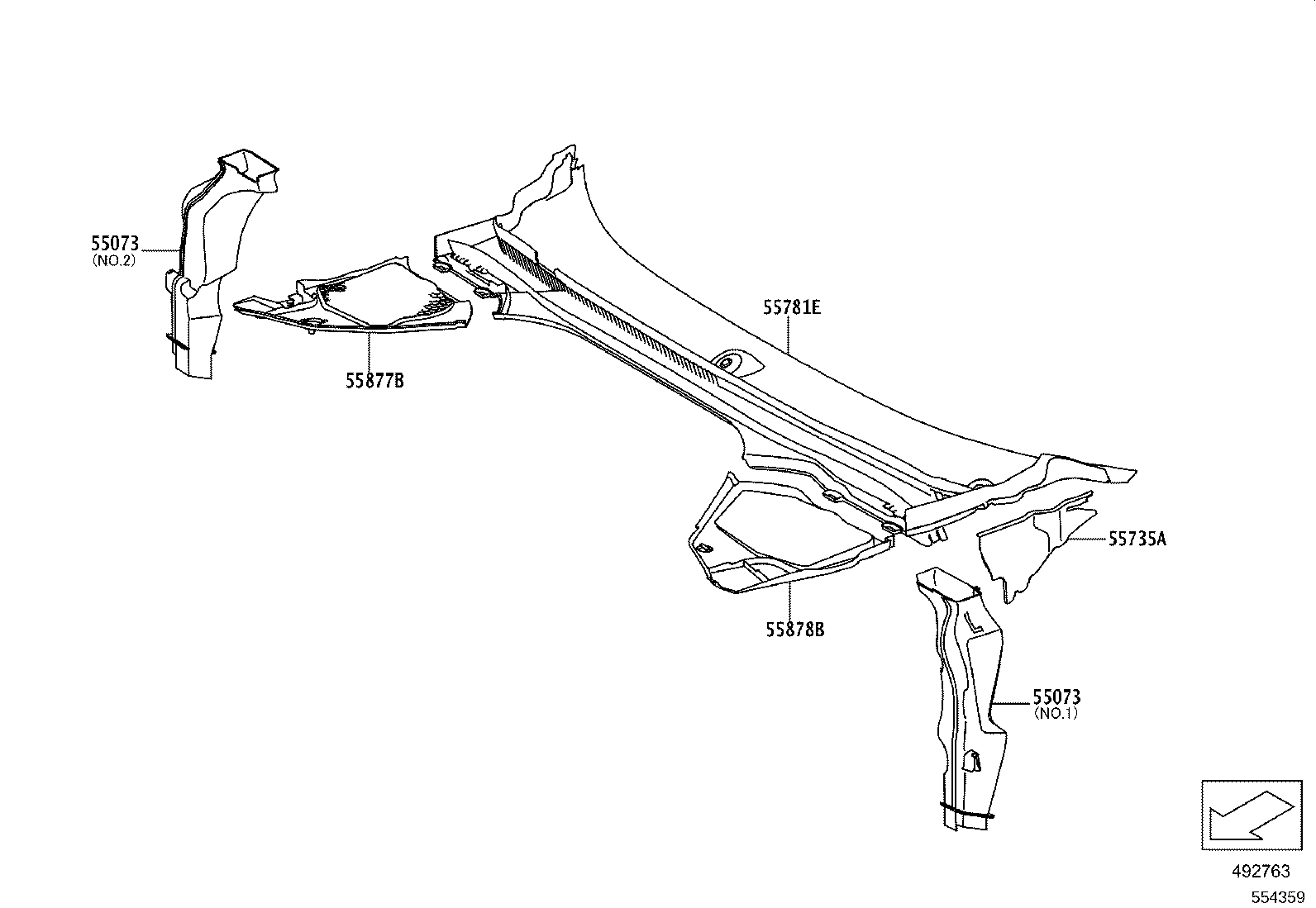

| 55073 | Nozzle Sub-assy, Cowl Panel Water Extract |

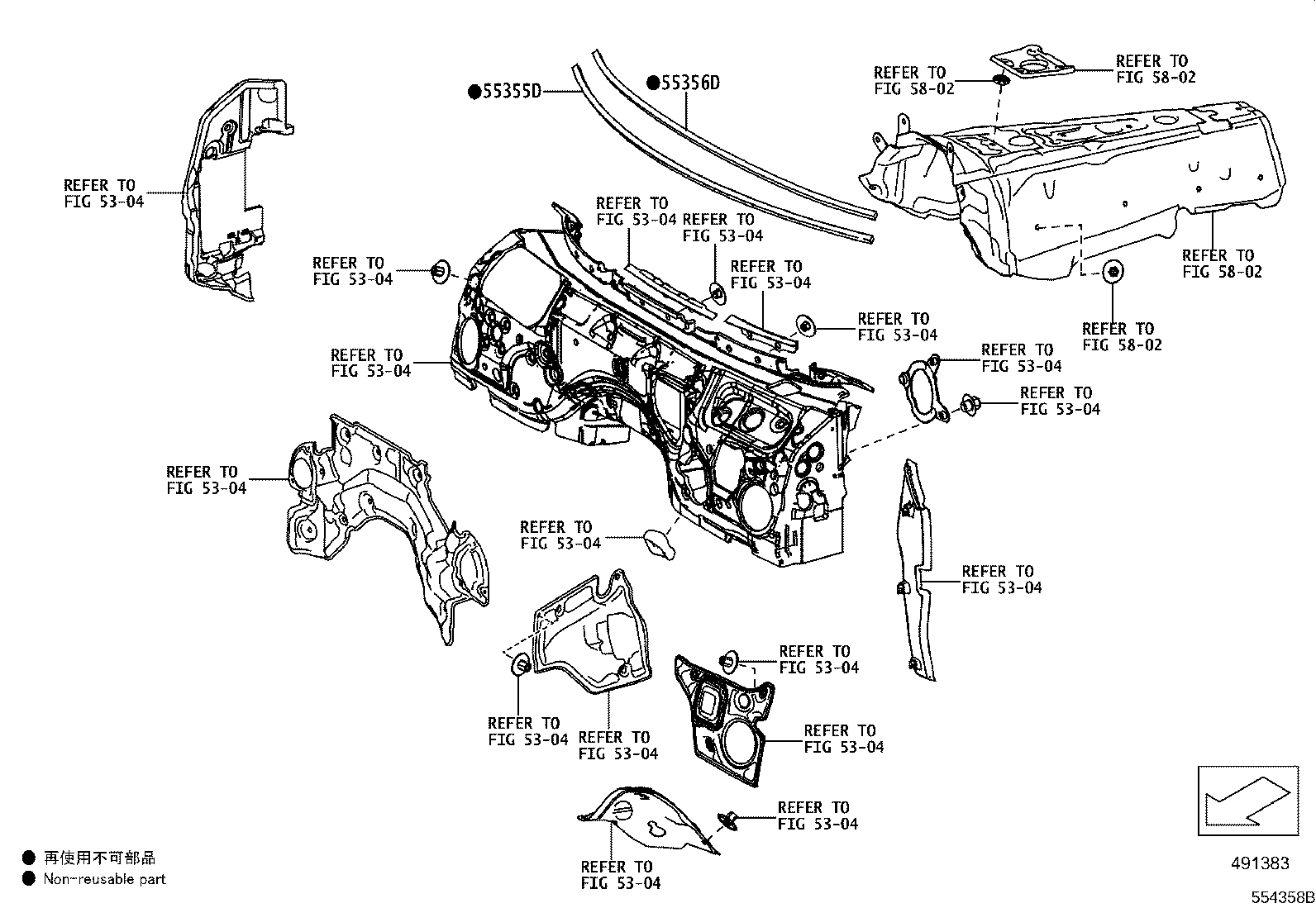

| 55355D | Cushion, Instrument Panel, NO.1 |
| 55356D | Cushion, Instrument Panel, NO.2 |
| 55734A | Plate, Water Guard, RH |
| 55735A | Plate, Water Guard, LH |
| 55751A | Shield, Cowl Ventilator Splash, RH |
| 55752A | Shield, Cowl Ventilator Splash, LH |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55788A | Protector, Cowl Top Ventilator Louver |
| 55789B | Protector, Cowl Top Venttinator Louver, NO.2 |
| 55877B | Cover, Cowl Vent, RH |
| 55878B | Cover, Cowl Vent, LH |

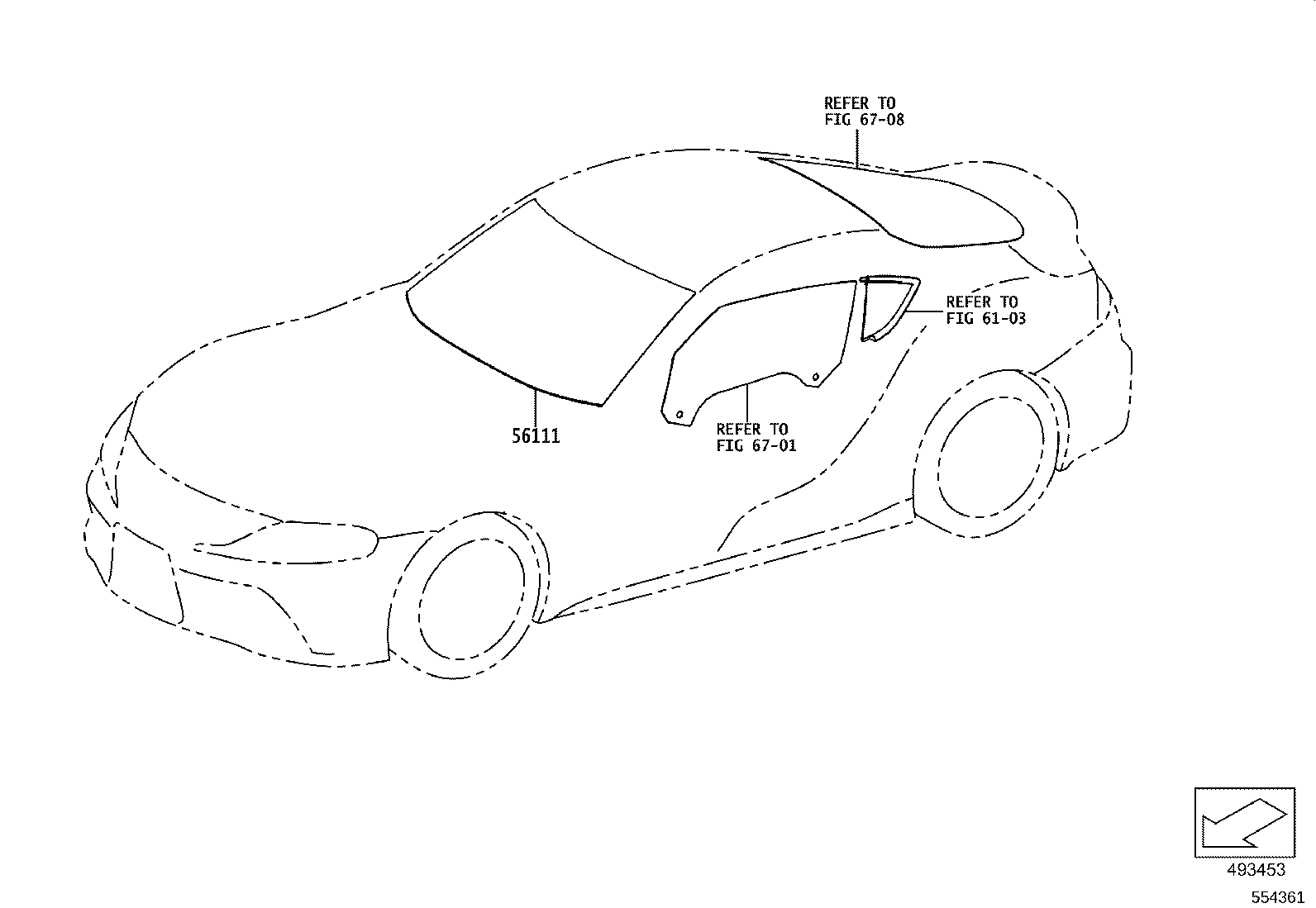

| 56111 | Glass, Windshield |
| 56126A | Spacer, Windshield Glass, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
