Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

9 part groups · 3 illustrations

Illustrations

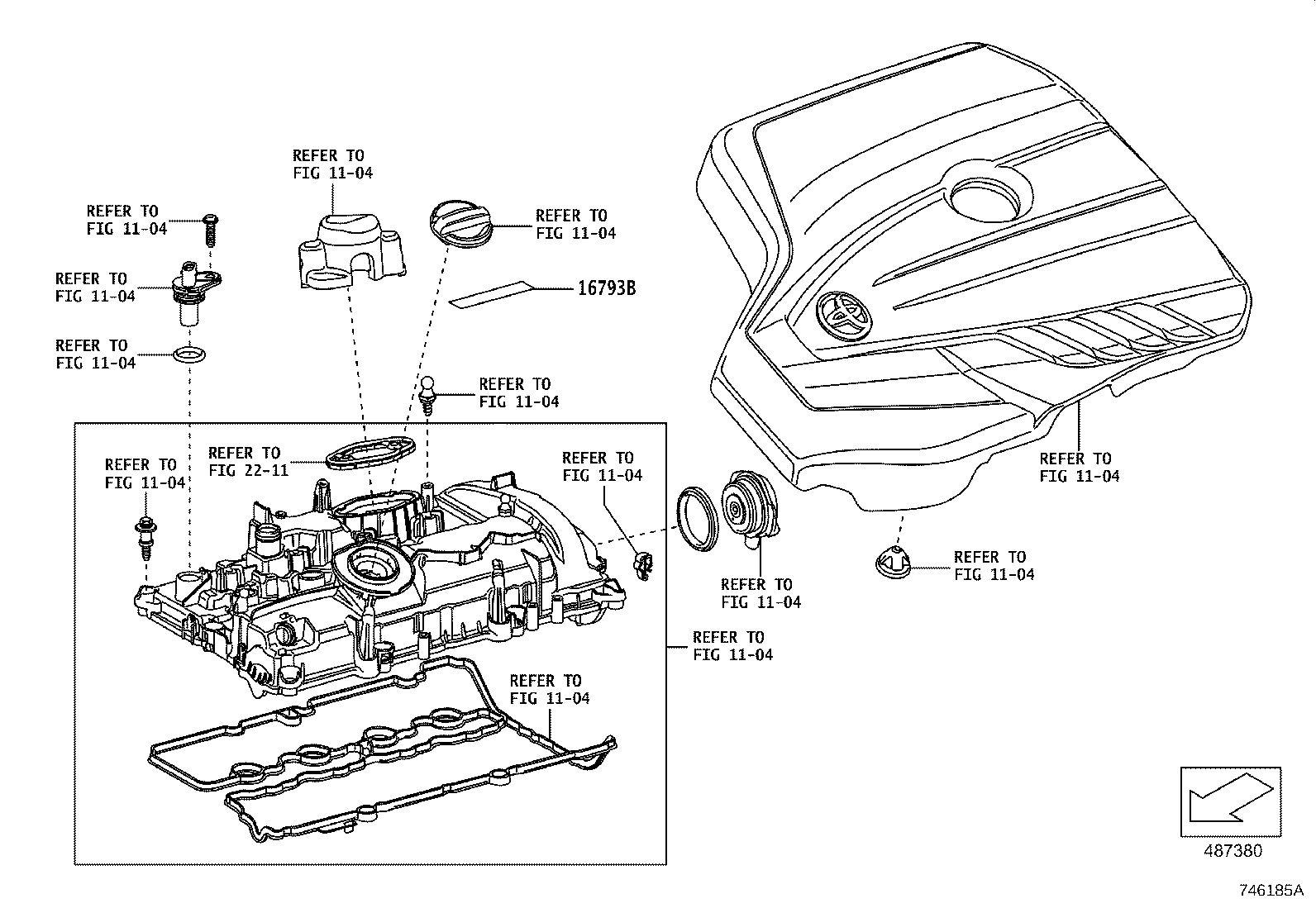

Figure 746184A 746184A 2019-03 → — Figure 746185A 746185A 2019-03 → — Figure 744938H 744938H 2019-03 → —

Part groups

PNCDescription
16793B Label, Cooling Fan Information
47288 Label, Brake Fluid Notice
74513 Label, Identification Number Information
74548 Plate, Body Caution
74559B Label, Fuel Information
74598A Label, Passenger Airbag Caution
74599D Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
