Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03
Side Moulding
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62361A | Retainer, Roof Side Rail Weatherstrip, Front RH |
| 62362A | Retainer, Roof Side Rail Weatherstrip, Front LH |
| 67495C | Cover, Front Door Front Lower Frame, Upper RH |
| 67496C | Cover, Front Door Front Lower Frame, Upper LH |

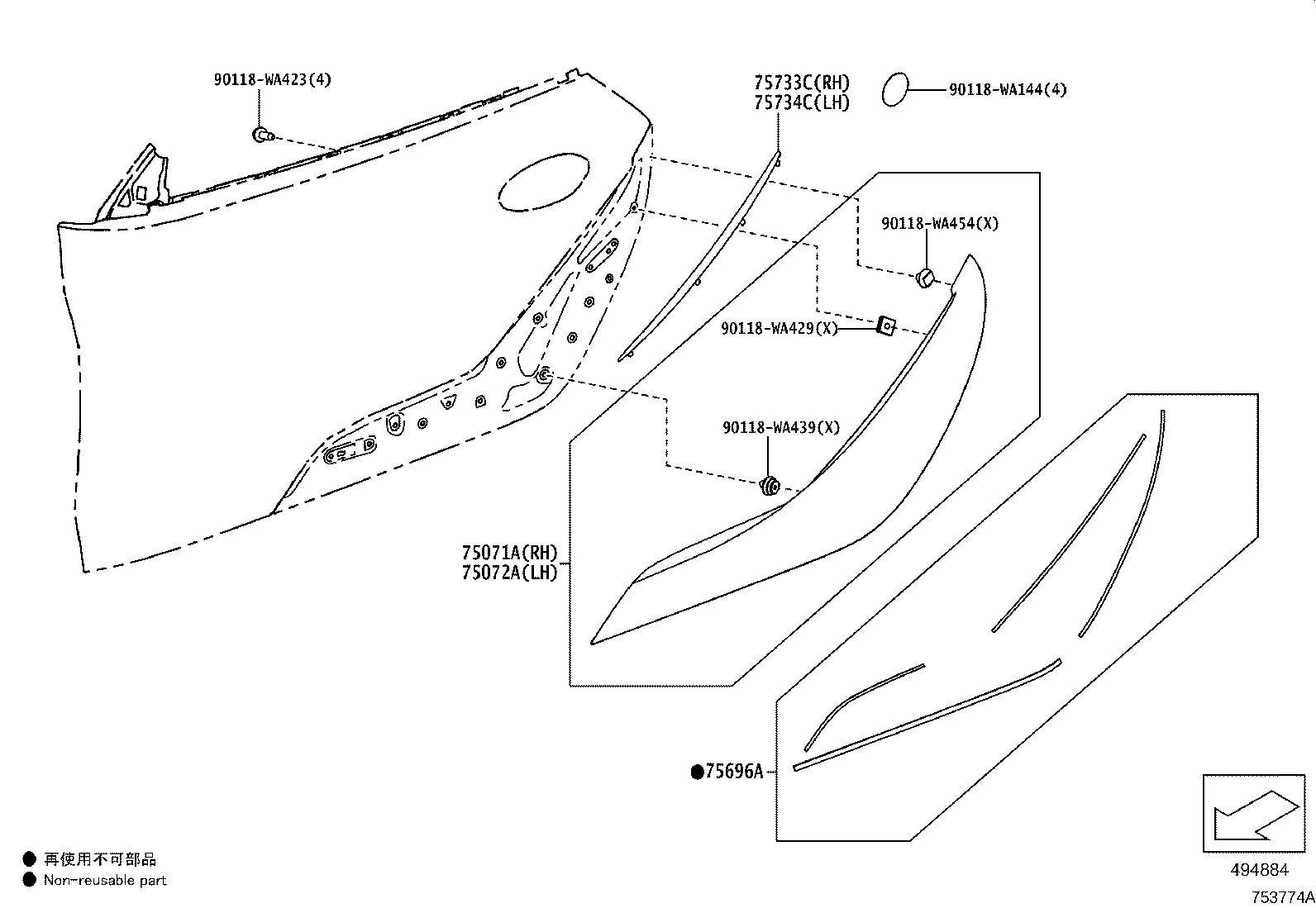

| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |

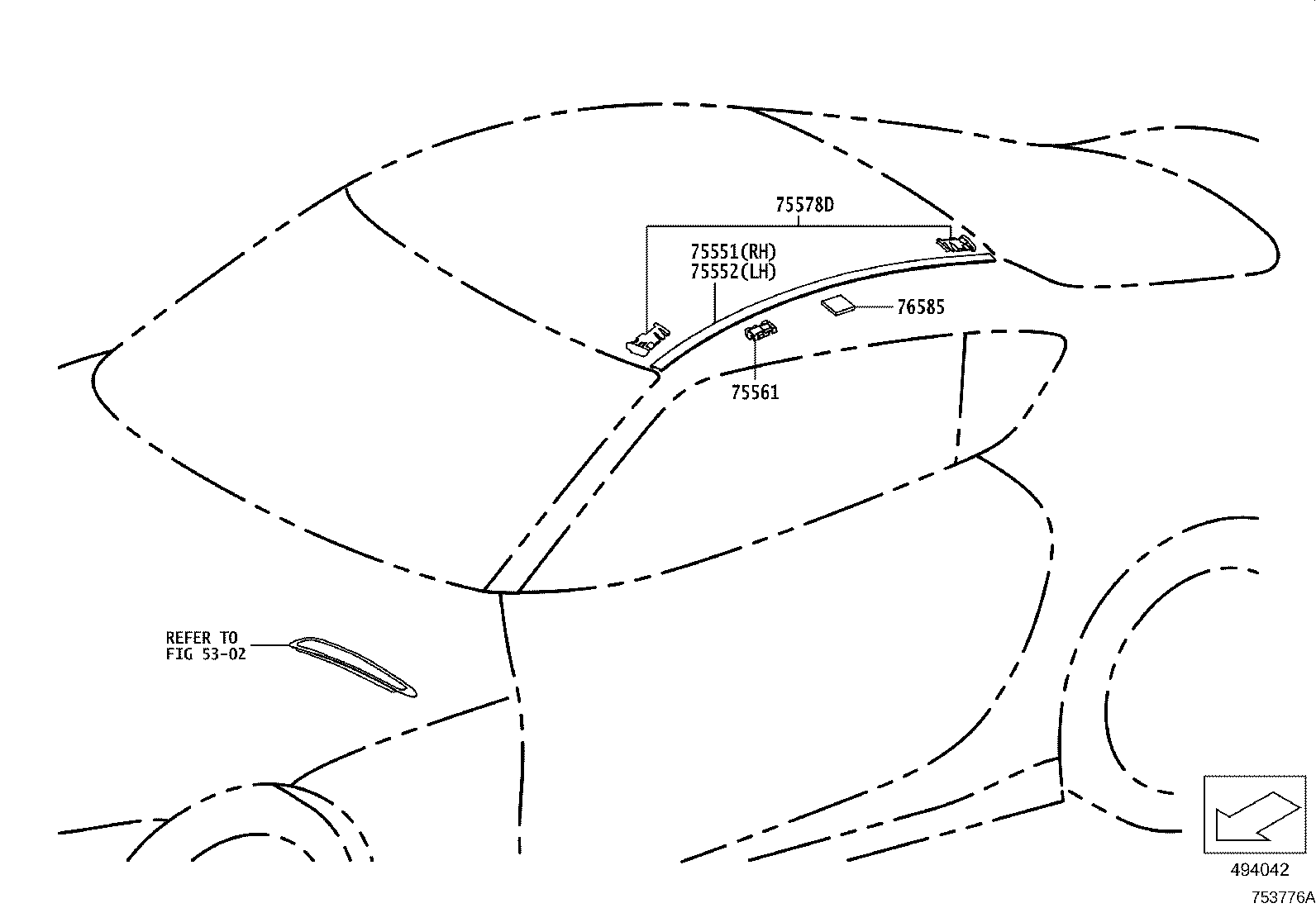

| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75551E | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75552E | Moulding, Roof Drip Side Finish, LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75578D | Cover, Roof Drip Moulding End |

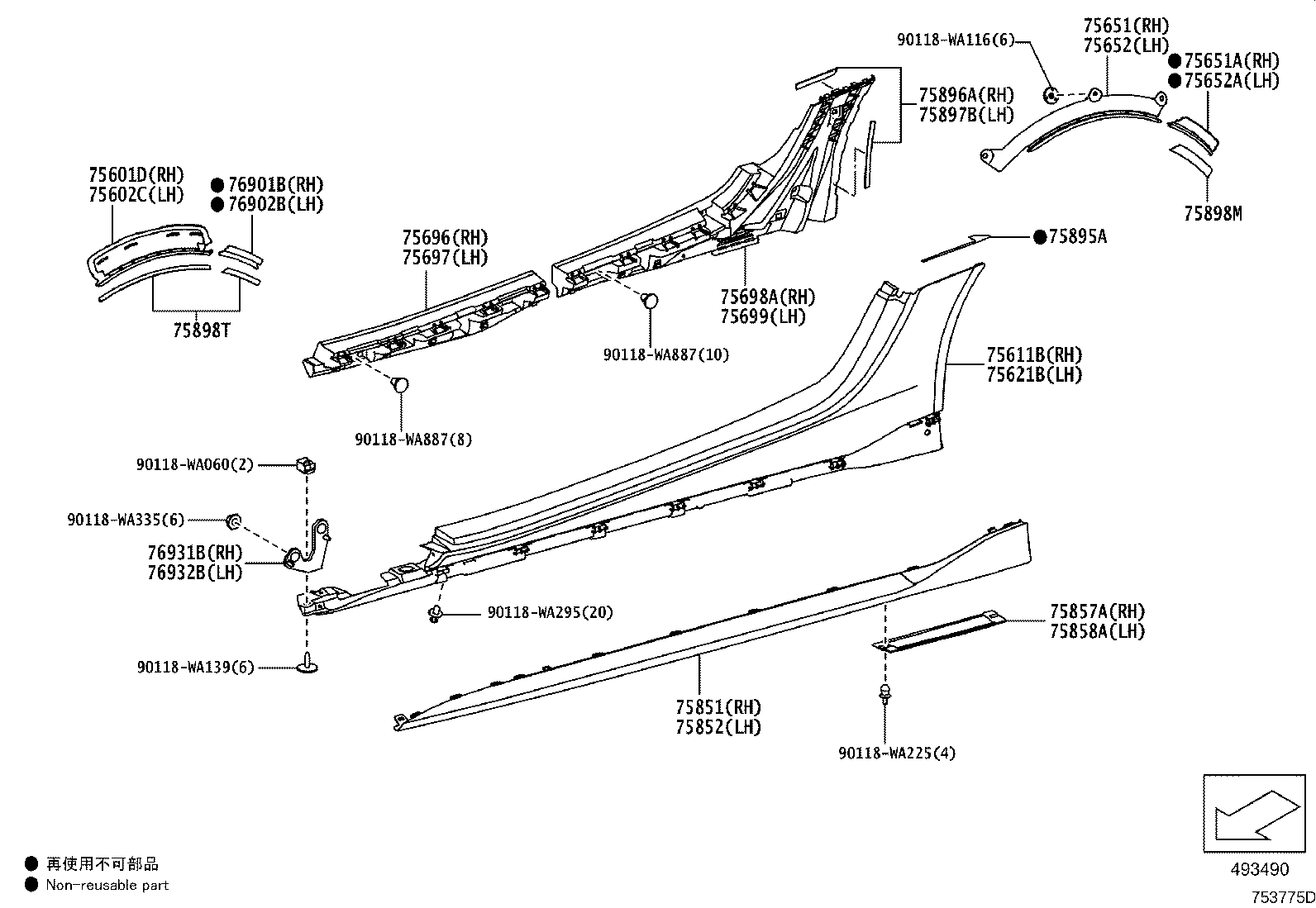

| 75601D | Moulding, Hood, RH |
| 75602C | Moulding, Hood, LH |
| 75611B | Moulding, Side Panel, NO.1 RH |
| 75621B | Moulding, Side Panel, NO.1 LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75651A | Moulding, Quarter Outside, Rear RH, NO.1 |
| 75652 | Moulding, Quarter, Outside LH |
| 75652A | Moulding, Quarter Outside, Rear LH, NO.1 |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75696A | Pad, Body Outside Moulding |
| 75697 | Pad, Body Outside Moulding, NO.2 |
| 75698A | Pad, Body Outside Moulding, NO.3 |
| 75699 | Pad, Body Outside Moulding, NO.4 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75733C | Moulding, Front Door, Outside Rear RH |
| 75734C | Moulding, Front Door, Outside Rear LH |
| 75751C | Moulding, Front Door Window Frame, Front RH |
| 75752C | Moulding, Front Door Window Frame, Front LH |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75857A | Cover, Rocker Panel Moulding, RH |
| 75858A | Cover, Rocker Panel Moulding, LH |
| 75895A | Tape, Moulding, NO.1 |
| 75896A | Tape, Moulding, NO.2 |
| 75897B | Tape, Moulding, NO.3 |
| 75898M | Tape, Quarter Outside Moulding, NO.1 |
| 75898T | Tape, Front Fender Moulding, NO.1 |
| 76585 | Pad, Roof Drip Side Finish Moulding, Front |
| 76901B | Mudguard Sub-assy, Fender Panel, RH |
| 76902B | Mudguard Sub-assy, Fender Panel, LH |
| 76931B | Bracket, Side Mudguard, NO.1 RH |
| 76932B | Bracket, Side Mudguard, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
