Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

6 part groups · 3 illustrations

Illustrations

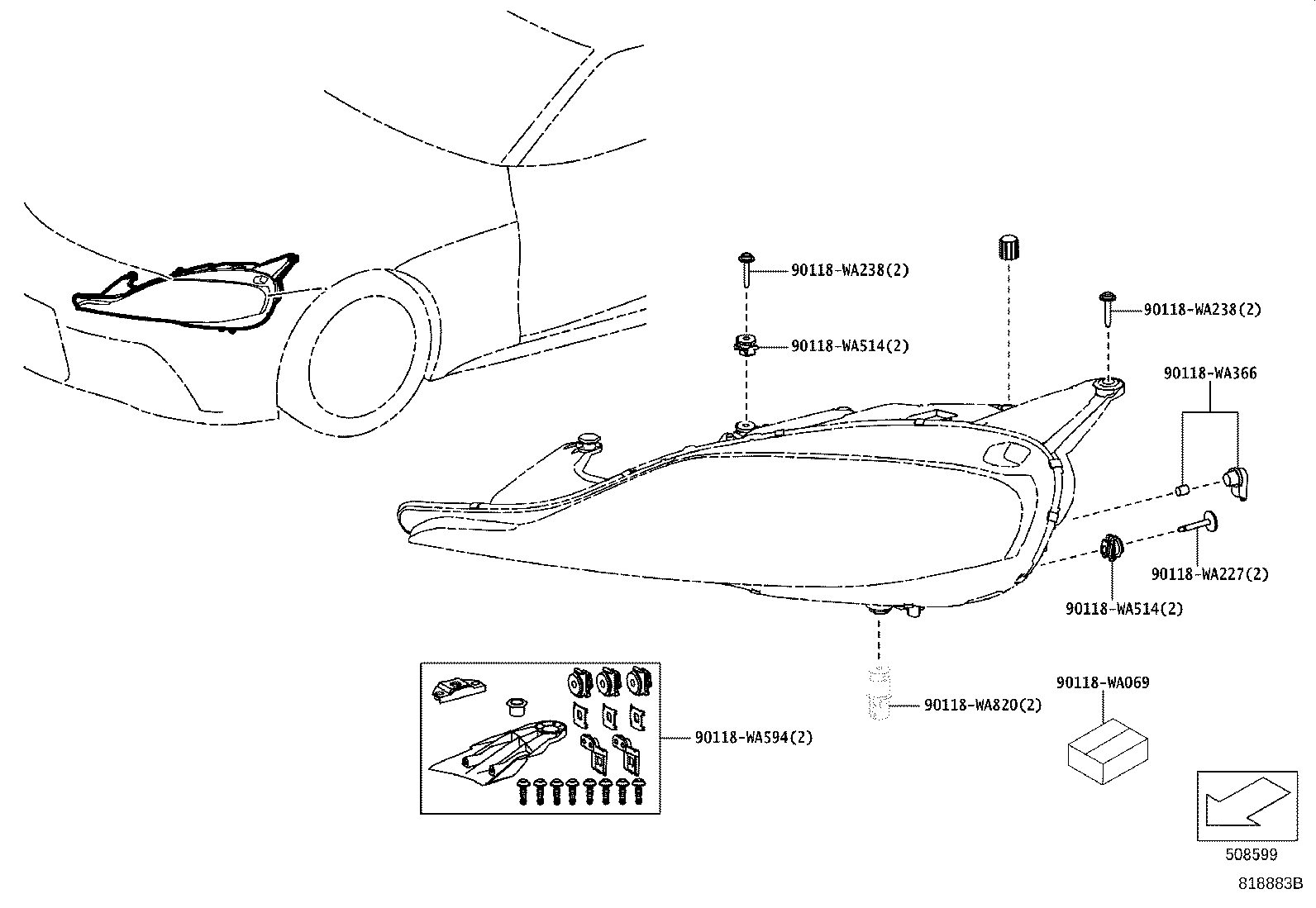

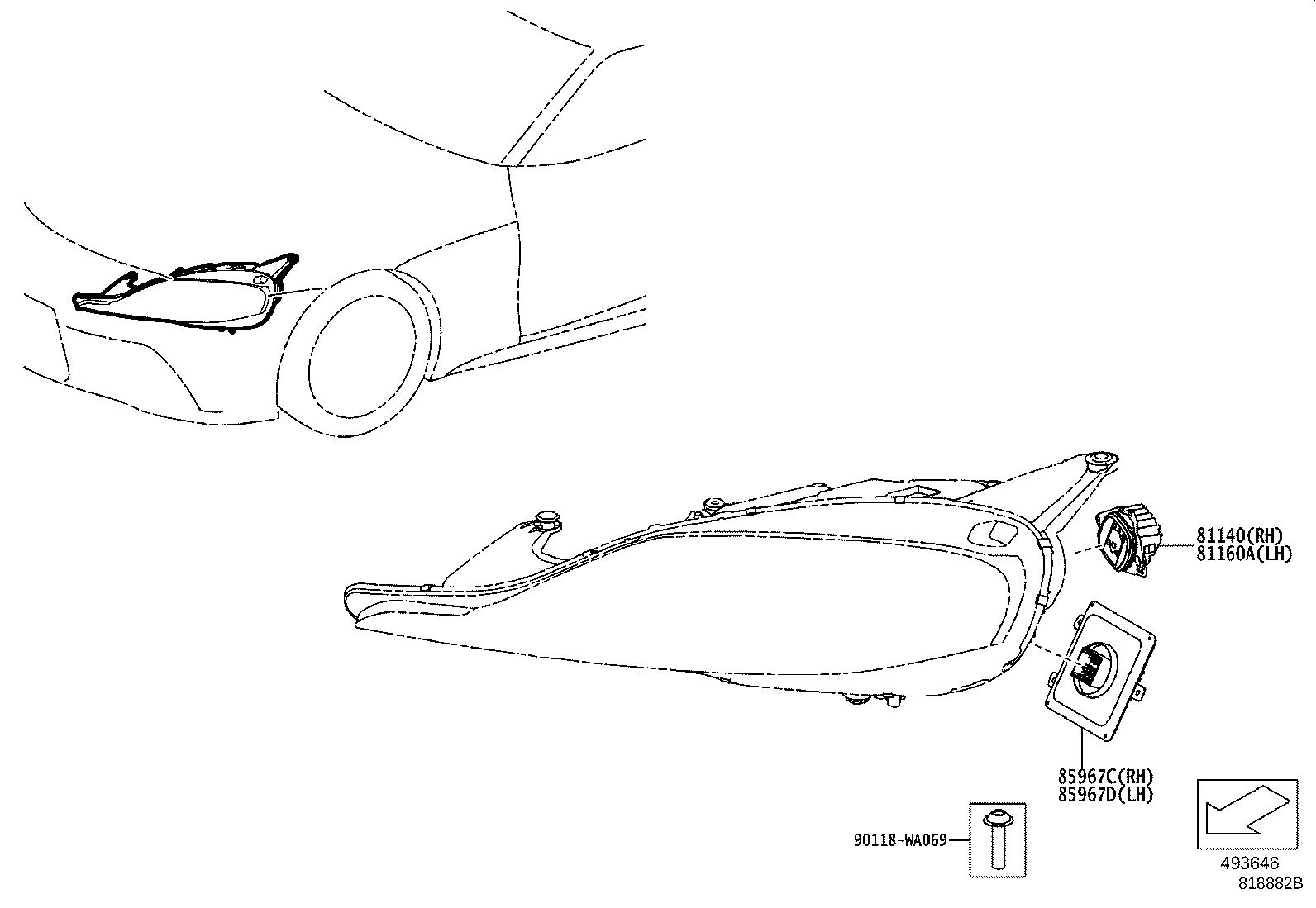

Figure 818881C 818881C 2019-03 → — Figure 818882B 818882B 2019-03 → — Figure 818883B 818883B 2019-03 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81140 Unit Assy, Headlamp Led, RH
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
85967C Computer, Light Control Led, RH
85967D Computer, Light Control Led, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
