Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03
Windshield Wiper
8 part groups · 4 illustrations
Part groups

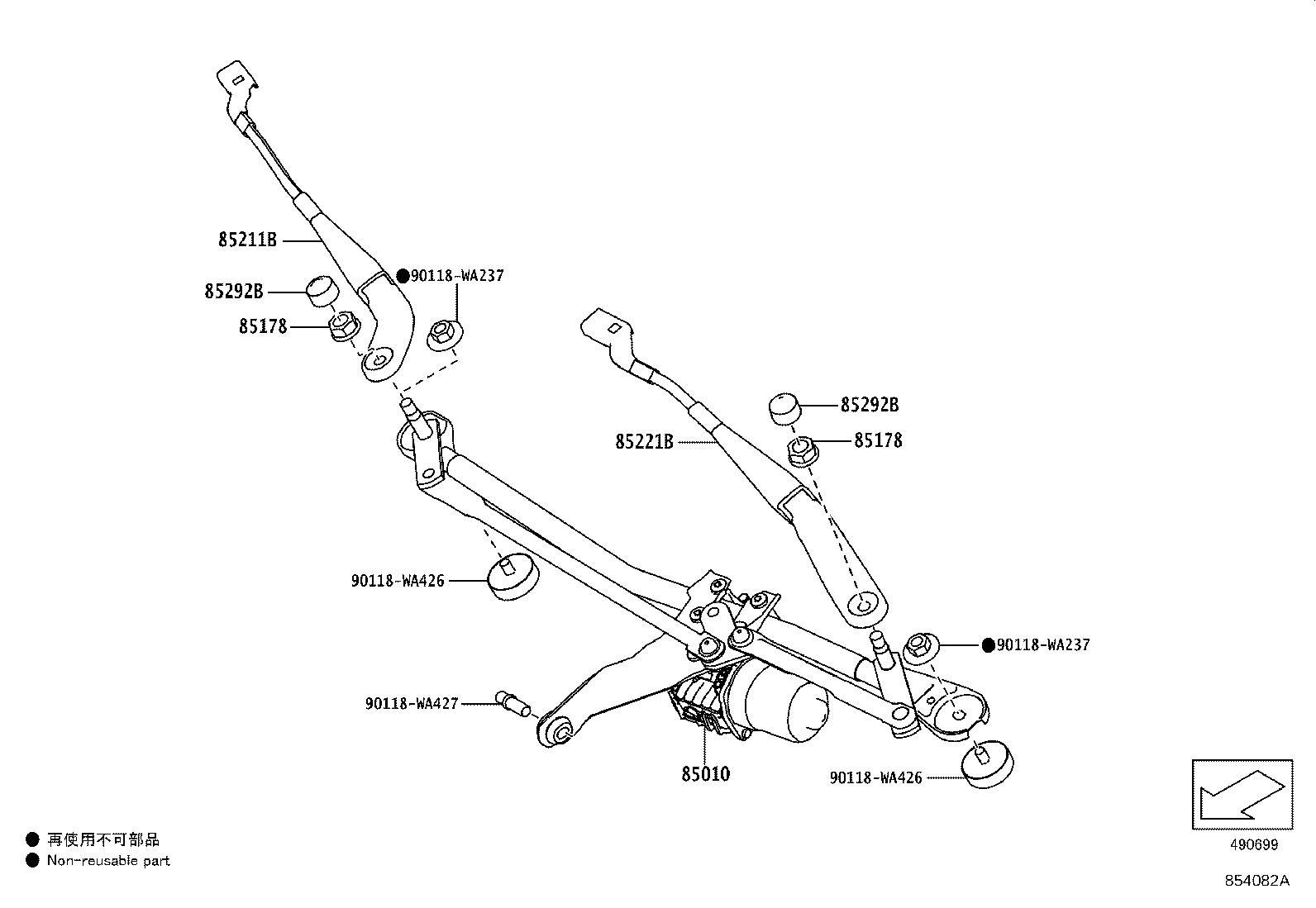

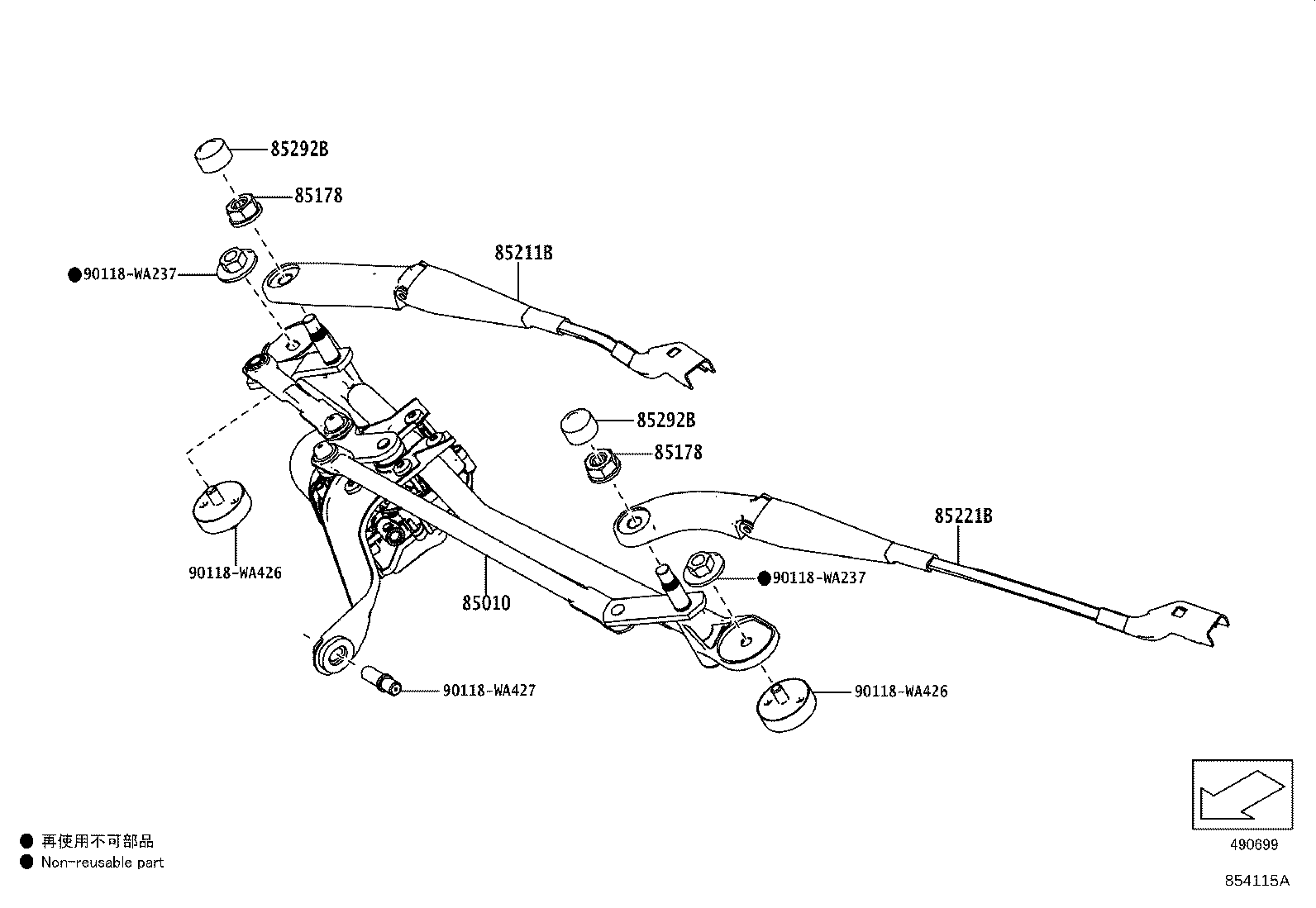

| PNC | Description |
|---|---|
| 85010 | Motor & Link Assy, FR Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85211B | Arm, Front Wiper, RH |
| 85220 | Blade Assy, Windshield Wiper |
| 85221B | Arm, Front Wiper, LH |
| 85292B | Cap, Front Wiper Arm Head |

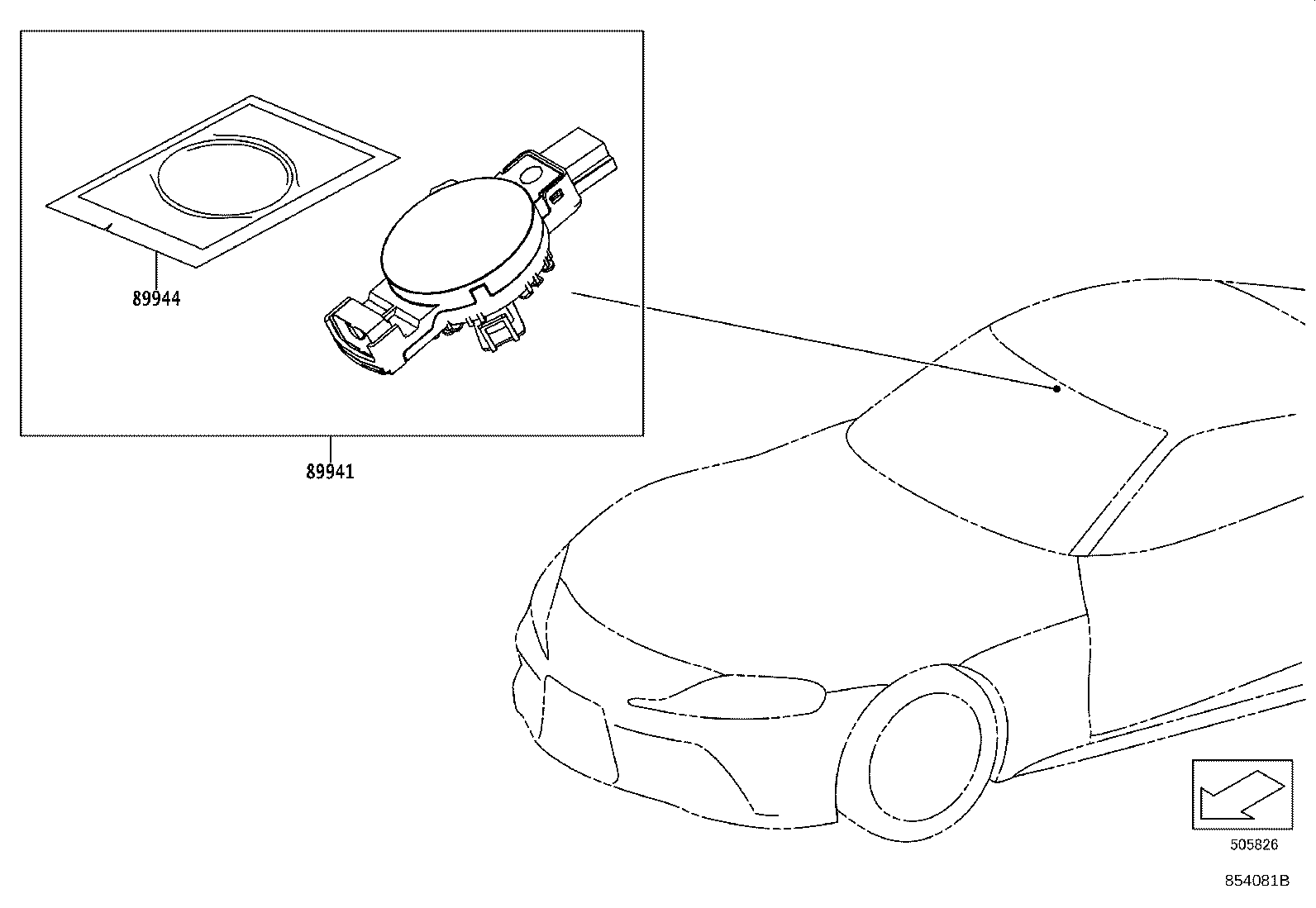

| 89941 | Sensor, Rain |
| 89944 | Tape, Rain Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
