Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

5 part groups · 5 illustrations

Illustrations

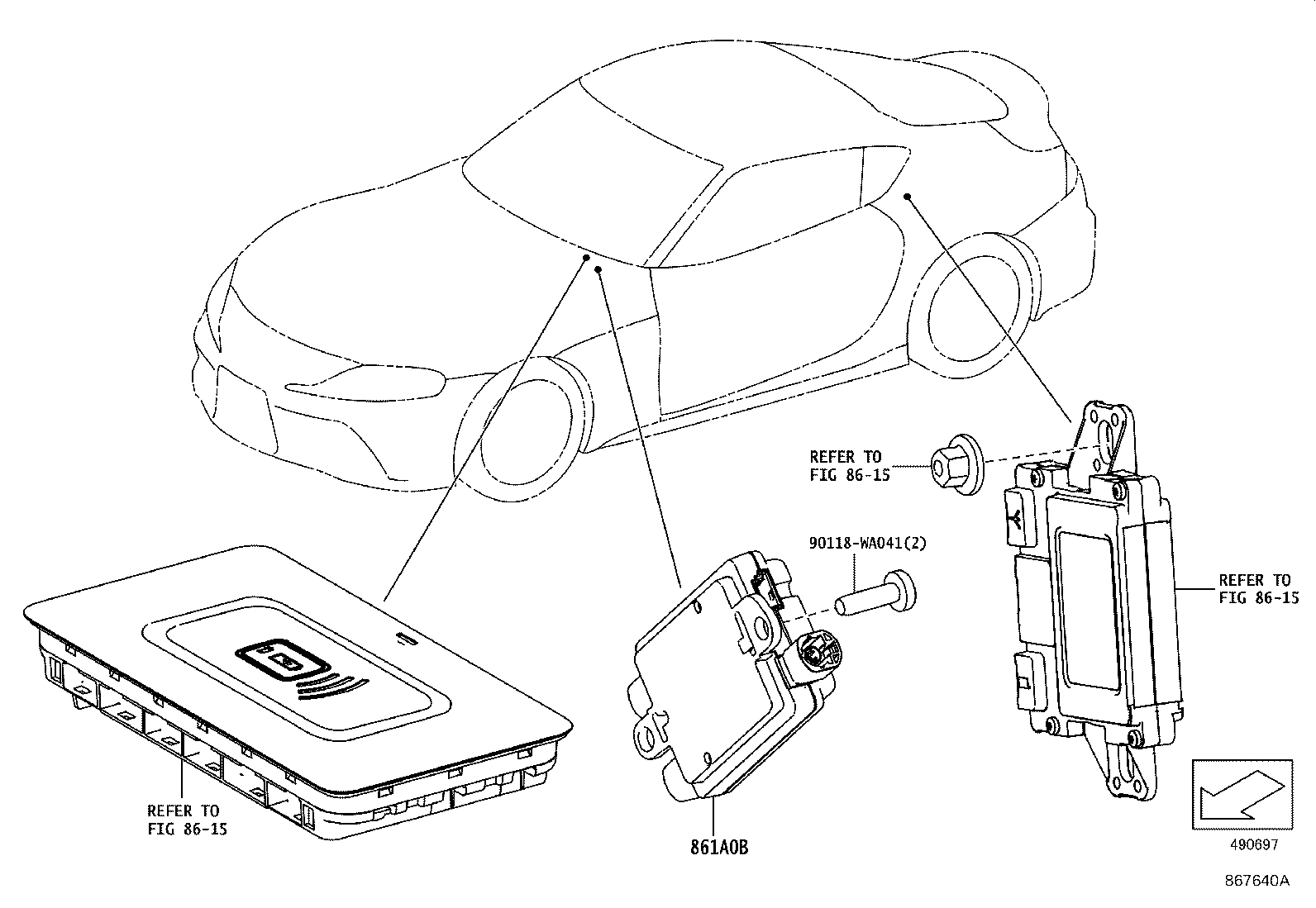

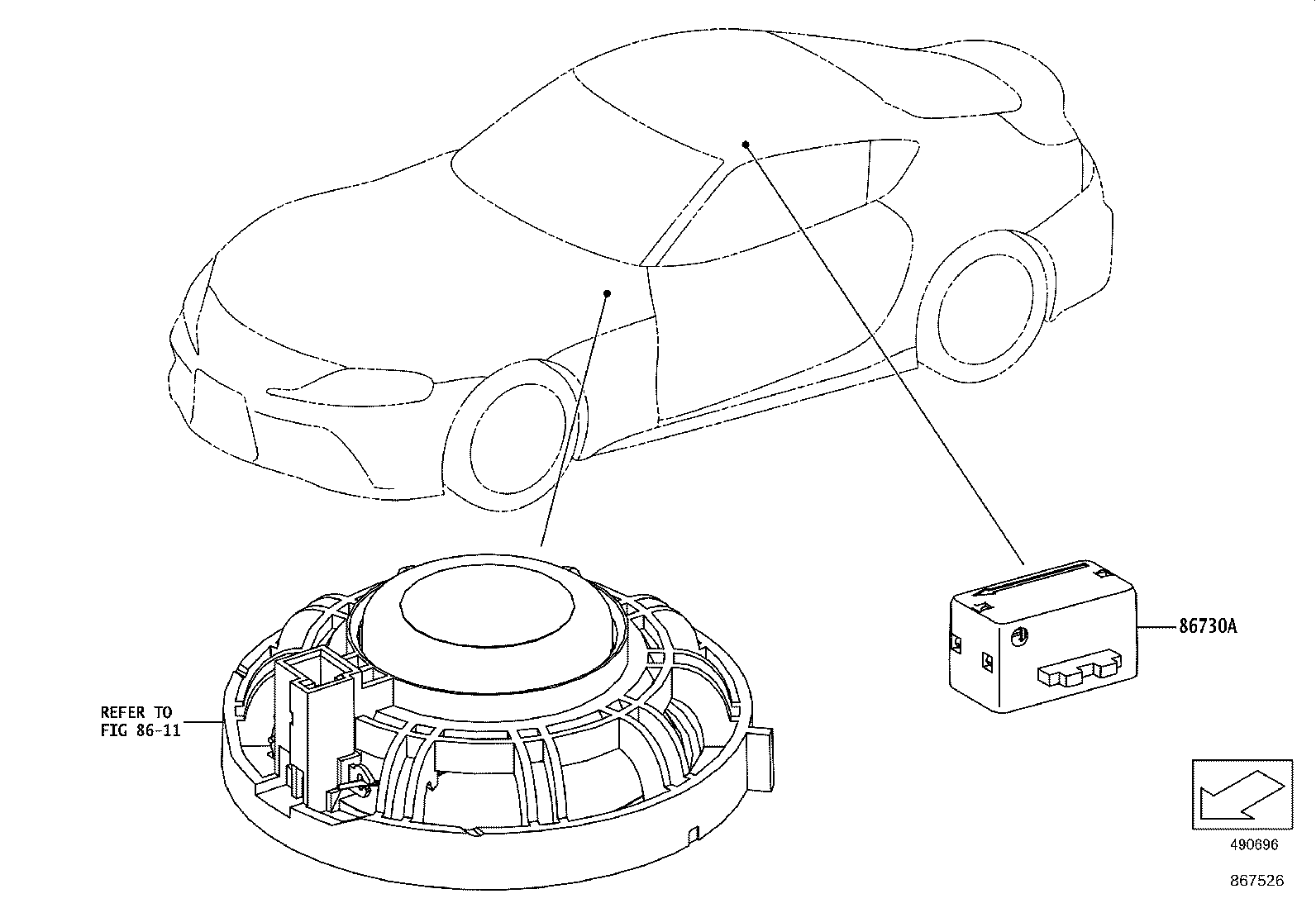

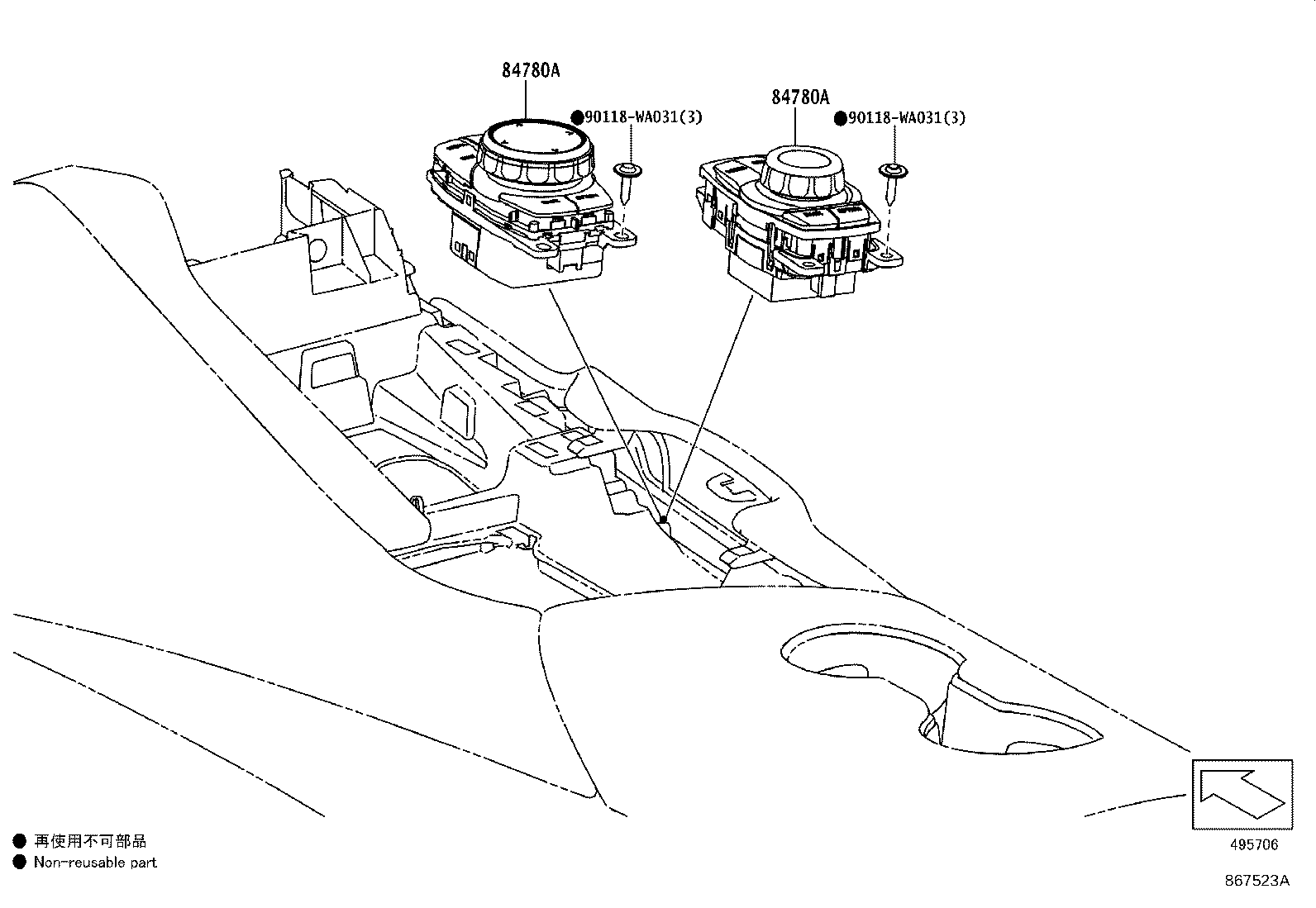

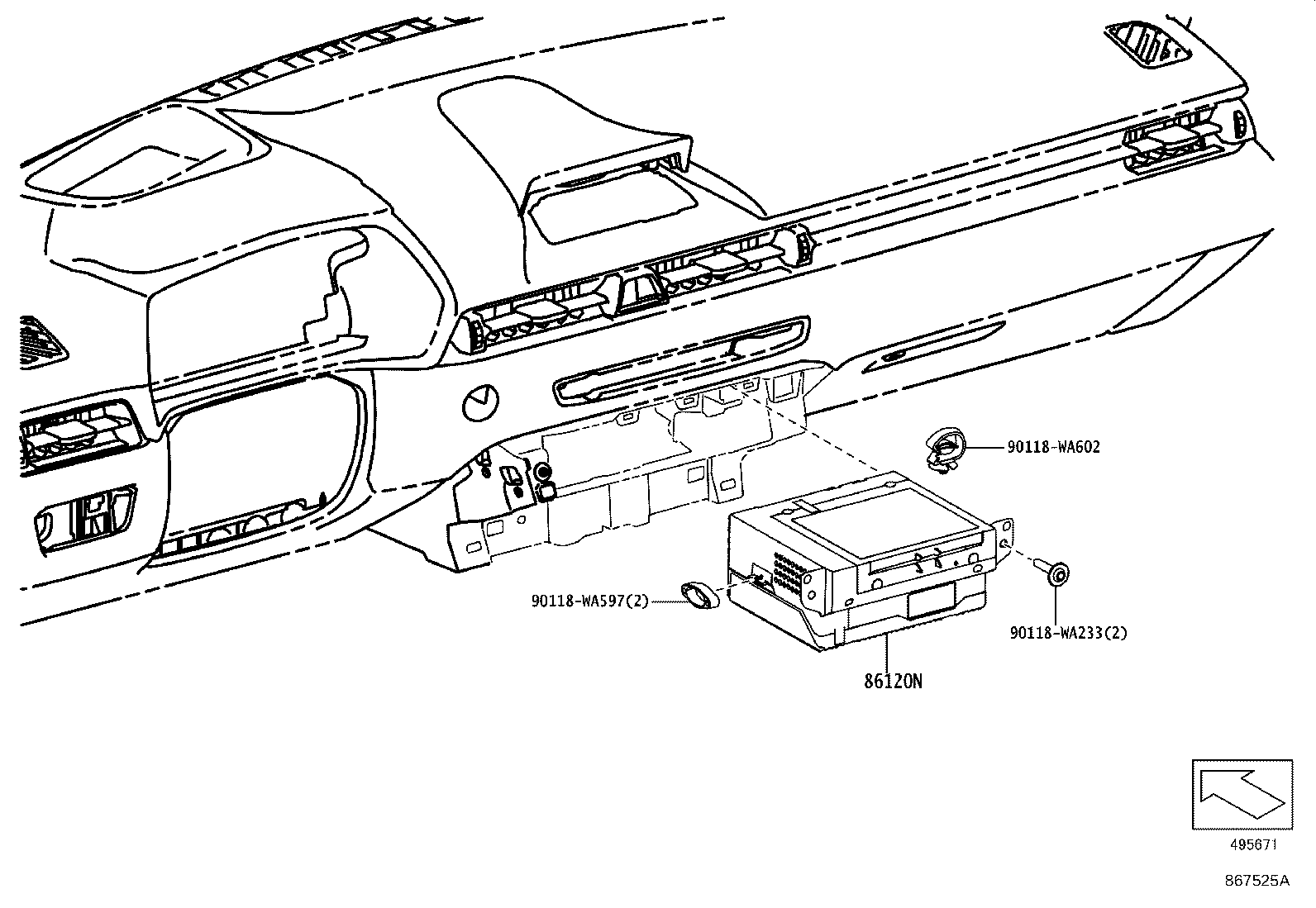

Figure 867522 867522 2019-03 → — Figure 867525A 867525A 2019-03 → — Figure 867523A 867523A 2019-03 → — Figure 867526 867526 2019-03 → — Figure 867640A 867640A 2019-03 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86110B Multi-display Assy
86120N Receiver Assy, Radio
861A0B Usb Hub
86730A Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
