Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe

Supported model Data version 2020-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 2 illustrations

Illustrations

Figure 87H701

87H701 2019-03 → —

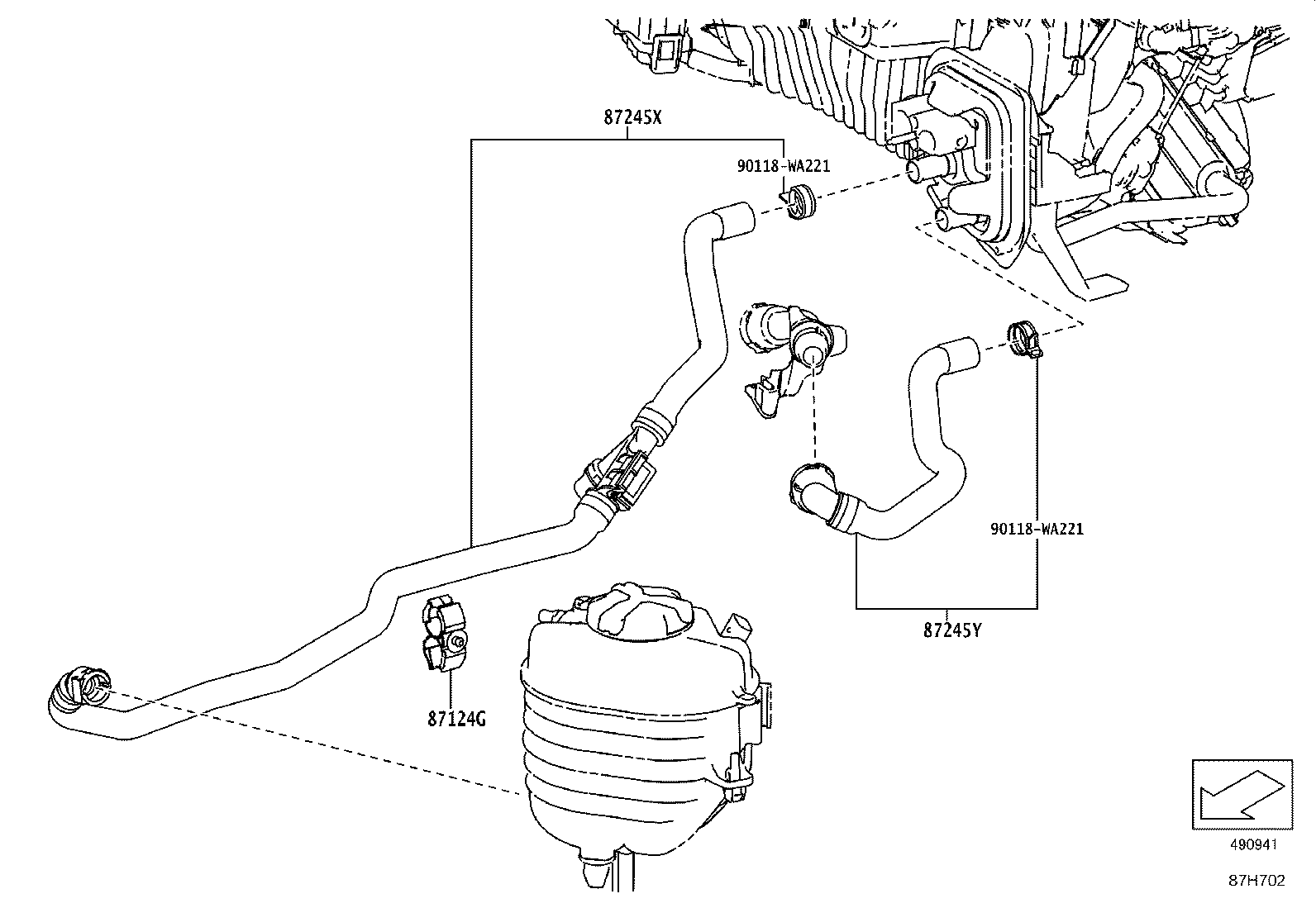

Figure 87H702

87H702 2019-03 → —

Part groups

PNC	Description
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245X	Hose, Heater Water
87245Y	Hose, Heater Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
