Toyota Supra
2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · Europe
Supported model
Data version 2020-03

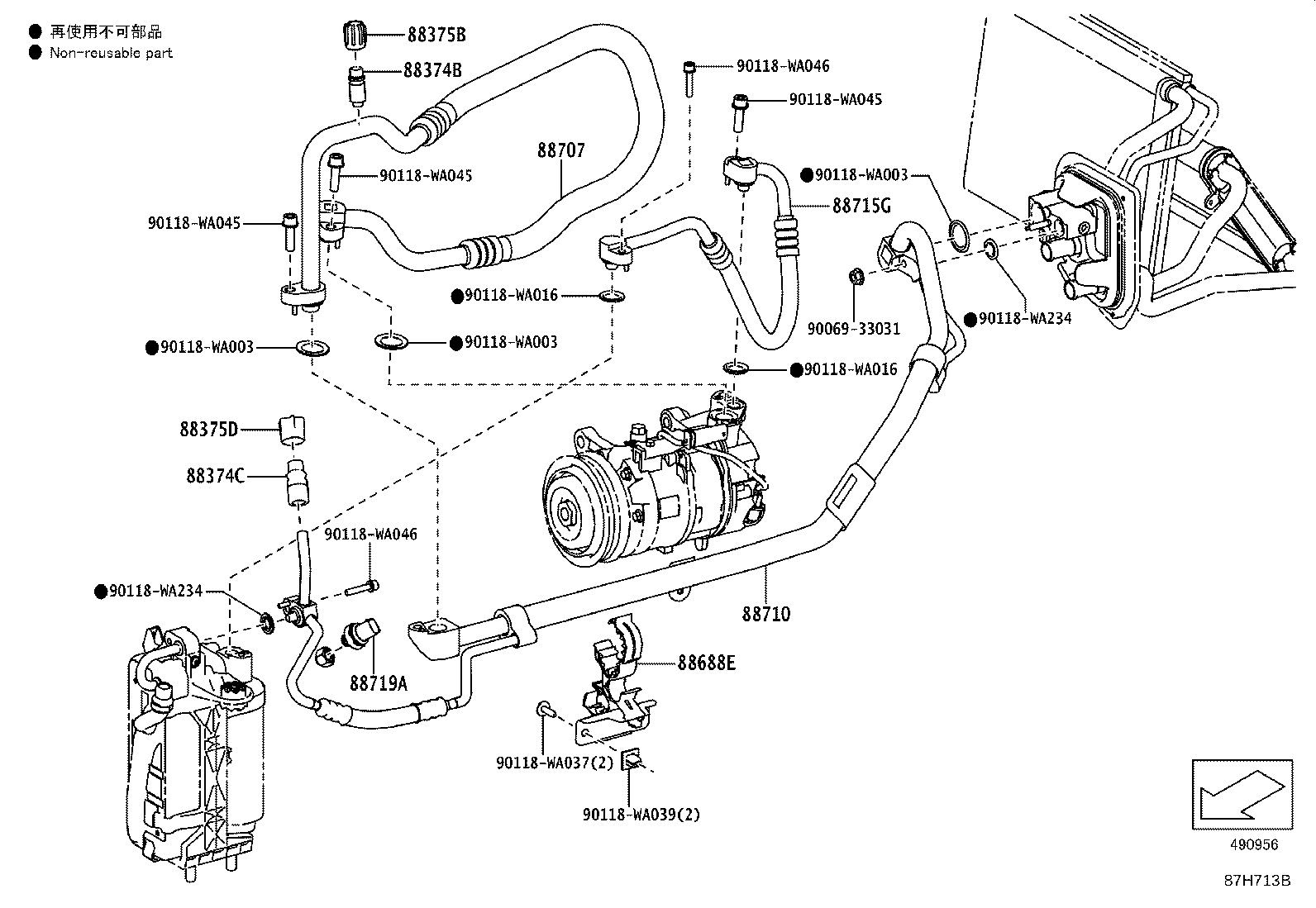

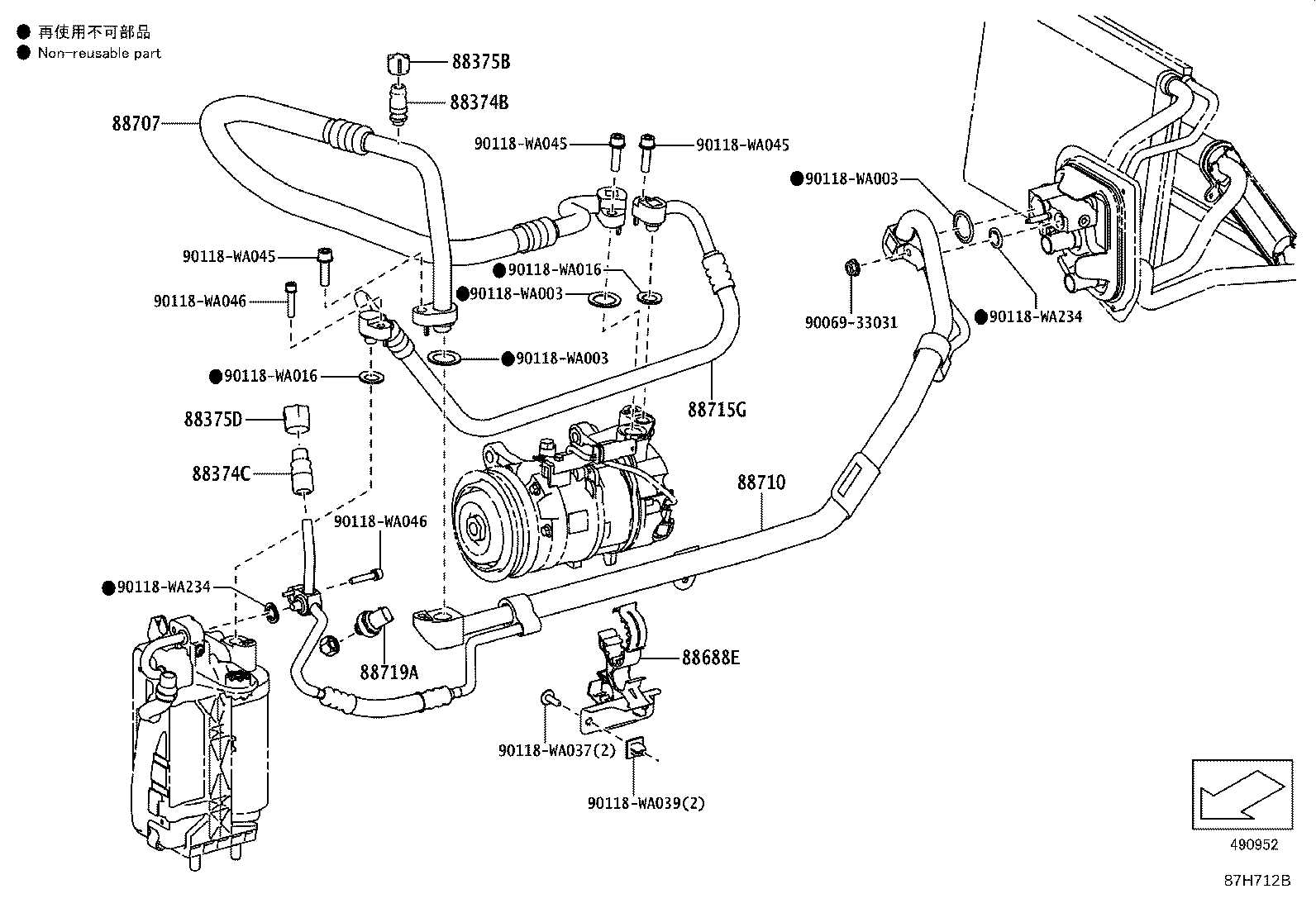

Heating & Air Conditioning - Cooler Piping
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 884A0 | Condenser Assy, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88707 | Pipe Sub-assy, Suction |
| 88710 | Tube Assy, Air Conditioner |
| 88715G | Tube, Discharge, G |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
