Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Partial Engine Assembly

1 part groups · 2 illustrations

Illustrations

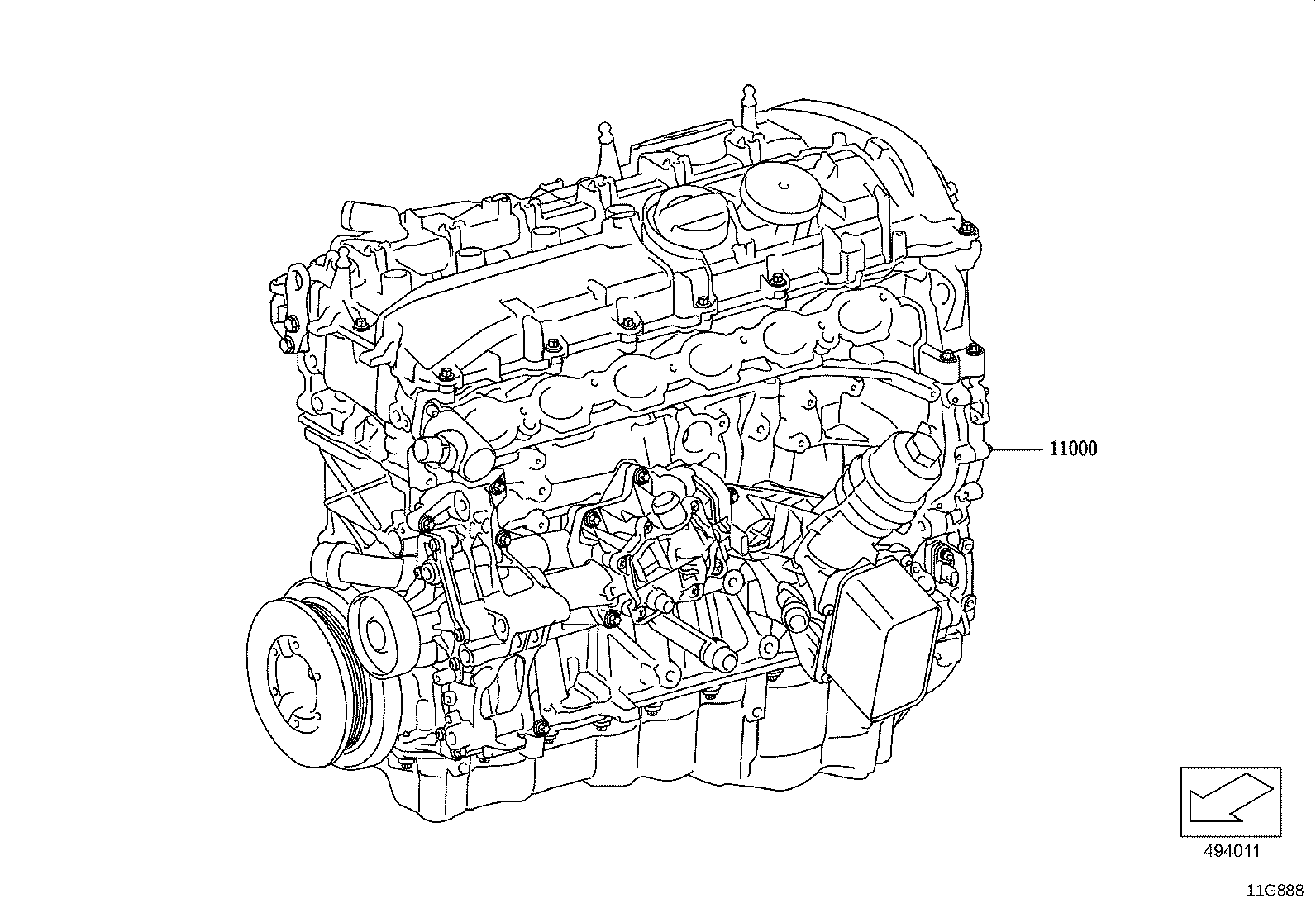

Figure 11G887 11G887 2022-07 → — Figure 11G888 11G888 2022-07 → —

Part groups

PNCDescription
11000 Engine Assy, Partial
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
