Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

17 part groups · 9 illustrations

Illustrations

Figure 11G932 11G932 2022-07 → — Figure 11G934 11G934 2022-07 → — Figure 11G935 11G935 2022-07 → — Figure 11G936 11G936 2022-07 → — Figure 11G938 11G938 2022-07 → — Figure 11G939 11G939 2022-07 → — Figure 11G940 11G940 2022-07 → — Figure 11G941 11G941 2022-07 → — Figure 11H414 11H414 2022-07 → —

Part groups

PNCDescription

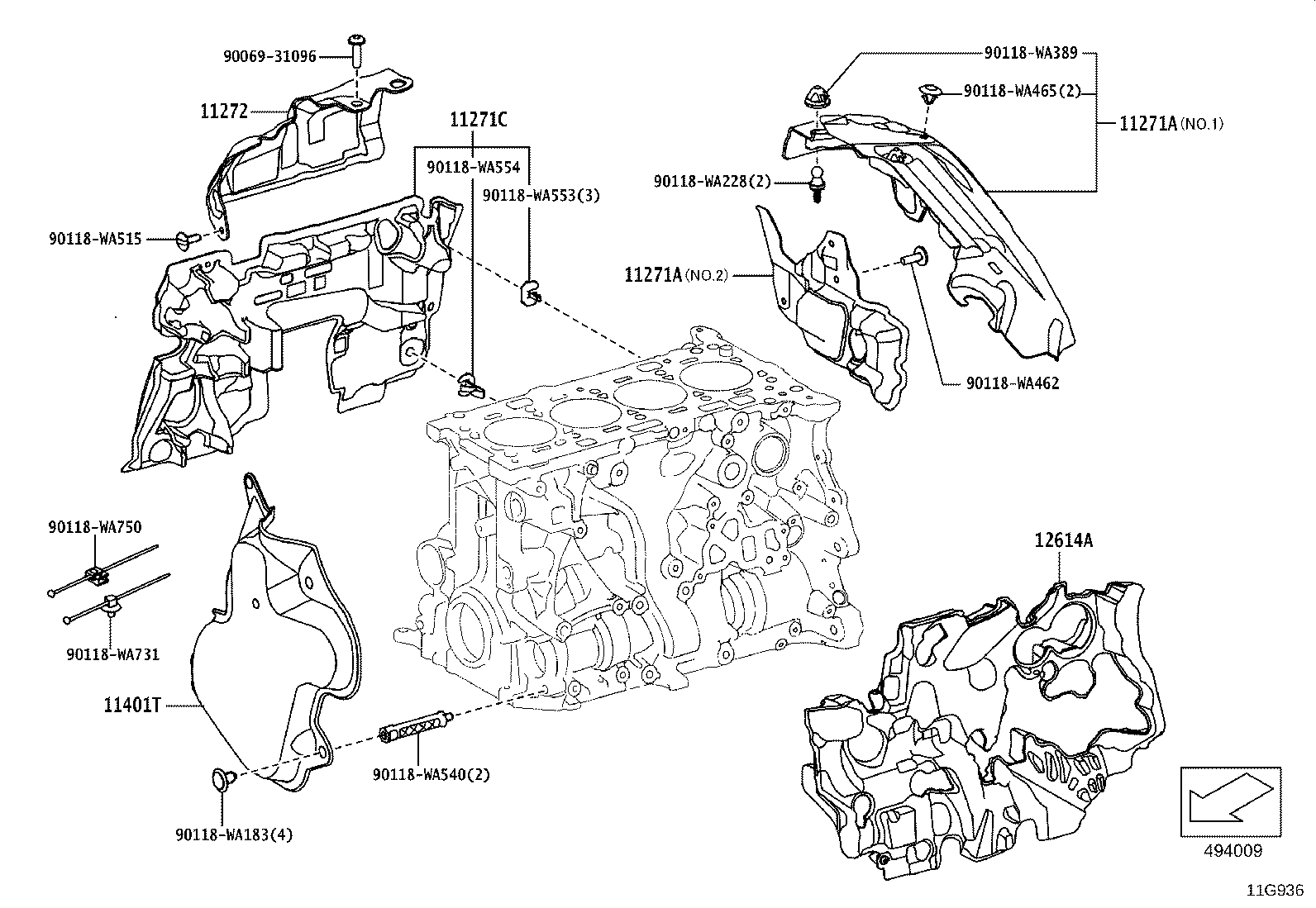

11271A Cover, Cylinder Block, Rear
11271C Cover, Cylivder Block Side
11272 Cover, Cylinder Block Side, NO.2

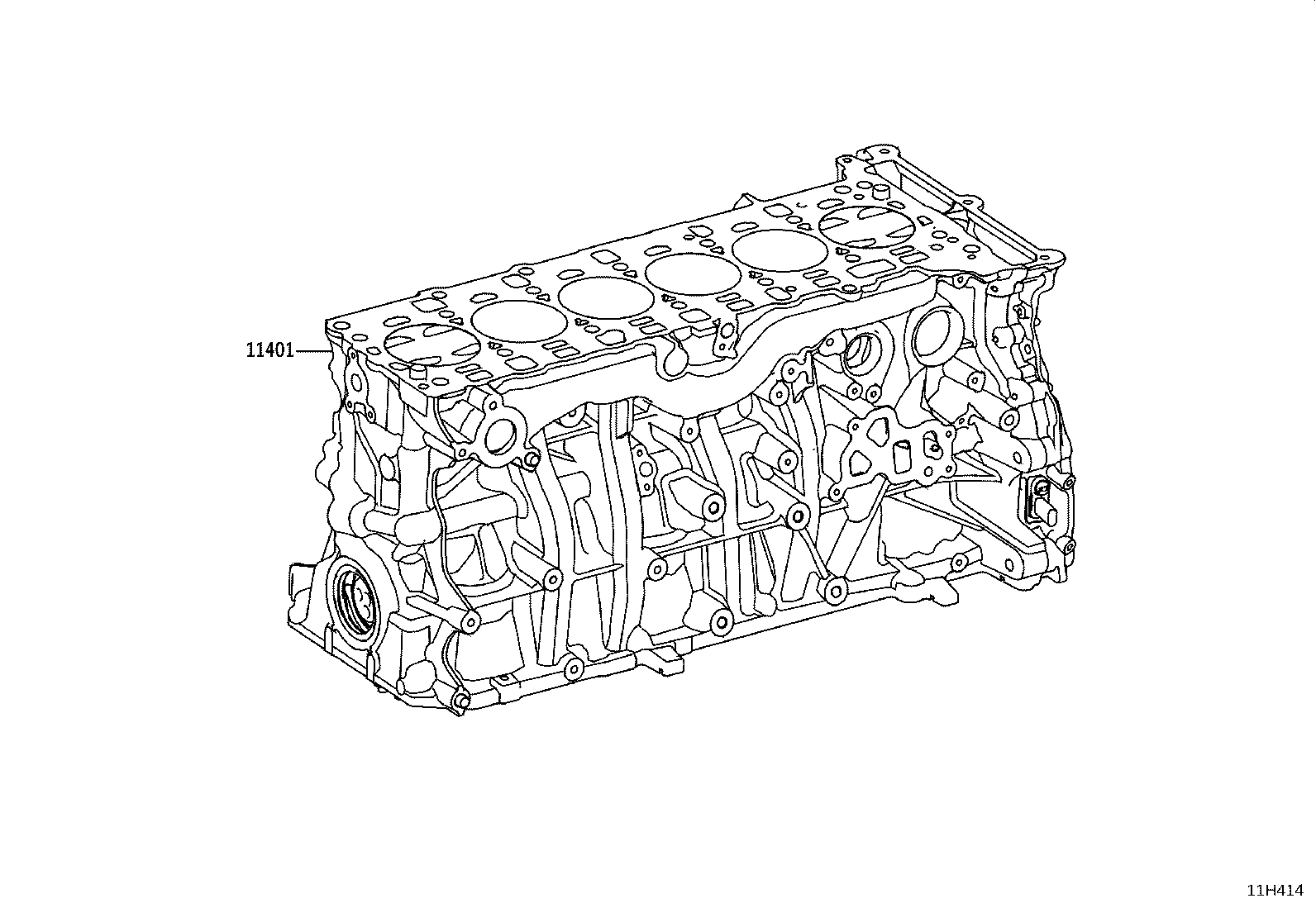

11401 Block Sub-assy, Cylinder
11401T Cover, Cylinder Block

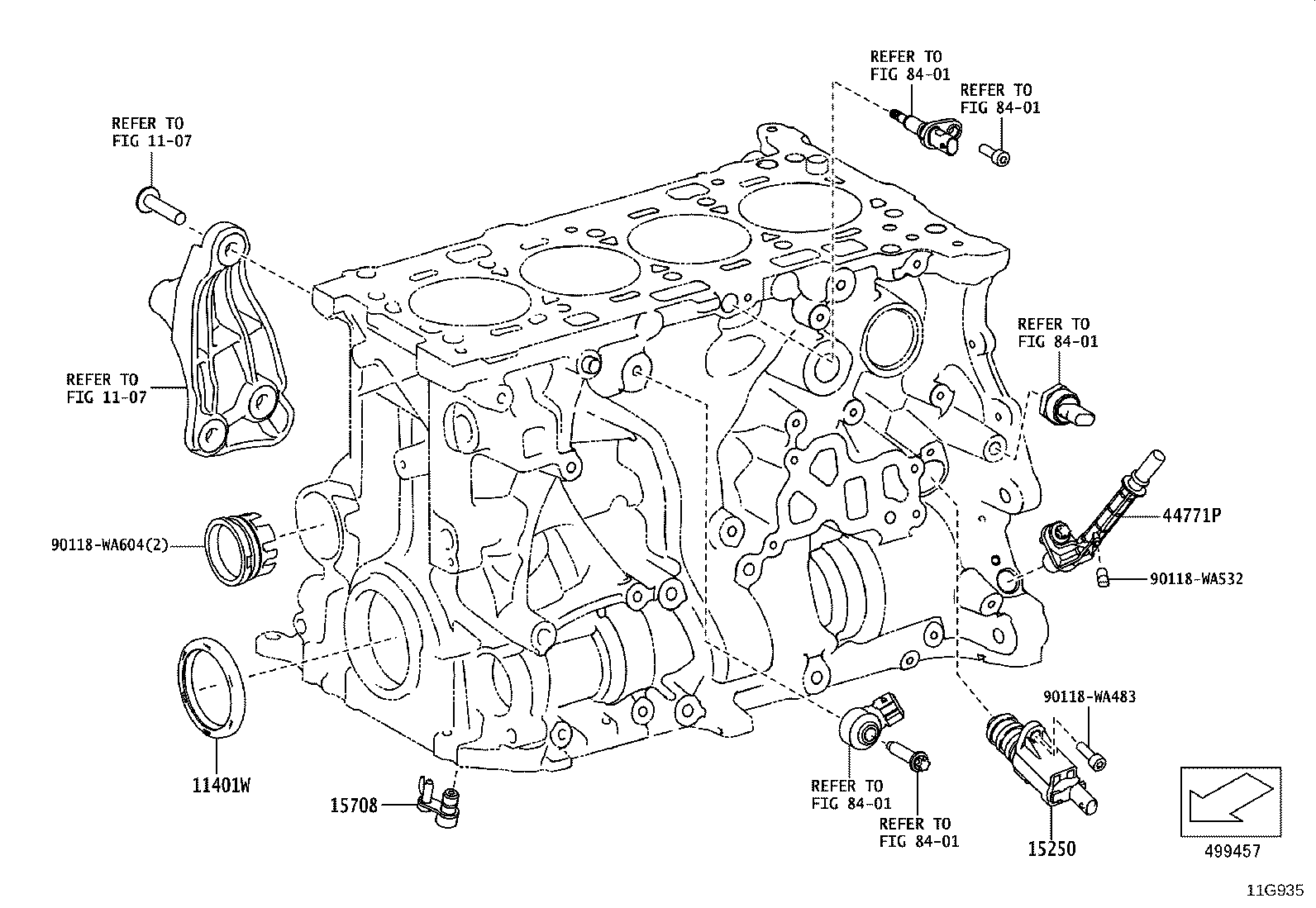

11401W Seal, Front Crankshaft Oil

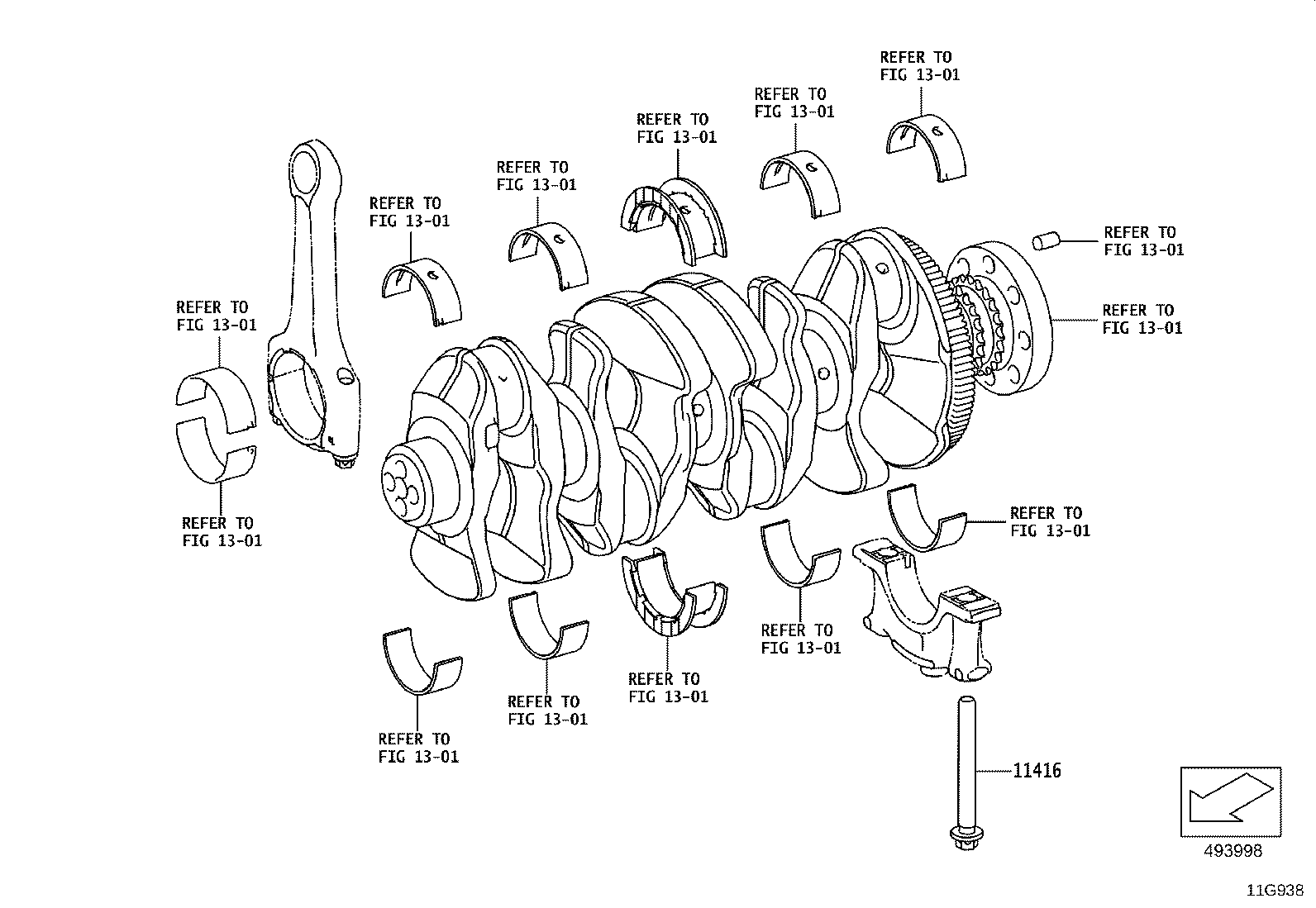

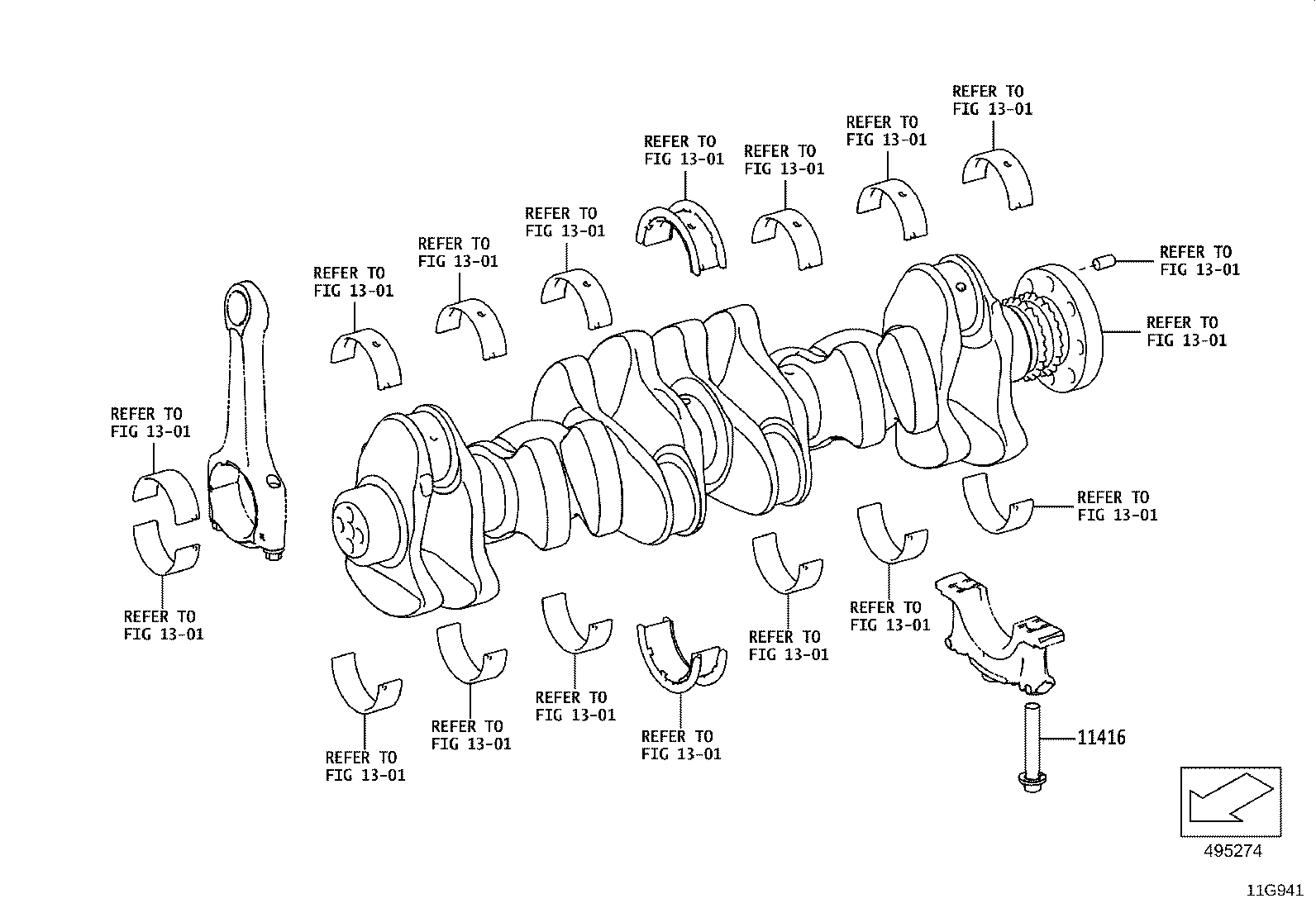

11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)

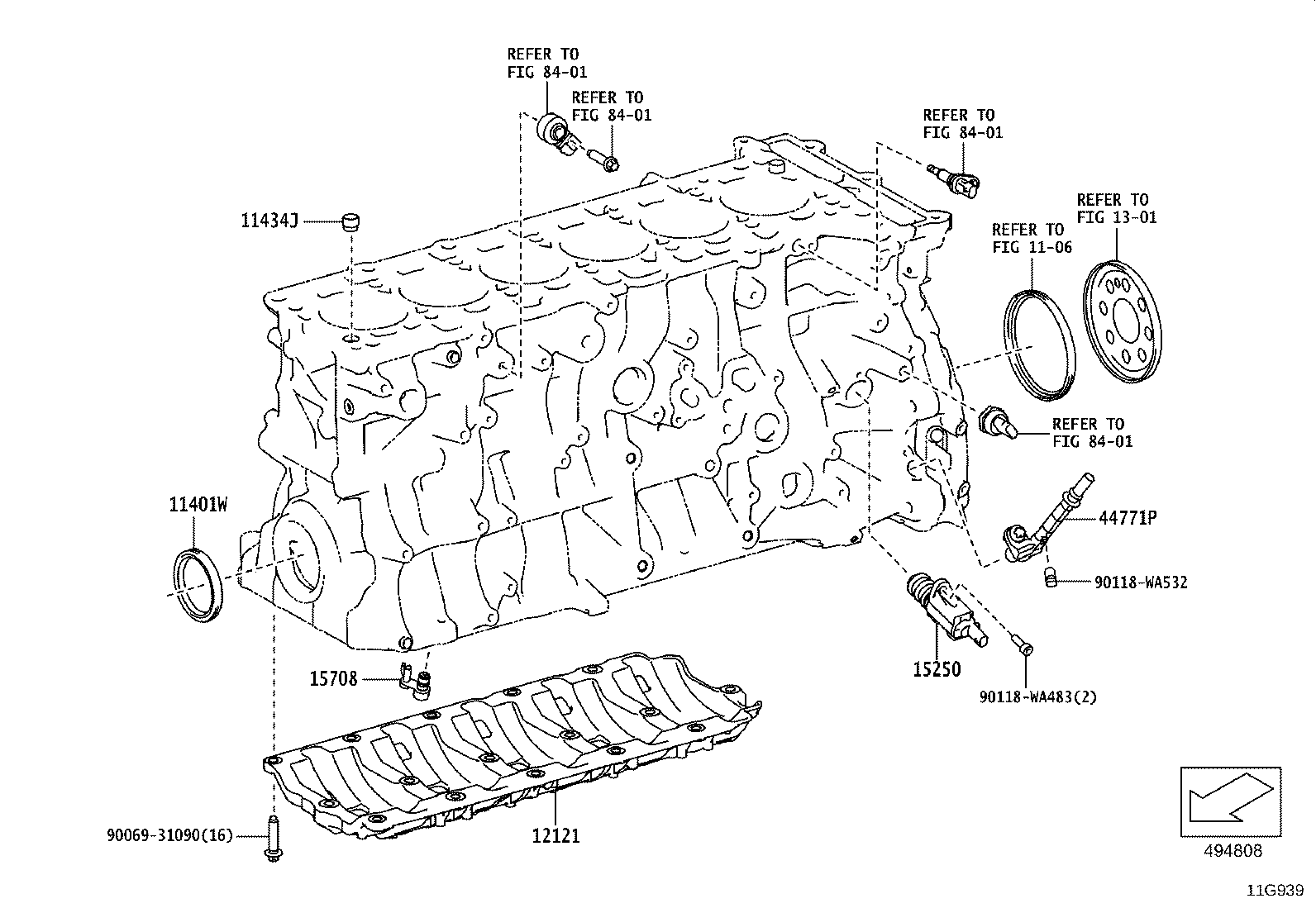

11434J Pin, Ring (FOR CYLINDER HEAD SET)

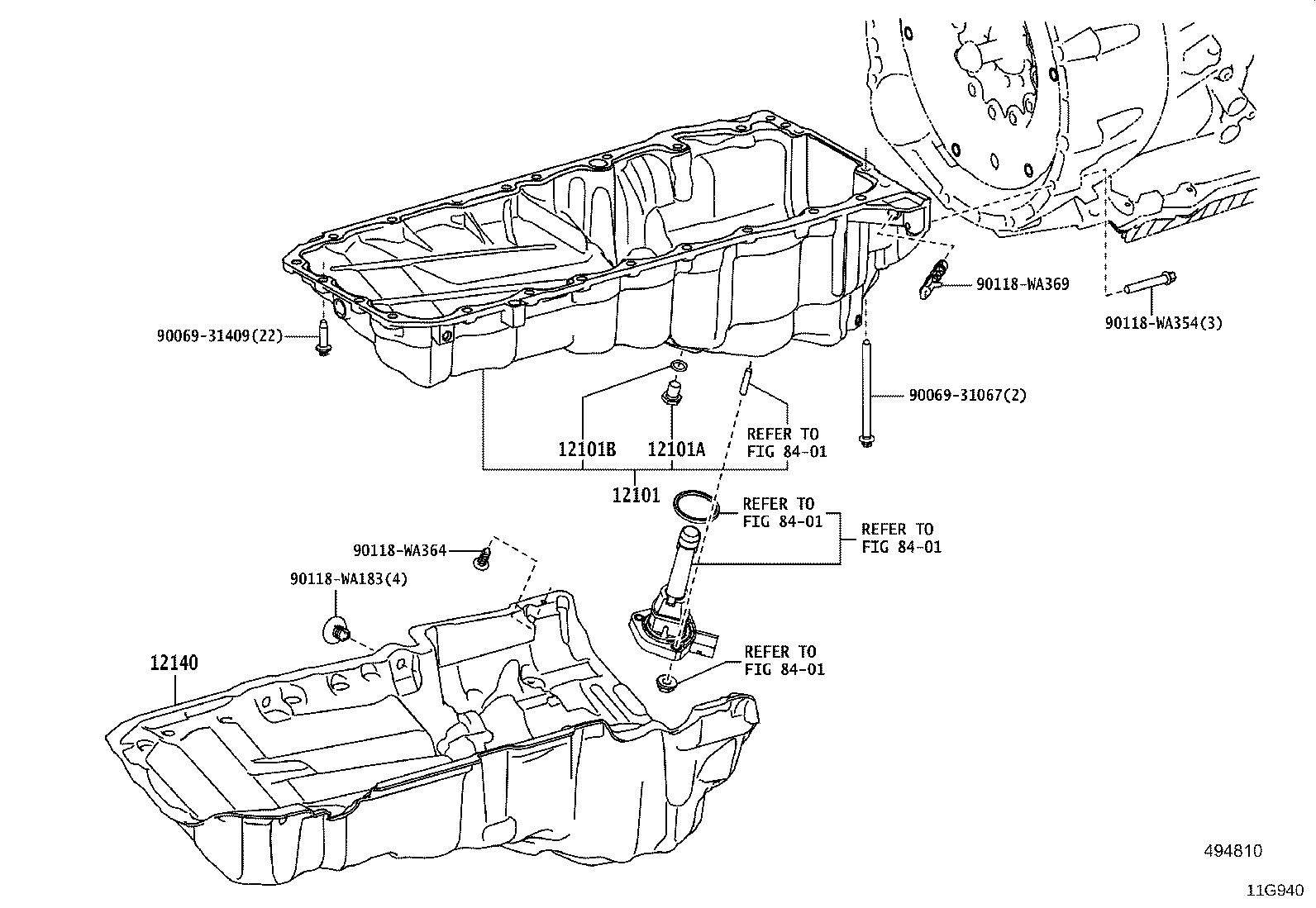

12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)

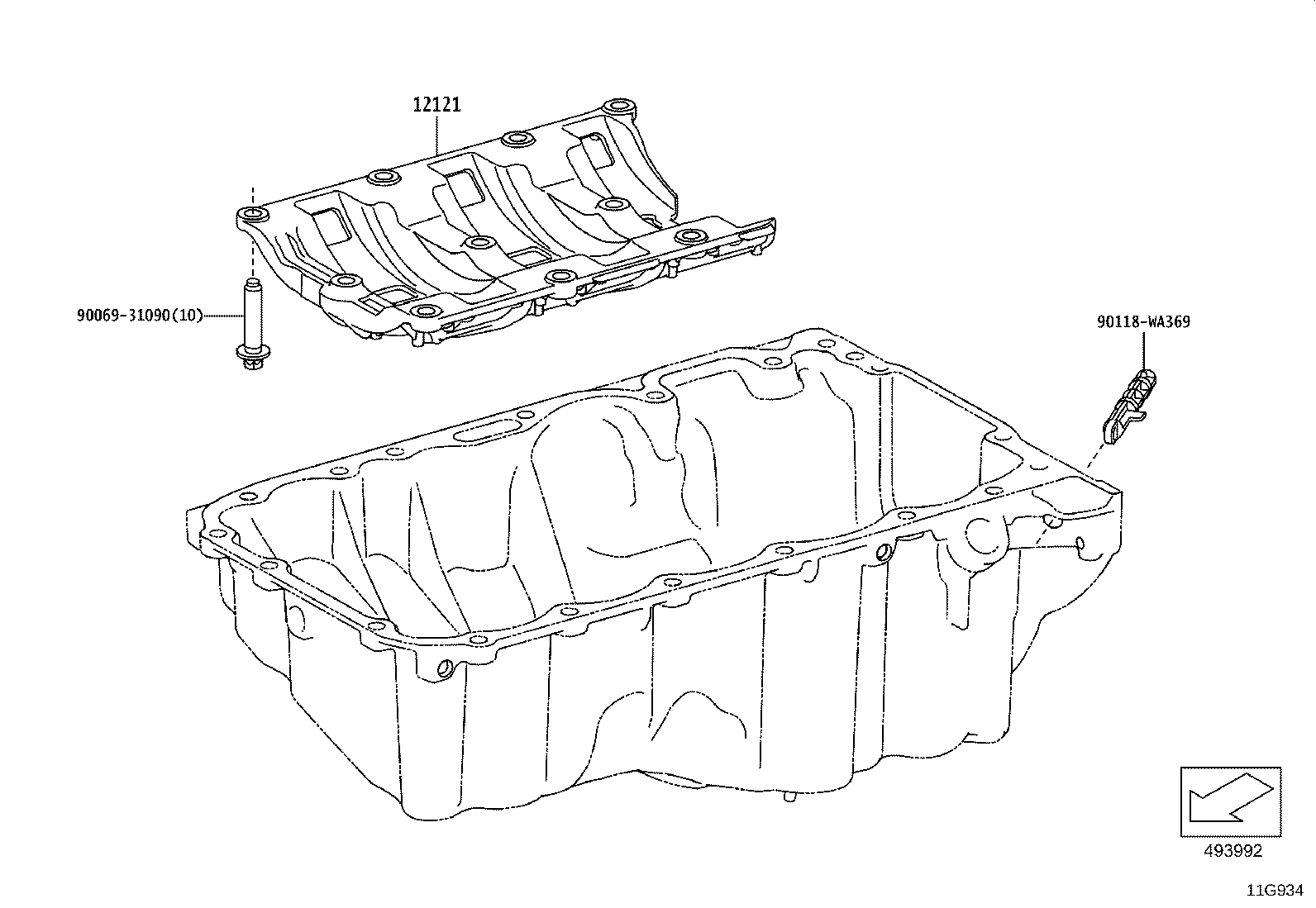

12121 Plate, Oil Pan Baffle, NO.1
12140 Cover, Oil Pan
12614A Cover, Engine, NO.4
15250 Valve Assy, Oil Pressure Control
15708 Nozzle Sub-assy, Oil, NO.1
44771P Valve, Booster Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
