Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

21 part groups · 11 illustrations

Illustrations

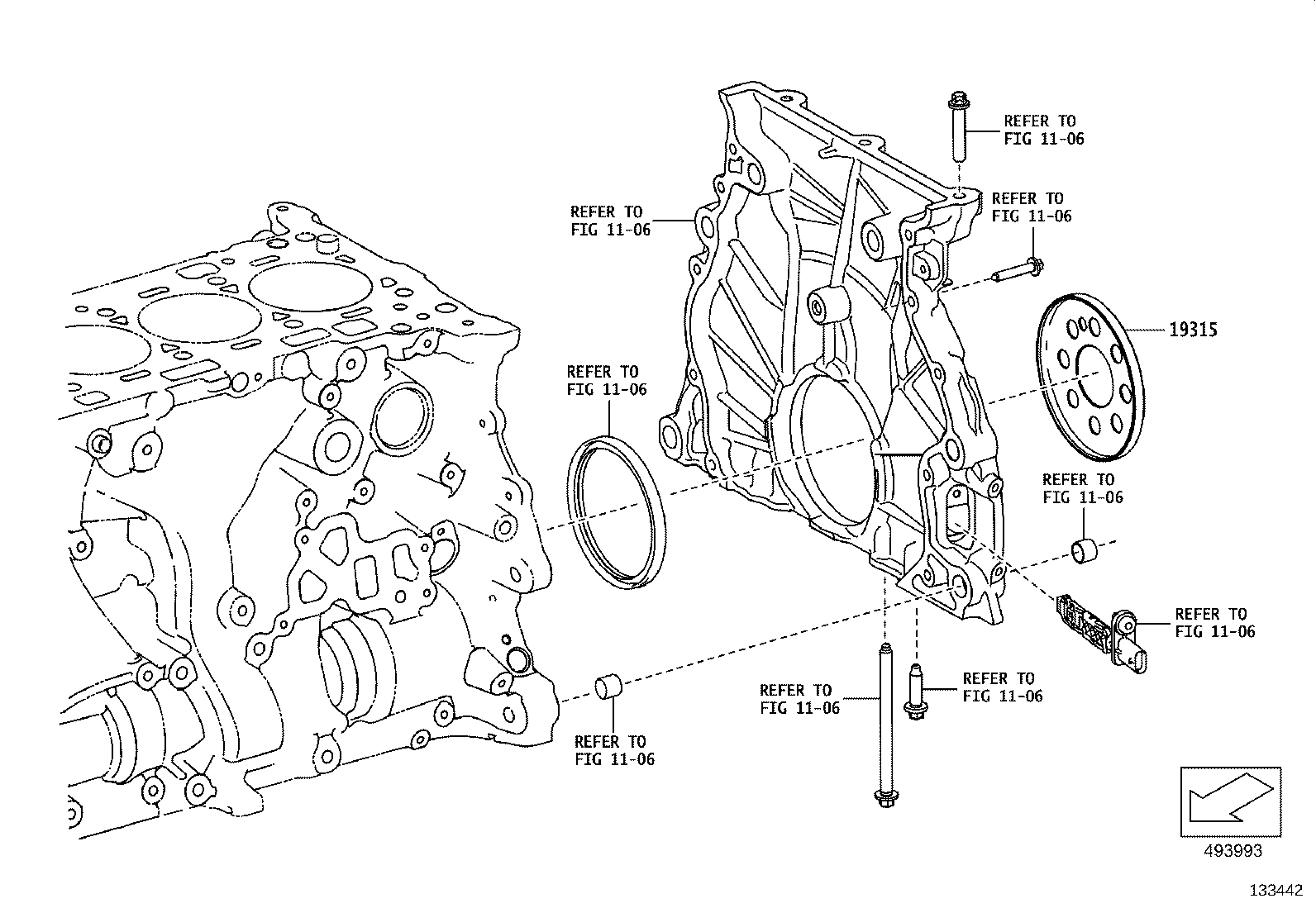

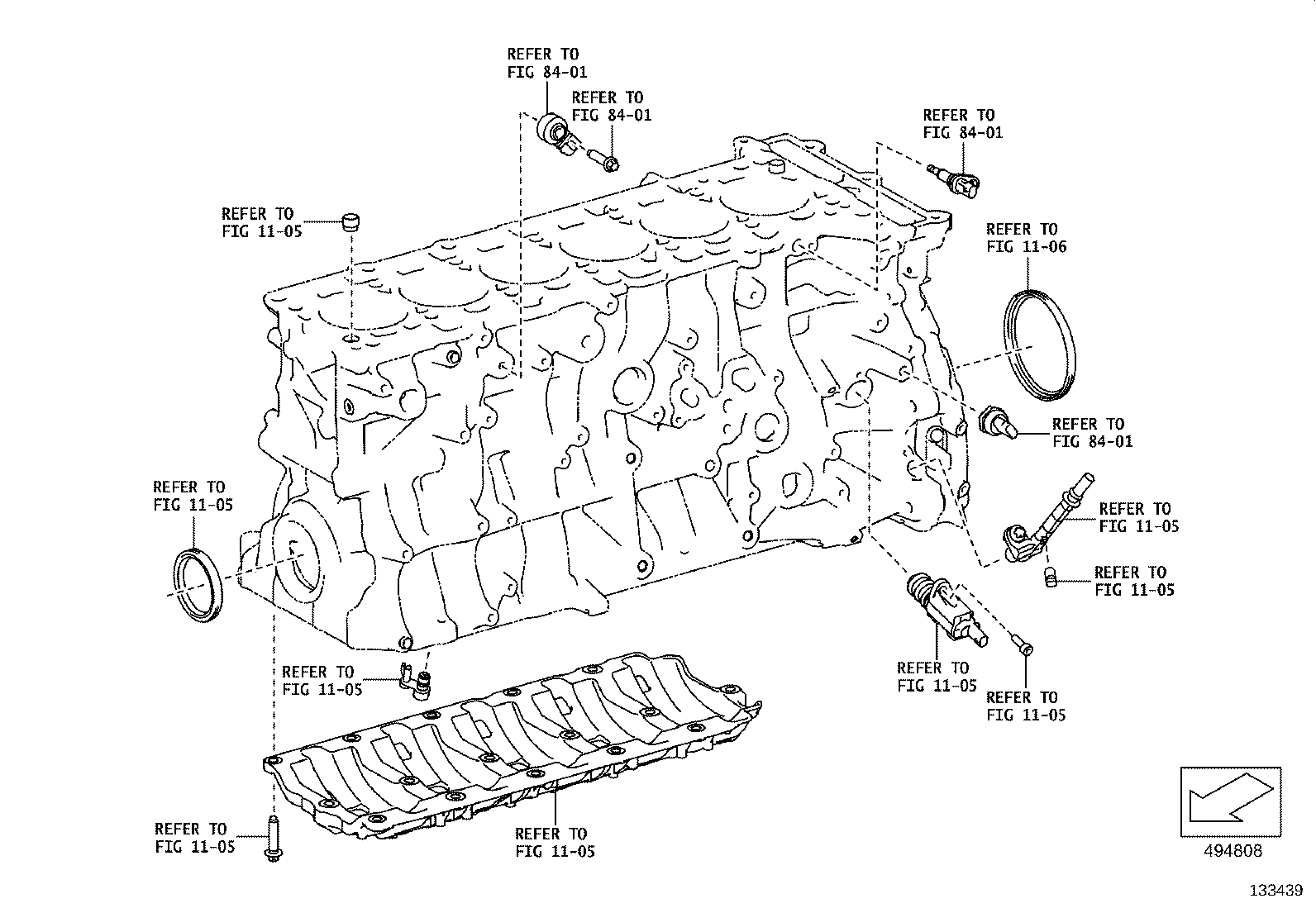

Figure 133434 133434 2022-07 → — Figure 133435 133435 2022-07 → — Figure 133436 133436 2022-07 → — Figure 133437 133437 2022-07 → — Figure 133438A 133438A 2022-07 → — Figure 133439 133439 2022-07 → — Figure 133440 133440 2022-07 → — Figure 133441 133441 2022-07 → — Figure 133442 133442 2022-07 → — Figure 133421 133421 2022-07 → — Figure 133569A 133569A 2022-07 → —

Part groups

PNCDescription
11551A Seal, Crankshaft Oil

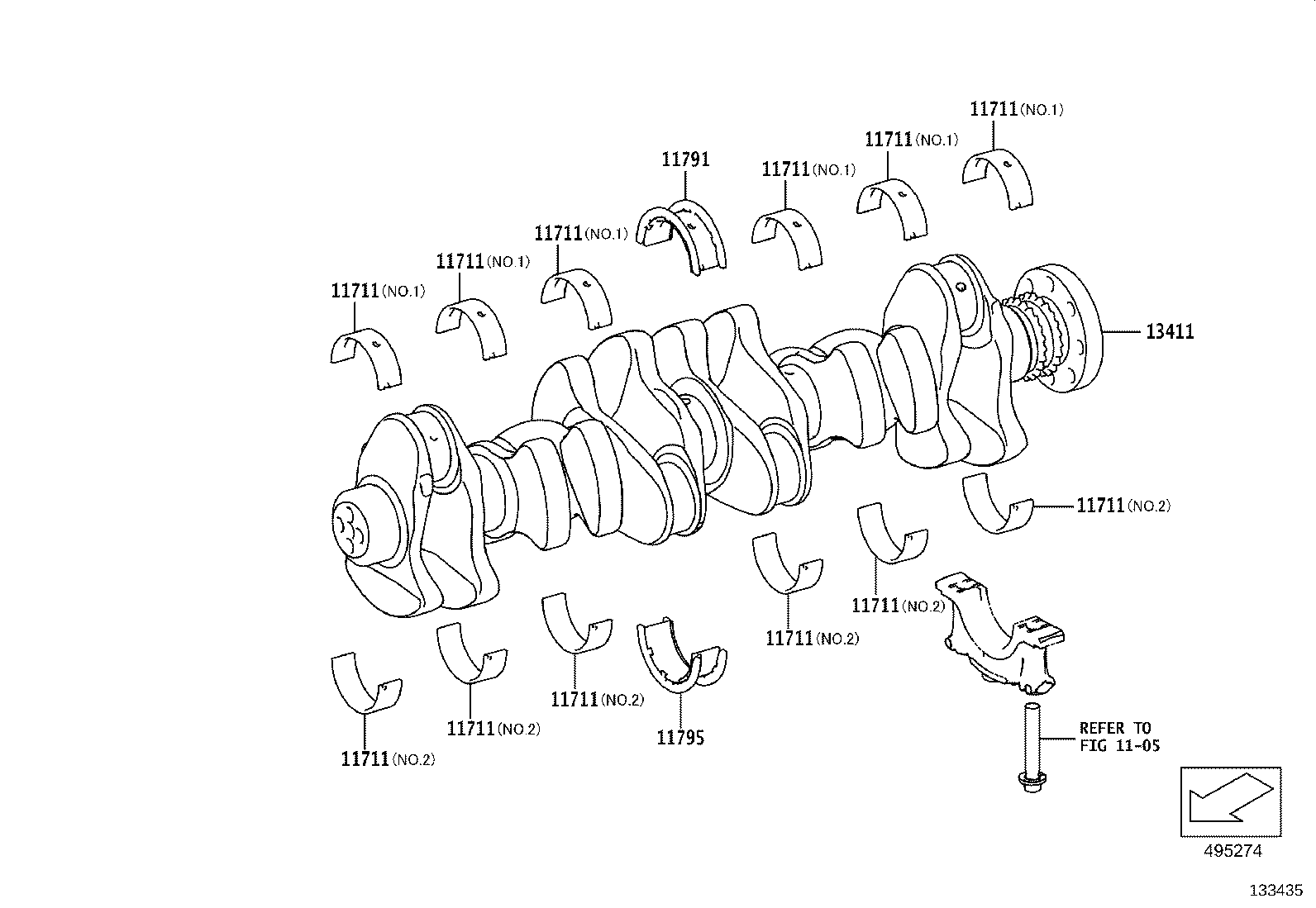

11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
11795 Washer, Crankshaft Thrust, Lower
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13265 Bolt, Connecting Rod

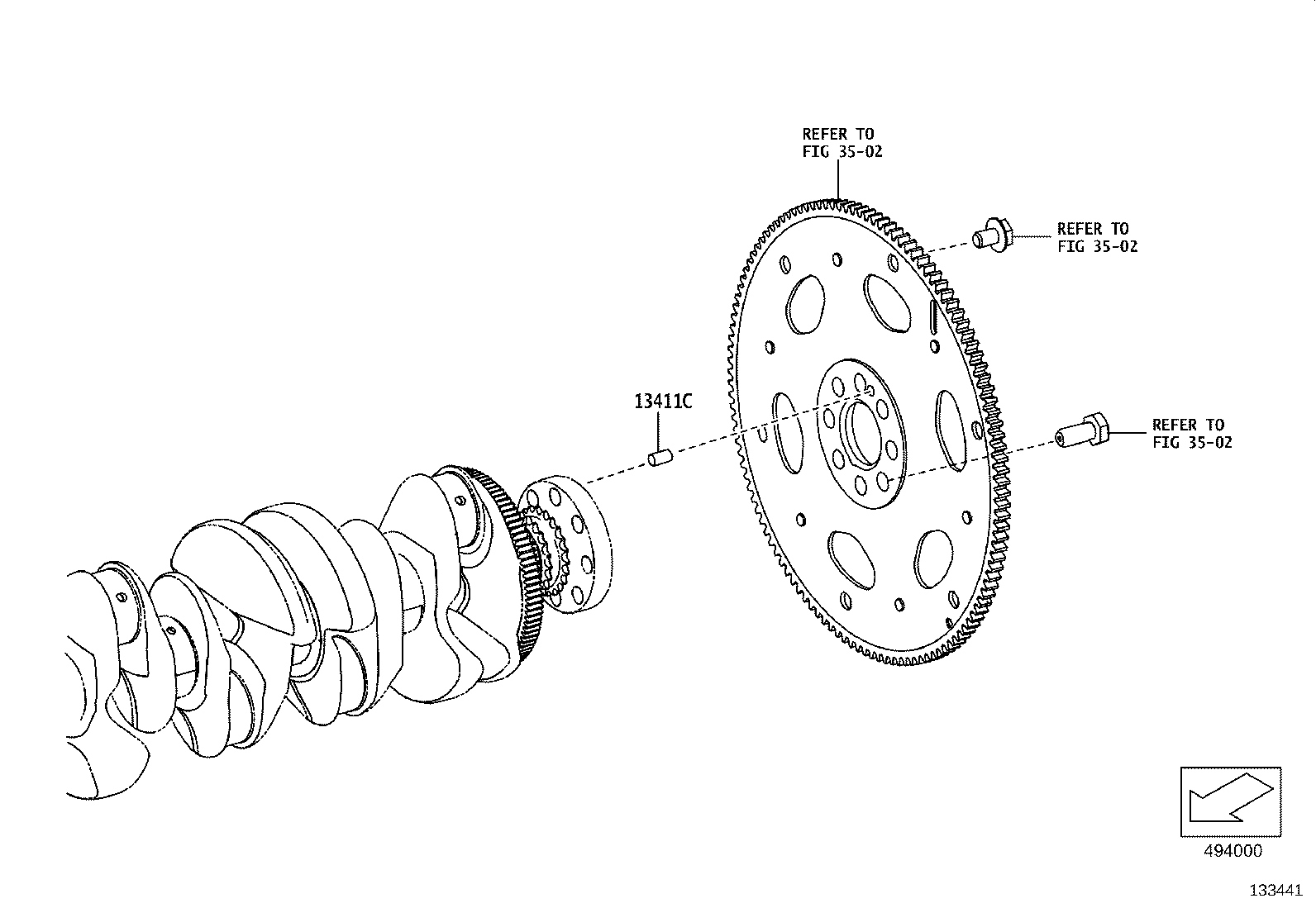

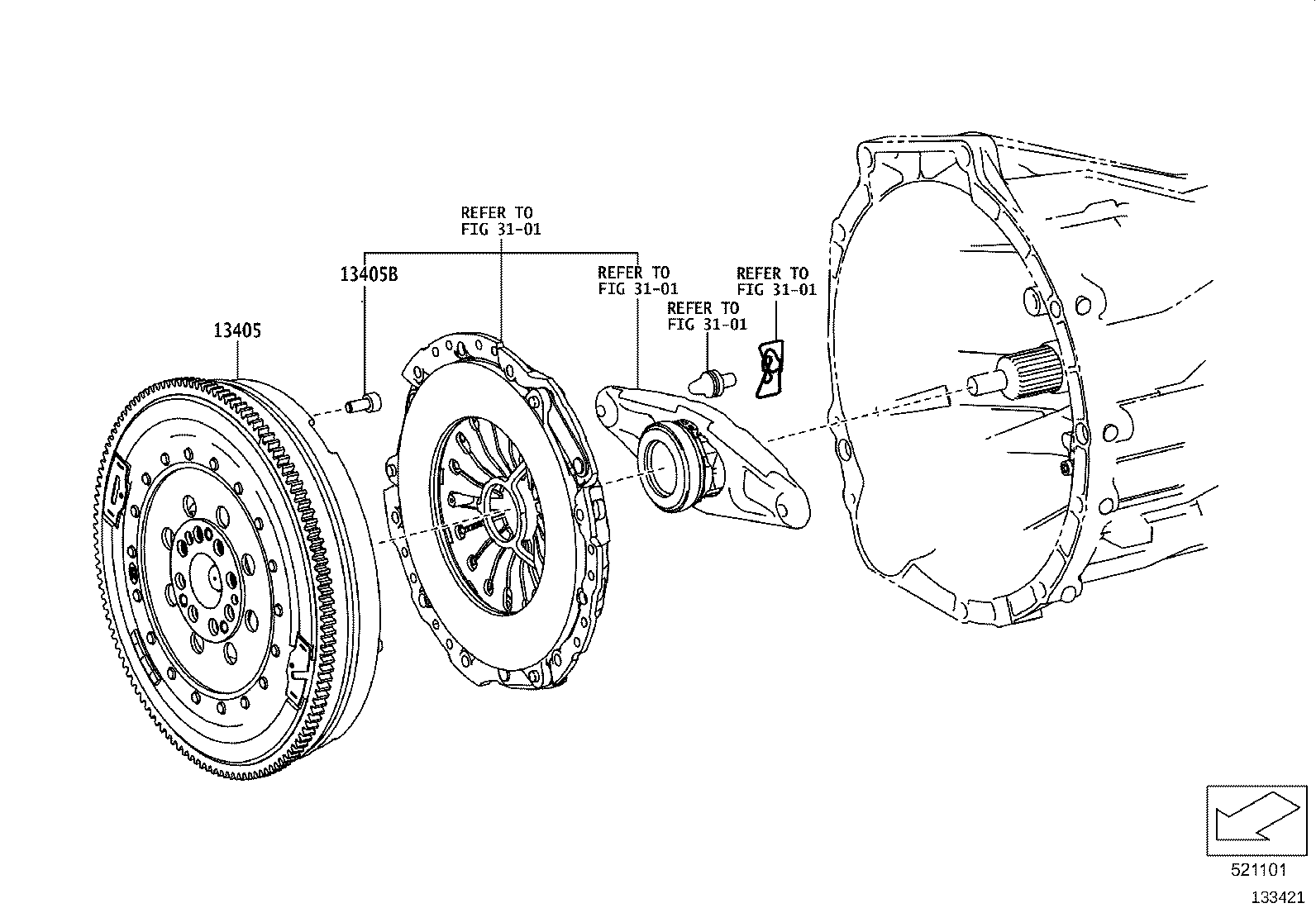

13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting

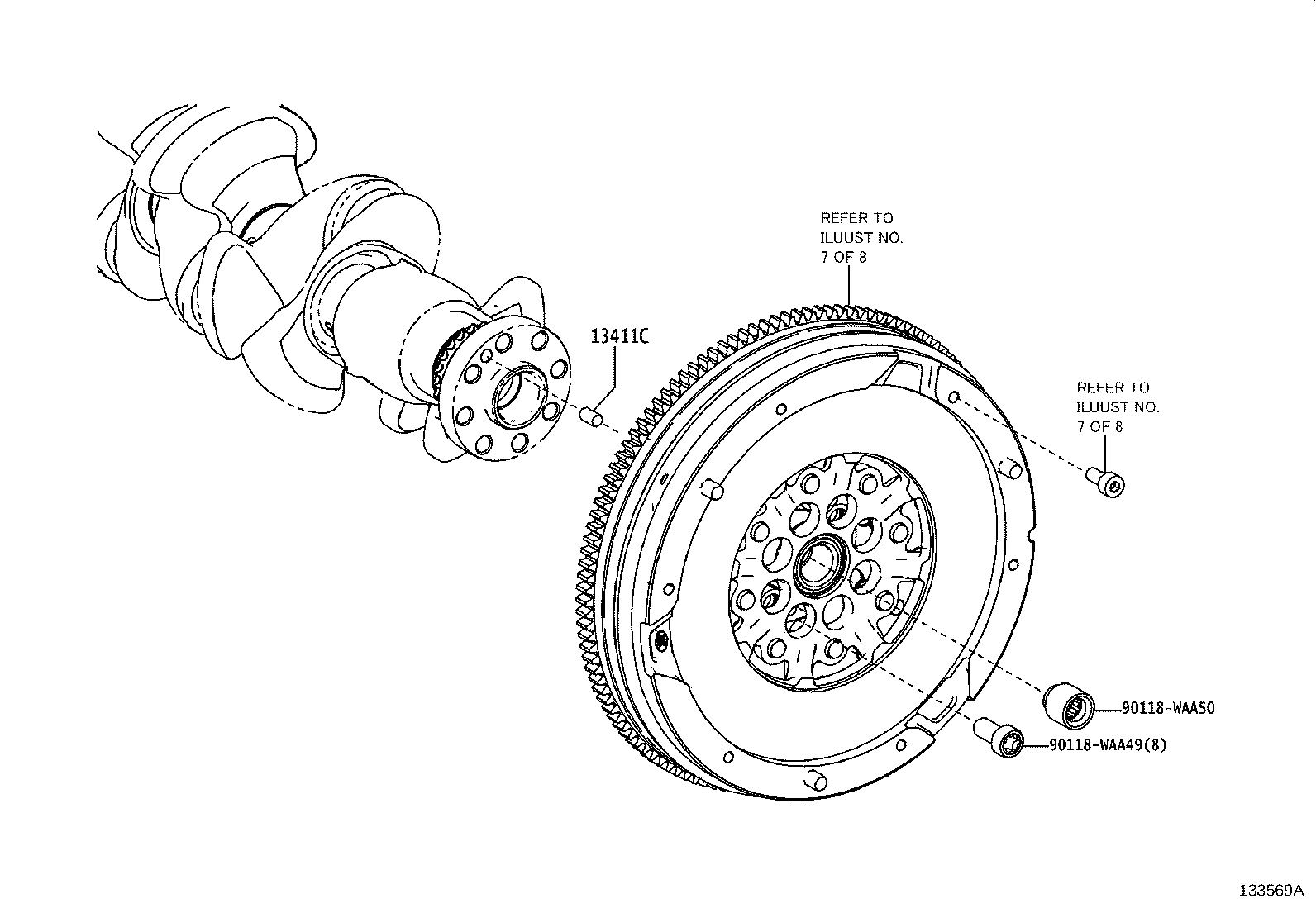

13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)

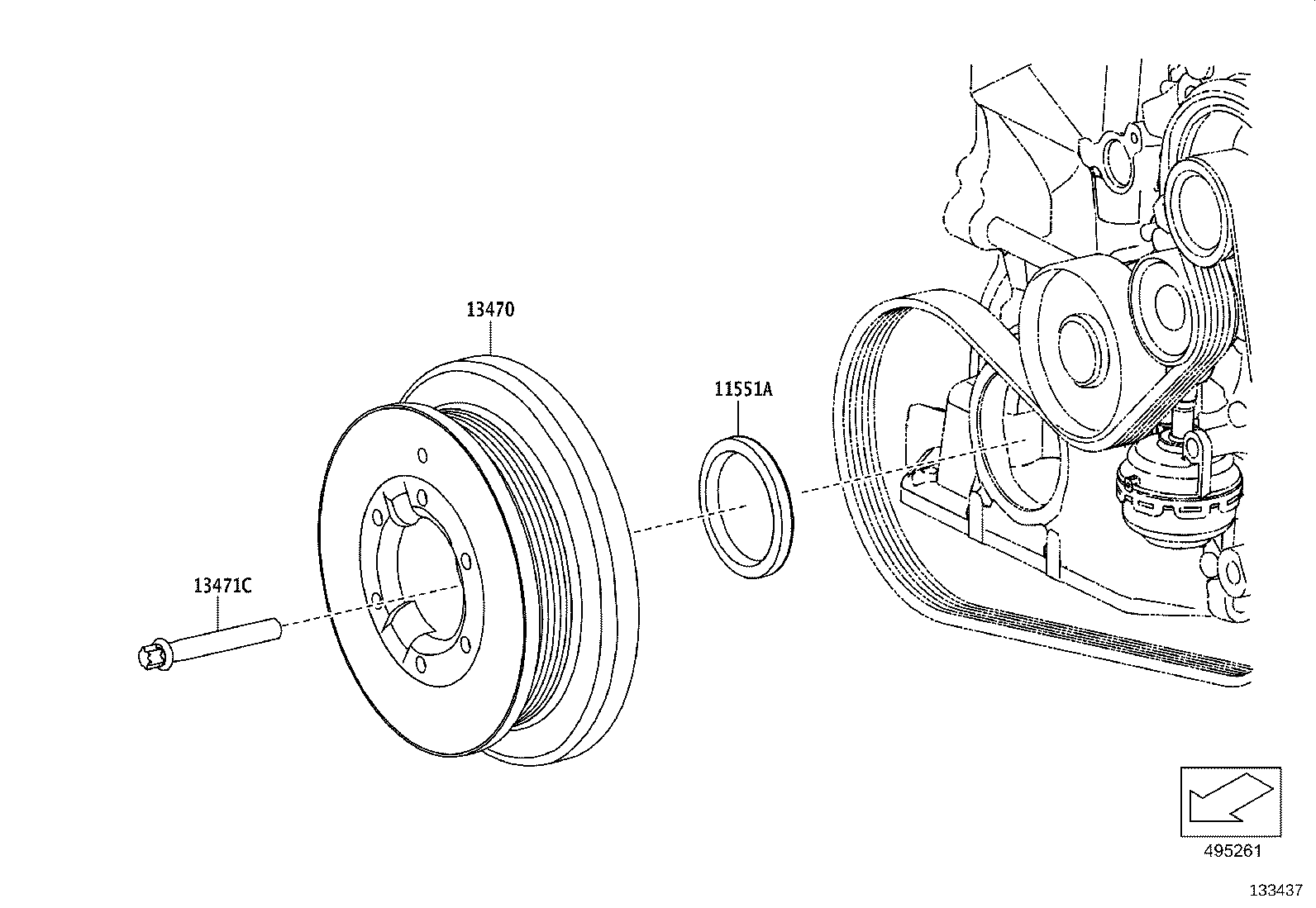

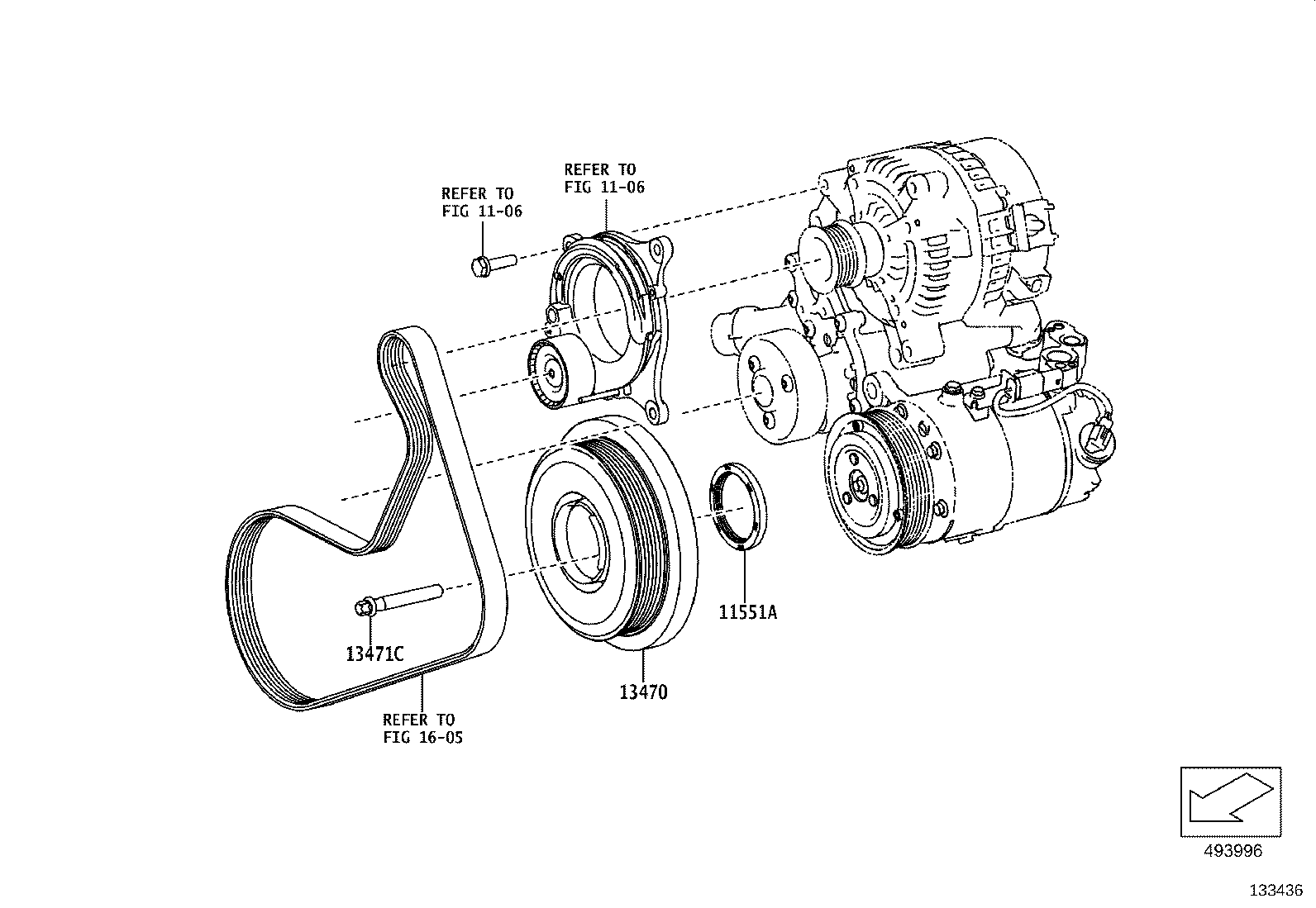

13470 Pulley Assy, Crankshaft
13471C Bolt(FOR CRANKSHAFT PULLEY SET)

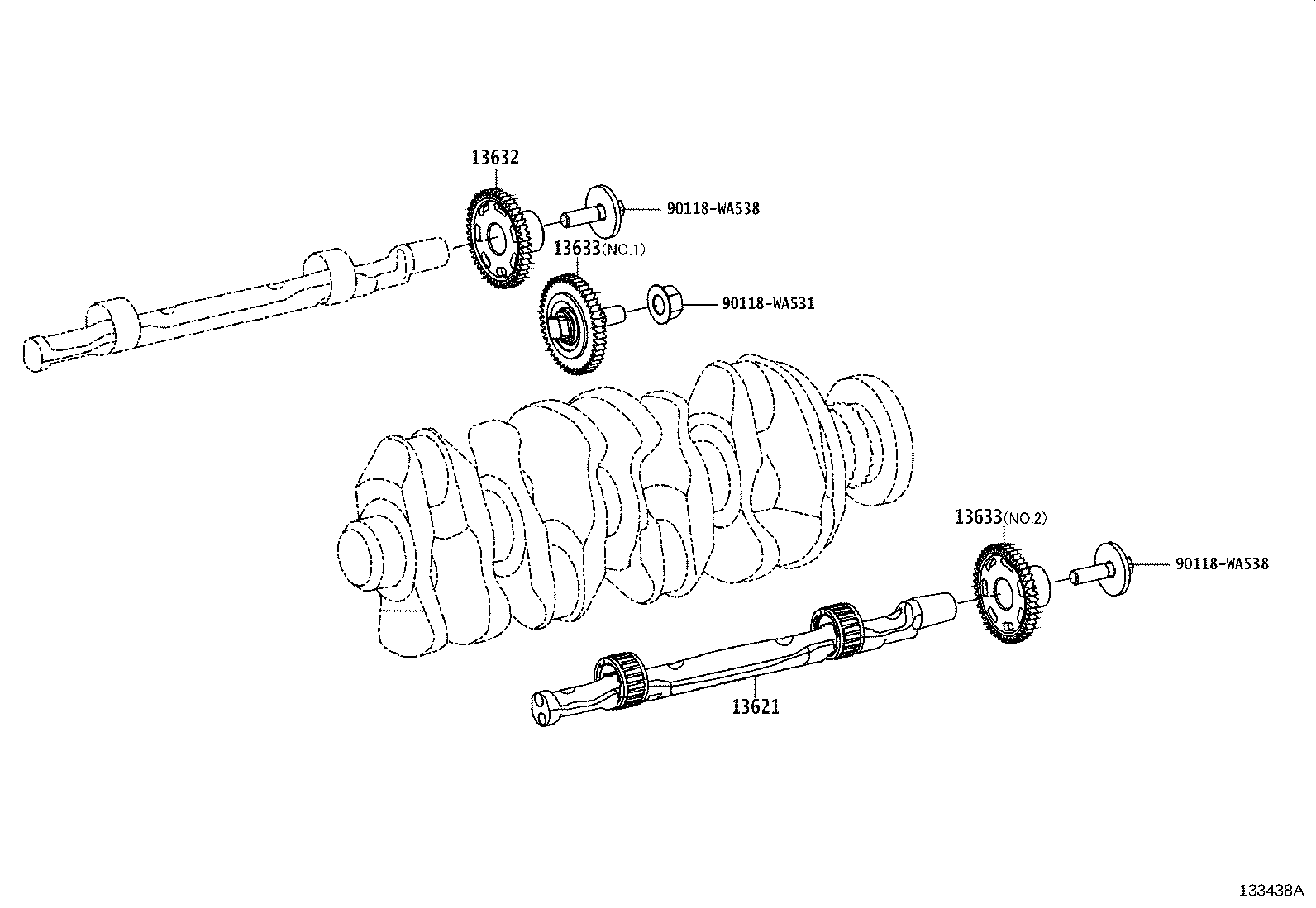

13621 Balanceshaft, NO.1
13632 Gear, Balanceshaft Driven, NO.1
13633 Gear, Balanceshaft Driven, NO.2
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
