Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

5 part groups · 2 illustrations

Illustrations

153692 2022-07 → —

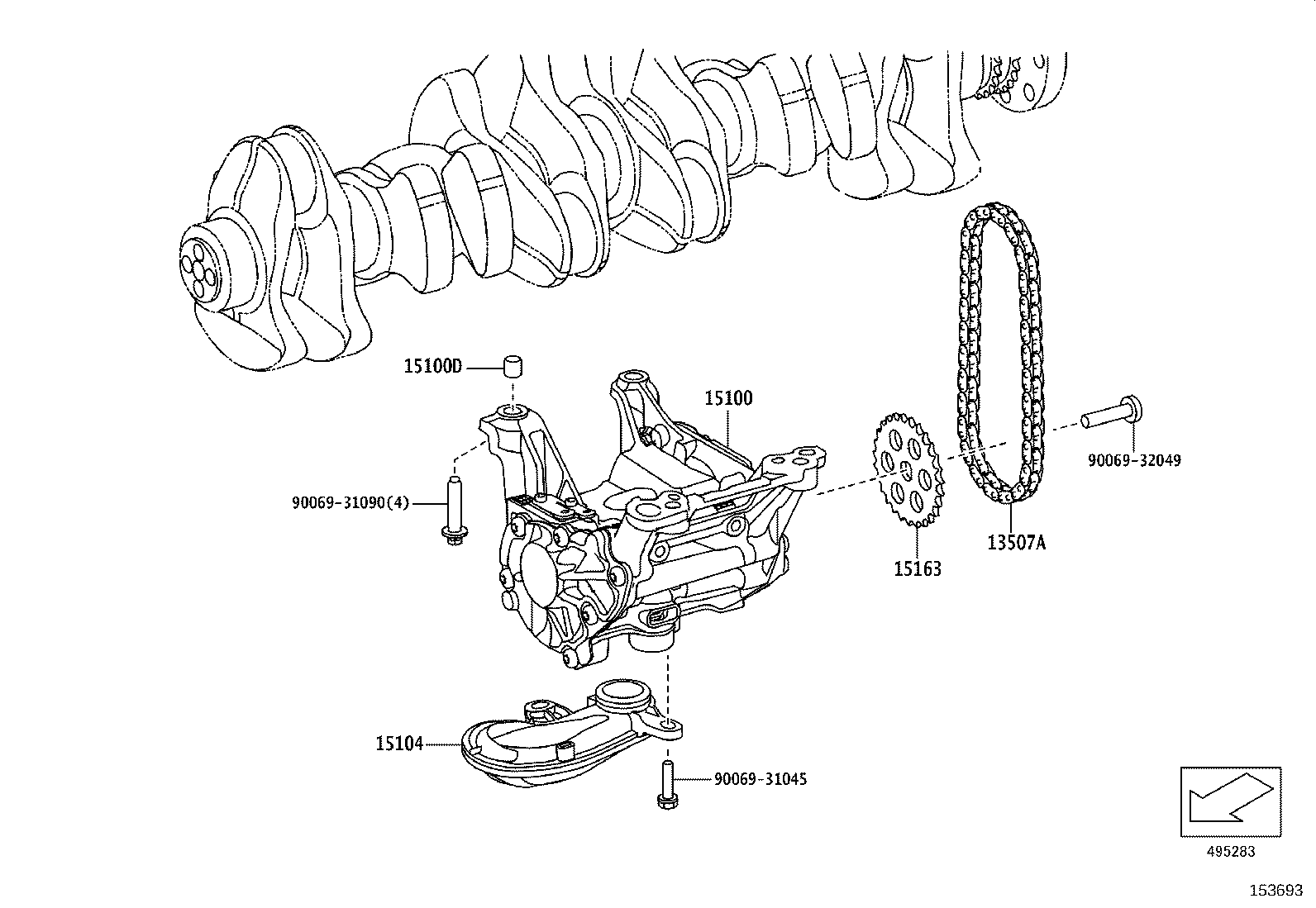

153693 2022-07 → —

Part groups

PNC	Description
13507A	Chain Sub-assy, Oil Pump Drive
15100	Pump Assy, Oil
15100D	Pin(FOR OIL PUMP SET)
15104	Strainer Sub-assy, Oil
15163	Gear, Oil Pump Drive Shaft

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
