Factory parts data · Europe

Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

4 part groups · 2 illustrations

Illustrations

153694 2022-07 → —

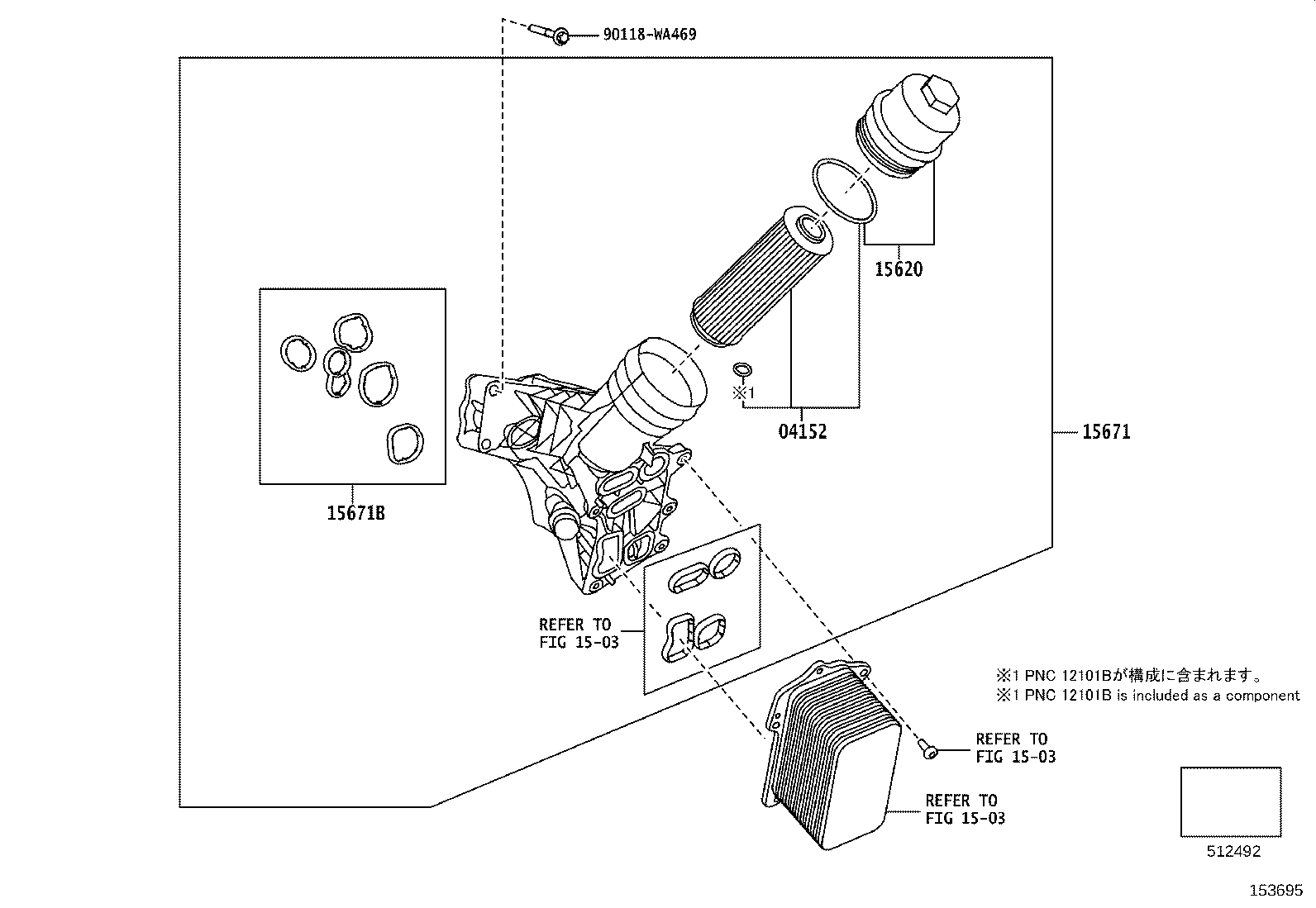

153695 2022-07 → —

Part groups

PNC	Description
04152	Element Kit, Oil Filter
15620	Cap Assy, Oil Filter
15671	Bracket, Oil Filter
15671B	Gasket, Oil Filter Bracket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
