Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 5 illustrations

Illustrations

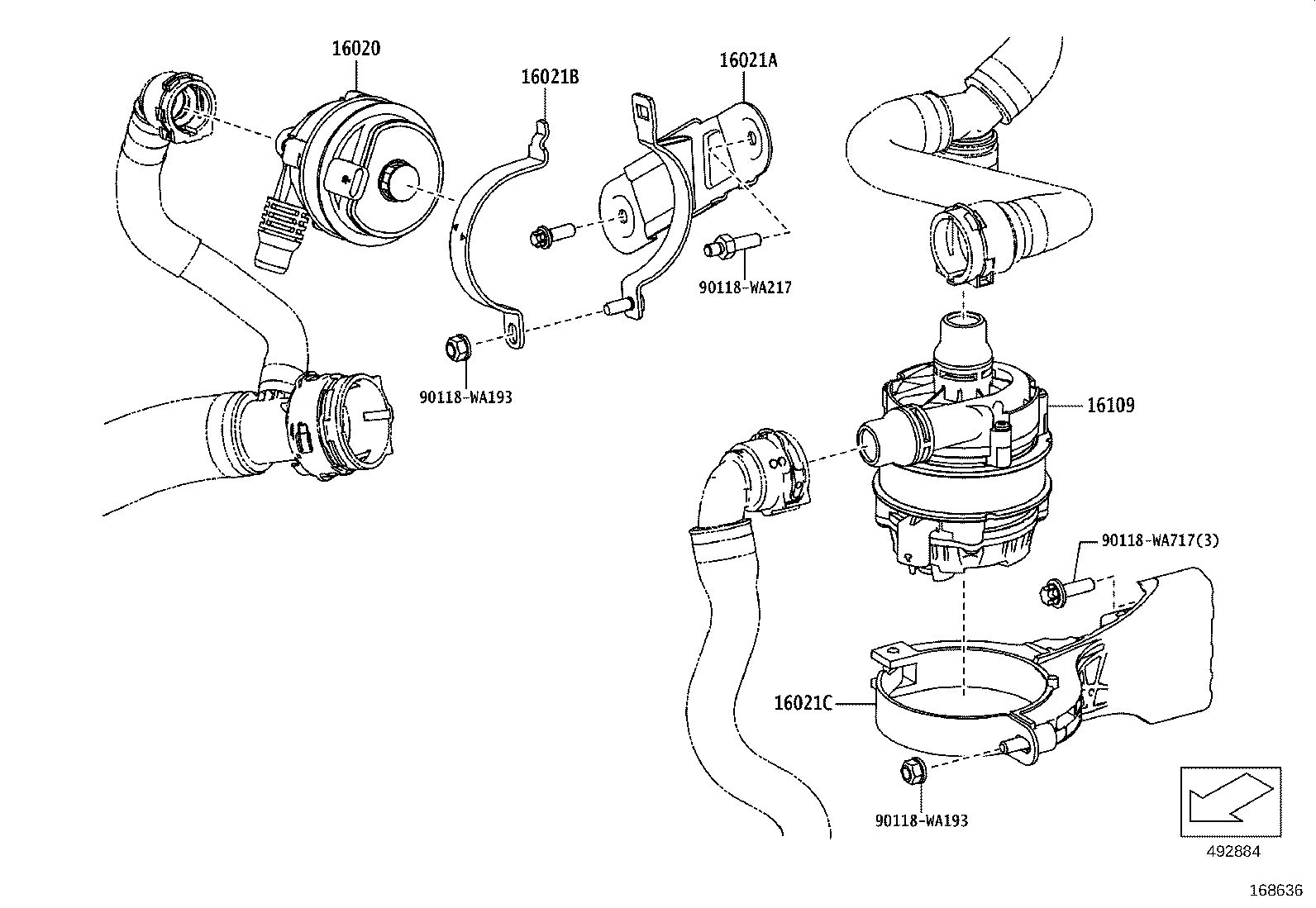

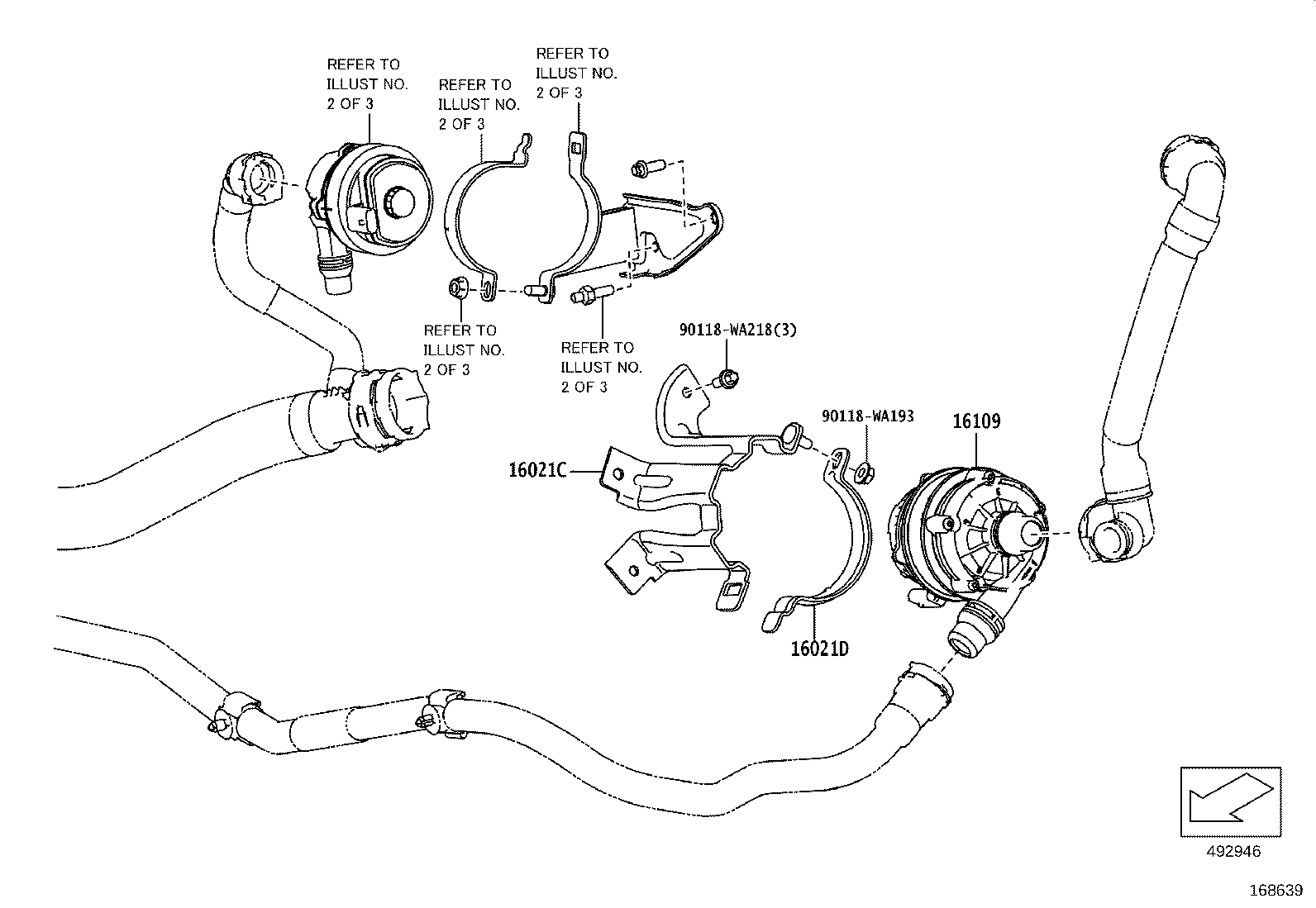

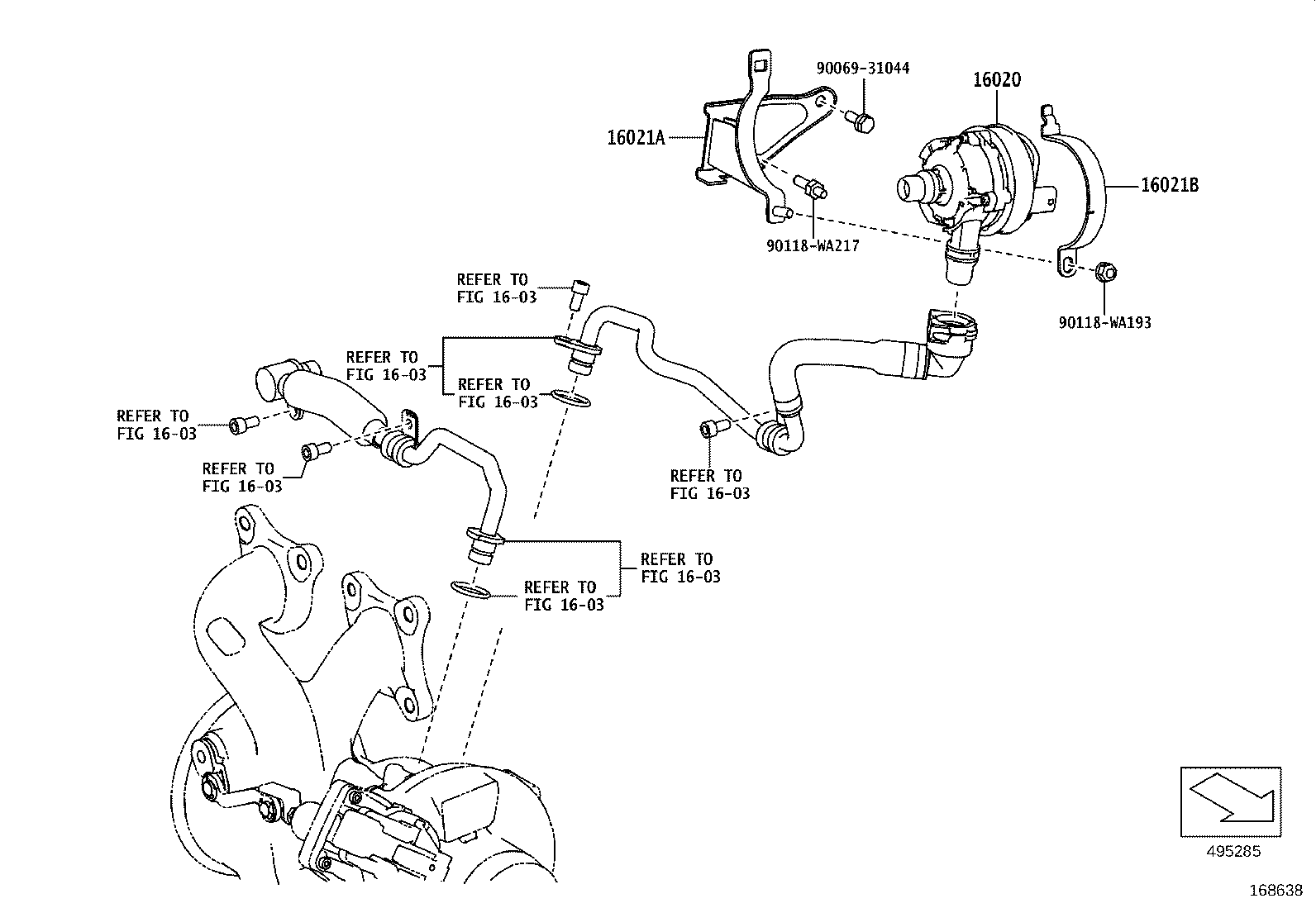

Figure 168635A 168635A 2022-07 → — Figure 168636 168636 2022-07 → — Figure 168637C 168637C 2022-07 → — Figure 168638 168638 2022-07 → — Figure 168639 168639 2022-07 → —

Part groups

PNCDescription
16020 Pump Assy, Water
16021A Bracket Sub-assy, Water Pump, NO.1
16021B Bracket Sub-assy, Water Pump, NO.2
16021C Bracket Sub-assy, Water Pump, NO.3
16021D Bracket Sub-assy, Water Pump, NO.4
16100 Pump Assy, Engine Water
16109 Pump Sub-assy, Water
16173 Pulley, Water Pump
16271 Gasket, Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
