Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 5 illustrations

Illustrations

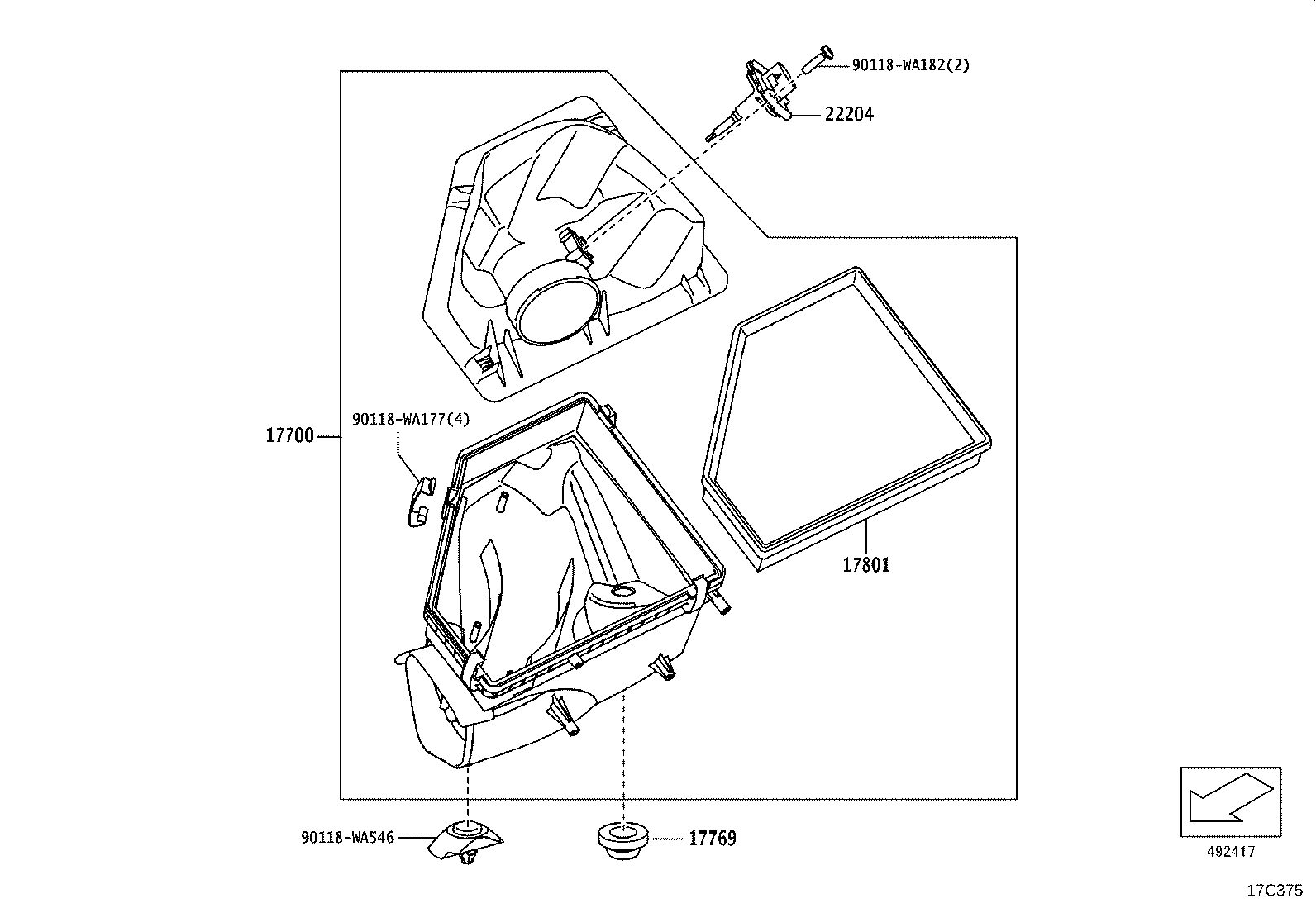

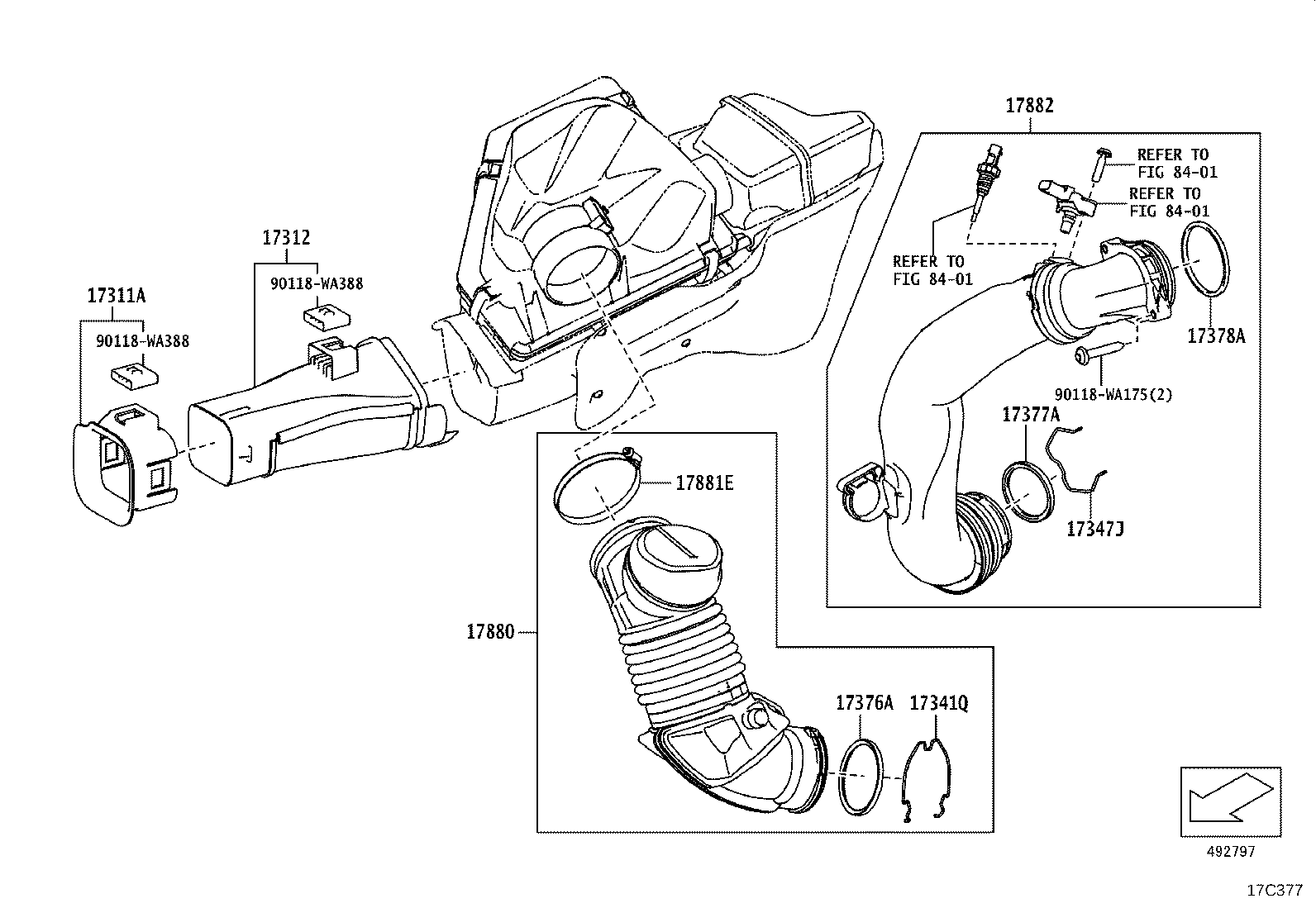

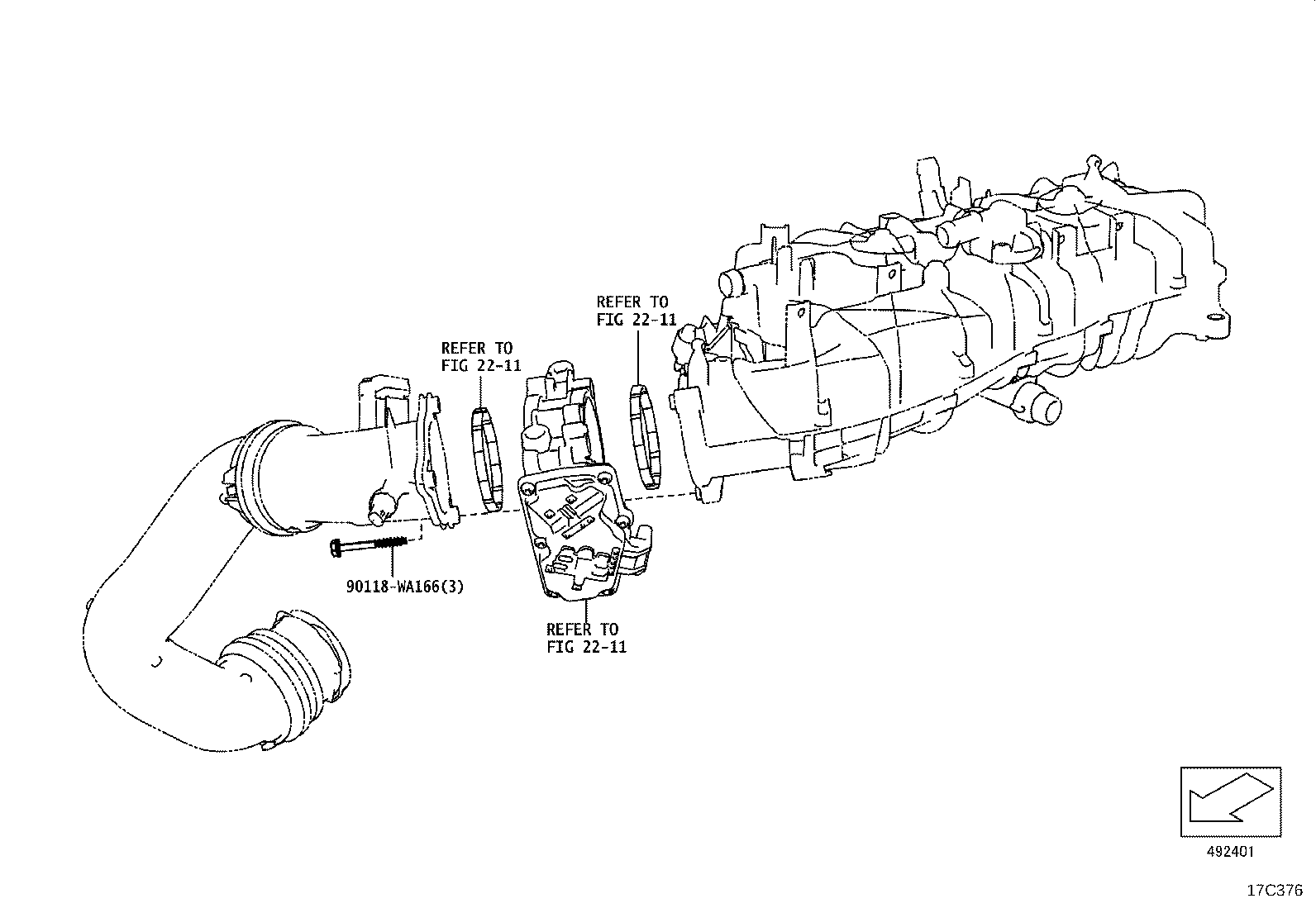

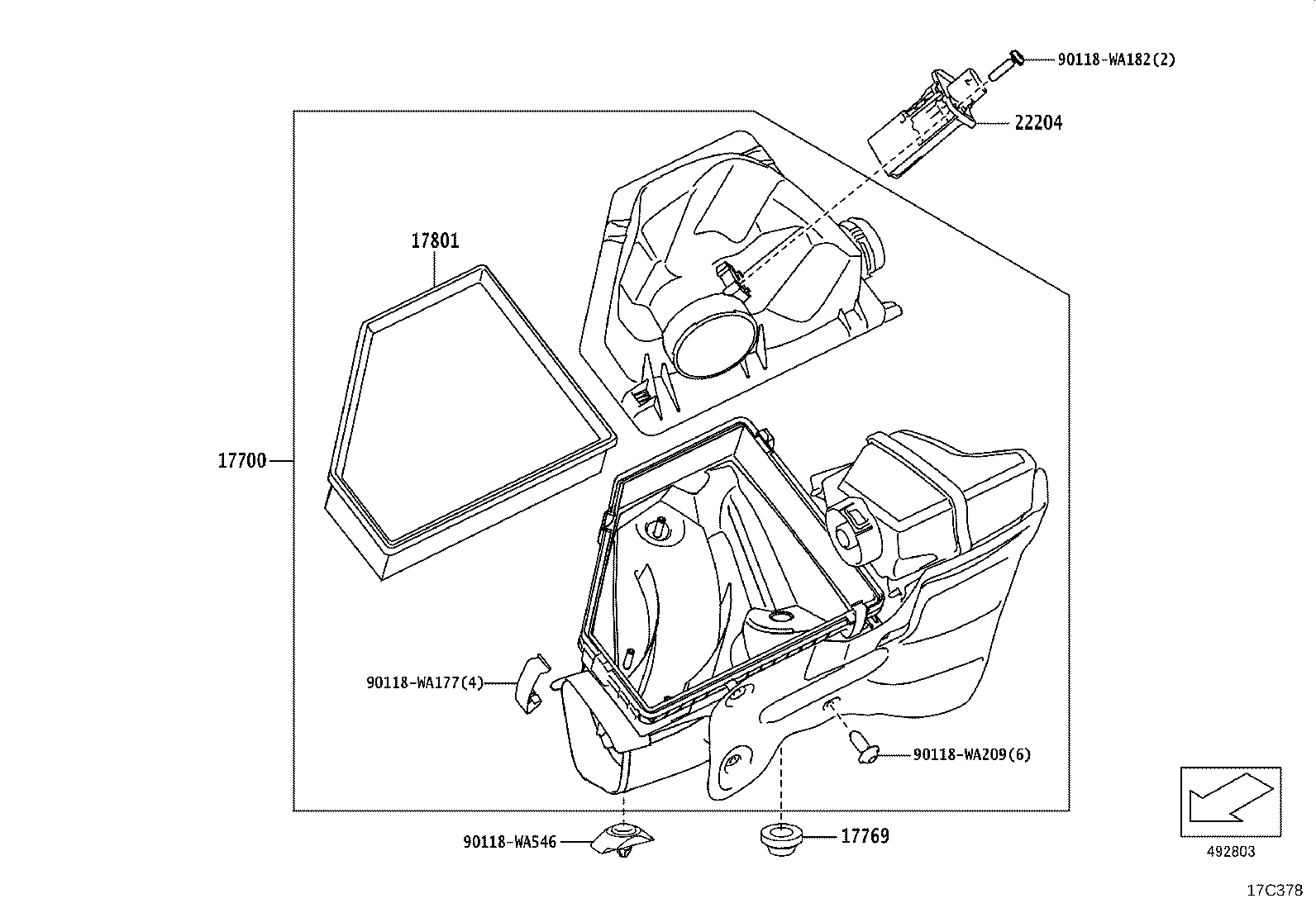

Figure 17C374 17C374 2022-07 → — Figure 17C375 17C375 2022-07 → — Figure 17C376 17C376 2022-07 → — Figure 17C377 17C377 2022-07 → — Figure 17C378 17C378 2022-07 → —

Part groups

PNCDescription
17311A Duct, Air Inlet, NO.1
17312 Duct, Air Inlet, NO.2
17341Q Clip, Air Hose, NO.1
17347J Clip, Air Hose
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17378A Gasket, Air Tube, NO.3
17700 Cleaner Assy, Air
17769 Support, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881E Clamp, Air Cleaner Hose, NO.1
17882 Hose, Air Cleaner, NO.2
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
