Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

15 part groups · 9 illustrations

Illustrations

Figure 224206 224206 2022-07 → — Figure 224210 224210 2022-07 → — Figure 224211 224211 2022-07 → — Figure 224233 224233 2022-07 → — Figure 224234 224234 2022-07 → — Figure 224212 224212 2022-07 → — Figure 224215 224215 2022-07 → — Figure 224216 224216 2022-07 → — Figure 224235 224235 2022-07 → —

Part groups

PNCDescription

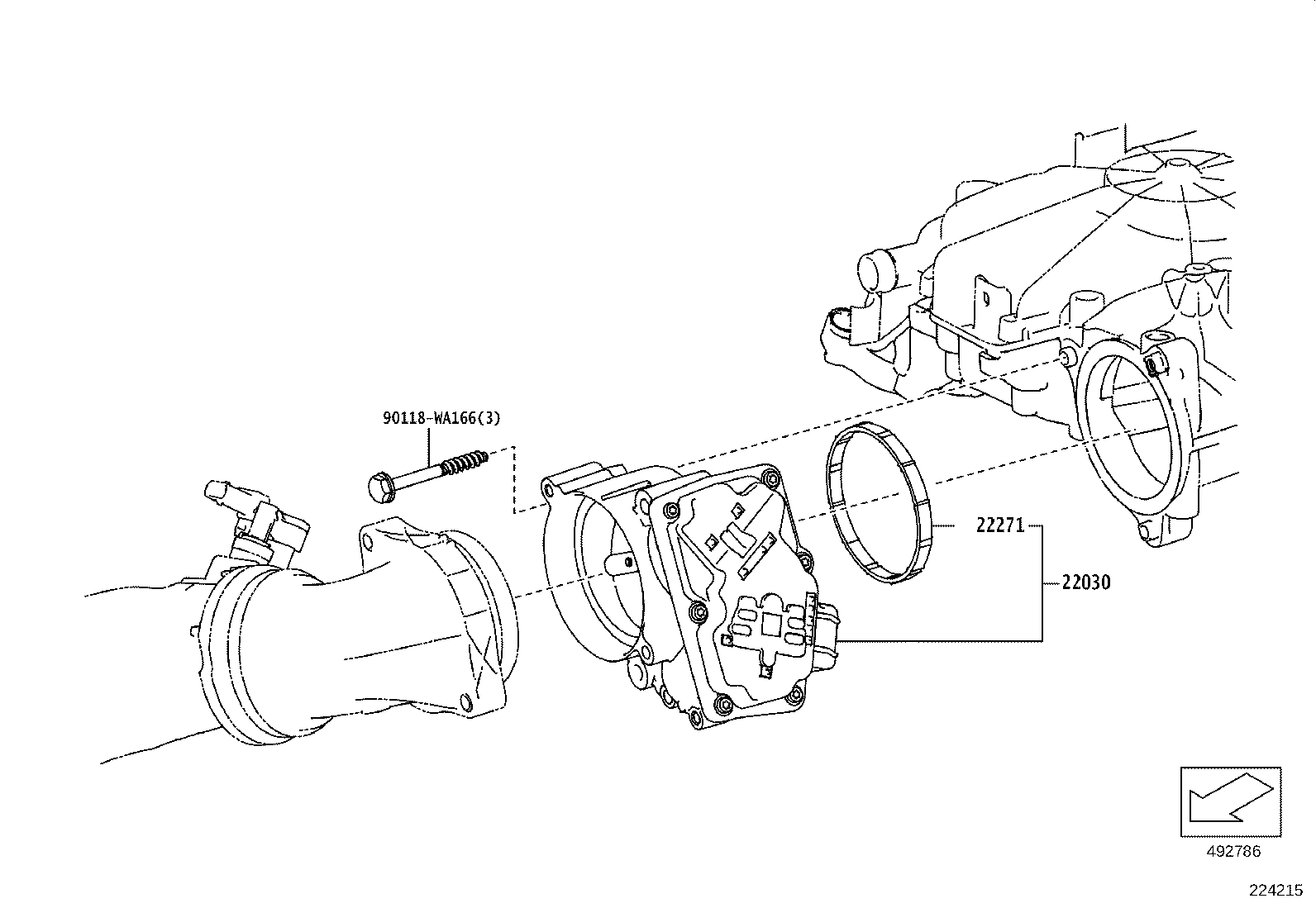

22030 Body Assy, Throttle W/Throttle Position Sensor

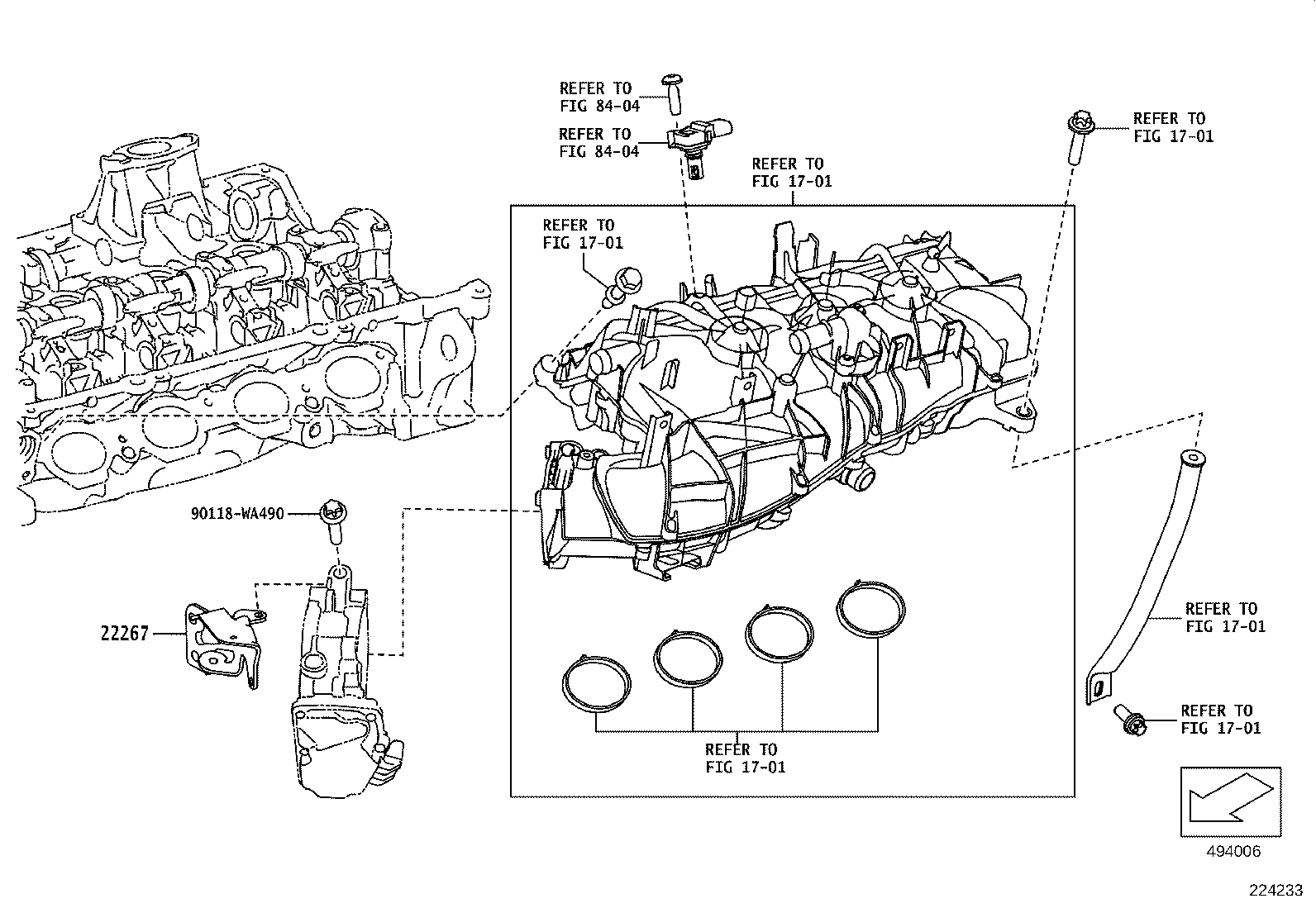

22267 Bracket, Throttle Body

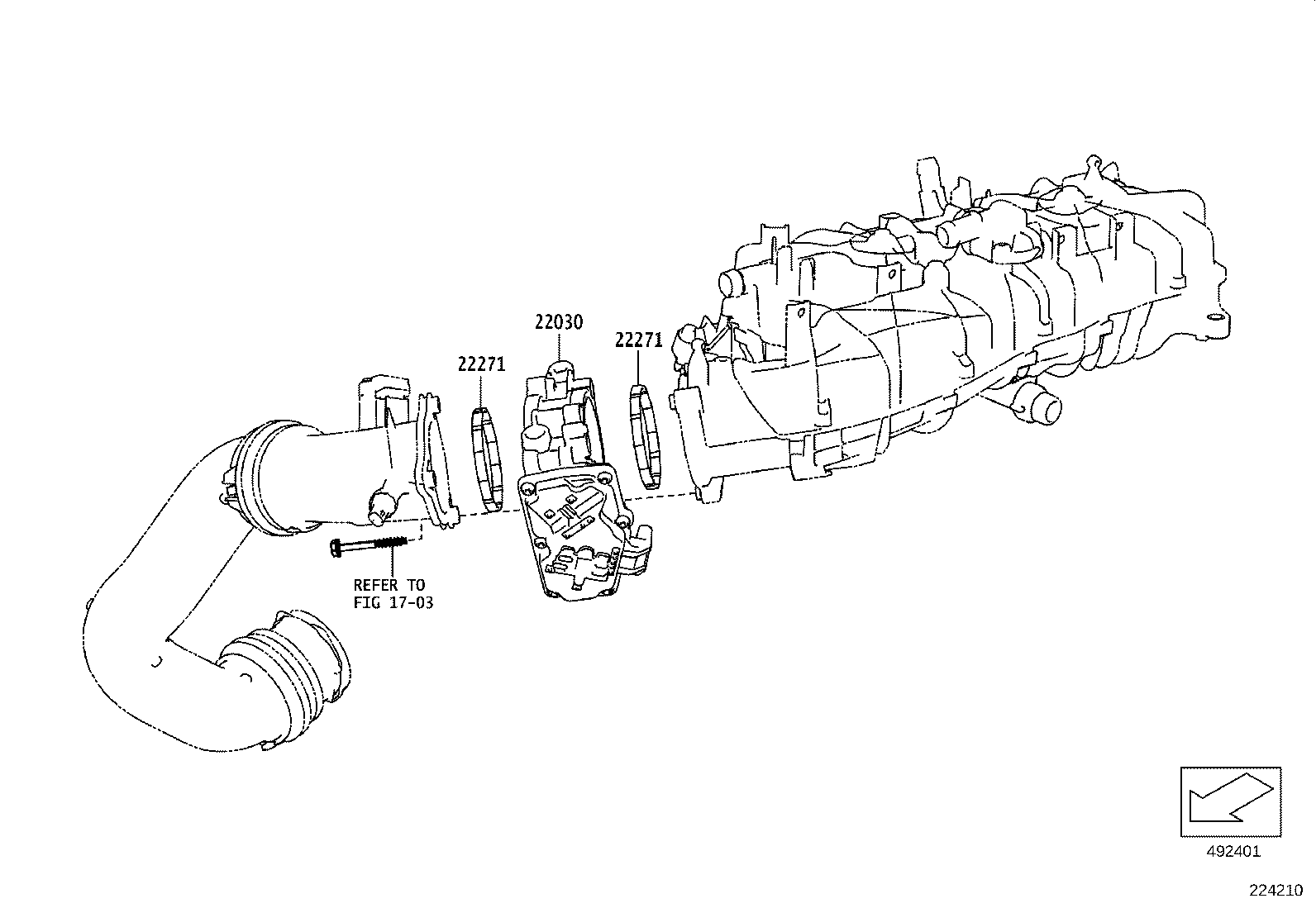

22271 Gasket, Throttle Body

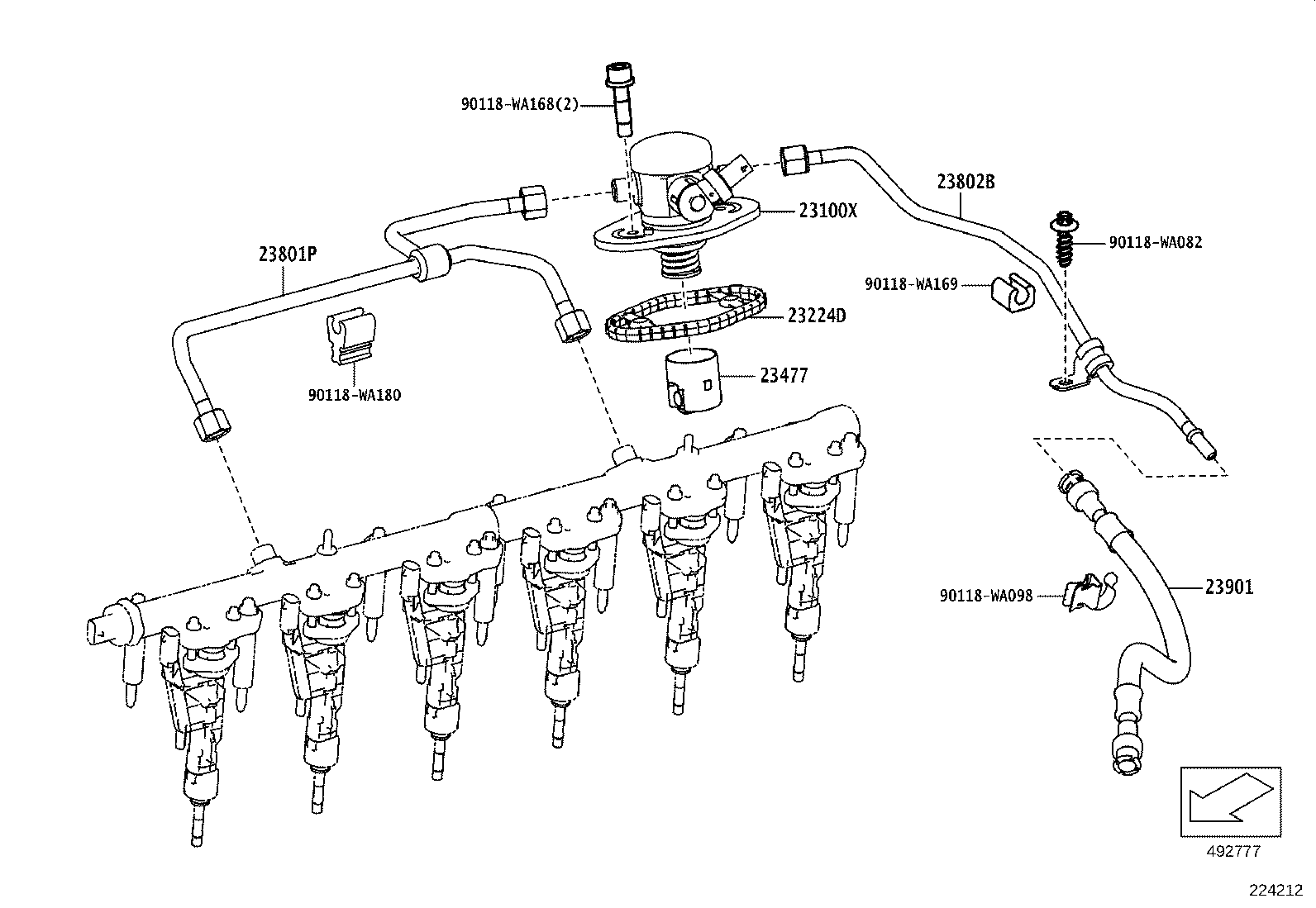

23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23224D Gasket, Fuel Pump Spacer

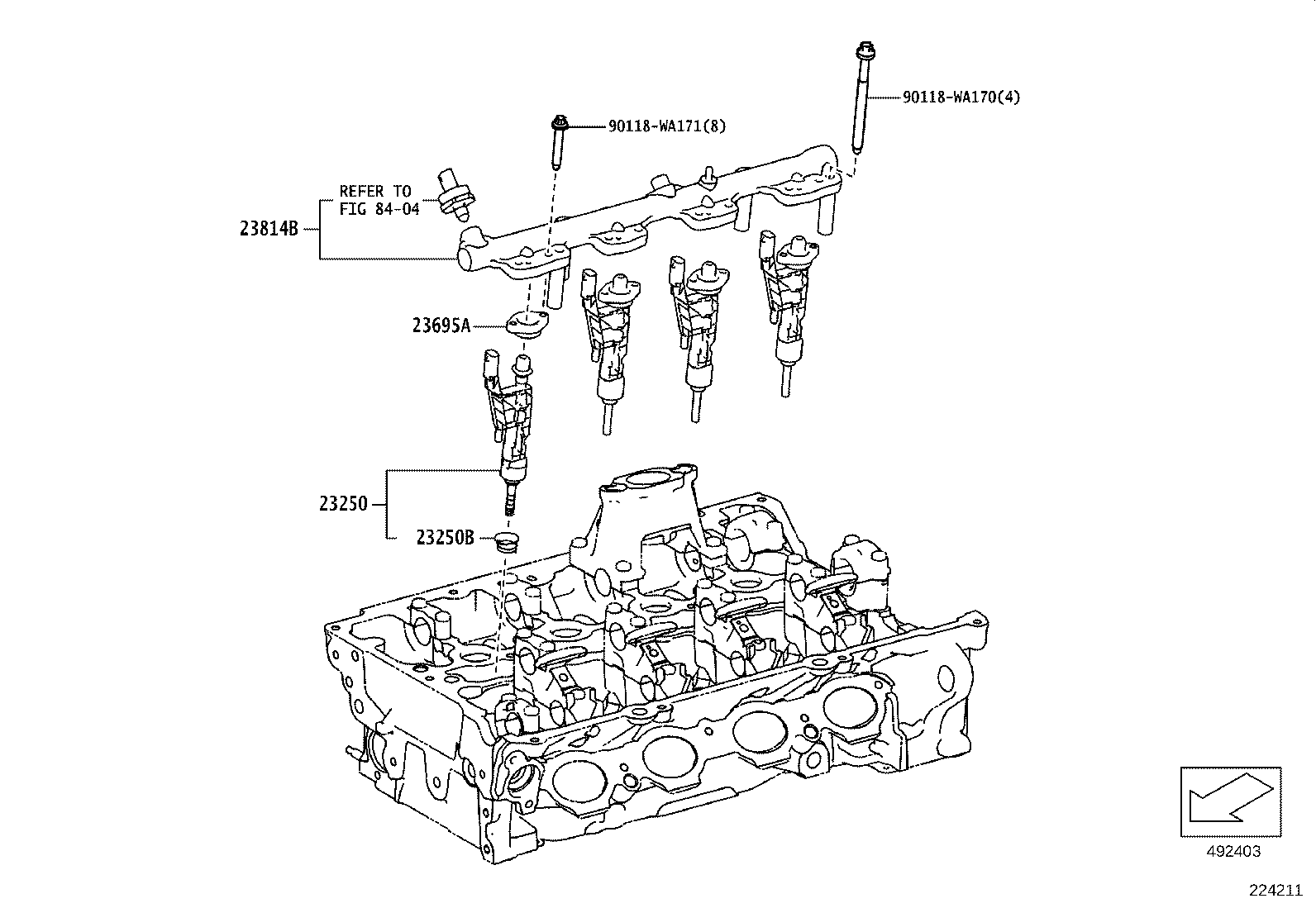

23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)

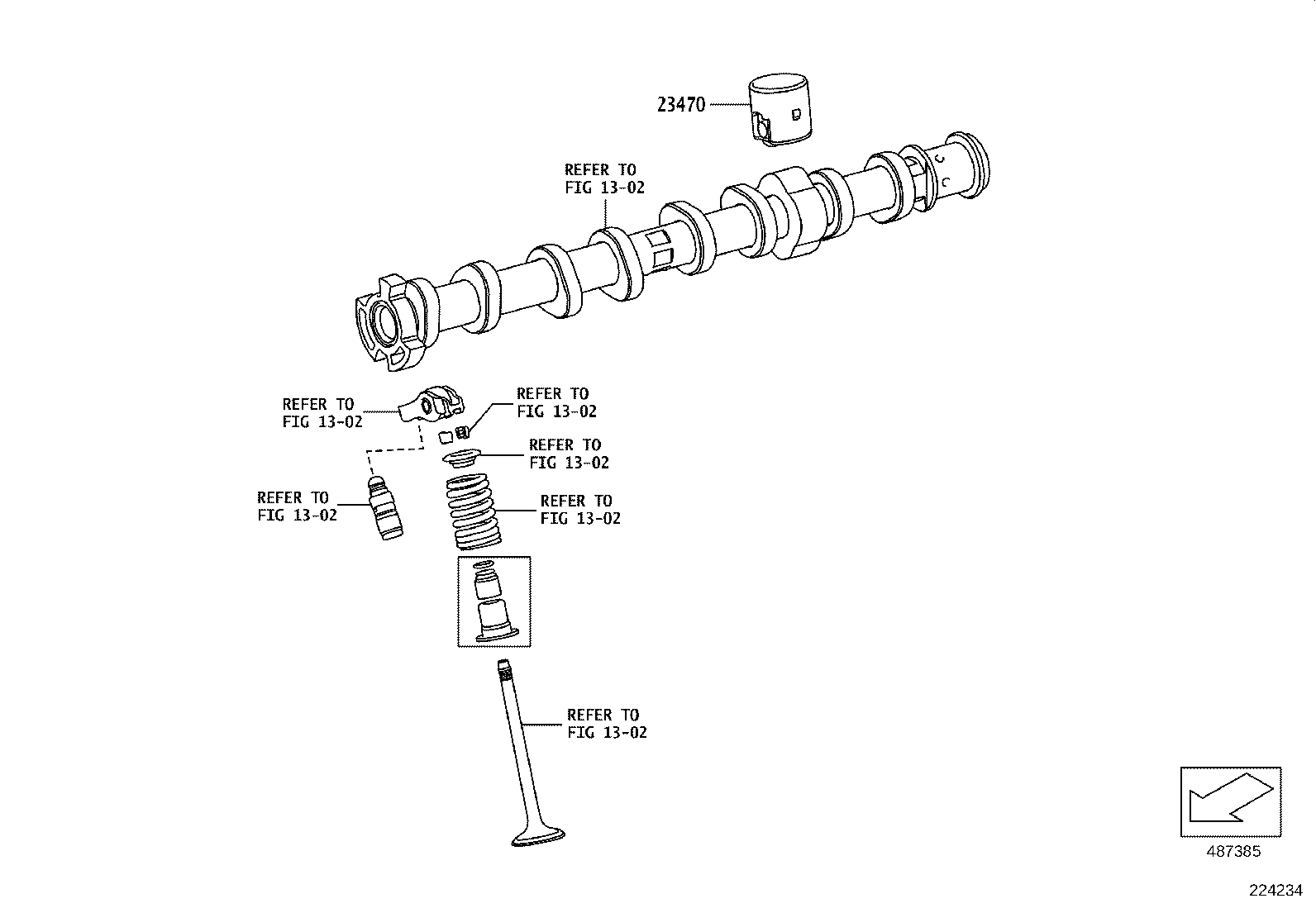

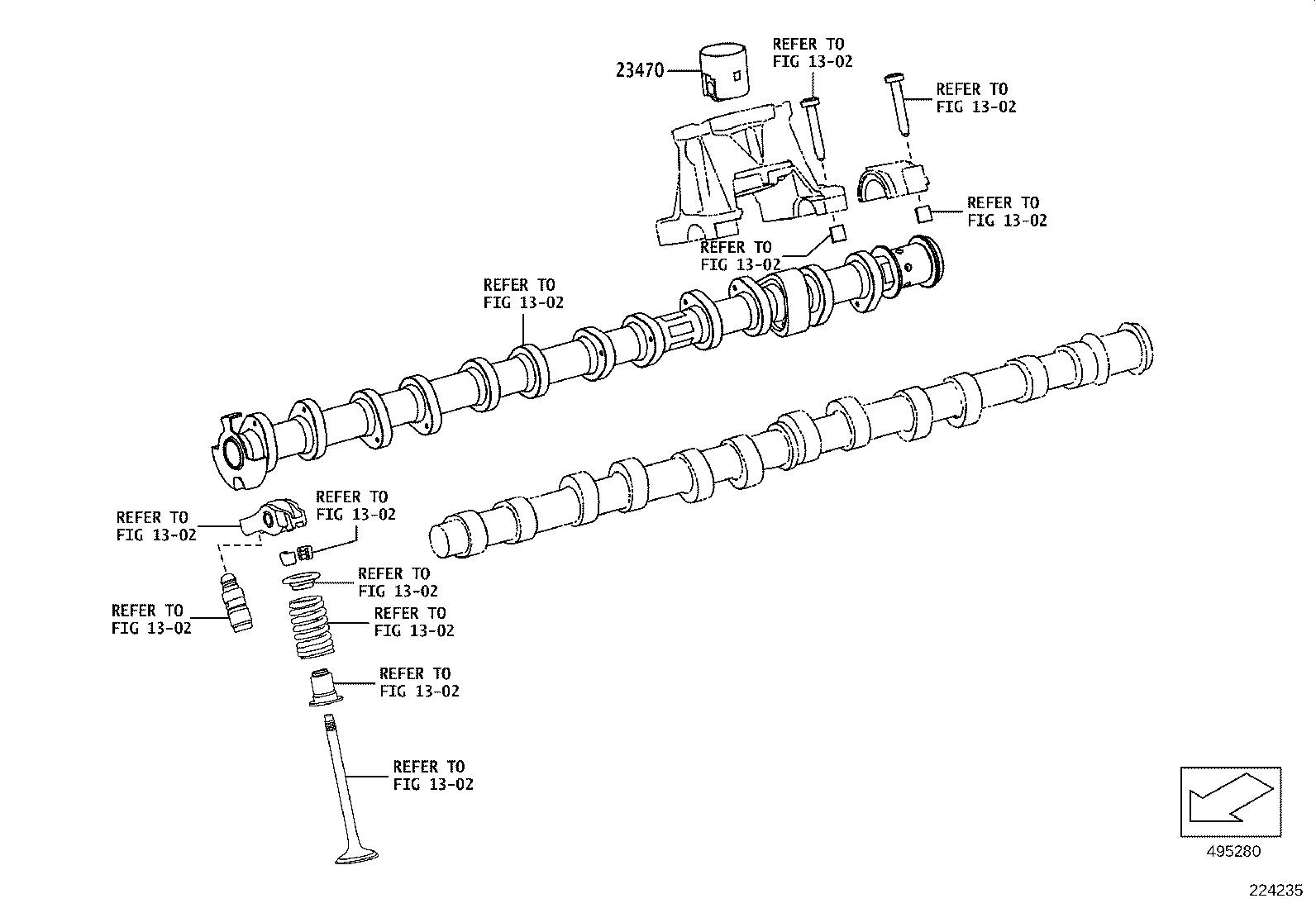

23470 Lifter Assy, Fuel Pump
23477 Guide, Fuel Pump Lifter
23695A Clamp, Nozzle Holder
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2

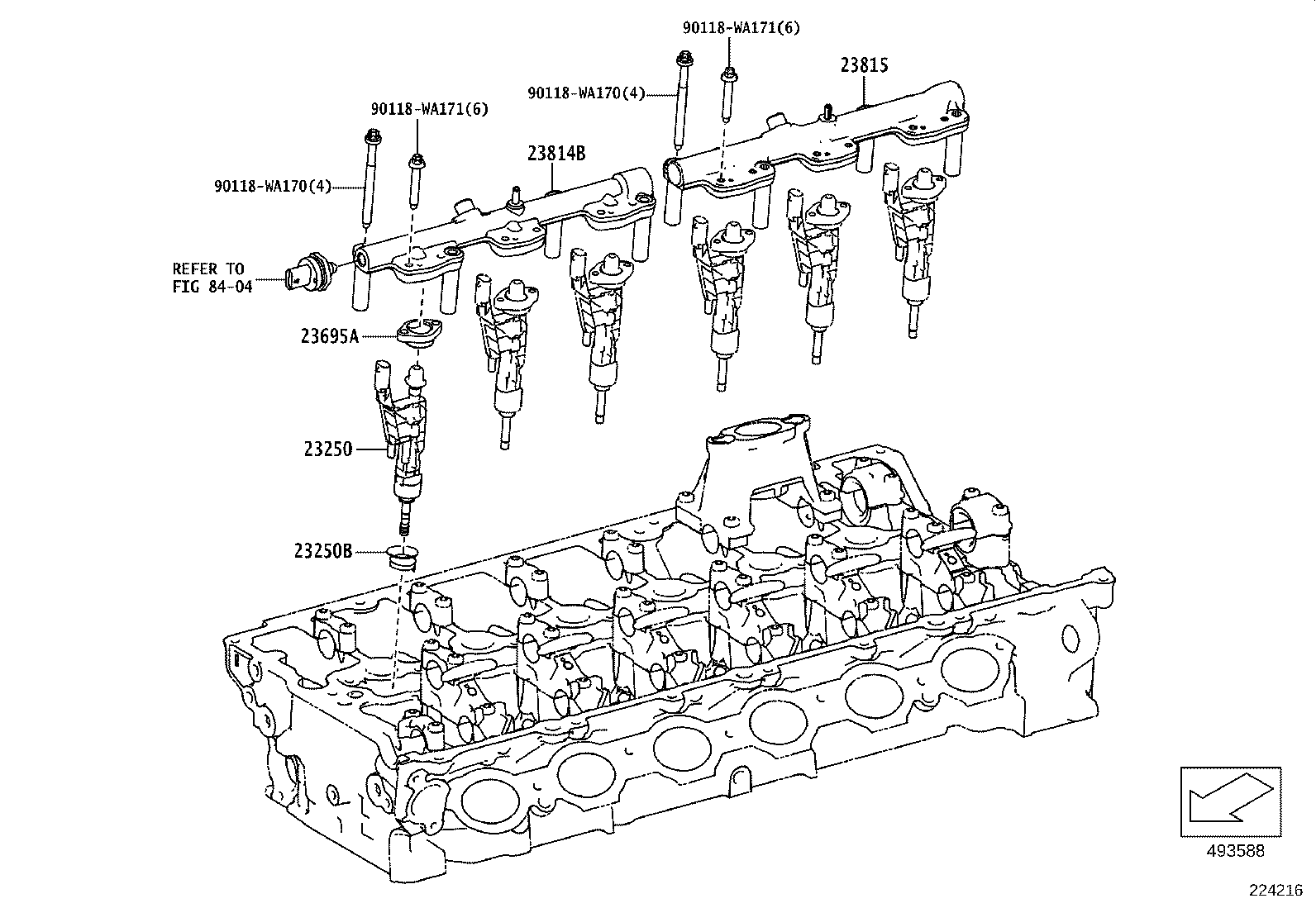

23814B Pipe, Fuel Delivery
23815 Pipe, Fuel Delivery, NO.2
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
