Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

8 part groups · 3 illustrations

Illustrations

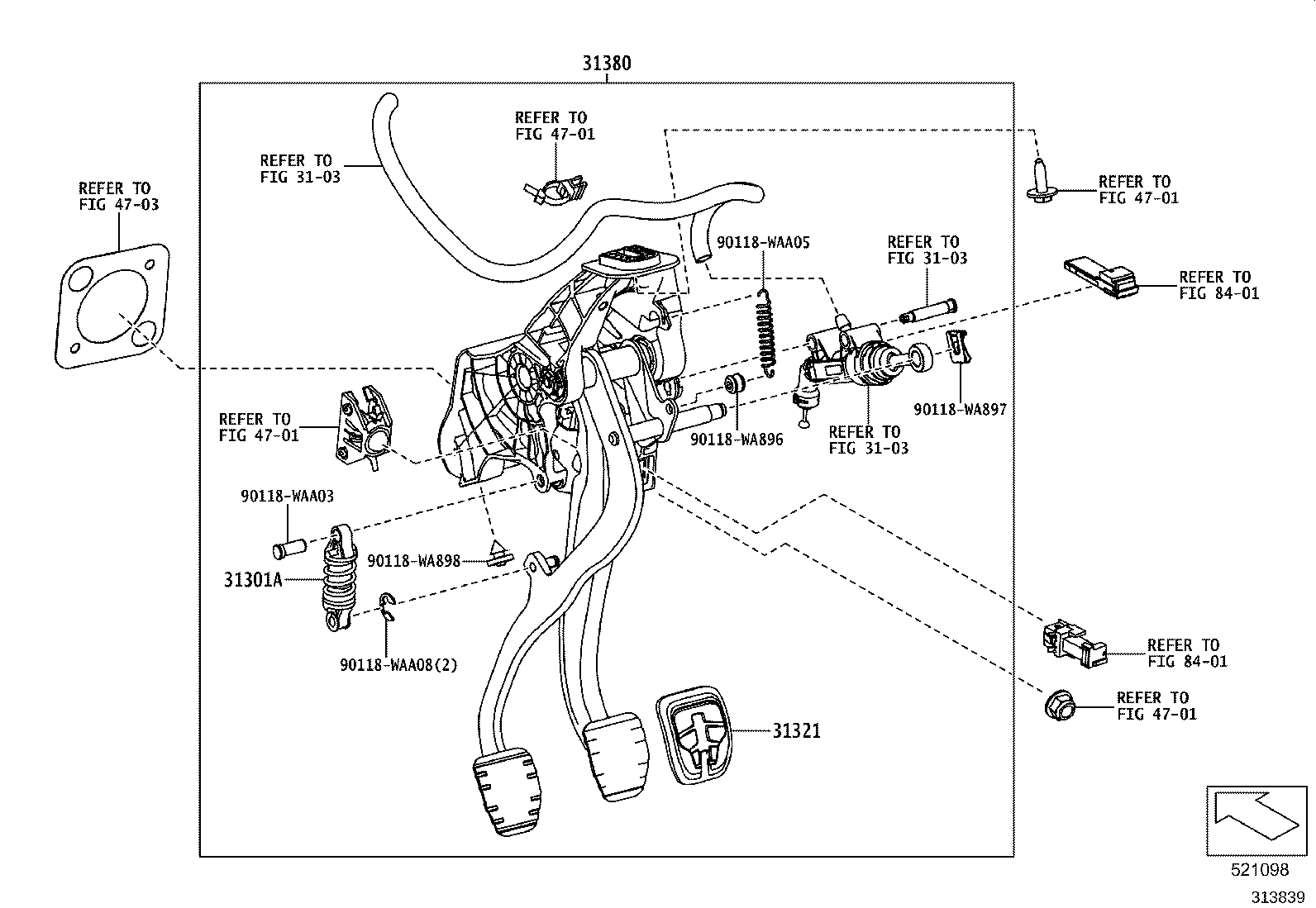

Figure 313838A 313838A 2022-07 → — Figure 313839 313839 2022-07 → — Figure 313840 313840 2022-07 → —

Part groups

PNCDescription
31301A Spring(FOR CLUTCH PEDAL)
31321 Pad, Clutch Pedal
31380 Support Assy, Pedal
31418 Hose, Clutch
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482D Tube, Clutch Release Cylinder TO Accumulator
31484 Bracket, Flexible Hose(FOR CLUTCH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
