Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08

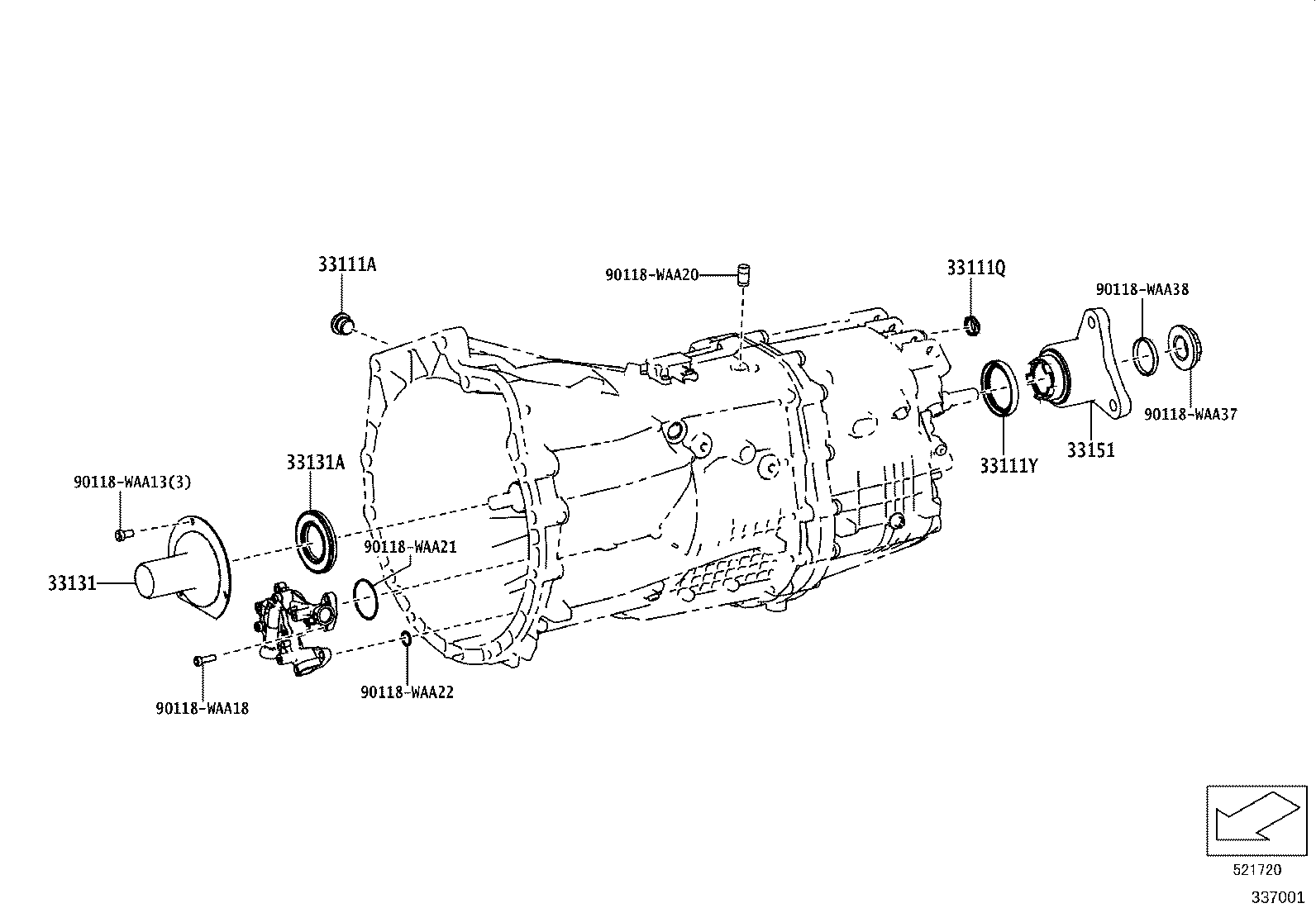

Clutch Housing & Transmission Case (MTM)
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33111A | Plug, Manual Transmission Case |
| 33111Q | Seal, Oil(FOR TRANSMISSION CASE) |
| 33111Y | Seal, Oil(FOR TRANSMISSION CASE) |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
