Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

9 part groups · 10 illustrations

Illustrations

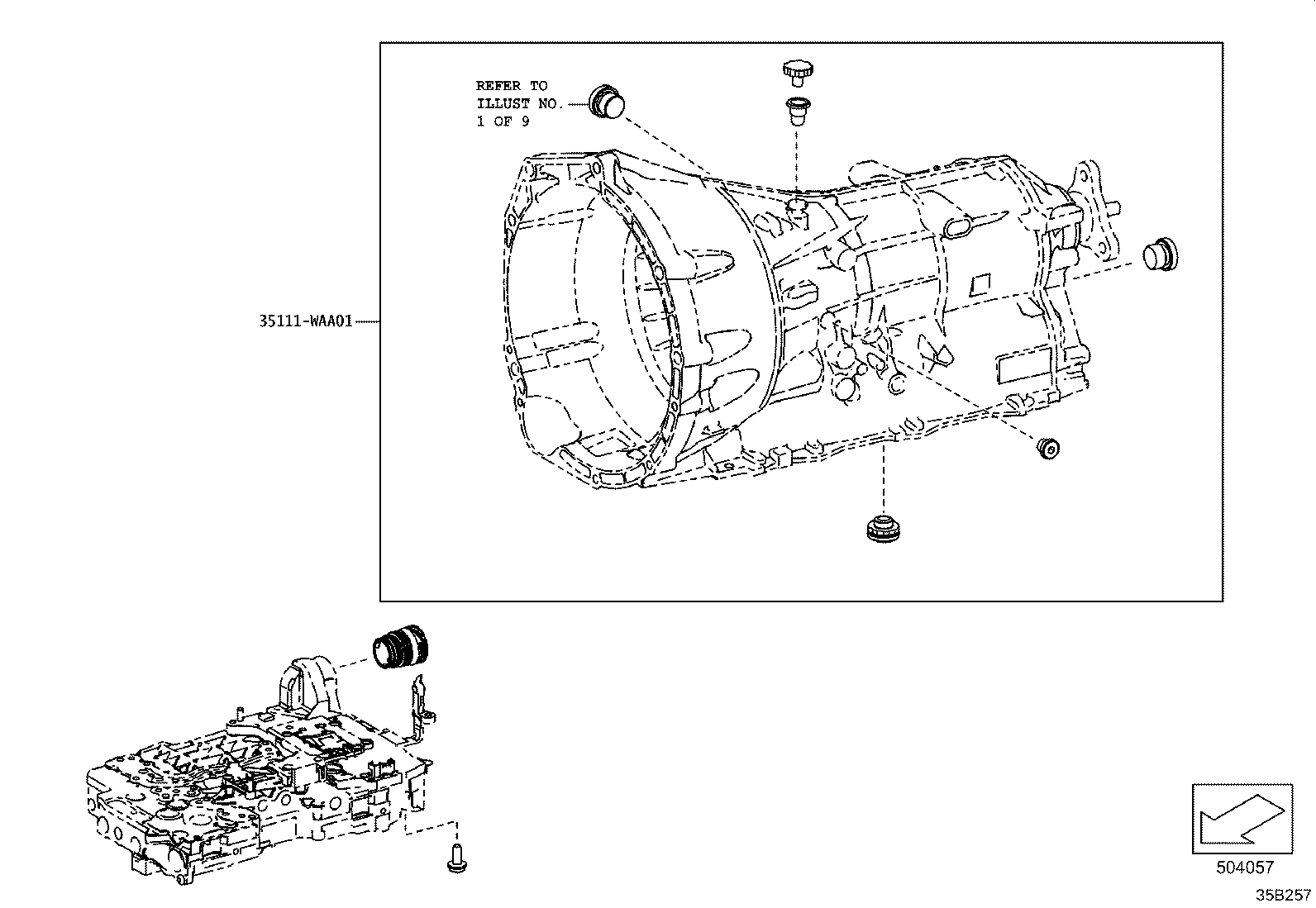

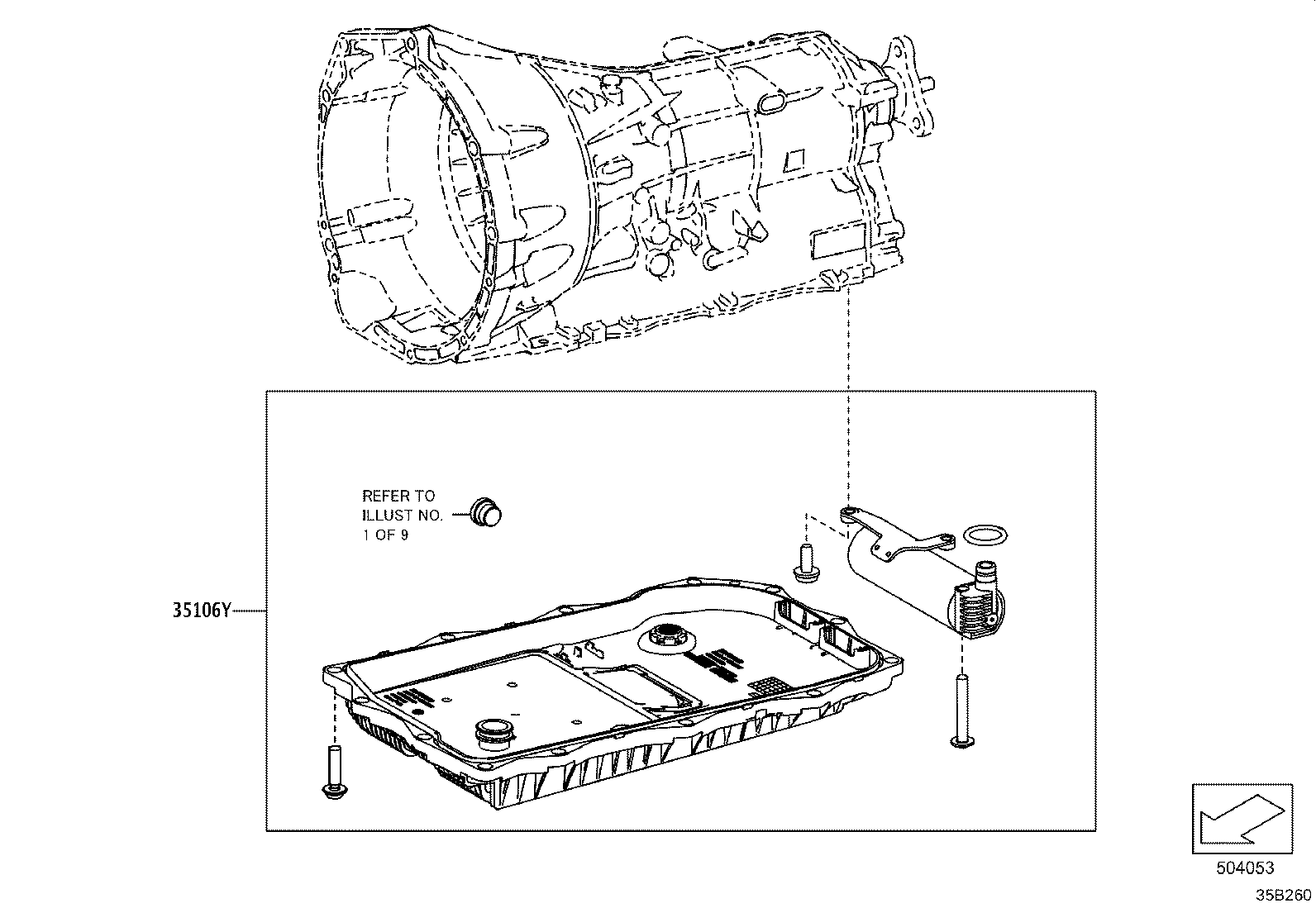

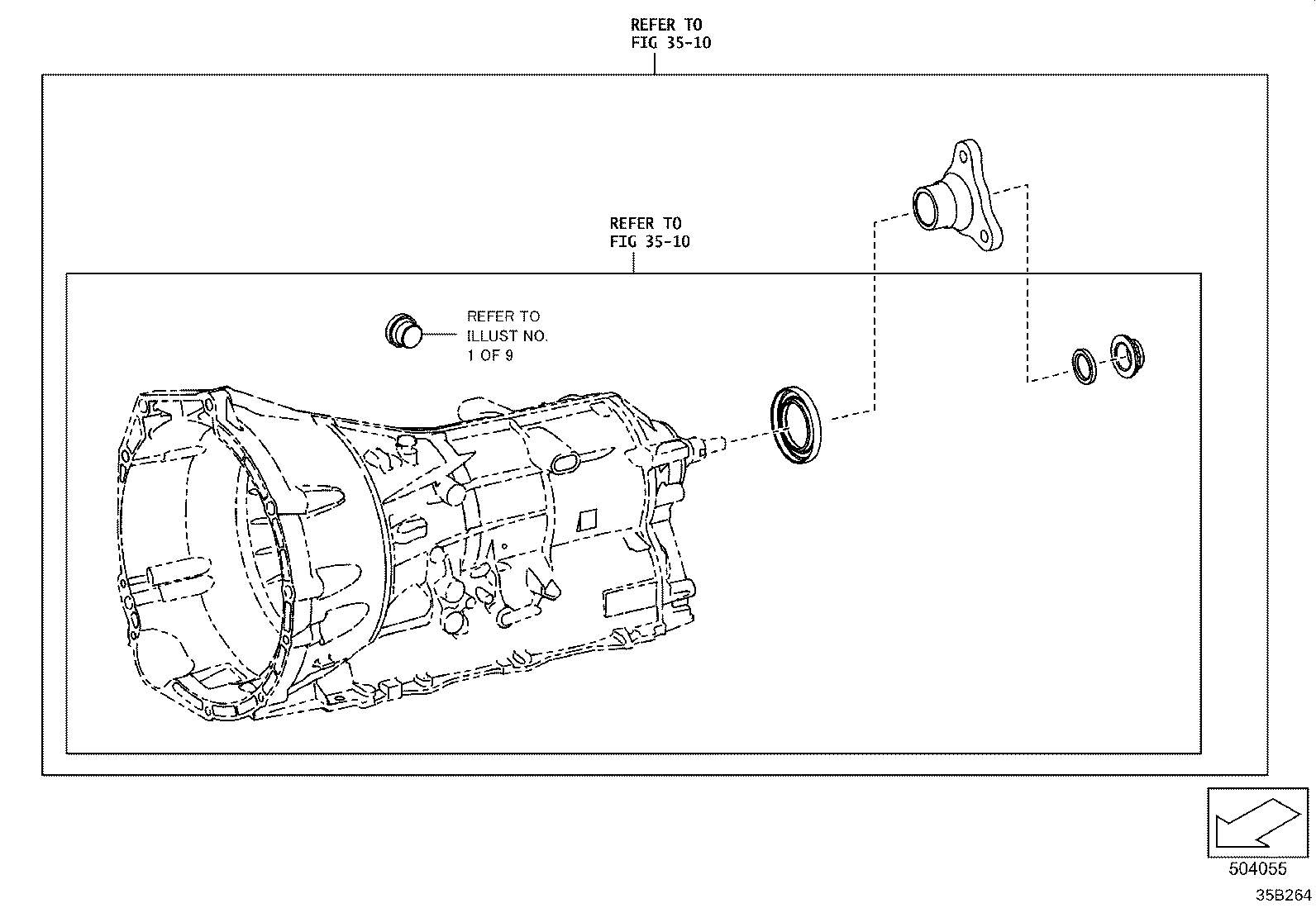

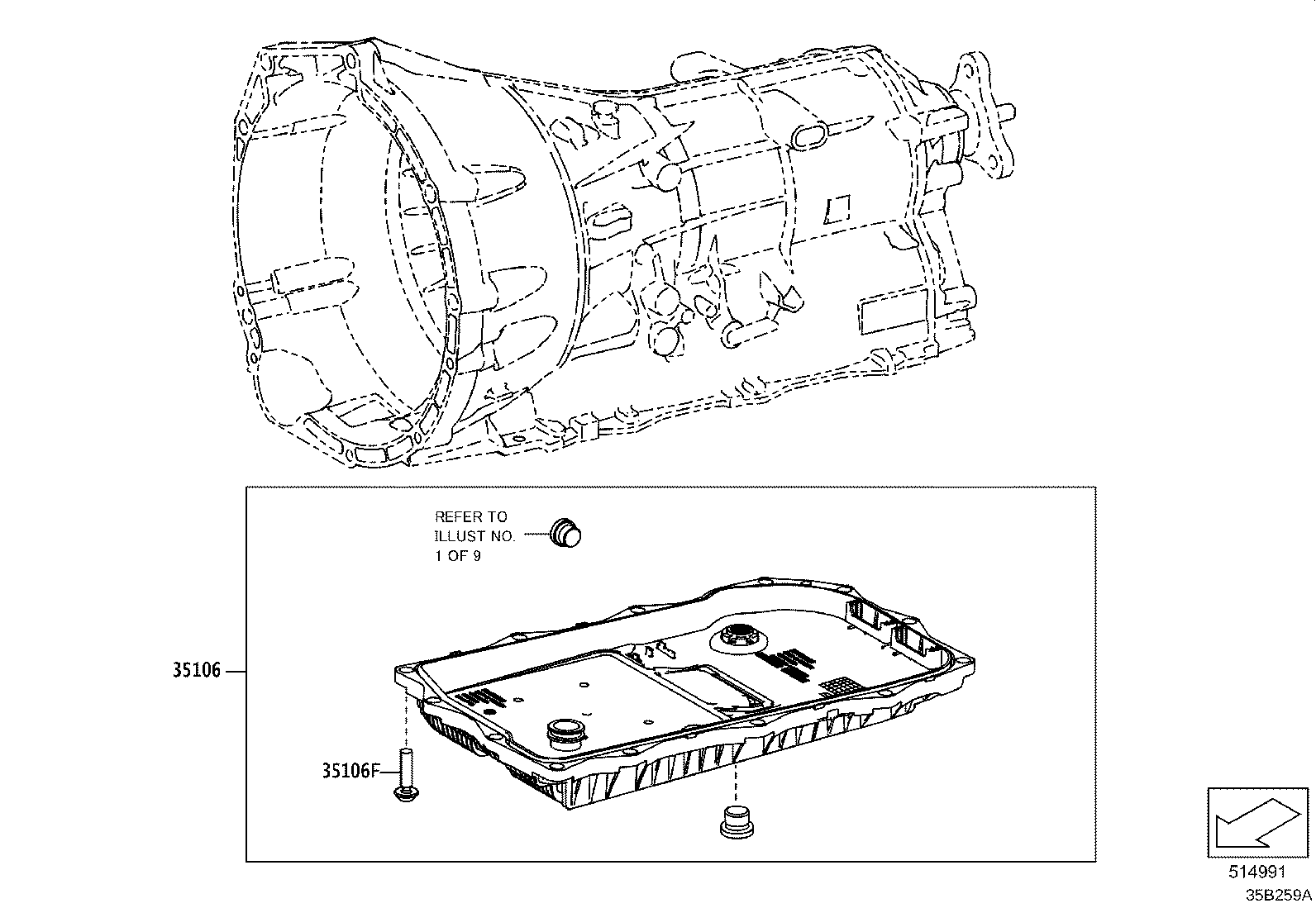

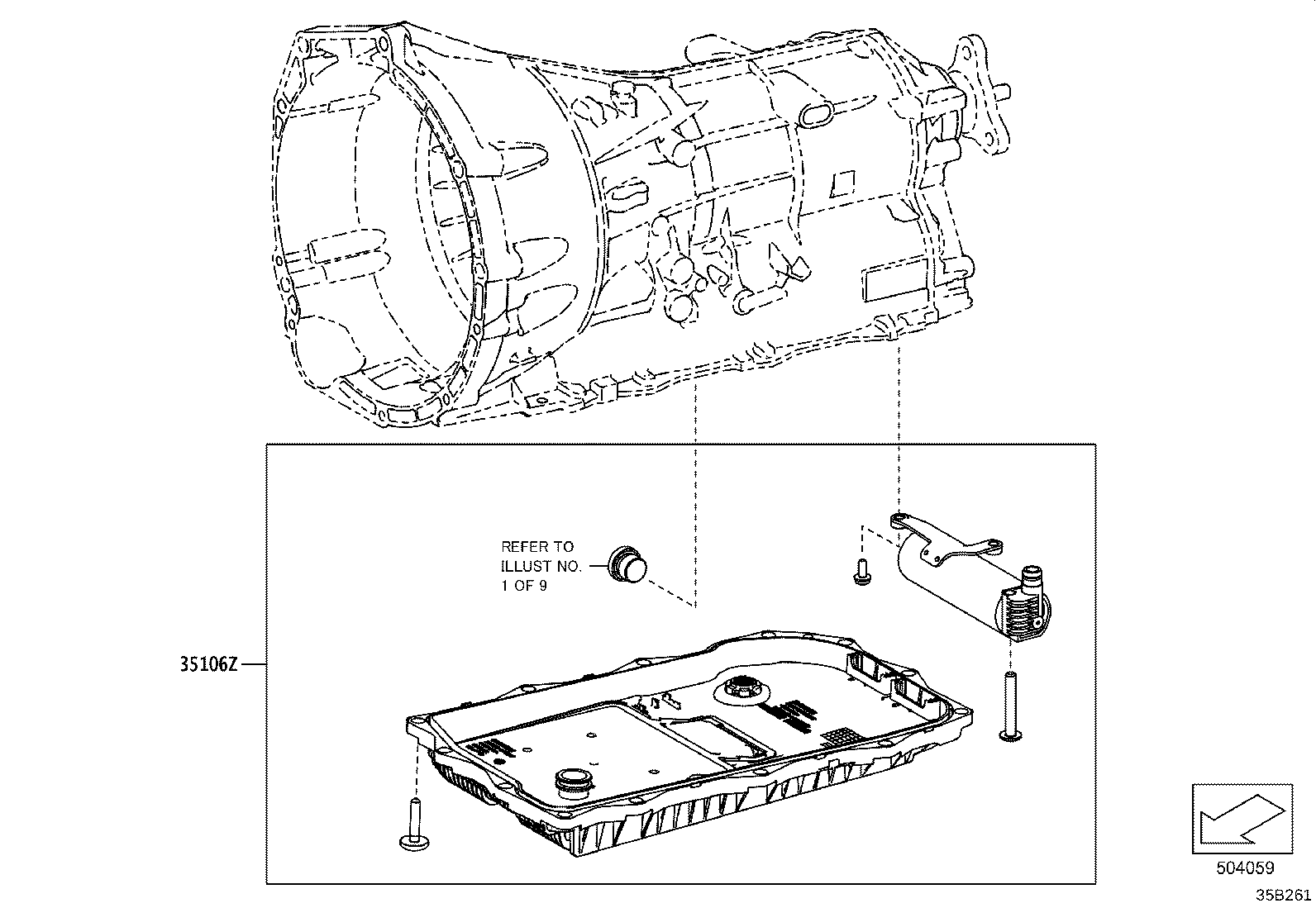

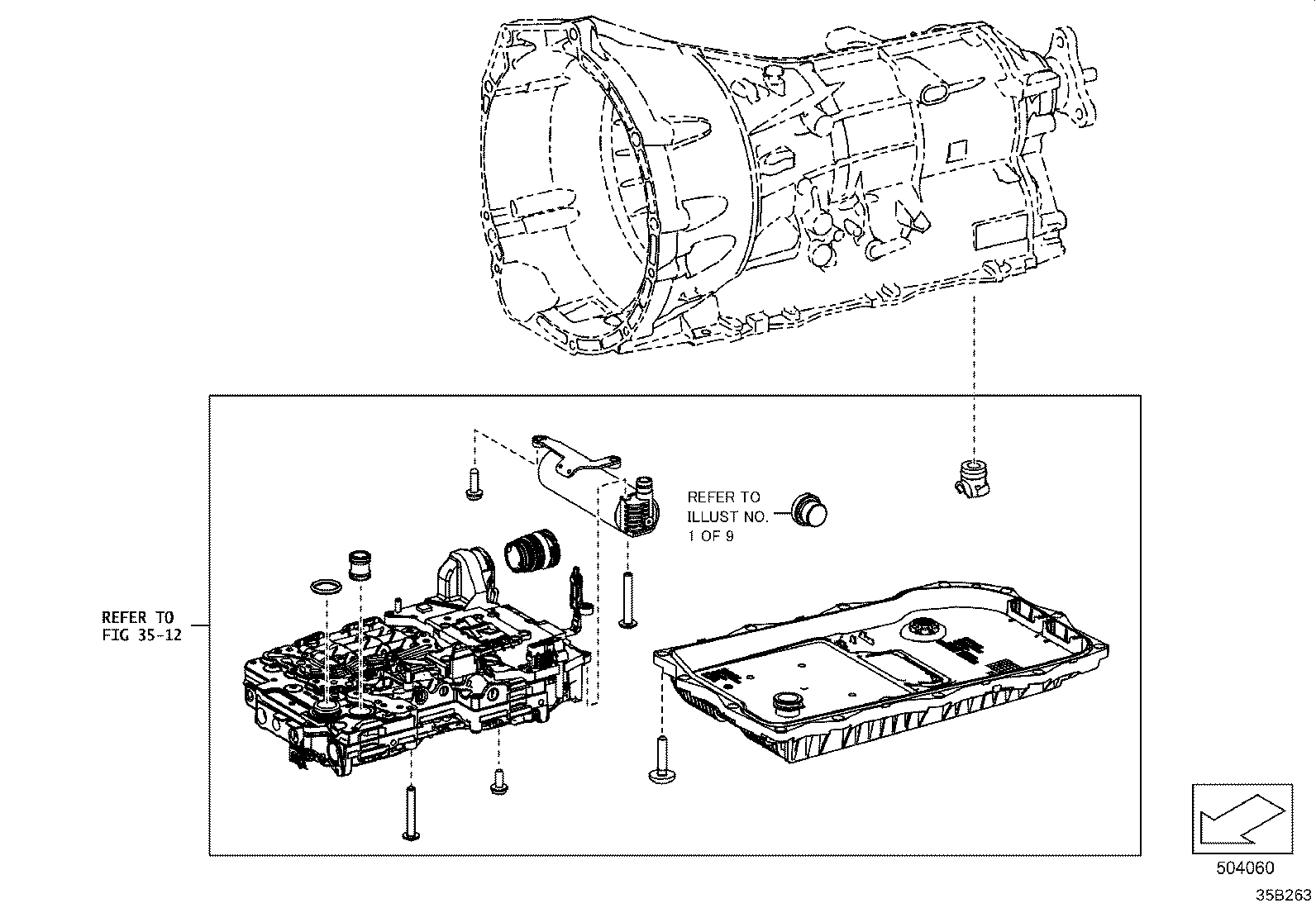

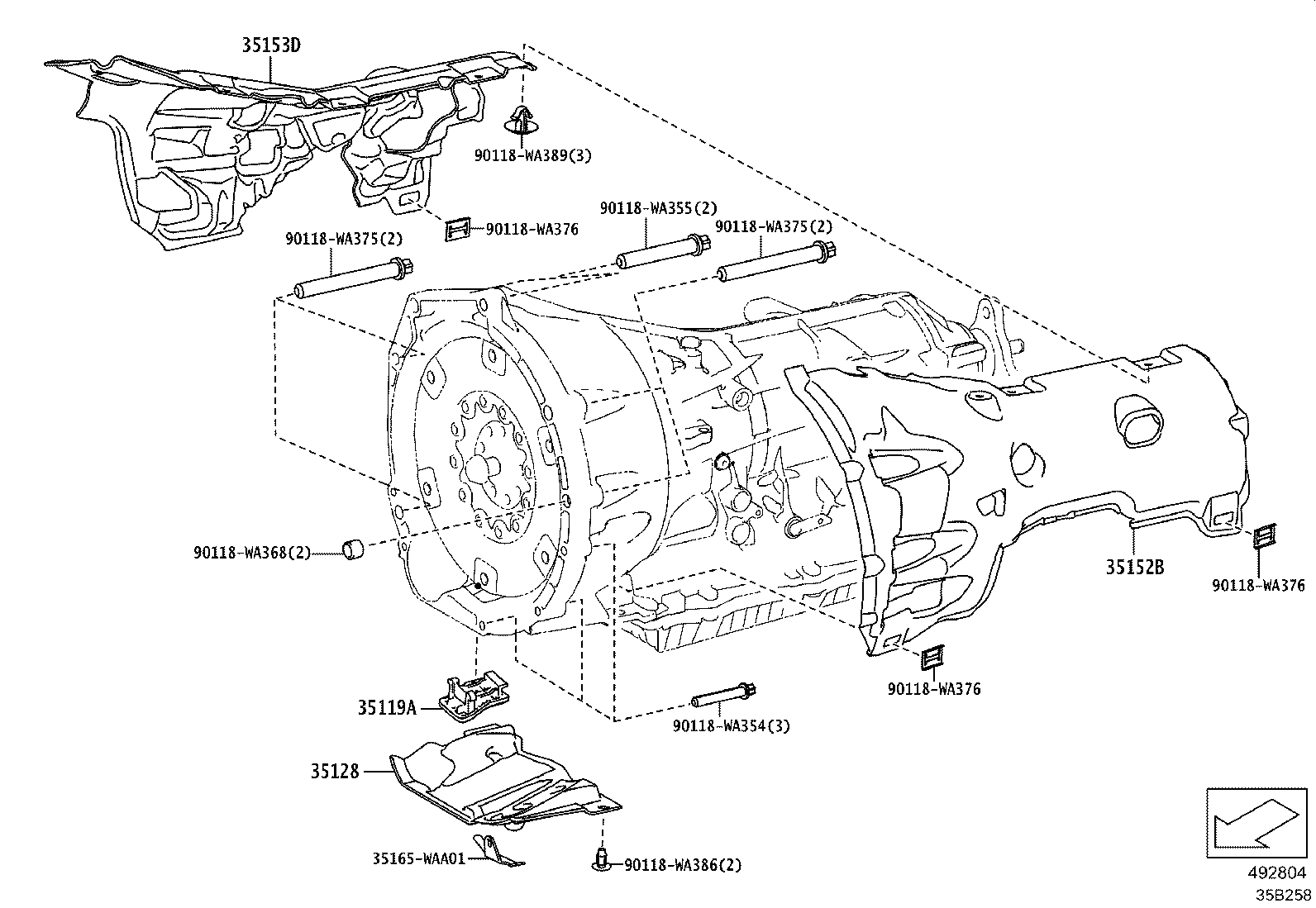

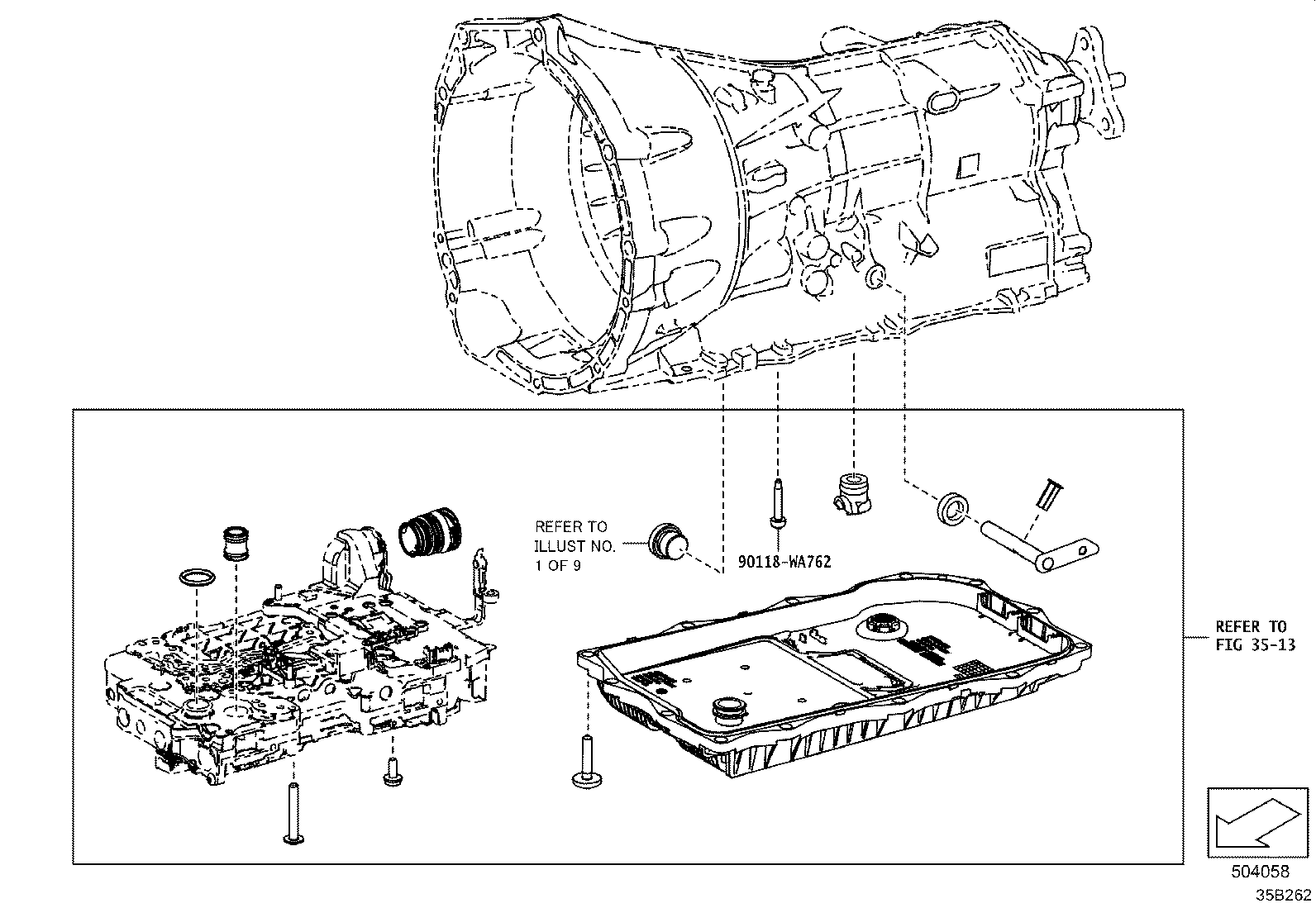

Figure 35B256 35B256 2022-07 → — Figure 35B264 35B264 2022-07 → — Figure 35B257 35B257 2022-07 → 2022-11 Figure 35B55H 35B55H 2022-12 → — Figure 35B258 35B258 2022-07 → — Figure 35B259A 35B259A 2022-07 → — Figure 35B260 35B260 2022-07 → — Figure 35B261 35B261 2022-07 → — Figure 35B262 35B262 2022-07 → — Figure 35B263 35B263 2022-07 → —

Part groups

PNCDescription
35104A Plug, Automatic Transmission Case
35106 Pan Sub-assy, Automatic Transmission Oil
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Y Repair Kit(FOR HYDRAULIC FLUID TANK)
35106Z Repair Kit(FOR OIL RESERVOIR)
35119A Cover, Transmission Housing
35128 Cover, Transmission Housing Under (ATM)
35152B Cover, Transmission Case, Side, LH
35153D Cover, Transmission Case, Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
