Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

11 part groups · 2 illustrations

Illustrations

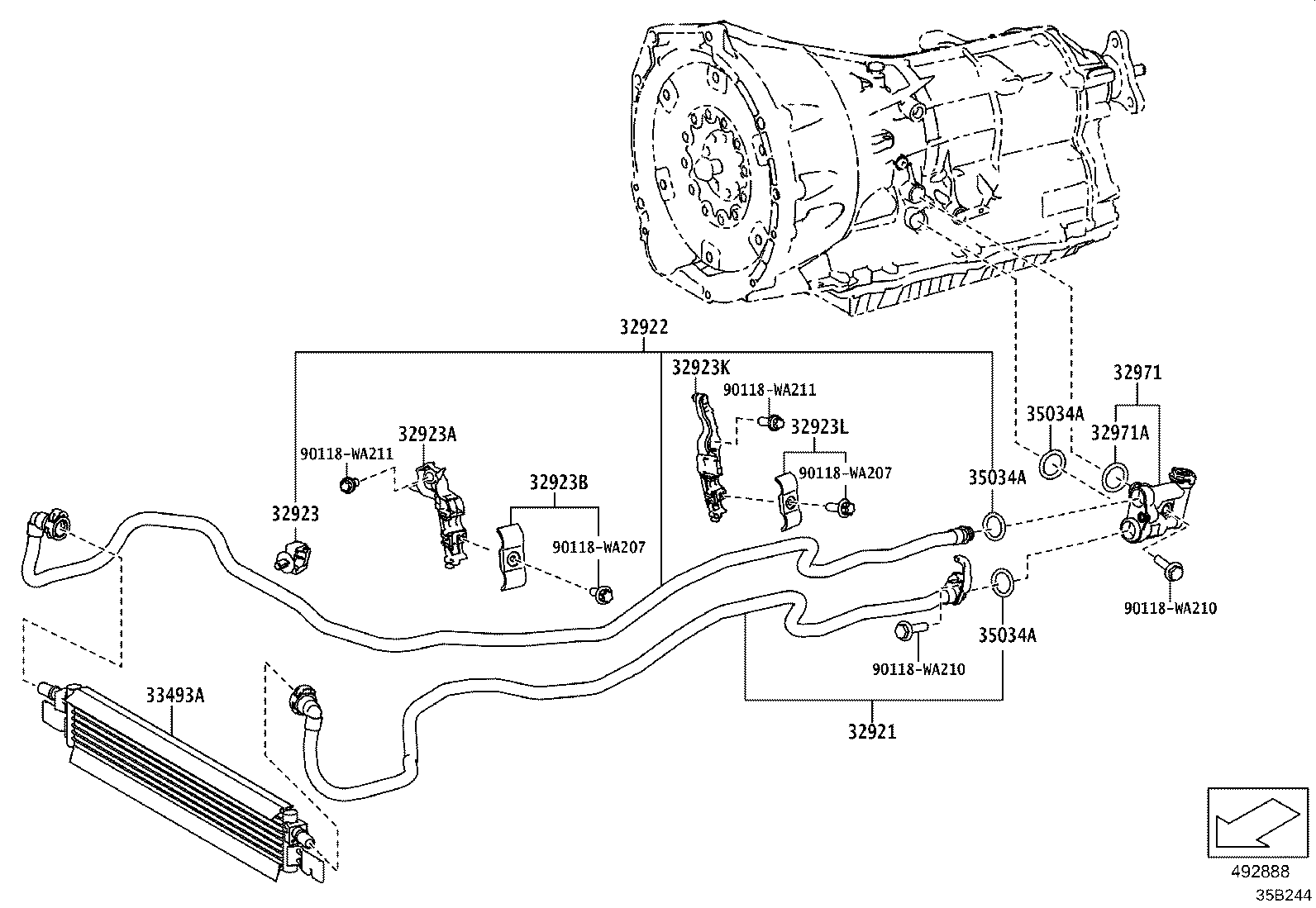

Figure 35B243A 35B243A 2022-07 → — Figure 35B244 35B244 2022-07 → —

Part groups

PNCDescription
32921 Tube, Oil Cooler Inlet, NO.1
32922 Tube, Oil Cooler Outlet, NO.1
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923K Clamp, Automatic Transmission Oil Cooler Tube, NO.2
32923L Clamp, Automatic Transmission Oil Cooler Tube, NO.3
32971 Thermostat, Transmission Oil
32971A Ring, O(FOR TRANSMISSION OIL THERMOSTAT)
33493A Cooler, Transmission Oil(ATF WARMER)
35034A Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
