Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

5 part groups · 3 illustrations

Illustrations

435049 2022-07 → —

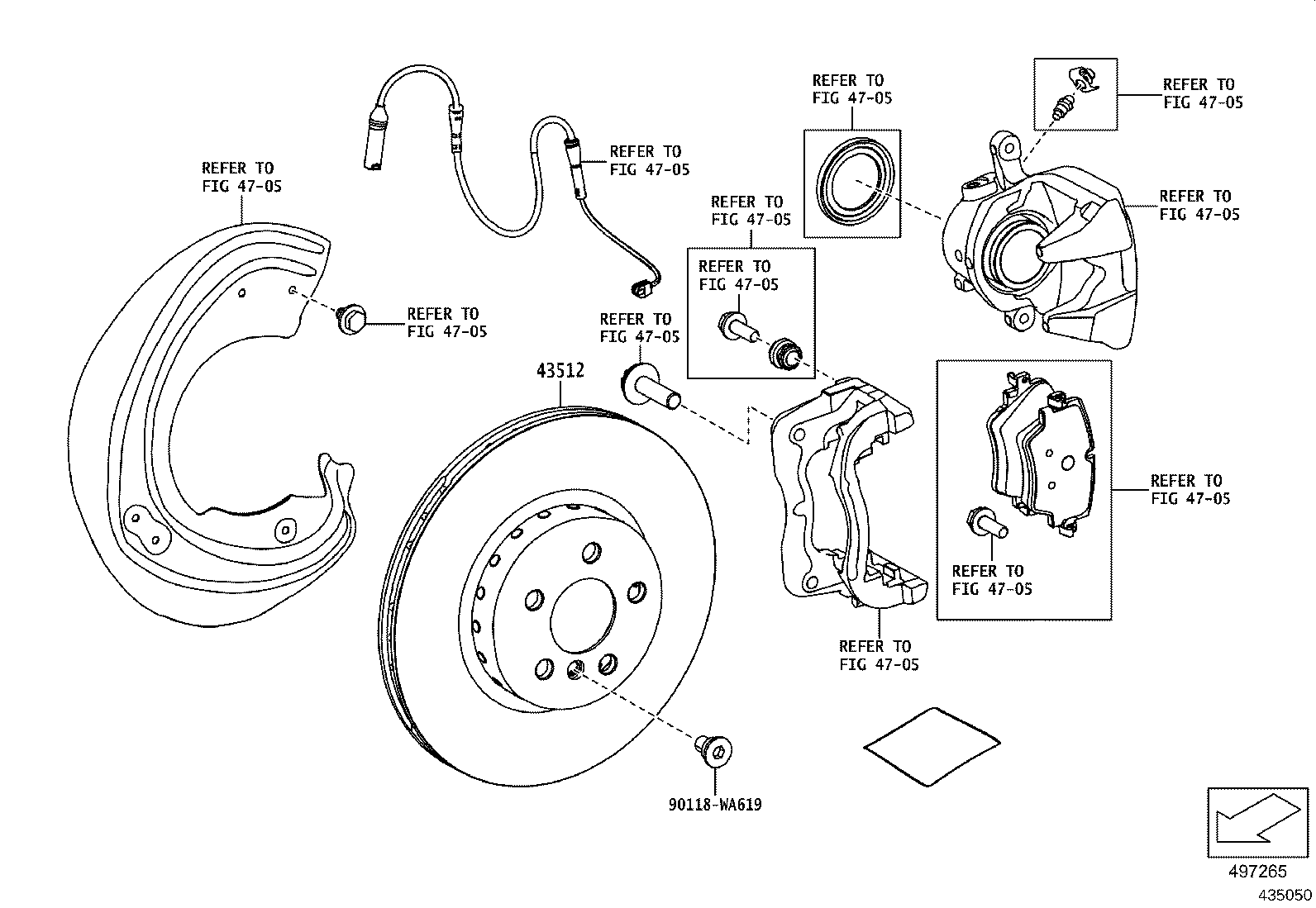

435050 2022-07 → —

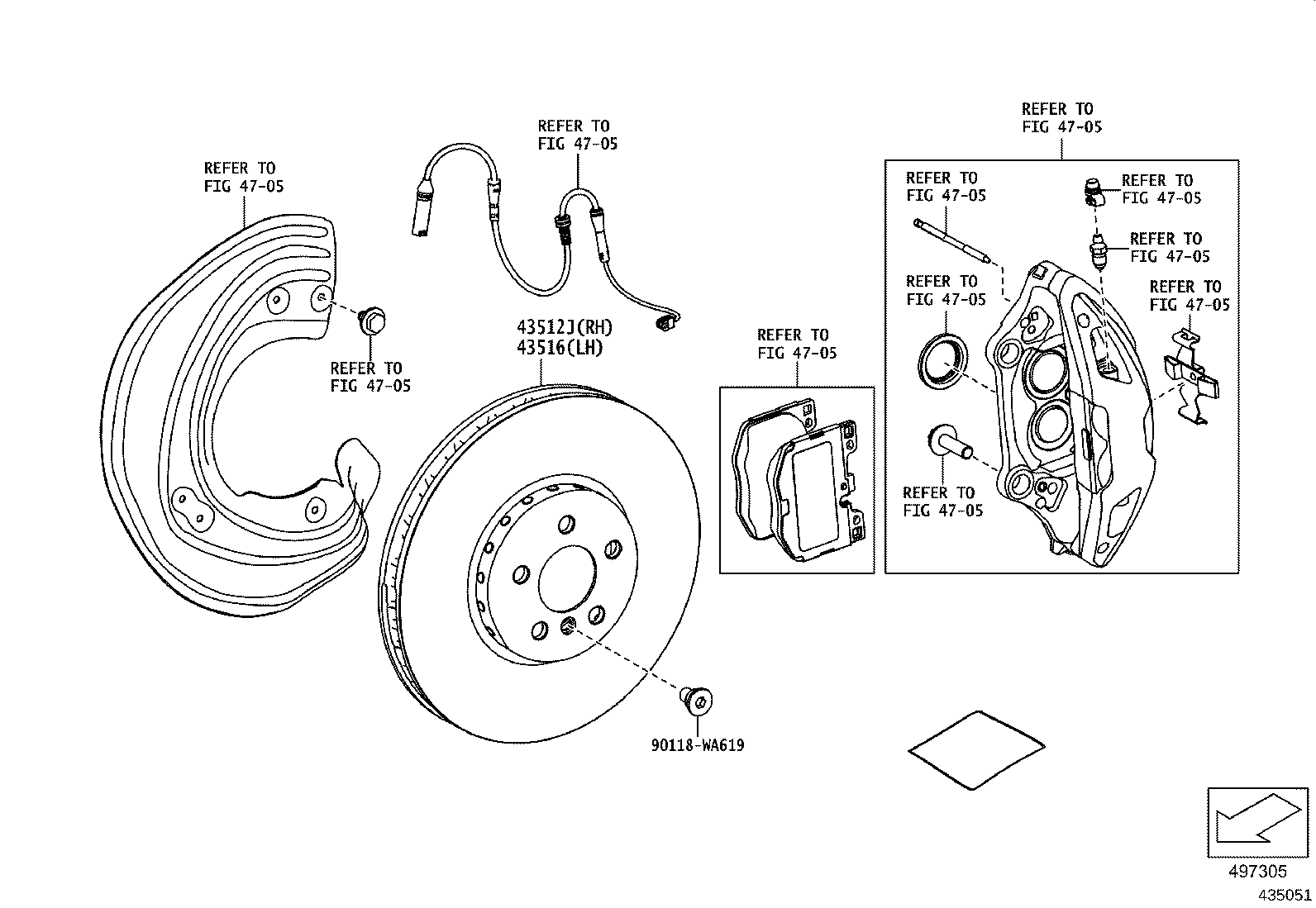

435051 2022-07 → —

Part groups

PNC	Description
43501C	Hub Sub-assy, Front Axle, RH
43502C	Hub Sub-assy, Front Axle, LH
43512	Disc, Front
43512J	Disc, Front RH
43516	Disc, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
